Nakamichi Wireless Apple CarPlay & Android Auto System for Nissan Vehicles

Compatible Models:

• Nissan Almera N17 (2012-2013)
• Nissan Cube BZ11 (2002-2008)
• Nissan Maxima A33 (1999-2003)
• Nissan Micra K12 (2003-2010)
• Nissan Murano Z50 (2005-2008)
• Nissan Navara D22 (1997-2014)
• Nissan Navara D40 (2005-2014)
• Nissan Pathfinder WX/R51 (1996-2013)
• Nissan Patrol GU (1997-2012)
• Nissan TiiDA C11 (2006-2013)
• Nissan X-Trail T30/T31 (2001-2007)

Important Notice:

• Fully compatible with steering wheel controls

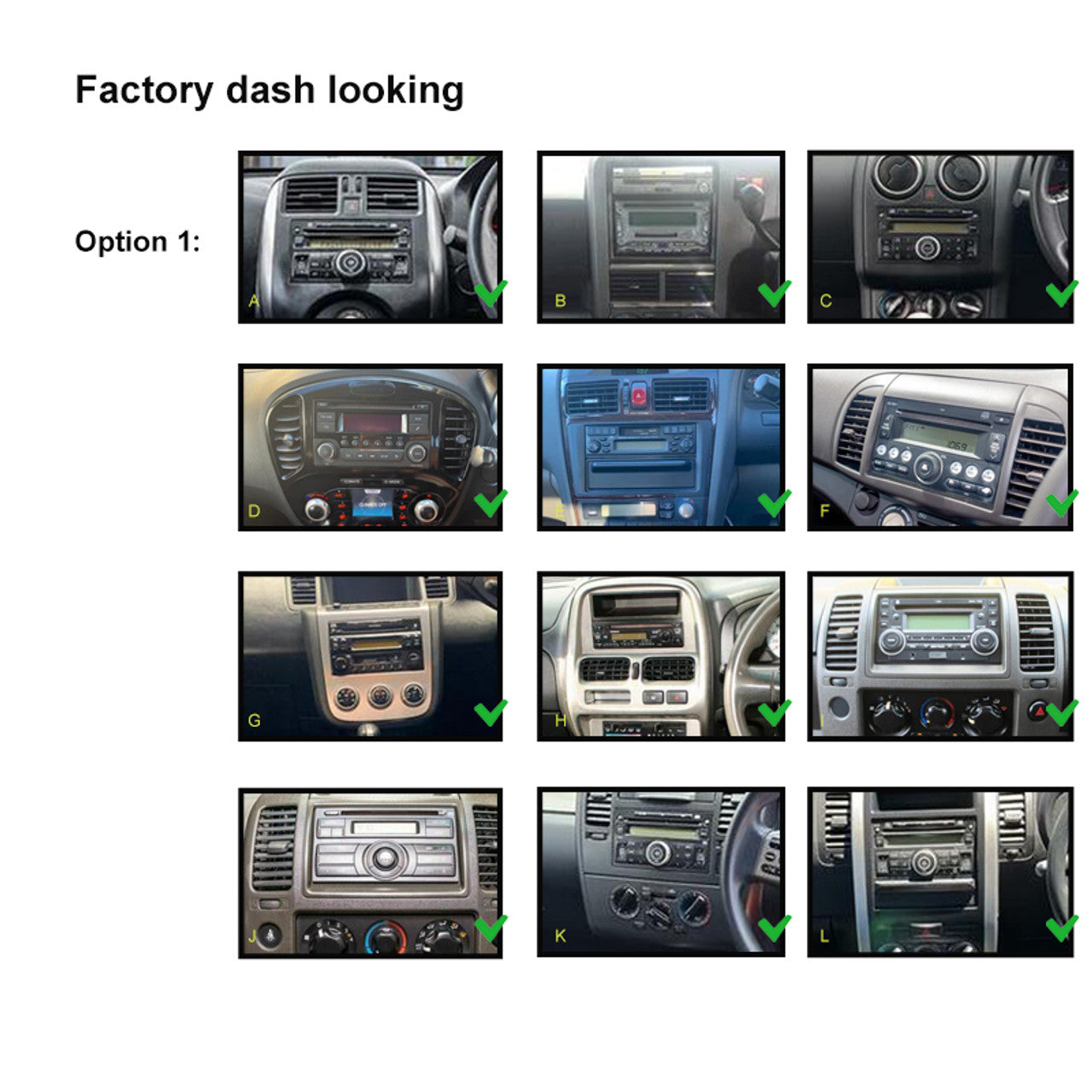

• Designed for Nissan models with a 180*100mm factory radio
• Please send a photo of your dashboard along with the car’s year and model to ensure you receive the correct harness.

Key Features:
Wireless Apple CarPlay:
The ultimate co-pilot for your iPhone, enabling wireless connectivity to access navigation, calls, messages, and music on your car's display. CarPlay is safer and smarter, offering all-new app categories and customizable wallpapers for an enhanced in-car experience.

Wireless Android Auto (Wired for some phones):
Android Auto connects wirelessly, displaying apps from your Android phone directly onto your car's screen. Get directions, send hands-free messages, and make calls with ease—all without taking your focus off the road.

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency: 2.4GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Speaker Impedance: 4-8Ω
• AUX inputs (Left & Right) for external devices

Video Connectivity:

• Reverse Camera Input
• Extra Video Input
• Dual Video Outputs

USB Connections:

• USB for CarPlay/Android Auto
• Additional USB for Music/Video

Additional Inputs/Outputs:

• Radio Antenna Input
• Microphone Input

RCA Audio/Video Cable:

• Front/Rear Speaker Outputs
• Subwoofer Output
• Canbus Connector, Parking Brake, Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Wiring Harness
• 1 x RCA Audio/Video Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  Note: Accessory kits may vary based on car model.

General Specifications:

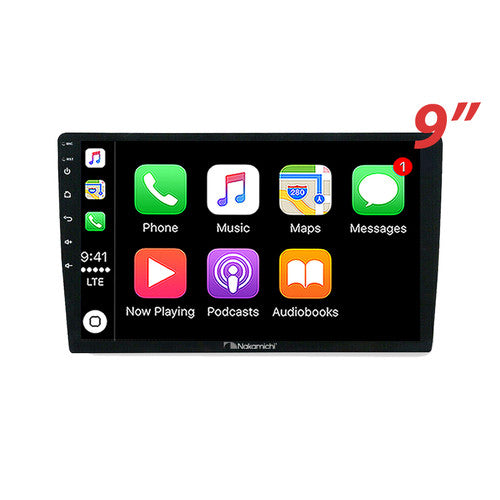

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Charging/Reading: (5±0.25V/1A)
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
