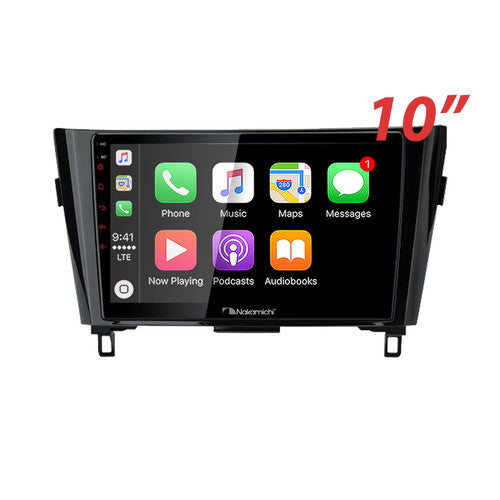

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Nissan Xtrail & Qashqai (2014-2022)

Compatible Models:

• Nissan Xtrail 2014-2022
• Nissan Qashqai 2014-2022

Important Notice:

• Fully compatible with steering wheel controls.
• Works with factory reverse camera.
• Not compatible with Japanese Import models.

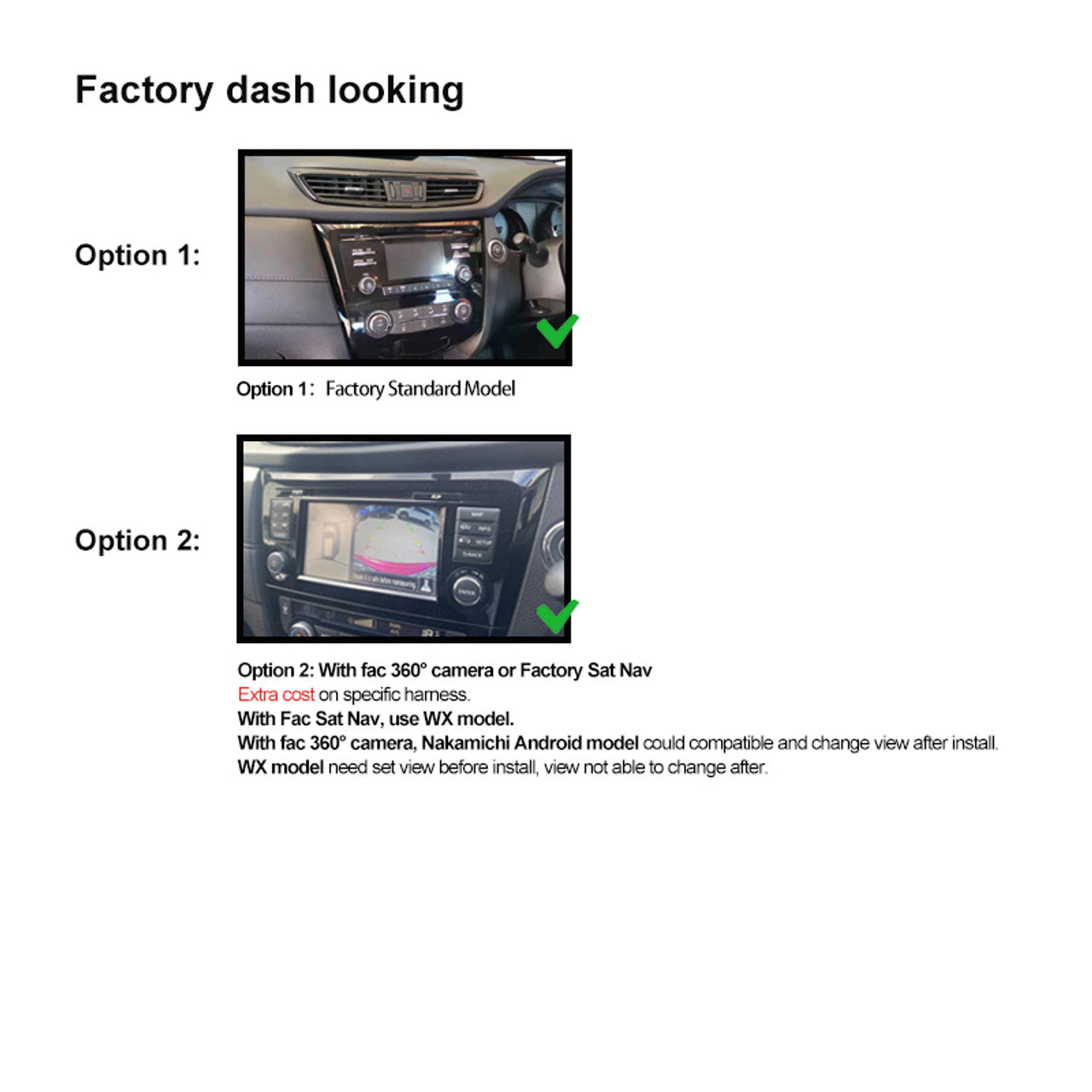

• Option 1: Factory Standard Model.
• Option 2: With factory 360° camera or Sat Nav (extra cost for specific harness). If using Fac Sat Nav, please select WX model. For 360° camera, Nakamichi Android model supports view change after installation (pre-set views with WX model). Please specify your preferred option when placing your order.
• Send a photo of your dashboard with car year and model to receive the correct compatible harness.

Key Features:
Wireless Apple CarPlay:
CarPlay without cables. This smarter and safer co-pilot helps you get directions, make calls, send and receive messages, and enjoy music—all displayed on your car's screen. It now features new app categories and customizable wallpapers for your CarPlay Dashboard, powered by iOS.

Wireless Android Auto (Wired for some phone models):
No cables required to connect your phone. Android Auto projects your phone’s apps onto the car display for easy access to navigation, messages, calls, and more. Focus on the road while enjoying the convenience of Android features, hands-free!

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency: 2.4GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Speaker Impedance: 4-8Ω
• AUX Inputs for external audio devices

Video Connectivity:

• Reverse Camera Video Input
• Extra Video Input
• Dual Video Outputs

USB Connections:

• USB port for CarPlay / Android Auto
• Additional USB for music/video

Additional Inputs/Outputs:

• Radio Antenna Input
• Microphone Input

RCA Audio/Video Cable:

• Front and Rear Speaker Outputs
• Subwoofer Output
• Canbus Connector, Parking Brake, and Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Wiring Harness
• 1 x RCA Audio/Video Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  Note: Accessory kits may vary by car model.

General Specifications:

• TFT Screen Size: 10"
• Display Resolution: 1240×600
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Charging/Reading: (5±0.25V/1A)
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
