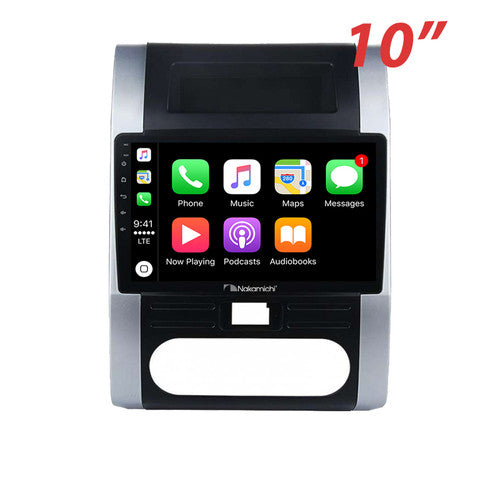

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Nissan Xtrail (2007-2014)

Compatibility:

• For Nissan Xtrail 2007-2014

Important Notice:

• Compatible with steering wheel controls (Note: Bluetooth button on the steering wheel may not work).
• Factory reverse camera requires hardwiring.

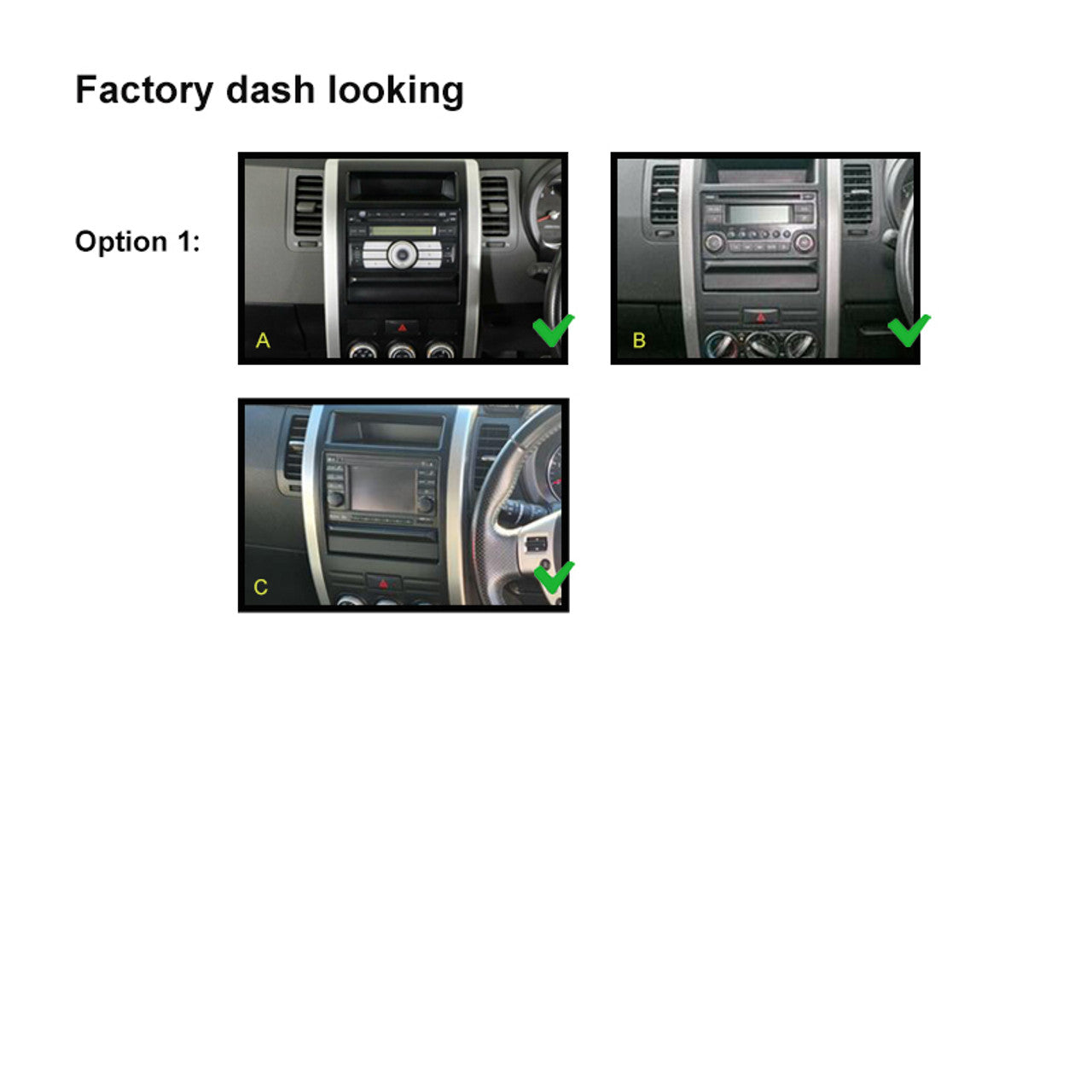

• Please send us a photo of your dashboard along with your car's year and model to receive the correct compatible harness.

Key Features:
WIRELESS APPLE CarPlay:
CarPlay without the need for cables. Enjoy a safer, smarter way to interact with your iPhone while driving. Get directions, make calls, send and receive messages, and listen to your favorite music—all on your car’s display. CarPlay also introduces new app categories and customizable wallpapers for a fresh experience.

WIRELESS ANDROID AUTO (WIRED for some specific phone brands):
Pair your phone wirelessly with the car display, and access your Android apps directly on screen. Tap to get directions, send texts, make hands-free calls, and enjoy music—keeping your attention on the road ahead. Just plug in and enjoy the drive!

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs for external devices

Video Connectivity:

• Reverse Camera Video Input
• Extra Video Input
• Dual Video Outputs

USB Ports:

• USB connection for CarPlay / Android Auto
• Additional USB for music or video

Additional Inputs/Outputs:

• Radio Antenna Input
• Microphone Input

RCA Audio/Video Cable:

• Front and Rear Speaker Outputs
• Subwoofer Output
• Canbus Connector, Parking Brake, and Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Wiring Harness
• 1 x RCA Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  Note: The accessory kit may vary depending on your car model.

General Specifications:

• TFT Screen Size: 10"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Charging/Reading: (5±0.25V/1A)
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
