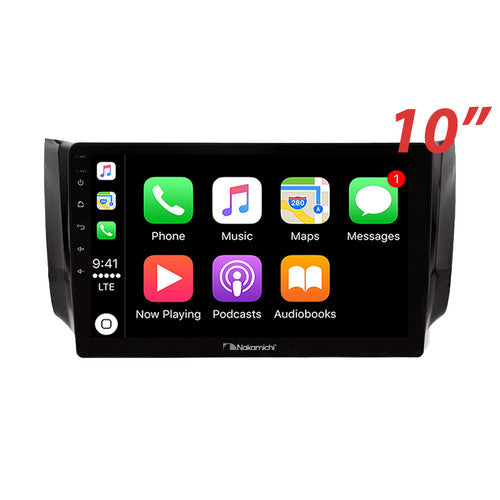

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Nissan Pulsar (2012-2016)

Compatibility:

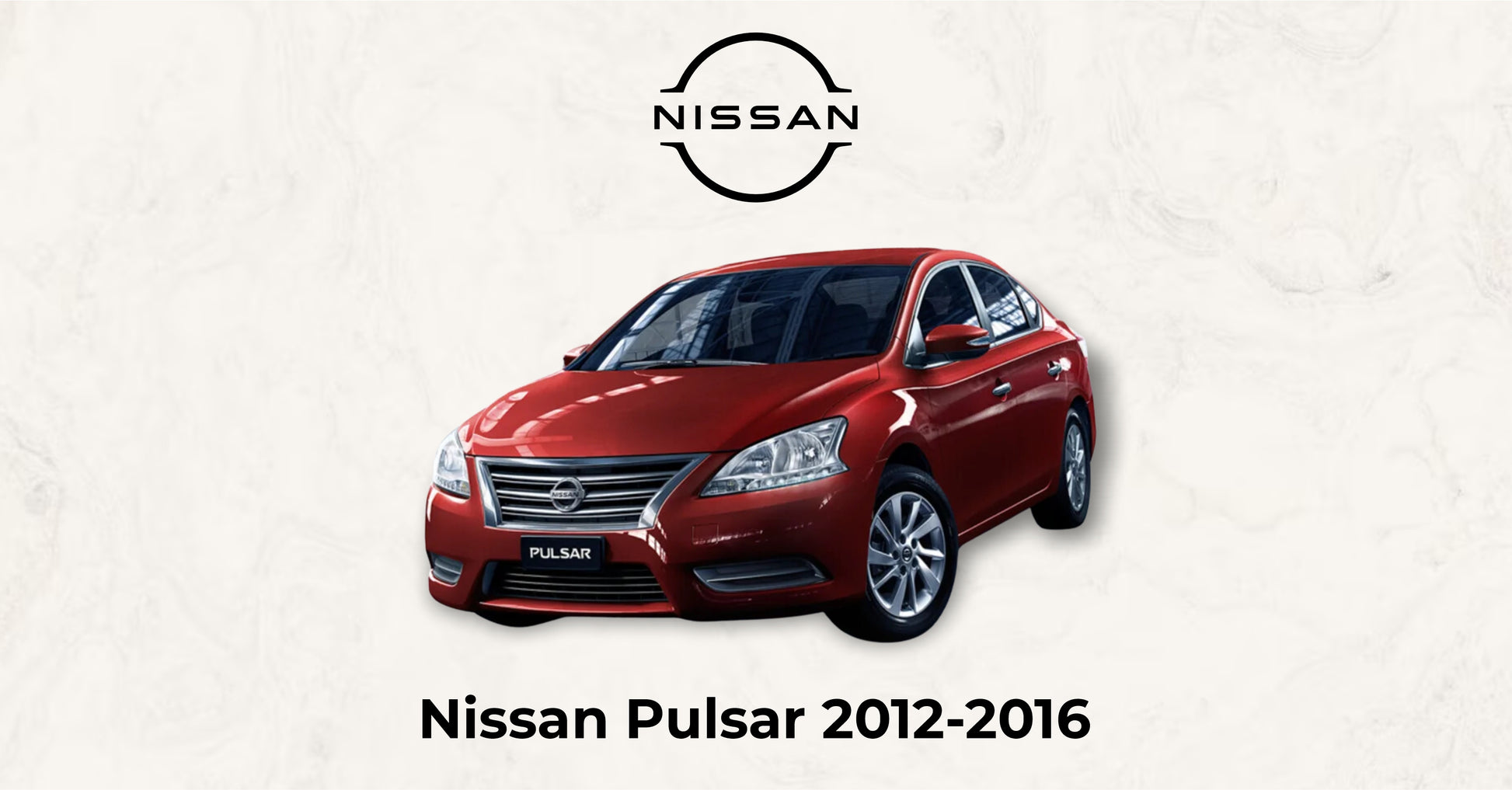

• For Nissan Pulsar 2012-2016

Important Notice:

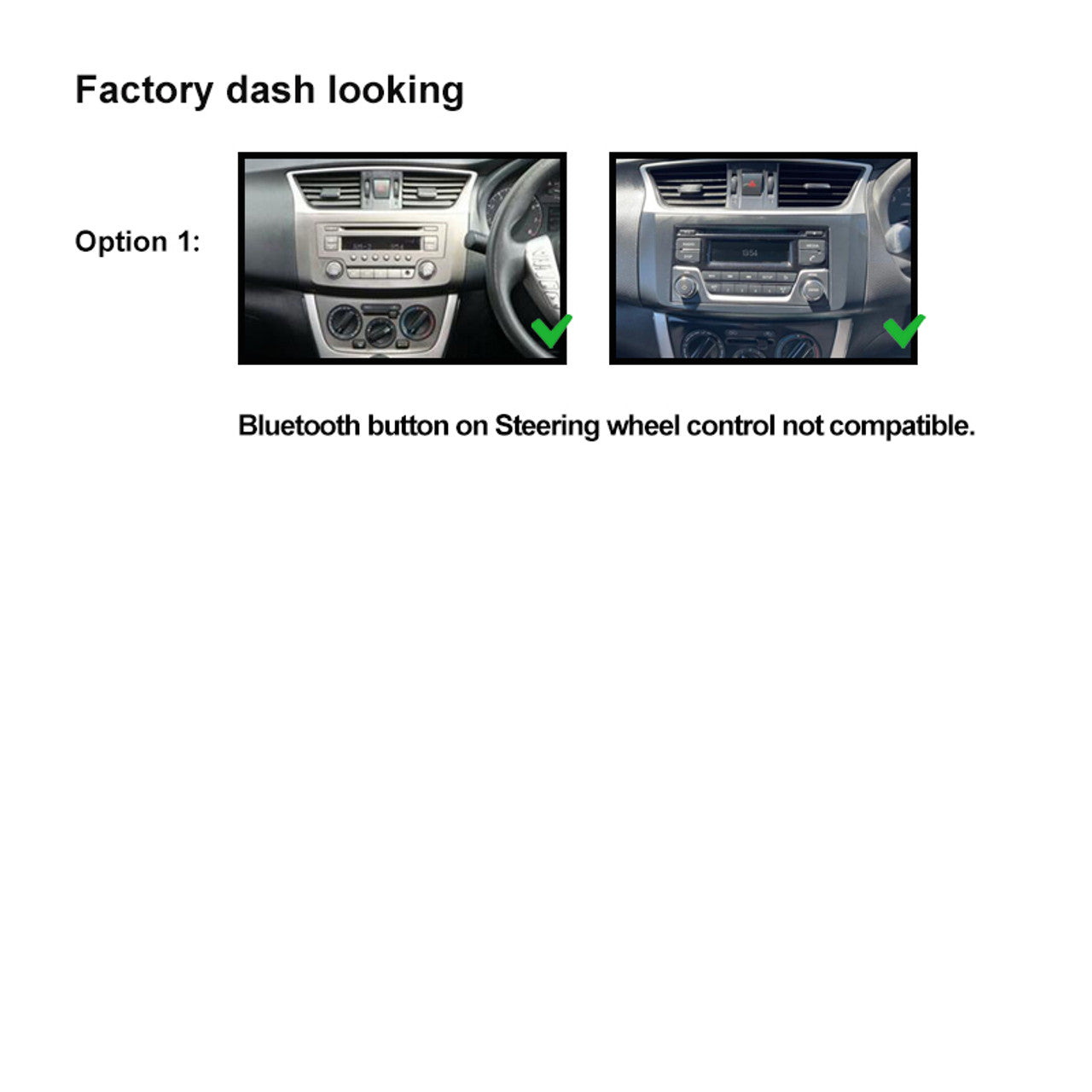

• Compatible with Steering Wheel Controls. Note: Bluetooth button on the steering wheel control may not work.
• Please send us a photo of your dashboard along with your car's year and model so we can ensure the correct harness is sent.

Main Features:
WIRELESS APPLE CarPlay:
The Ultimate Co-Pilot. Enjoy CarPlay wirelessly and make your driving smarter and safer. Get directions, make calls, send and receive messages, and listen to your favorite music all from your car's built-in display. iOS updates also bring new app categories and customizable wallpapers for your CarPlay dashboard.

WIRELESS ANDROID AUTO (WIRED for some specific phone brands):
Wirelessly pair your Android phone to your car display, and all your Android apps show up right on screen. Easily access driving directions, hands-free texting, and calls. Android Auto is designed to help you focus on the road and make your driving experience more fun. Just connect and go!

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs for external devices

Video Connectivity:

• Reverse Camera Video Input
• Extra Video Input
• Dual Video Outputs

USB Ports:

• USB connection for CarPlay / Android Auto
• Additional USB for music or video

Additional Inputs/Outputs:

• Radio Antenna Input
• Microphone Input

RCA Audio/Video Cable:

• Front and Rear Speaker Outputs
• Subwoofer Output
• Canbus Connector, Parking Brake, and Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Wiring Harness
• 1 x RCA Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  Note: The accessory kit may vary depending on your car model.

General Specifications:

• TFT Screen Size: 10"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Charging/Reading: (5±0.25V/1A)
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
