Nakamichi Wireless Apple CarPlay & Android Auto Solution for Nissan Patrol 2010+ (GU7, GU8, Y61)

Compatibility:

• For Nissan Patrol 2010+ (GU7, GU8, Y61)

Important Notice:

• Compatible with Steering Wheel Controls.

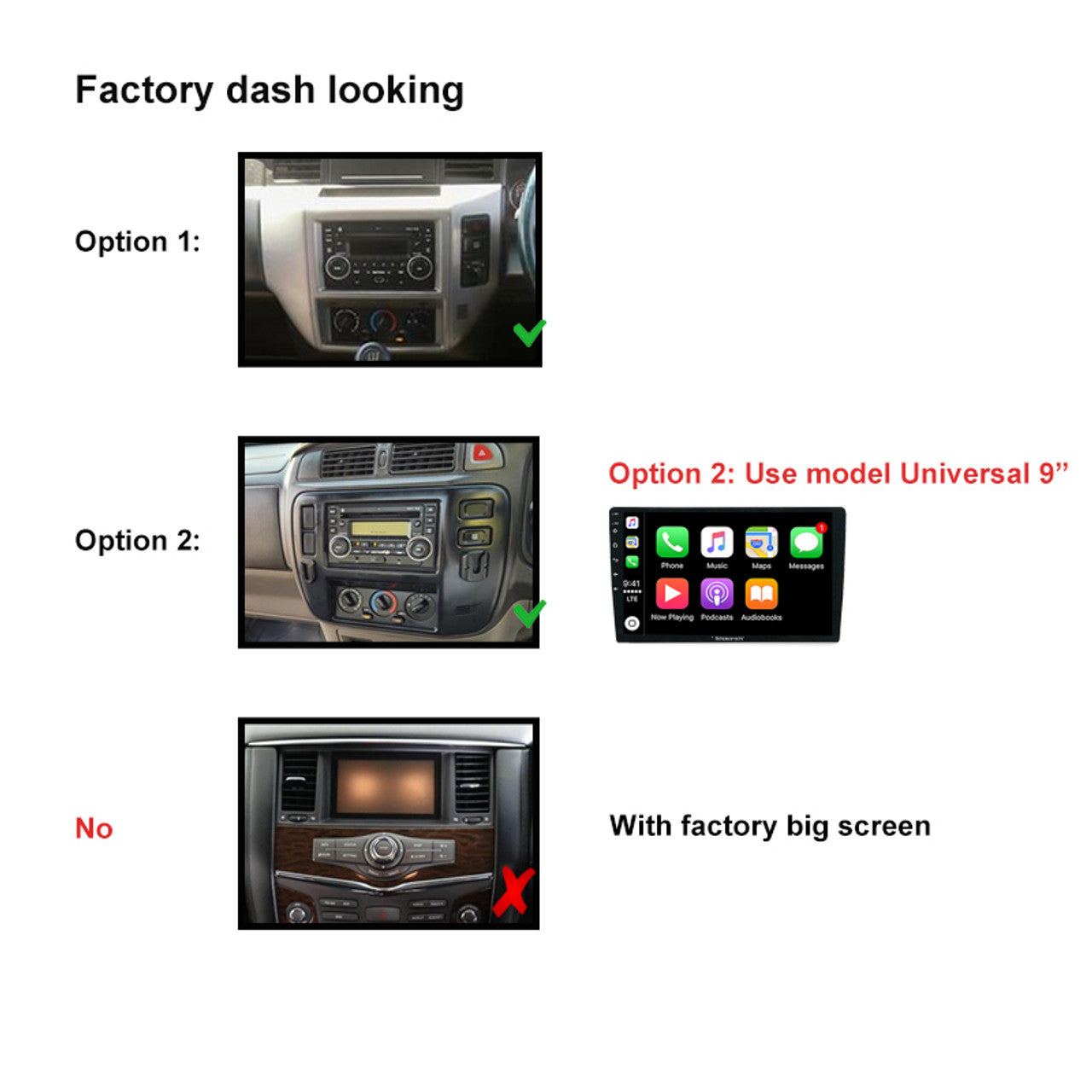

• Option 2: Use Nakamichi Universal 9" model.
• Not compatible with vehicles that have a factory large screen.
• Please send us a photo of your dashboard along with your car’s year and model when you purchase, so we can provide the compatible harness.

Main Features:
WIRELESS APPLE CarPlay:
Experience CarPlay wirelessly – the ultimate co-pilot for your iPhone. Enjoy smarter, safer driving as you get directions, make calls, send messages, and listen to music on your car's built-in display. With iOS updates, CarPlay introduces new app categories and custom wallpapers for your CarPlay dashboard.

WIRELESS ANDROID AUTO (WIRED for some specific phone brands):
Pair your Android phone to your car display wirelessly and have all your Android apps on the screen. Get driving directions, send hands-free texts, and make calls while staying focused on the road. Android Auto is designed to enhance your driving experience. Just connect and go!

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs for external devices

Video Connectivity:

• Reverse Camera Video Input
• Extra Video Input
• Dual Video Outputs

USB Ports:

• USB connection for CarPlay / Android Auto
• Additional USB for music or video

Additional Inputs/Outputs:

• Radio Antenna Input
• Microphone Input

RCA Audio/Video Cable:

• Front and Rear Speaker Outputs
• Subwoofer Output
• Canbus Connector, Parking Brake, and Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Wiring Harness
• 1 x RCA Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  Note: The accessory kit may vary depending on your car model.

General Specifications:

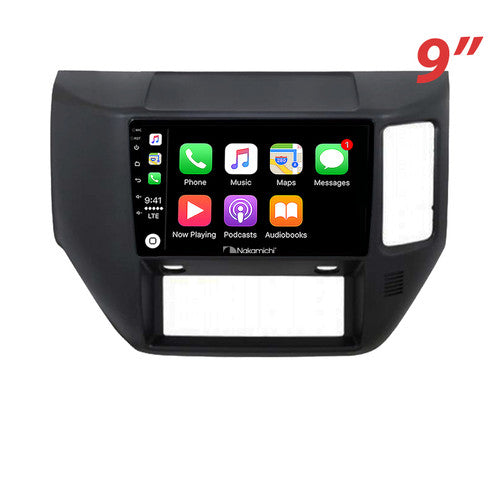

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Charging/Reading: (5±0.25V/1A)
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
