Nakamichi Wireless Apple CarPlay & Android Auto Solution for Nissan Navara D40 RX 2007-2015 / ST 2007-2010

Compatibility:

• For Nissan Navara D40 RX 2007-2015 / ST 2007-2010

Important Notice:

• Compatible with Steering Wheel Controls. Bluetooth button on steering wheel control may not work, or may require an experienced installer to modify for compatibility.

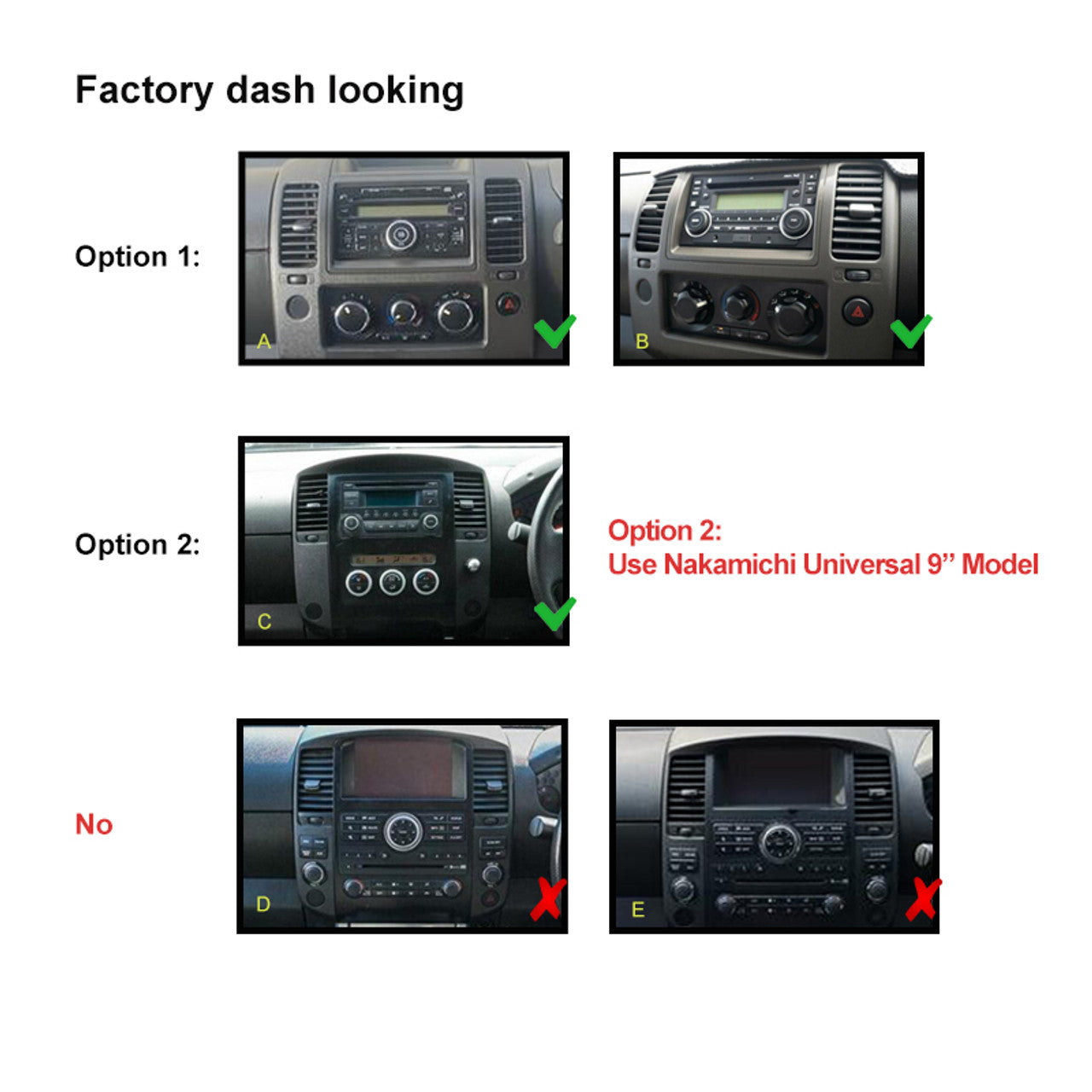

• Option 1: Use Nakamichi Nissan Universal 9" model.
• Not compatible with cars that have a factory-installed screen.
• Please send us a photo of your dashboard with car year and model when you purchase, so we can send you the compatible harness.

Main Features:
WIRELESS APPLE CarPlay:
Enjoy CarPlay without cables. CarPlay is the smarter, safer way to use your iPhone while driving. You can get directions, make calls, send messages, and enjoy music—all on your car's built-in display. Plus, with iOS updates, CarPlay offers all-new app categories and customizable wallpapers for your CarPlay Dashboard.

WIRELESS ANDROID AUTO (WIRED for some specific phone brands):
Pair your Android phone without cables. Your Android apps appear onscreen, allowing you to easily get driving directions, send texts, or make hands-free calls. Android Auto helps you stay focused on the road while making the driving experience more enjoyable.

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs for external devices

Video Connectivity:

• Reverse Camera Video Input
• Extra Video Input
• Dual Video Outputs

USB Ports:

• USB connection for CarPlay / Android Auto
• Additional USB for music or video

Additional Inputs/Outputs:

• Radio Antenna Input
• Microphone Input

RCA Audio/Video Cable:

• Front and Rear Speaker Outputs
• Subwoofer Output
• Canbus Connector, Parking Brake, and Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Wiring Harness
• 1 x RCA Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  Note: The accessory kit may vary depending on your car model.

General Specifications:

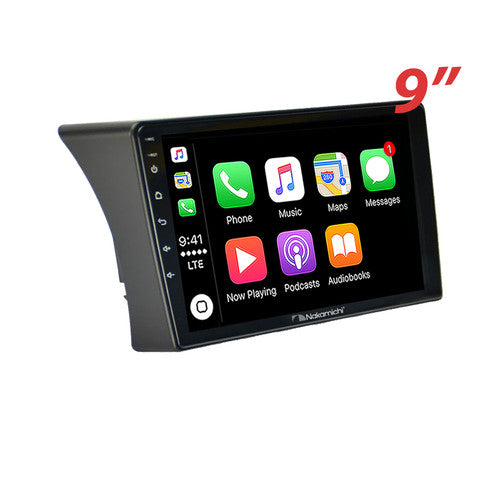

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Charging/Reading: (5±0.25V/1A)
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
