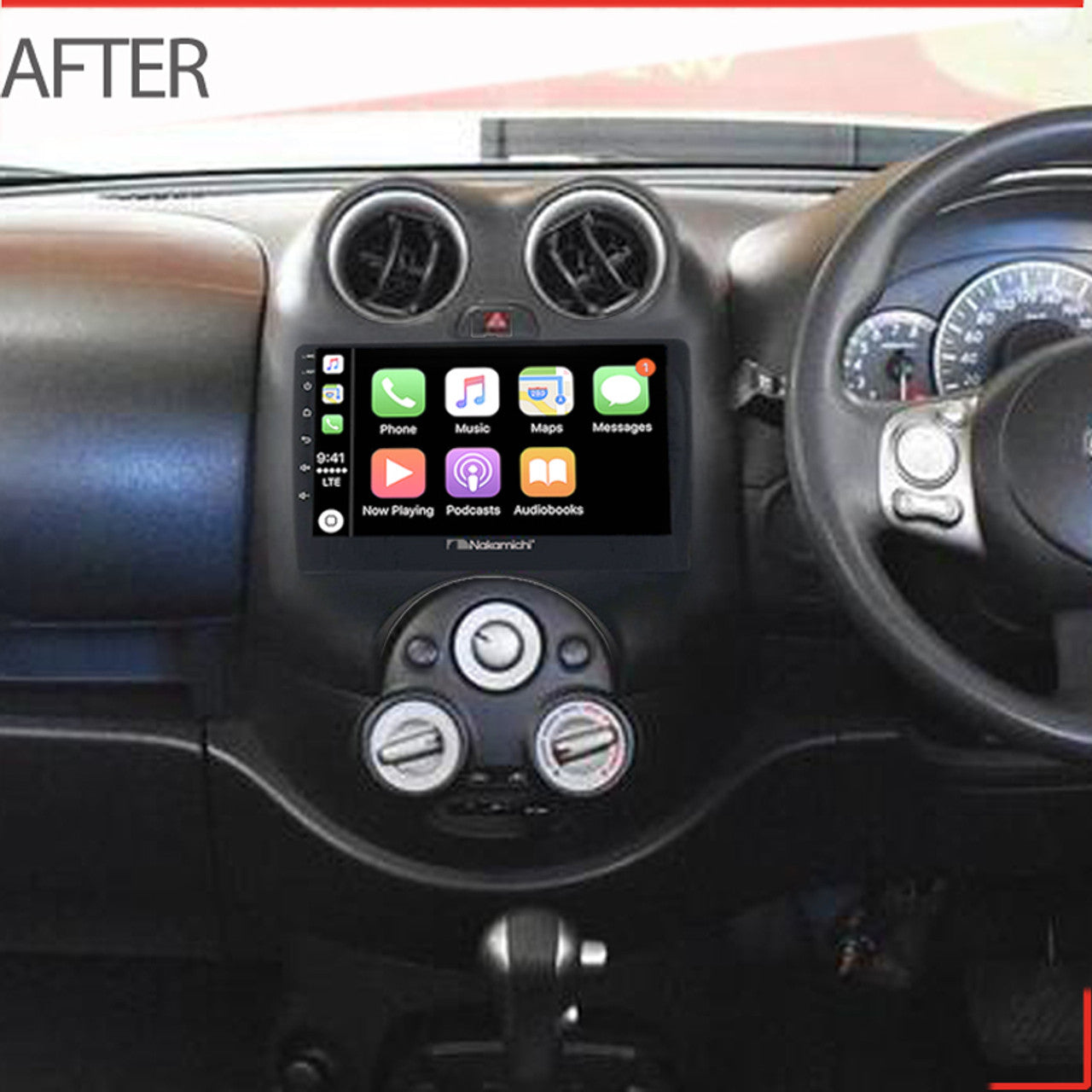

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Nissan Micra 2011-2014

Compatibility:

• For Nissan Micra 2011-2014

Important Notice:

• Compatible with Steering Wheel Controls.

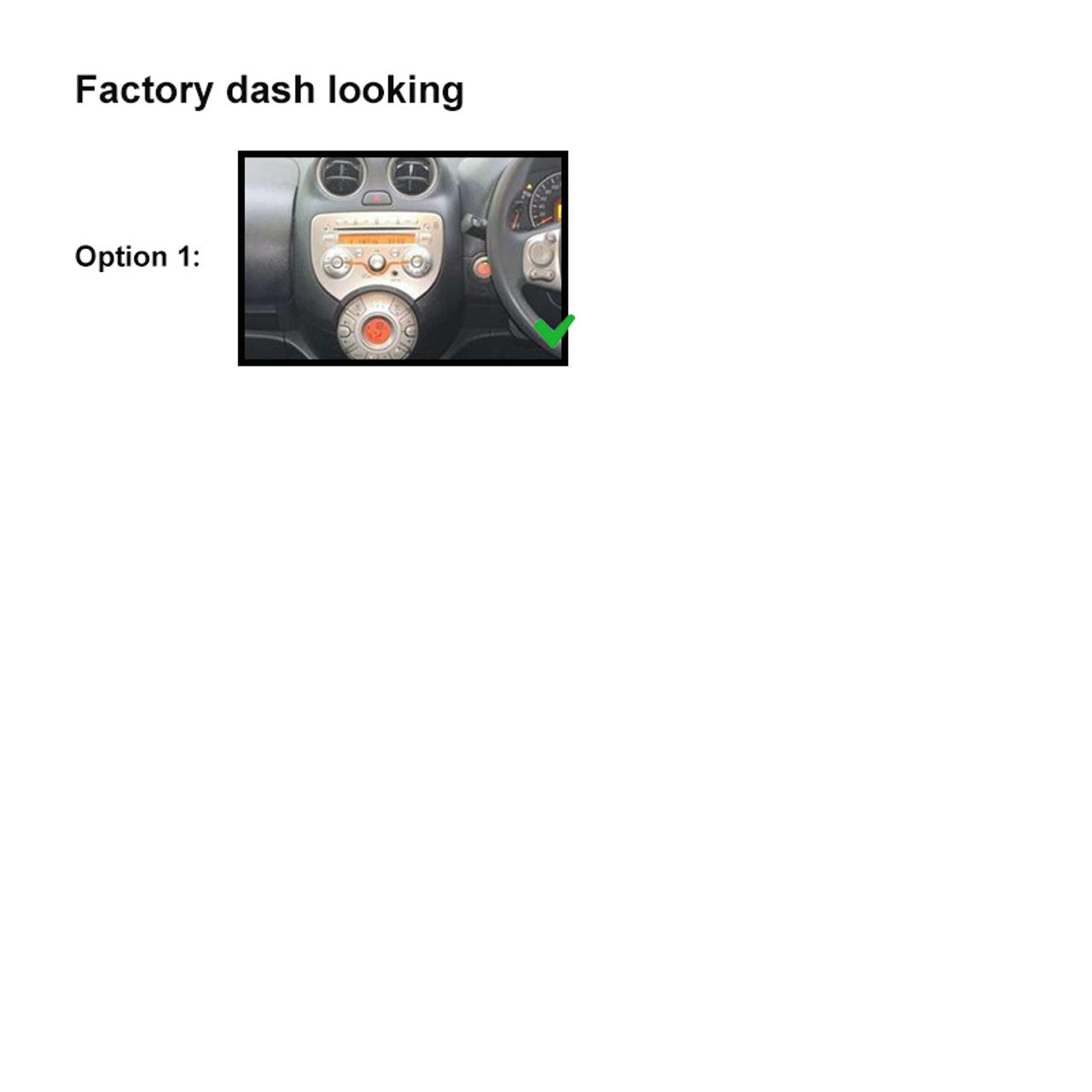

• Please send us a photo of your dashboard with car year and model when you purchase, so we can send you the compatible harness.

Main Features:
WIRELESS APPLE CarPlay:
The Ultimate Co-Pilot. Enjoy CarPlay without the need for cables. CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all displayed on your car’s built-in screen. With iOS, CarPlay introduces new app categories and customizable wallpapers for your dashboard.

WIRELESS ANDROID AUTO (WIRED for some specific phone brands):
Pair your phone wirelessly to the car display, and your Android apps will instantly appear on the screen. Easily get driving directions, send text messages, and make hands-free calls. Android Auto helps you stay focused on the road while having fun.

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs for external devices

Video Connectivity:

• Reverse Camera Video Input
• Extra Video Input
• Dual Video Outputs

USB Ports:

• USB Connection for CarPlay / Android Auto
• Additional USB for music or video

Additional Inputs/Outputs:

• Radio Antenna Input
• Microphone Input

RCA Audio/Video Cable:

• Front and Rear Speaker Outputs
• Subwoofer Output
• Canbus Connector, Parking Brake, and Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Wiring Harness
• 1 x RCA Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  Note: The accessory kit may vary depending on your car model.

General Specifications:

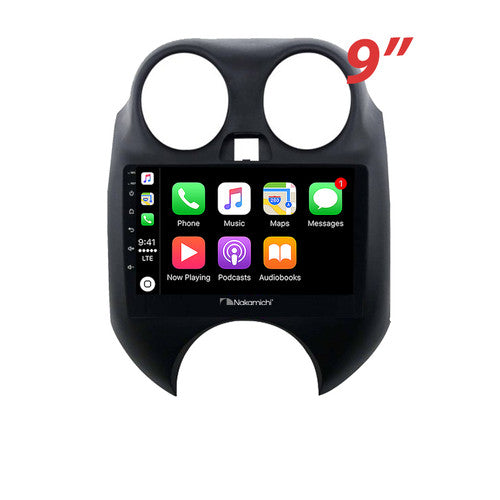

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Charging/Reading: (5±0.25V/1A)
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
