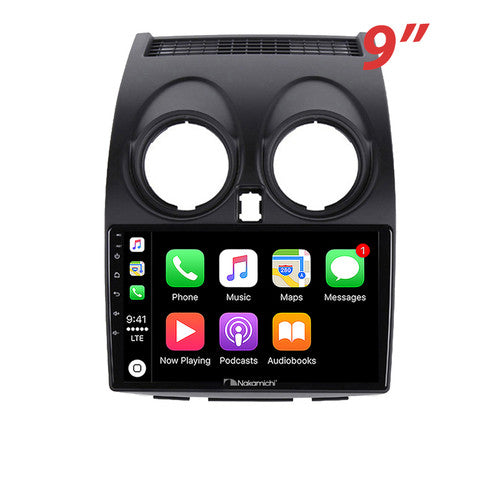

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Nissan Dualis 2007-2013

Compatibility:

• For Nissan Dualis 2007-2013

Important Notice:

• Compatible with Steering Wheel Controls

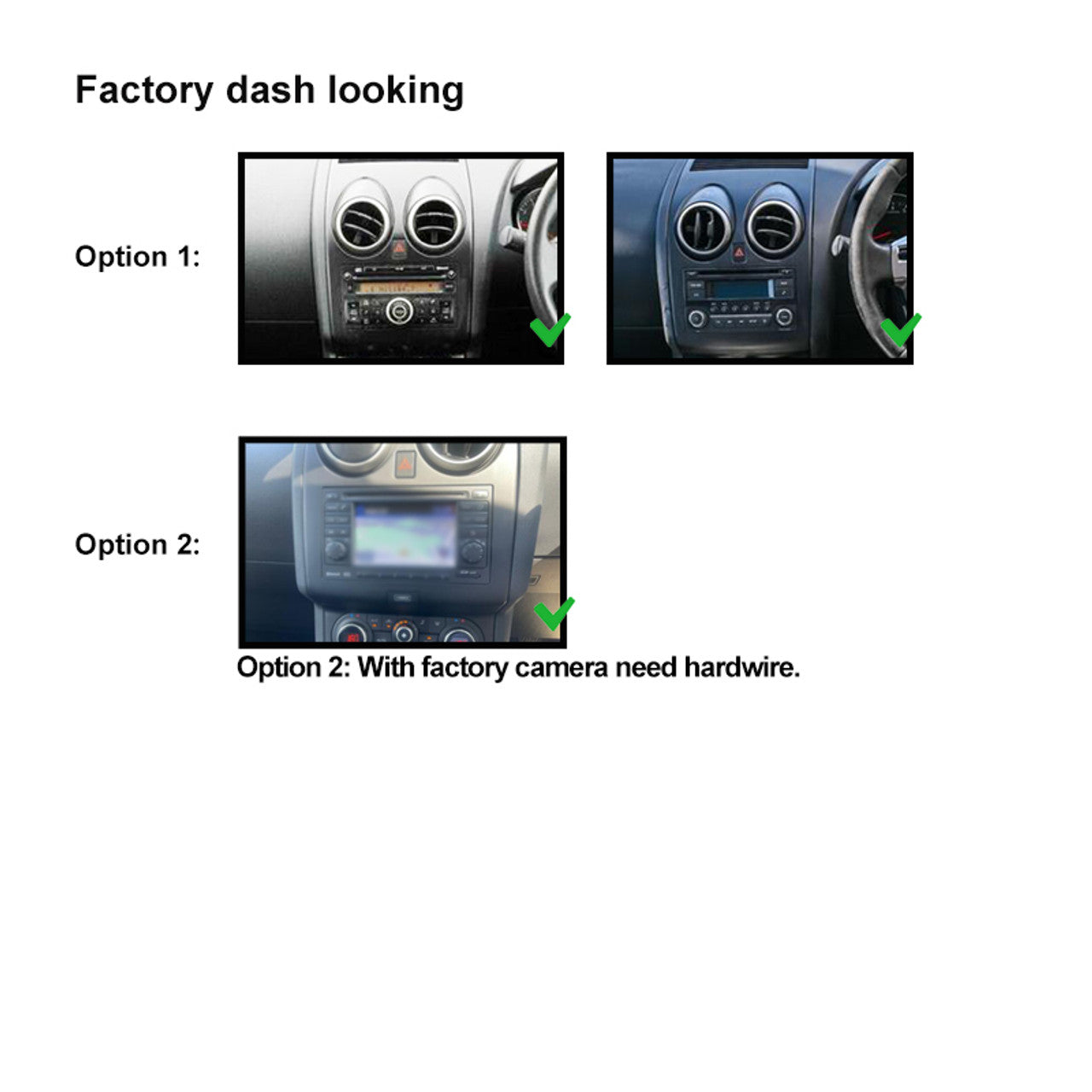

• Option 2 with Factory Reverse Camera requires hardwiring
• Please send us a photo of your dashboard along with your car year and model when you purchase, so we can send you the compatible harness

Main Features:

Wireless Apple CarPlay:
The Ultimate Co-Pilot. Enjoy CarPlay without the need for cables. CarPlay offers a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. With iOS, CarPlay introduces new app categories and custom wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for specific phone brands):
Pair your Android phone without a cable, and hit the road. Your Android apps will appear onscreen, letting you get driving directions, send texts hands-free, and make calls—all while staying focused on the road. Just plug in and go!

Bluetooth Connectivity:

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4 GHz
• Max range: 5 meters

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX inputs (L & R) at the back of the unit

Video Input/Output:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Output 1 (V-OUT1)
• Video Output 2 (V-OUT2)

USB Interface:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: USB connection for music or video

Other Inputs:

• Radio Antenna Input (ANT)
• Microphone Input (MIC)

RCA Cable Outputs:

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake Input
• AMP: Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  Note: Accessories may vary depending on your car model.

General Specifications:

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Format: H264/MP4/AVI/MKV/FLV
• Audio Format: MP3/APE/AAC/FLAC
