Nakamichi Wireless Apple CarPlay & Android Auto Solution for Mitsubishi Triton Auto A/C 2015-2018

Compatibility:

• For Mitsubishi Triton Auto A/C 2015-2018

Notice

• Compatible with steering wheel controls
• Works with factory reverse camera

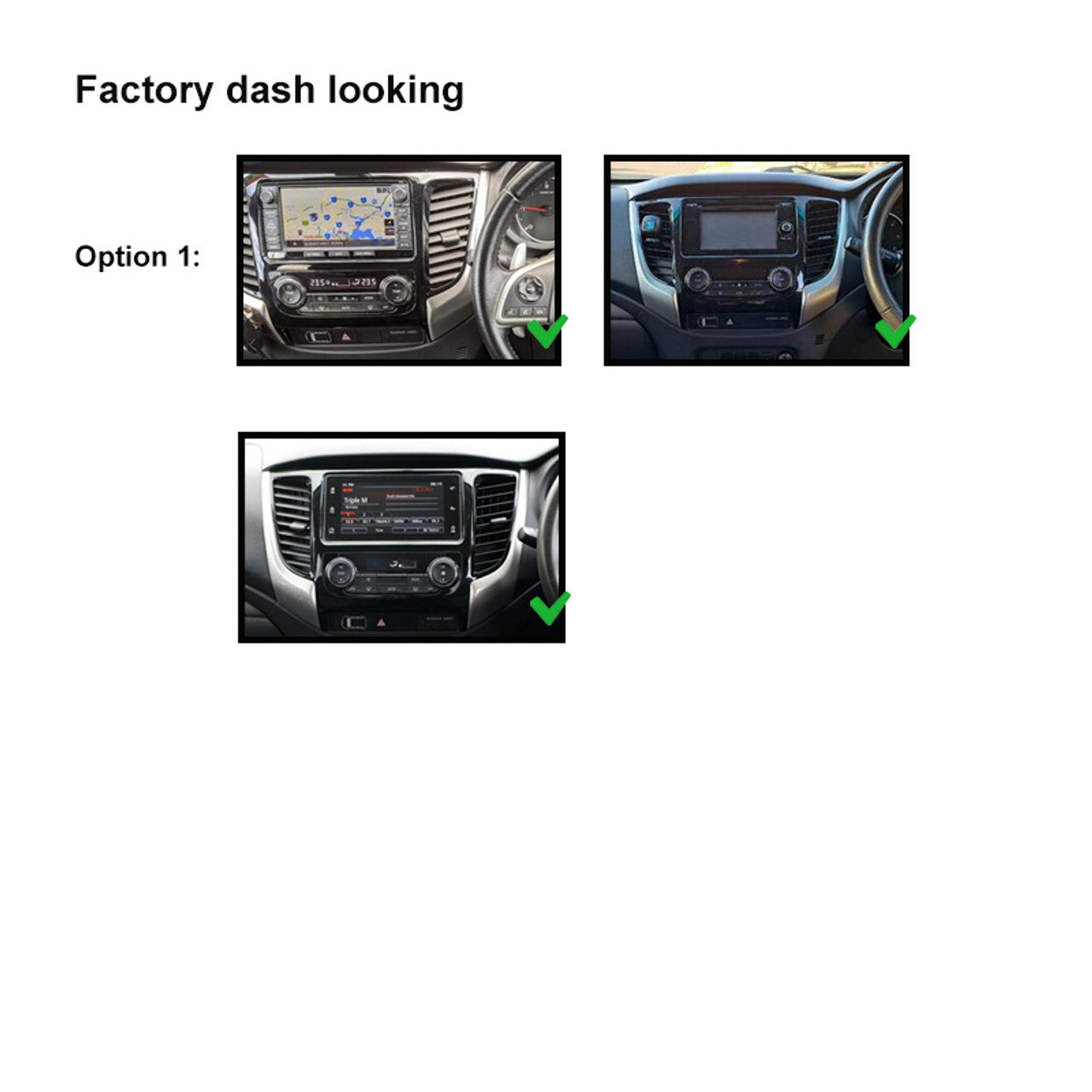

• Please send us a photo of your dashboard along with your car's year and model when purchasing, so we can provide the compatible harness

Main features

Wireless Apple CarPlay
Experience seamless integration with Apple CarPlay without the need for cables. CarPlay provides a smarter and safer way to use your iPhone while driving. Access navigation, make calls, send and receive messages, and enjoy your favorite music directly on your car's built-in display. With the latest iOS updates, CarPlay offers new app categories and custom wallpapers for your CarPlay Dashboard.

Wireless Android Auto (wired for some specific phone brands)
Connect your Android phone wirelessly to your car display. With Android Auto, your favorite apps show up on-screen, making it easy to get directions, send hands-free text messages, and make calls, all while staying focused on the road. Plug in and hit the road—no wires needed!

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4 GHz
• Max range: 5m

Radio

• FM frequency: 87.5-108.0 MHz
• AM frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L (at back of the unit)
• AUX-R (at back of the unit)

Video

• R-CAM: Reverse camera video input (at back of the unit)
• V-IN: Extra video input (at back of the unit)
• V-OUT1: Video output 1 (at back of the unit)
• V-OUT2: Video output 2 (at back of the unit)

USB interface

• CP/AA: USB connection for CarPlay / Android Auto (at back of the unit)
• USB: USB connection for music or video (at back of the unit)

Other inputs (at back of the unit)

• ANT: Radio antenna input
• MIC: Microphone input

RCA cable

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake input
• AMP: Amplifier control

Package included

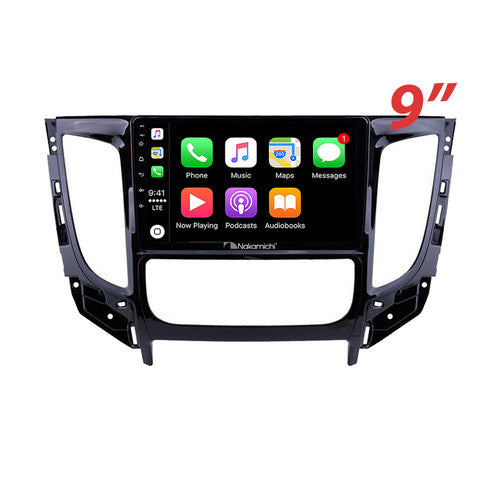

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: The included accessories may vary depending on your car model

General specifications

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (10.5-16V)
• USB readable/chargeable: (5±0.25V/1A)
• Video format: H264/MP4/AVI/MKV/FLV
• Audio format: MP3/APE/AAC/FLAC
