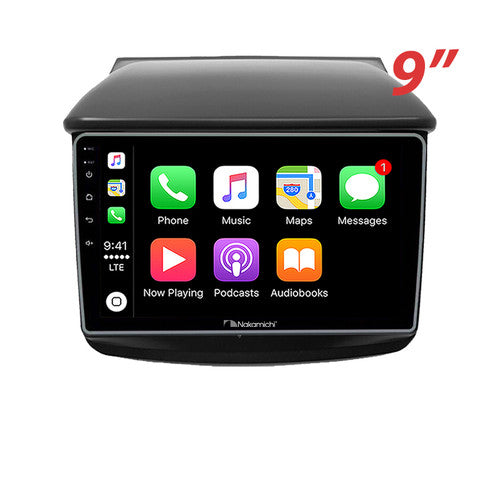

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Mitsubishi Triton 2007-2014

Compatibility:

• For Mitsubishi Triton 2007-2014

Notice

• Compatible with Steering Wheel Controls

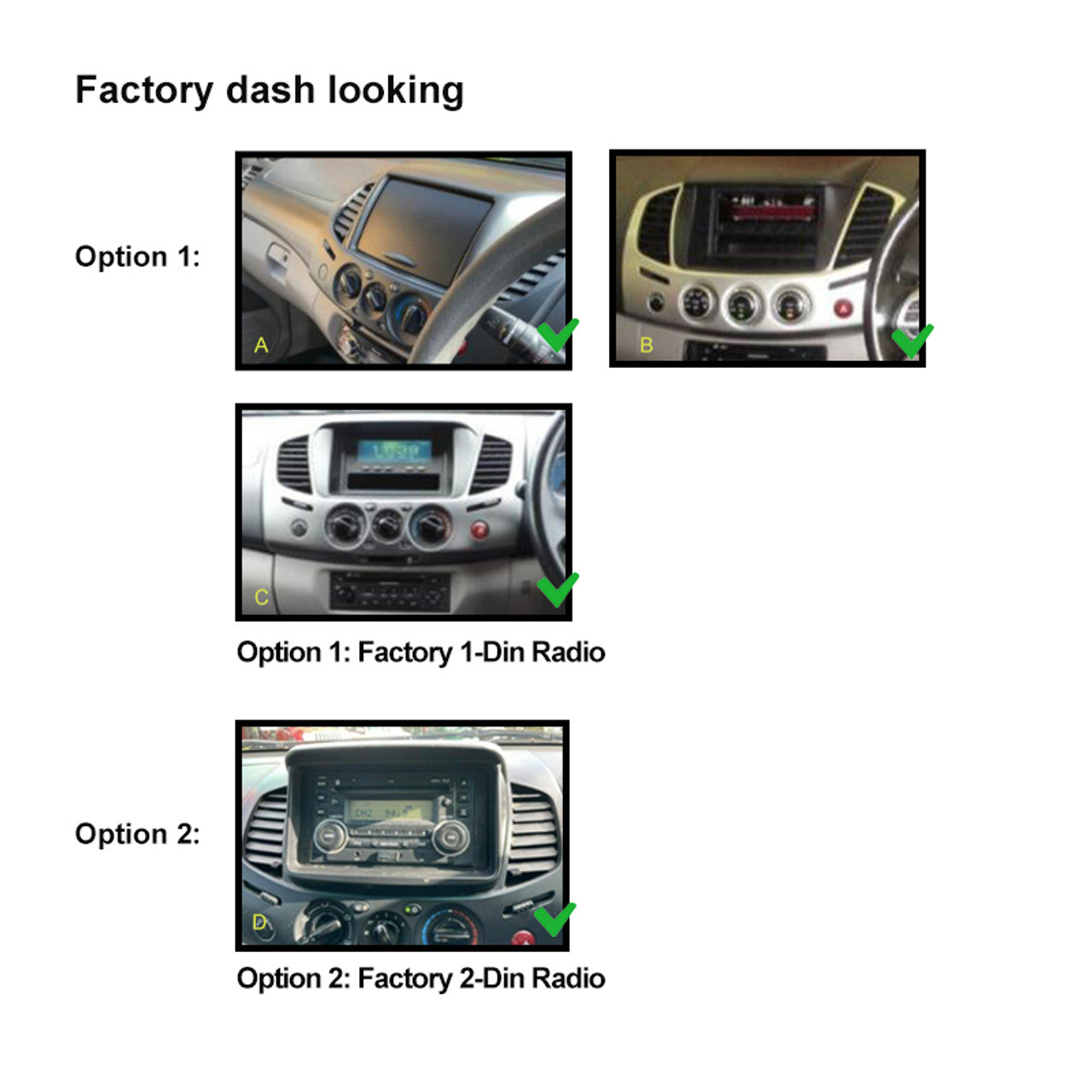

• Option 1: Factory 1-Din Radio
• Option 2: Factory 2-Din Radio
• Option 1 & Option 2 use different accessories; please let us know when ordering
• Please send us a message with a photo of your dashboard, car year, and model when purchasing, so we can send you the compatible harness

Main Features

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay without cables. CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. With iOS, CarPlay introduces all-new app categories and customized wallpapers for your CarPlay Dashboard.

Wireless Android Auto (wired for some specific phone brands)
Pair your phone without cables—just hit the road. Pair your phone to the car display, and your Android apps show up onscreen, just like that. Tap to get driving directions or talk to send a text. You can even call hands-free. Android Auto is made to help you focus on the road while having fun. Just plug in and go!

Bluetooth

• Communication system BT: 5.0 + EDR
• Frequency band: 2.4 GHz
• Max Range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speakers impedance: 4-8Ω
• AUX-L (at back of the unit)
• AUX-R (at back of the unit)

Video

• R-CAM: Reverse camera video input (at back of the unit)
• V-IN: Extra video input (at back of the unit)
• V-OUT1: Video output 1 (at back of the unit)
• V-OUT2: Video output 2 (at back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at back of the unit)
• USB: USB connection for music or video (at back of the unit)

Other Inputs (at back of the unit)

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake input
• AMP: Amplifier control

Package Included

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: For different car models, the accessory package may vary. It is normal if the package does not exactly match the listing.

General Specifications

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (10.5-16V)
• USB readable/chargeable: (5±0.25V/1A)
• Video format: H264/MP4/AVI/MKV/FLV
• Audio format: MP3/APE/AAC/FLAC
