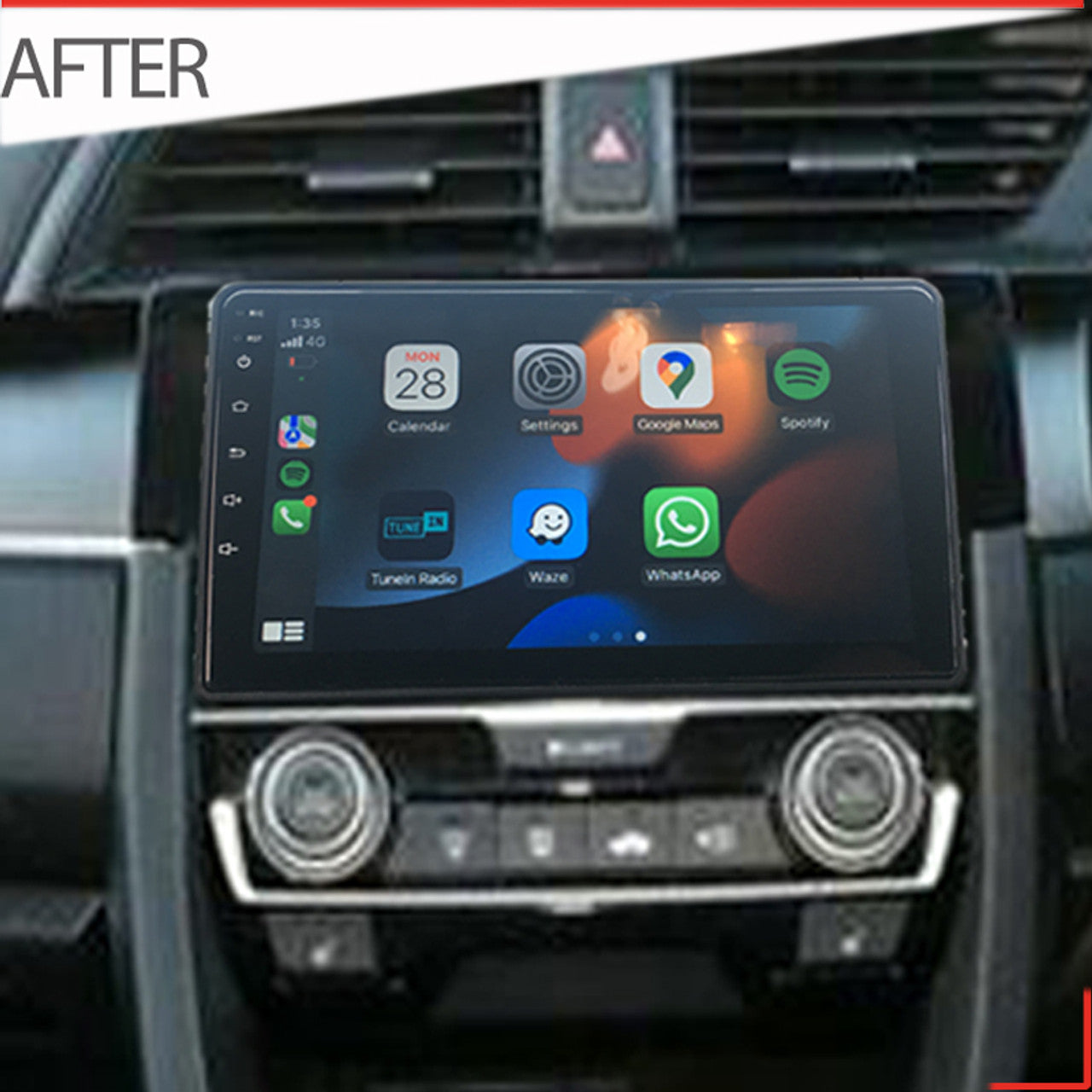

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Honda Civic 2015+

Compatibility:

• for Honda Civic 2015+

Important Notice:

• Compatible with Steering Wheel Controls
• Works with Factory Reverse Camera
• Does not work with Factory Side Camera
• Not compatible with Factory Amplified System

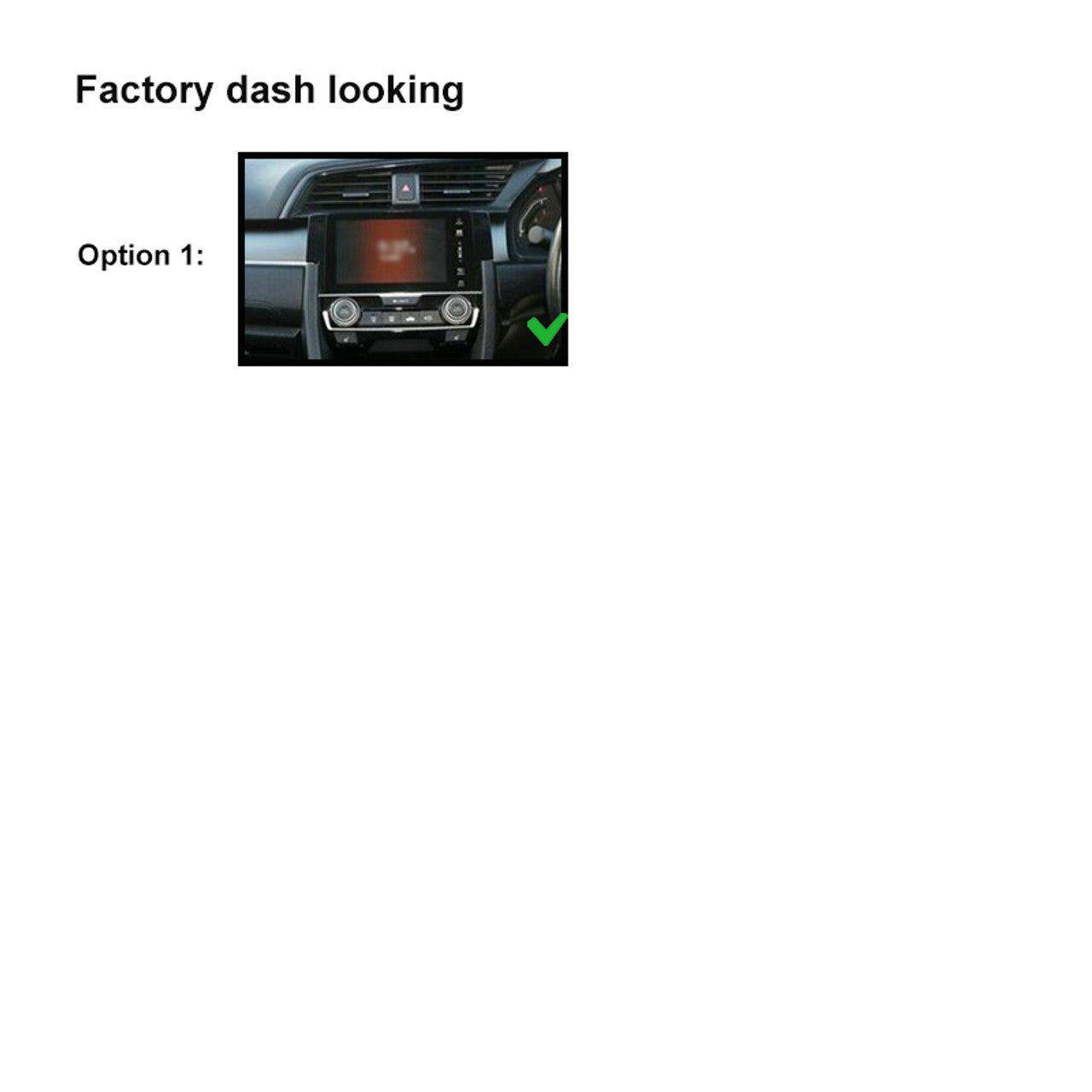

• Please send us a message with a photo of your dash, year, and model when purchasing, so we can send you the compatible harness.

Main Features:

Wireless Apple CarPlay:

• The Ultimate Co-Pilot! Enjoy CarPlay without the need for cables.
• CarPlay is a smarter, safer way to use your iPhone while driving.
• Access directions, make calls, send and receive messages, and enjoy your favorite music, all from your car's display.
• With iOS, CarPlay brings new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands):

• Pair your Android phone wirelessly, and drive with ease.
• Your Android apps will show up on your car’s display.
• Get directions, send hands-free texts, or make calls, all while focusing on the road. Android Auto makes it easy and fun. Just plug in and go!

Bluetooth:

• Communication system: BT 5.0 + EDR
• Frequency Band: 2.4GHz
• Max Range: 5 meters

Radio:

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Inputs/Outputs:

• Max Power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX-L: Audio Left Input
• AUX-R: Audio Right Input

Video Inputs/Outputs:

• Reverse Camera Video Input: R-CAM
• Extra Video Input: V-IN
• Video Output 1: V-OUT1
• Video Output 2: V-OUT2

USB Interface:

• 4-PIN USB: USB Connection for CarPlay/Android Auto
• 6-PIN USB: USB Connection for Music or Video

Other Inputs:

• Radio Antenna Input: ANT
• Microphone Input: MIC

RCA Cable Outputs:

• Front Left Speaker Output: FL_OUT
• Front Right Speaker Output: FR_OUT
• Rear Left Speaker Output: RL_OUT
• Rear Right Speaker Output: RR_OUT
• Subwoofer Output: SUB_OUT
• Canbus Connector: UART_RX/UART_TX
• Parking Brake Input: PARK
• Amplifier Control: AMP

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cable
• Note: For different car models, the accessory package may vary. It is normal if it does not exactly match the listing.

General Specifications:

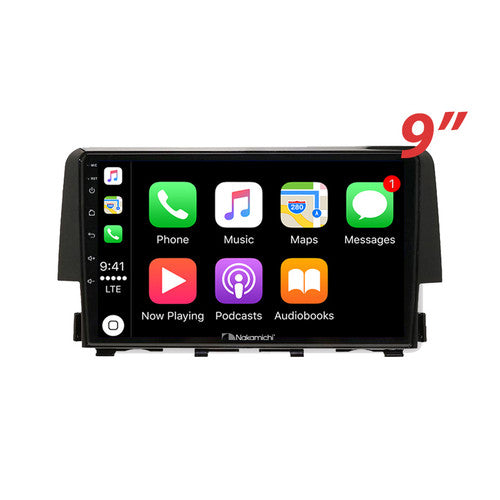

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
