Nakamichi Wireless Android & Apple CarPlay Sat Nav System for Holden Cruze 2009-2016

Compatibility:

• For Holden Cruze 2009-2016

Important notice

• Android-powered Nakamichi system
• Works seamlessly with Steering Wheel Controls

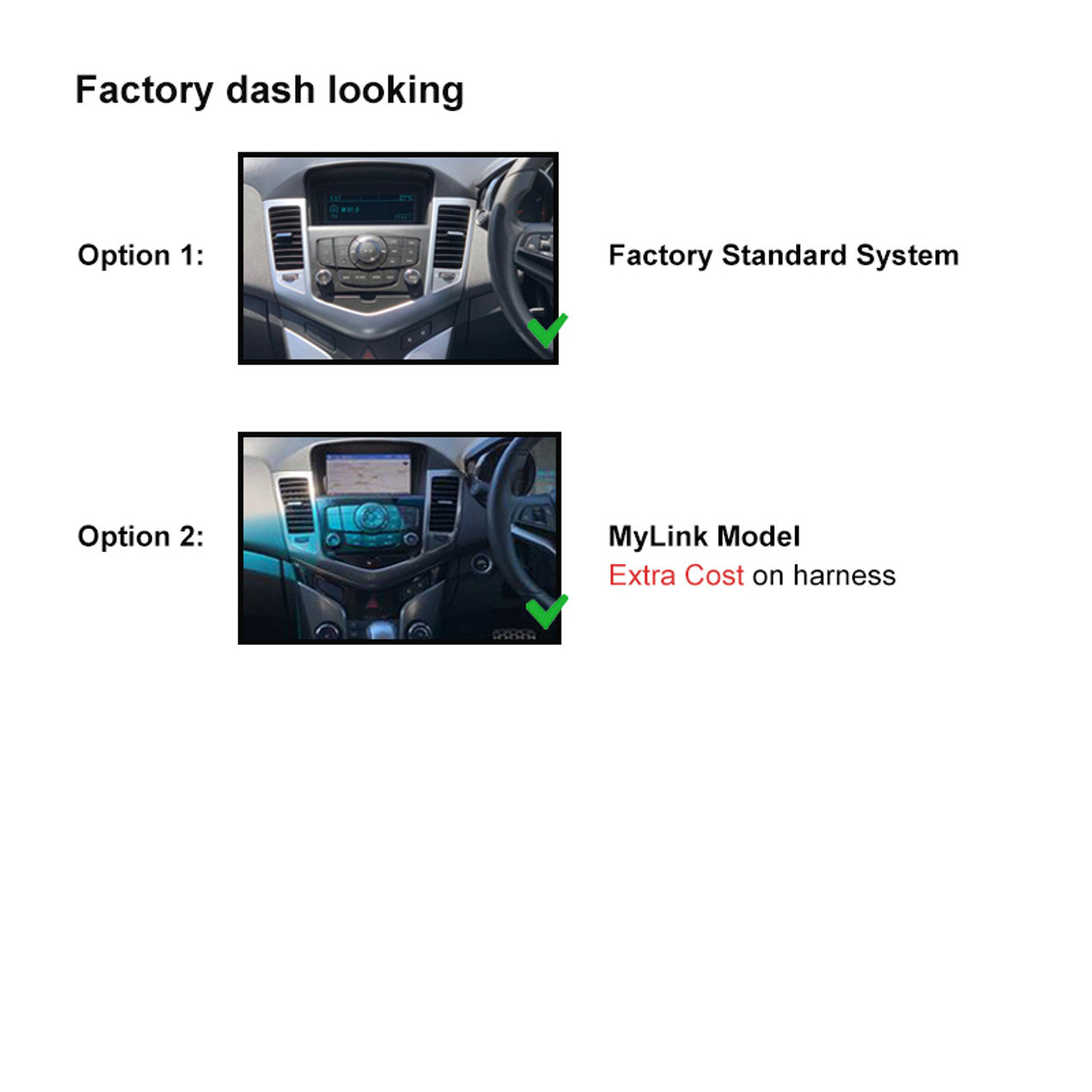

• Compatible with both Dash Option 1 & 2
• Additional cost for Mylink model harness (Option 2)
• Fully compatible with factory-installed reverse camera
• Please provide a photo of your dash along with car year and model during purchase to receive the correct harness

Key features

Phonelink functionality

• iPhone compatibility

  • Access your favorite iPhone apps wirelessly for a smarter, safer drive.
  • With PhoneLink, use your iPhone apps for navigation, calls, messages, and music—all directly on your car’s screen.

• Android phone connectivity (wired for specific brands)

  • Connect your Android phone wirelessly and view your apps directly on the display.
  • Get directions, make hands-free calls, and enjoy your music without distractions.
  • Simply plug and go!

Built-in GPS

• Preloaded GPS data
• Options for updates or additional maps available via Google Play Store

Wi-Fi & 4G support

• Connect to Wi-Fi networks
• Insert a SIM card for 4G internet connectivity

Bluetooth technology

• Bluetooth 5.0 + EDR
• Operating Frequency: 2.4GHz
• Max Bluetooth Range: 5 meters

Radio features

• FM Range: 87.5-108.0 MHz
• AM Range: 522-1620 kHz
• Pre-set stations: 18 FM, 12 AM

Audio features

• Max output power: 4×50W
• Pre-output voltage: 4V
• Impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video inputs

• Reverse camera (B.CAMERA)
• Front camera (F.CAMERA)
• Extra video input (CVBS)

USB interfaces

• 4-pin USB for PhoneLink (iPhone/Android)
• 6-pin USB for Music/Video

Additional inputs

• Radio antenna
• GPS antenna
• External microphone
• 5G Wi-Fi
• 4G connectivity
• Canbus interface

What’s included

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x WiFi/BT/camera cable
• 1 x RL/RR cable
• 1 x Microphone
• 1 x 4G antenna
• 1 x GPS antenna
• 1 x User manual
• 2 x USB cables
  Note: The accessory package may vary depending on the car model. It's normal if contents differ slightly from the listing.

Specifications

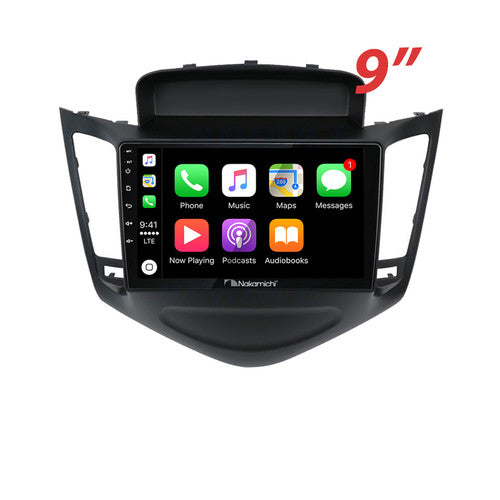

• Screen size: 9" TFT
• System: NK 12.0
• Processor: 8-Core Cortex-A55
• RAM: 4GB
• Storage: 32GB
• Display resolution: 1280x720 IPS
• Brightness: 500nit
• Voltage: 14.4V (Range: 10.5V - 16V)
• USB power output: 5±0.25V/1A
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
