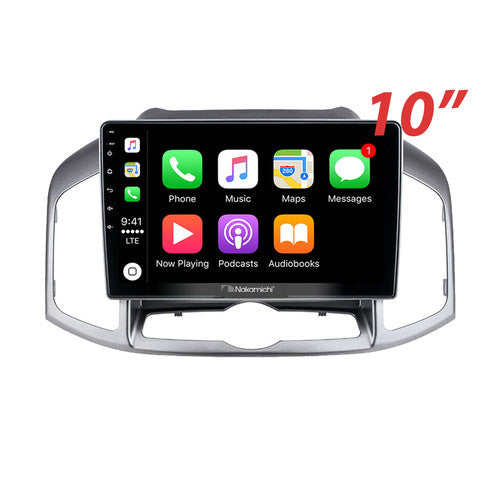

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Holden Captiva 7 Top Screen

Compatibility:

• For Holden Captiva 7 Top Screen

Important notice

• Compatible with steering wheel controls

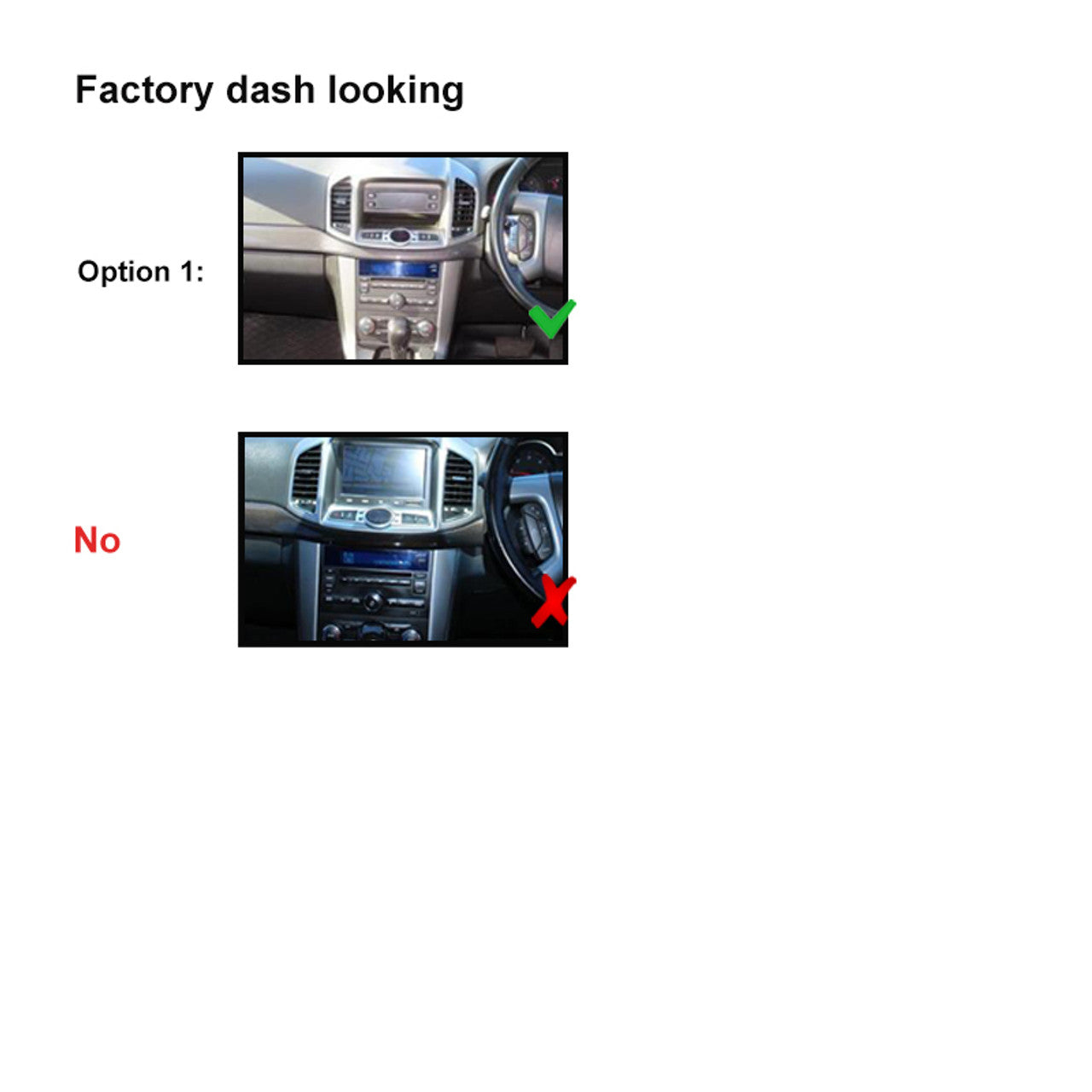

• Compatible with Option 1 dash look
• Not compatible with other models; please check your factory dash appearance
• Send us a photo of your dash along with car year and model when purchasing so we can provide the correct harness

Key features

Wireless Apple CarPlay

• The ultimate co-pilot. Enjoy CarPlay without cables.
• CarPlay offers a smarter, safer way to use your iPhone while driving.
• Get directions, make calls, send and receive messages, and enjoy your favorite music on your car’s built-in display.
• iOS brings all-new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for specific phone brands)

• Pair your Android phone wirelessly with your car display.
• Your Android apps appear on screen for quick access to driving directions, hands-free calls, and text messaging.
• Android Auto helps you focus on the road and enjoy the drive.

Bluetooth technology

• Bluetooth 5.0 + EDR
• Frequency: 2.4GHz
• Max range: 5 meters

Radio features

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio features

• Max power: 4×50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L and AUX-R (at the back of the unit)

Video inputs

• Reverse camera (R-CAM) video input (at the back of the unit)
• Extra video input (V-IN) (at the back of the unit)
• Video output 1 (V-OUT1) (at the back of the unit)
• Video output 2 (V-OUT2) (at the back of the unit)

USB interfaces

• CP/AA: USB connection for CarPlay/Android Auto (at the back of the unit)
• USB: USB connection for music or video (at the back of the unit)

Other inputs at the back of the unit

• ANT: Radio antenna input (at the back of the unit)
• MIC: Microphone input (at the back of the unit)

RCA cable outputs

• FL_OUT: Front Left speaker output
• FR_OUT: Front Right speaker output
• RL_OUT: Rear Left speaker output
• RR_OUT: Rear Right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

What’s included

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: The accessory package may vary depending on the car model. It's normal if contents differ slightly from the listing.

Specifications

• Screen size: 10" TFT
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Voltage: 14.4V (Range: 10.5V - 16V)
• USB power output: 5±0.25V/1A
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
