Nakamichi Wireless Apple CarPlay & Android Auto Solution for Holden Captiva 5 2007-2015

Compatibility:

• For Holden Captiva 5 2007-2015

Important notice

• Compatible with steering wheel controls
• Runs Nakamichi Android system
• Compatible with Option 1 dash look
• Please send a photo of your dash along with car year and model when purchasing so we can send the compatible harness

Key features

PhoneLink Operation

• iPhone connection: The ultimate co-pilot. Enjoy your iPhone apps without cables. PhoneLink allows you to safely use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music, all displayed on your car’s screen.
• Android phone connection (Wired for some specific phone brands): Pair your phone wirelessly or via USB, and your Android apps will show up onscreen. Tap to get directions, make calls hands-free, and more, all while staying focused on the road.

Built-in GPS

• Preloaded GPS data, with the option to update or purchase additional data from the Google Playstore for the most accurate navigation experience.

Built-in Wi-Fi & 4G support

• Connect the stereo to a Wi-Fi network or insert a SIM card to access 4G connectivity for internet access on the go.

Bluetooth

• Communication system BT: 5.0 + EDR
• Frequency: 2.4GHz
• Max range: 5 meters

Radio features

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio input/output

• Max power: 4×50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX IN_L: Audio Left Input
• AUX IN_R: Audio Right Input
• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL-OUT: Rear Left Speaker Output
• RR-OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• AMP_POW: Amplifier control

Video inputs

• B.CAMERA: Reverse camera video input
• F_CAMERA: Front camera input
• CVBS: Extra video input

USB interfaces

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

Other inputs

• RADIO: Radio antenna input
• GPS: GPS antenna input
• 5G Wi-Fi
• 4G-/+
• MIC: External microphone port
• BRAKE: Brake detection
• Can RX/TX: Canbus box interface

What’s included

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x Wi-Fi/BT/Camera cable
• 1 x RL/RR cable
• 1 x Microphone
• 1 x 4G antenna
• 1 x GPS antenna
• 1 x User manual
• 2 x USB cables
  Note: The accessory package may vary depending on the car model. It's normal if the contents differ slightly from the listing.

Specifications

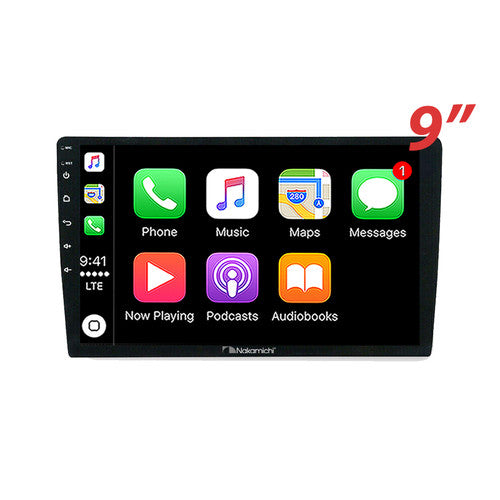

• Screen size: 9" TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display resolution: 1280x720 IPS
• Brightness: 500nit
• Voltage: 14.4V (Range: 10.5V - 16V)
• USB power output: 5±0.25V/1A
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
