Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Ford Transit 2007-2013

Compatibility:

• For Ford Transit 2007-2013

Important Notice

• Compatible with steering wheel controls

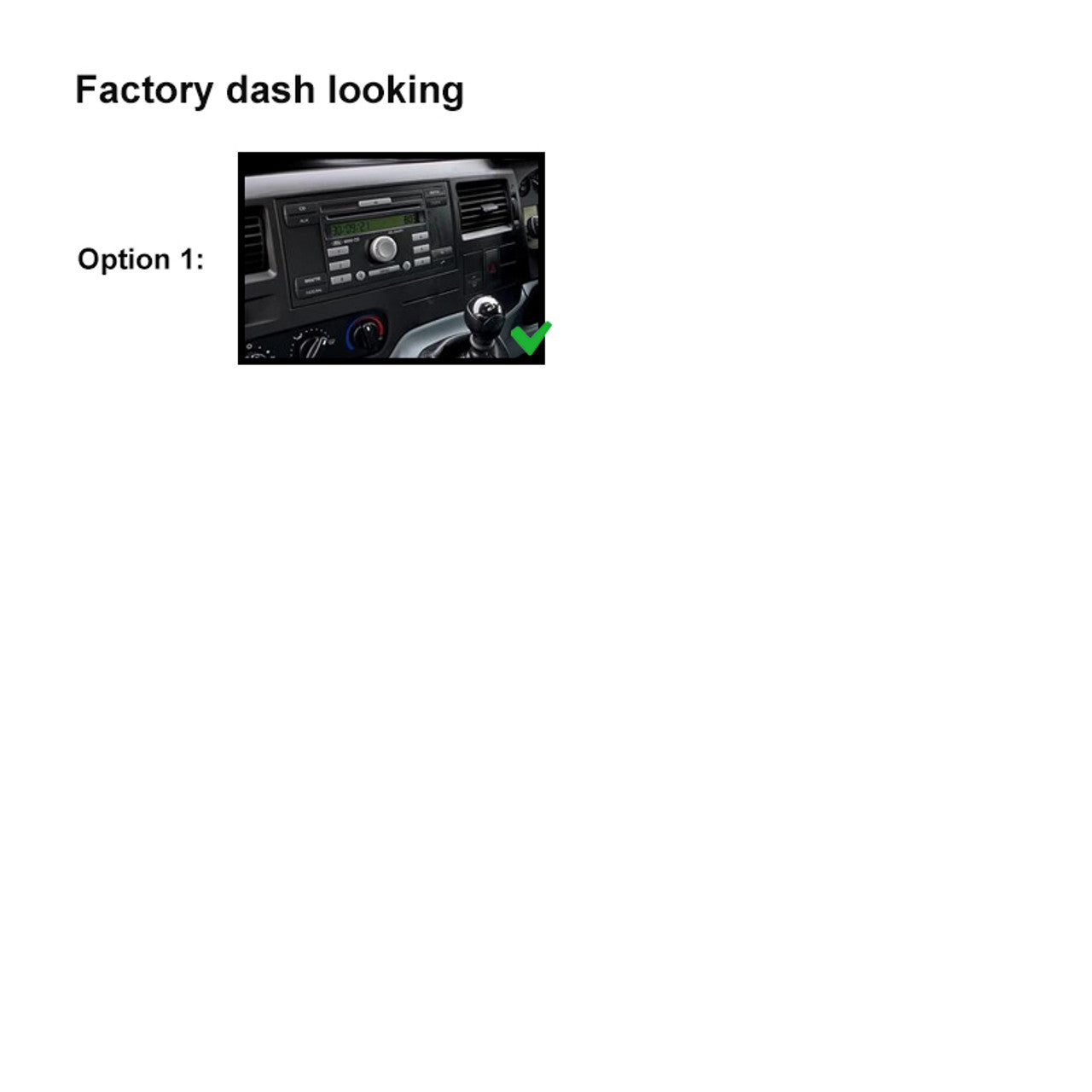

• Compatible with Option 1 dash look
• Please send a photo of your dash with car year and model when purchasing, so we can send the compatible harness

Key Features

Wireless Apple CarPlay

• The ultimate co-pilot. Enjoy Apple CarPlay without a cable. CarPlay makes using your iPhone smarter and safer while driving. Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. iOS also introduces new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for some specific phone brands)

• Connect your phone wirelessly and get driving directions, hands-free calls, and texts right on your car display. Android Auto is designed to help you focus on the road while having fun along the way.

Bluetooth

• Communication system BT: 5.0 + EDR
• Frequency band: 2.4GHz
• Max Range: 5 meters

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max Power: 4×50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L (at the back of the unit)
• AUX-R (at the back of the unit)

Video Inputs

• R-CAM: Reverse camera video input (at the back of the unit)
• V-IN: Extra video input (at the back of the unit)
• V-OUT1: Video output 1 (at the back of the unit)
• V-OUT2: Video output 2 (at the back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB connection for music or video (at the back of the unit)

Other Inputs at the Back of the Unit

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable

• FL_OUT: Front Left speaker output
• FR_OUT: Front Right speaker output
• RL_OUT: Rear Left speaker output
• RR_OUT: Rear Right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Included

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: Different car models may require different accessory packages. It's normal if they differ slightly from the listing.

General Specifications

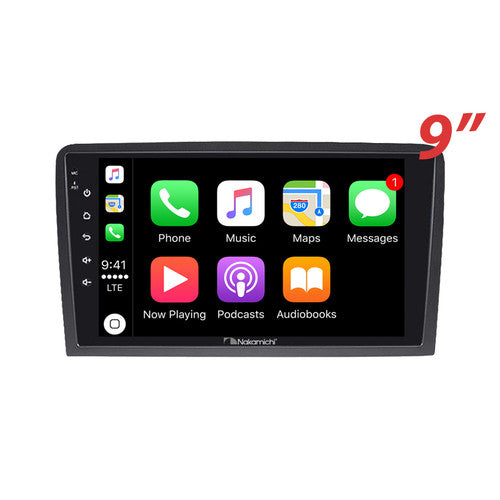

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (10.5V - 16V)
• USB readable/chargeable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
