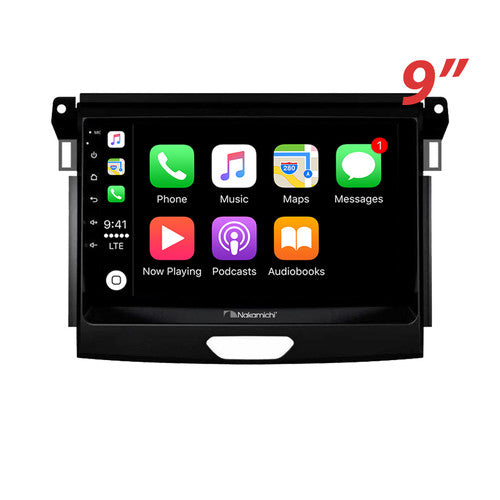

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Ford Ranger 2015+

Compatibility:

• For Ford Ranger 2015 +

Important Notice

• Compatible with steering wheel controls

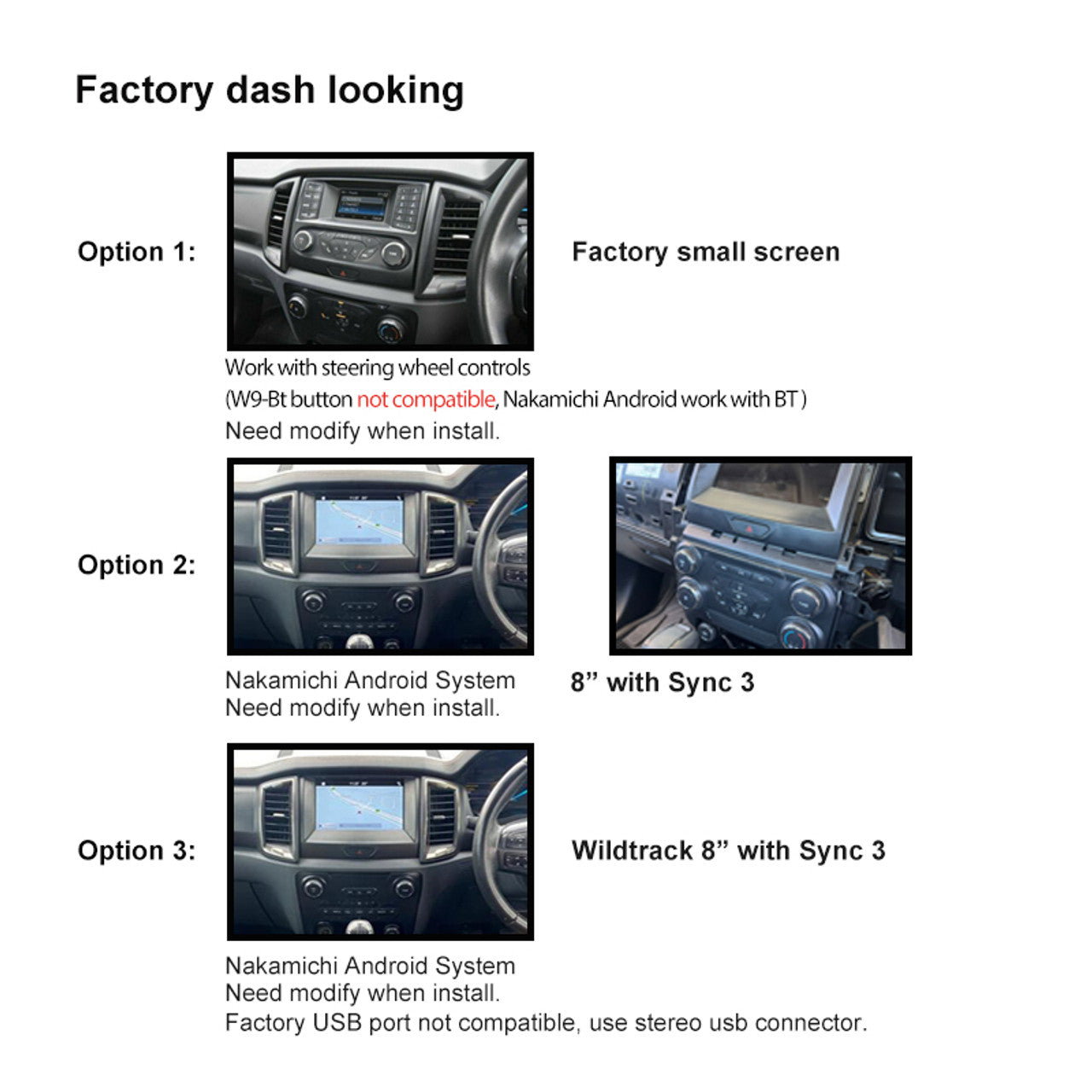

• Option 1: W9-BT button not compatible, Nakamichi Android system works with Bluetooth
• Option 2: 8" Sync 3 model requires installation modification. Comes with instruction paper
• Option 3: Wildtrack with 8" Sync 3 model; factory USB port not compatible, use stereo USB connector
• Works with factory camera
• Please send a photo of your dash with car year and model when purchasing, so we can send the compatible harness

Key Features

Wireless Apple CarPlay

• The ultimate co-pilot. Enjoy Apple CarPlay without the cable. CarPlay is smarter, safer, and makes using your iPhone on the go simple. Get directions, make calls, send messages, and enjoy your music, all from your car’s built-in display. iOS also introduces all-new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for some specific phone brands)

• Pair your phone wirelessly and easily get driving directions, hands-free calls, or send messages directly on the screen. Android Auto helps you focus on the road and enjoy your drive. Just plug in and go!

Bluetooth

• Communication system BT: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max Power: 4×50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L (at the back of the unit)
• AUX-R (at the back of the unit)

Video Inputs

• R-CAM: Reverse camera video input (at the back of the unit)
• V-IN: Extra video input (at the back of the unit)
• V-OUT1: Video output 1 (at the back of the unit)
• V-OUT2: Video output 2 (at the back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB connection for music or video (at the back of the unit)

Other Inputs at the Back of the Unit

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable

• FL_OUT: Front Left speaker output
• FR_OUT: Front Right speaker output
• RL_OUT: Rear Left speaker output
• RR_OUT: Rear Right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Included

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: Different car models may require different accessory packages. It's normal if they differ slightly from the listing.

General Specifications

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (10.5V - 16V)
• USB readable/chargeable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
