Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Ford Ranger 2012-2015

Compatibility:

• For Ford Ranger 2012-2015

Important Notice

• Compatible with steering wheel controls (W9-BT button not compatible; Nakamichi Android works with Bluetooth)
• Compatible with Option 1 dash looking
• Factory camera requires hardwiring
• Factory USB port not compatible, use stereo USB connector
• Please send a photo of your dash with the car’s year and model when purchasing, so we can send the compatible harness

Key Features

Wireless Apple CarPlay

• The ultimate co-pilot. Enjoy Apple CarPlay without the cable. CarPlay offers a smarter, safer way to use your iPhone while driving. Get directions, make calls, send messages, and listen to music, all from your car's display. iOS also introduces new app categories and custom wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for some specific phone brands)

• Pair your phone wirelessly and hit the road! Android Auto brings your phone’s apps onto the car's display, allowing you to get directions, send messages, or make hands-free calls. It’s designed to help you focus on the road while enjoying your drive. Just plug in and go!

Bluetooth

• Communication system BT: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max power: 4×50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L (at the back of the unit)
• AUX-R (at the back of the unit)

Video Inputs

• R-CAM: Reverse camera video input (at the back of the unit)
• V-IN: Extra video input (at the back of the unit)
• V-OUT1: Video output 1 (at the back of the unit)
• V-OUT2: Video output 2 (at the back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB connection for music or video (at the back of the unit)

Other Inputs at the Back of the Unit

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Included

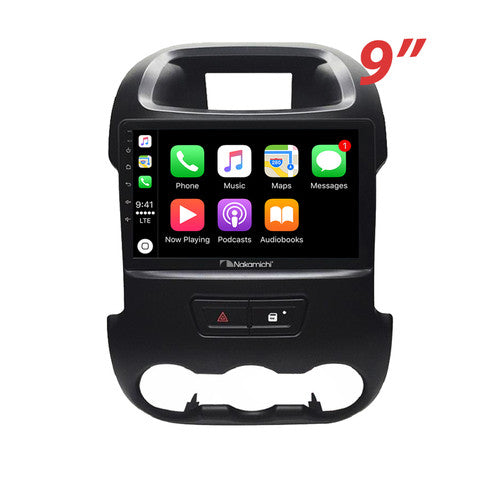

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: Different car models may require different accessory packages. It is normal if they differ slightly from the listing.

General Specifications

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (10.5V - 16V)
• USB readable/chargeable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
