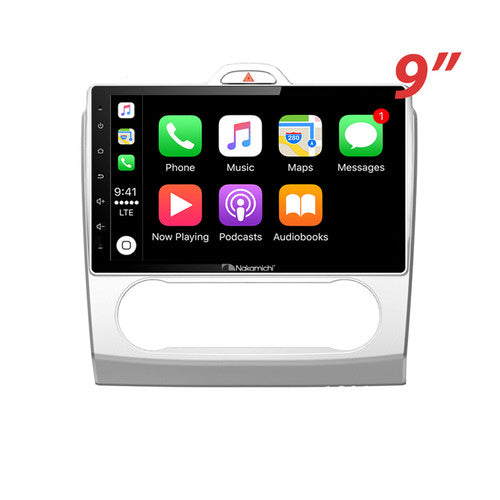

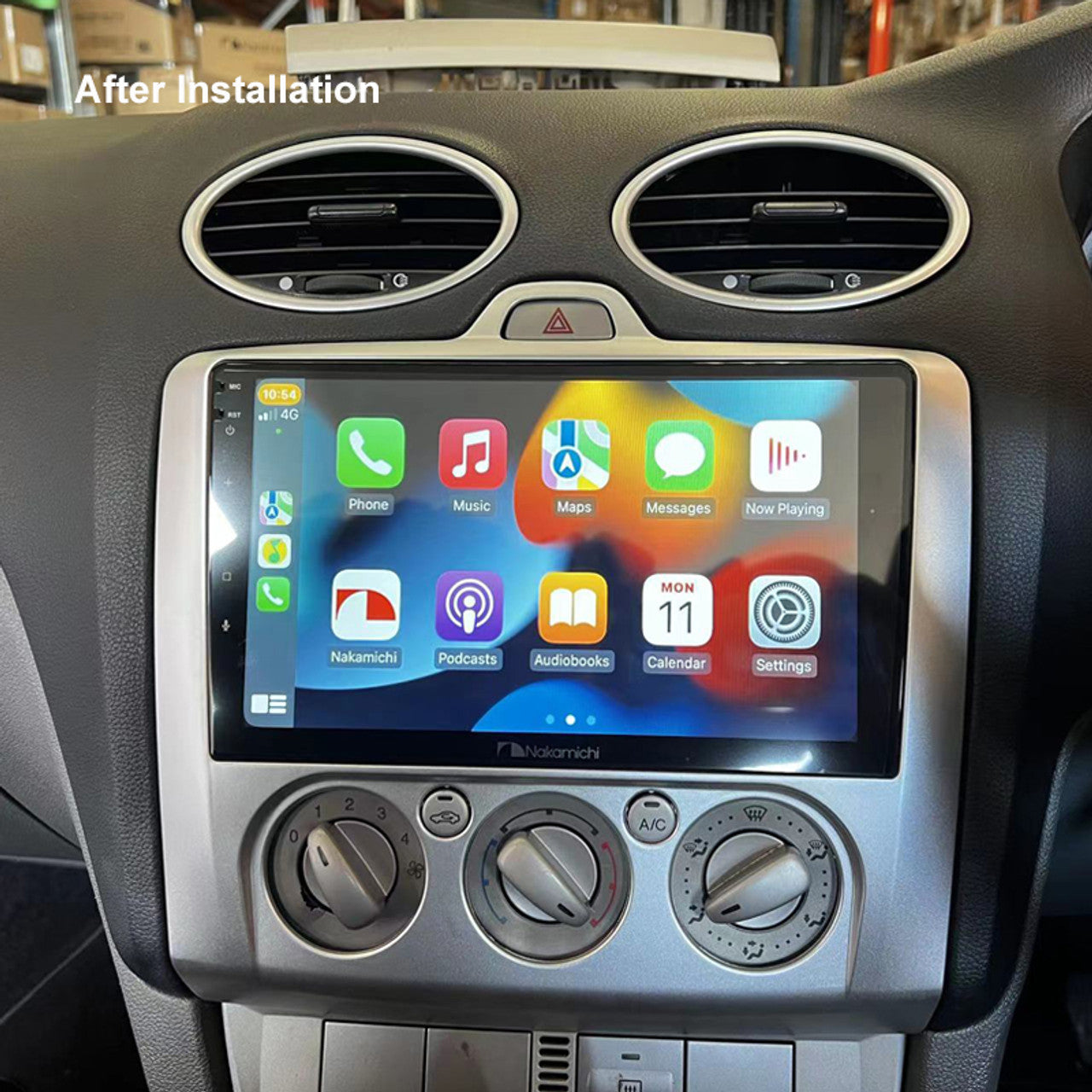

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Ford Focus Auto Air Con 2004-2011

Compatibility:

• For Ford Focus Auto Air Con 2004-2011

Important Notice

• Compatible with Steering Wheel Controls

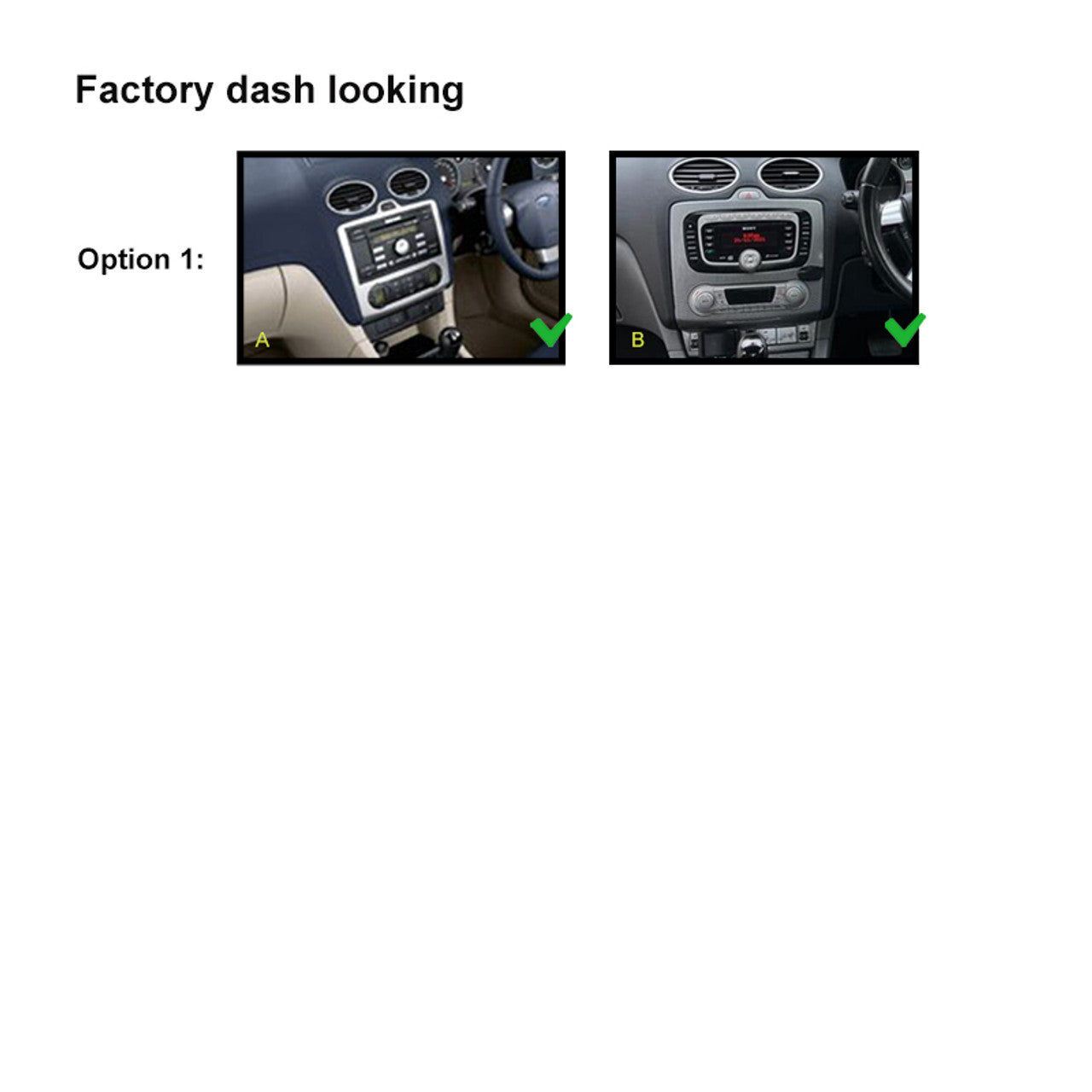

• Compatible with Option 1 dash looking
• Requires checking car connector for the compatible harness. Please send a photo when ordering
• Please send a message of the dash photo with car year and model when purchasing so we can send you the compatible harness

Key Features

Wireless Apple CarPlay

• The ultimate co-pilot. Enjoy Apple CarPlay without the need for cables. CarPlay offers a smarter, safer way to use your iPhone while driving. Access directions, make calls, send messages, and listen to your favorite music, all from your car's display. With iOS, CarPlay introduces new app categories and custom wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for some specific phone brands)

• Pair your phone wirelessly and hit the road. Your Android apps show up on your car display instantly. You can get driving directions, send messages, or make hands-free calls. Android Auto is designed to help you stay focused on the road while having fun. Just plug in and go!

Bluetooth

• Communication system BT: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max power: 4×50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L (at the back of the unit)
• AUX-R (at the back of the unit)

Video Inputs

• R-CAM: Reverse camera video input (at the back of the unit)
• V-IN: Extra video input (at the back of the unit)
• V-OUT1: Video output 1 (at the back of the unit)
• V-OUT2: Video output 2 (at the back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB connection for music or video (at the back of the unit)

Other Inputs at the Back of the Unit

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Included

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Note: Different car models may require different accessory packages. It is normal if they differ slightly from the listing.

General Specifications

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (10.5V - 16V)
• USB readable/chargeable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
