Nakamichi Wireless Apple CarPlay & Android Auto Solution for Ford Focus Auto Air 2004-2011

Compatibility:

• for Ford Focus Auto Air Con (2004-2011)

Important notes:

• Fully compatible with steering wheel controls.

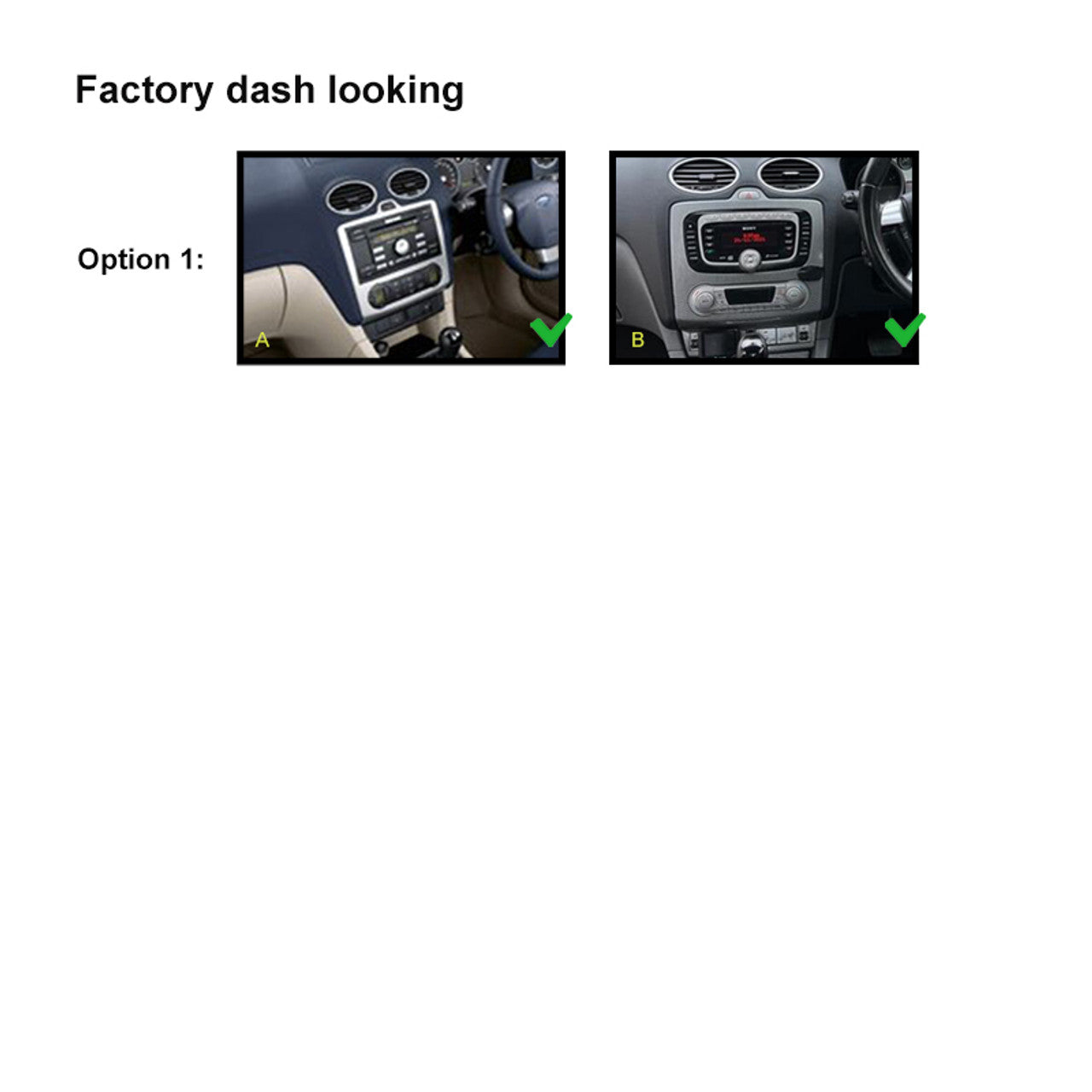

• Compatible with Option 1 dash designs.
• Please check your car’s connector type by sending a photo when placing your order.
• Provide a photo of your car’s dash, along with the year and model, so we can send you the compatible harness.

Key features:

Wireless Apple CarPlay:
The ultimate co-pilot for your car. Enjoy CarPlay without the hassle of cables. CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and listen to your favorite music — all through your car's built-in display. iOS introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands):
Pair your phone wirelessly and hit the road. Connect your Android device to the car display, and your apps will appear onscreen. Tap to get driving directions, send text messages, or make hands-free calls. Android Auto is designed to keep you focused on the road while you enjoy the journey.

Bluetooth 5.0:

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 KHz
• Presets: 18 FM, 12 AM

Audio:

• Max power: 4 x 50W
• Pre-output: 4V / 10KΩ
• Speaker impedance: 4-8Ω
• AUX inputs: Left and right at the back

Video inputs & outputs:

• Reverse camera input (R-CAM)
• Extra video input (V-IN)
• Video output 1 (V-OUT1)
• Video output 2 (V-OUT2)

USB connections:

• CP/AA: USB for CarPlay / Android Auto
• USB: USB connection for music or video

Additional back unit inputs:

• Radio antenna input (ANT)
• Microphone input (MIC)

RCA cables included:

• Front left & right speaker output
• Rear left & right speaker output
• Subwoofer output
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package contents:

• Nakamichi head unit with fascia
• Main wiring harness
• RCA cable
• User manual
• Microphone
• 2 USB cables
  (*Different vehicle models may require additional accessories. Variations are normal.)

Specifications:

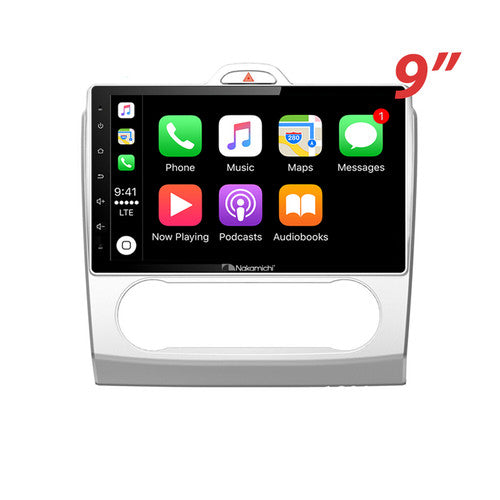

• Display size: 9" TFT
• Resolution: 1240×600
• Brightness: 500 nits
• Voltage: 14.4V (range 10.5V-16V)
• USB: 5V/1A for charging
• Video formats: H264, MP4, AVI, MKV, FLV
• Audio formats: MP3, APE, AAC, FLAC
