Nakamichi Wireless Apple CarPlay & Android Auto Solution for Ford Focus 2012-2018

Compatibility:

• for Ford Focus (2012-2018)

Important notes:

• Fully compatible with steering wheel controls (W9-BT button not compatible, Nakamichi Android works with BT).

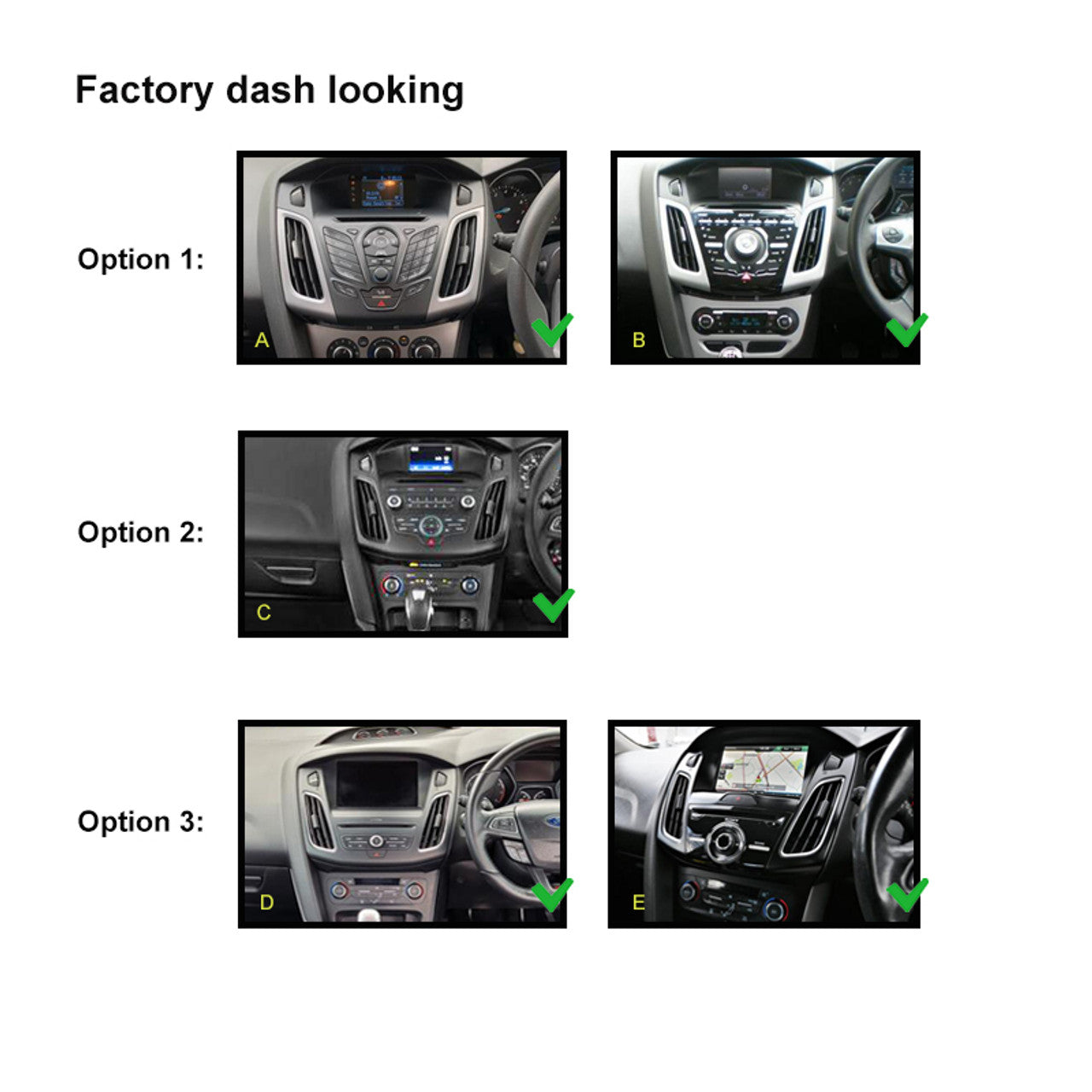

• Compatible with Option 1, 2, and 3 dash designs.
• Factory camera requires hardwiring.
• Please send a photo of your car’s dash, along with the year and model, when purchasing, so we can provide the correct harness.

Key features:

Wireless Apple CarPlay:
The ultimate co-pilot for your drive. Enjoy Apple CarPlay without cables. CarPlay offers a smarter, safer way to use your iPhone while driving. Access maps, make calls, send and receive messages, and enjoy your favorite music, all through your car's built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for specific phone brands):
Pair your phone wirelessly and hit the road. Your Android apps appear onscreen, and you can easily tap to get directions, send hands-free texts, or make calls. Android Auto is designed to keep you focused on the road while enjoying your drive.

Bluetooth 5.0:

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 KHz
• Presets: 18 FM, 12 AM

Audio:

• Max power: 4 x 50W
• Pre-output: 4V / 10KΩ
• Speaker impedance: 4-8Ω
• AUX inputs: Left and right at the back

Video inputs & outputs:

• Reverse camera input (R-CAM)
• Extra video input (V-IN)
• Video output 1 (V-OUT1)
• Video output 2 (V-OUT2)

USB connections:

• CP/AA: USB for CarPlay / Android Auto
• USB: USB connection for music or video

Additional back unit inputs:

• Radio antenna input (ANT)
• Microphone input (MIC)

RCA cables included:

• Front left & right speaker output
• Rear left & right speaker output
• Subwoofer output
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package contents:

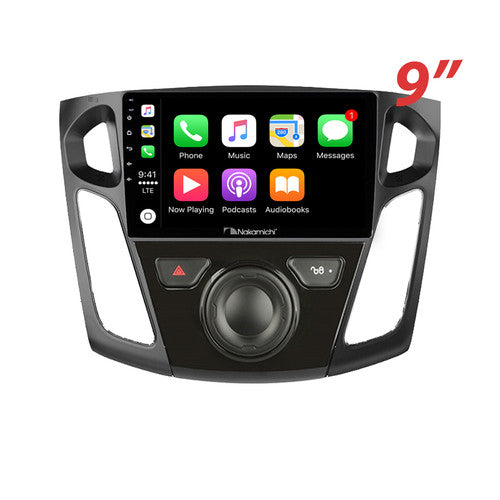

• Nakamichi head unit with fascia
• Main wiring harness
• RCA cable
• User manual
• Microphone
• 2 USB cables
  (*Different vehicle models may require additional accessories. Variations are normal.)

Specifications:

• Display size: 9" TFT
• Resolution: 1240×600
• Brightness: 500 nits
• Voltage: 14.4V (range 10.5V-16V)
• USB: 5V/1A for charging
• Video formats: H264, MP4, AVI, MKV, FLV
• Audio formats: MP3, APE, AAC, FLAC
