Nakamichi Wireless Apple CarPlay & Android Auto Solution for Ford Ecosport 2013-2017

Compatibility:

• for Ford Ecosport (2013-2017)

Important notes:

• Compatible with Steering Wheel Controls

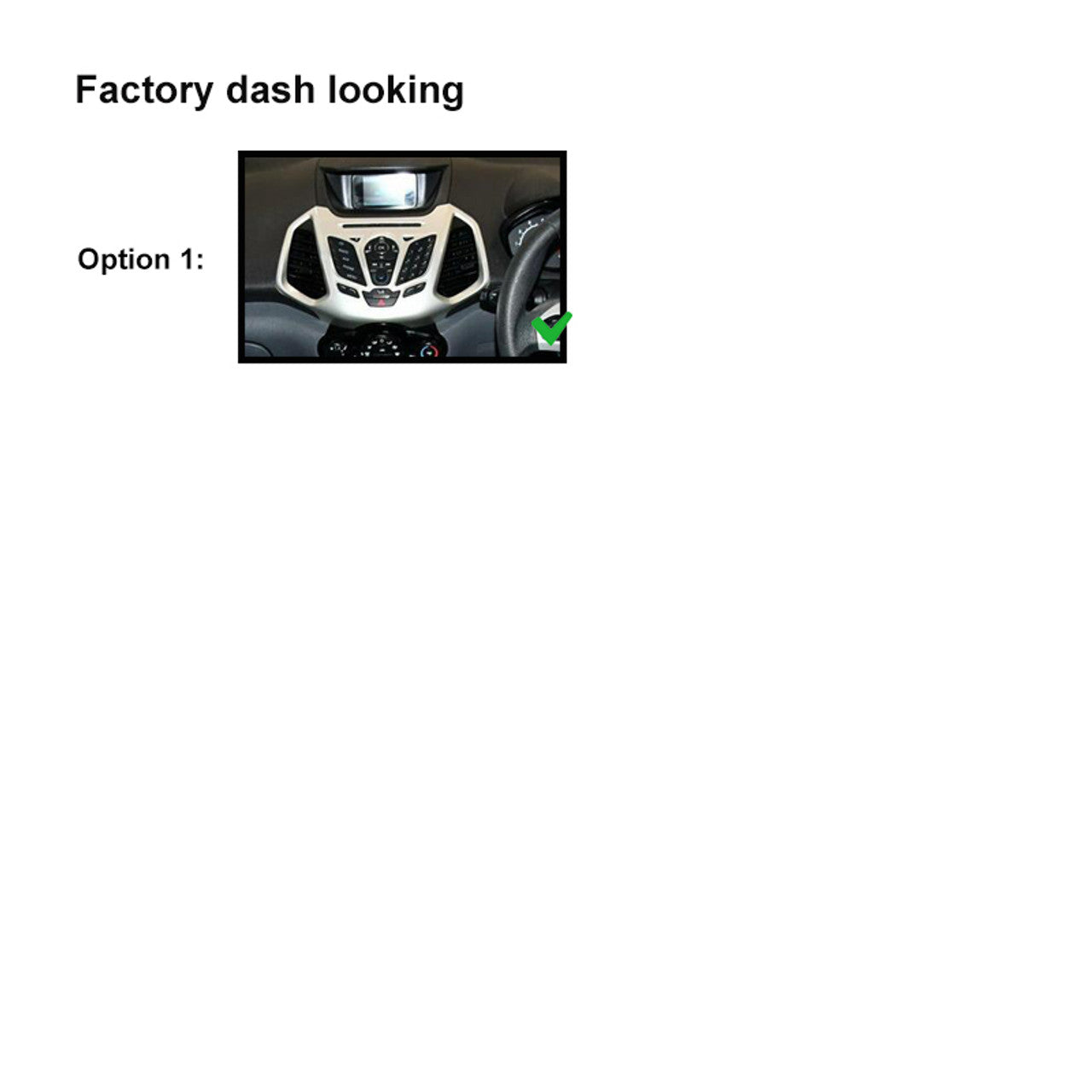

• Compatible with Option 1 dash design
• Please send a photo of your car’s dash, along with the year and model, when purchasing, so we can provide the compatible harness.

Key features:

PhoneLink Operation

• iPhone Connection:
  The ultimate co-pilot. Enjoy your iPhone apps without cables. PhoneLink provides a smarter, safer way to use your iPhone while driving. Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car’s built-in display.

• Android Phone Connection (Wired for some specific phone brands):
  Pair your Android phone without a cable and hit the road. Your phone’s apps appear on the car display instantly. Tap to get driving directions, send hands-free texts, or make calls. Designed to keep you focused on the road while enjoying the drive.

Built-in GPS:
Preloaded GPS data, plus the option to update or purchase preferred data via the Google Play Store.

Built-in Wi-Fi & 4G Support:
Connect the stereo to a Wi-Fi network or insert a SIM card for 4G connectivity.

Bluetooth 5.0:

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 KHz
• Presets: 18 FM, 12 AM

Audio Inputs & Outputs:

• Max power: 4 x 50W
• Pre-output: 4V / 10KΩ
• Speaker impedance: 4-8Ω
• Audio left and right input (AUX IN_L, AUX IN_R)
• Front left & right speaker output
• Subwoofer output
• Amplifier control (AMP_POW)
• Rear left & right speaker output (RL-OUT, RR-OUT)

Video Inputs & Outputs:

• Reverse camera video input (B.CAMERA)
• Front camera input (F_CAMERA)
• Extra video input (CVBS)

USB Connections:

• 4Pin USB for PhoneLink (iPhone or Android)
• 6Pin USB for music or video

Additional Inputs:

• Radio antenna input
• GPS antenna input
• External microphone port (MIC)
• Brake detection (BRAKE)
• Canbus Box interface (Can RX/TX)
• 5G Wi-Fi & 4G Antenna included

Package Contents:

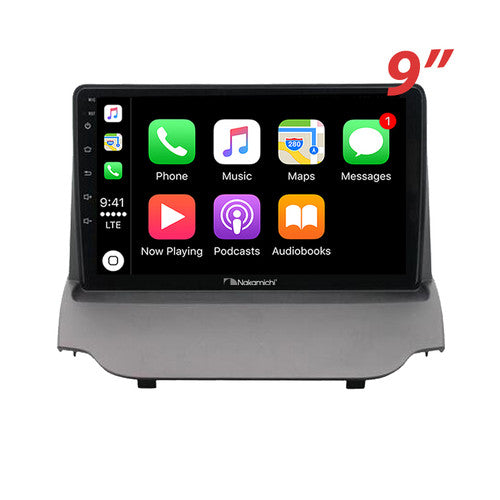

• Nakamichi head unit with fascia
• Main harness
• RCA cable
• Wi-Fi, Bluetooth, and camera cable
• RL/RR cable
• Microphone
• 4G antenna
• GPS antenna
• User manual
• 2 USB cables
  (*Please note that some car models may require different accessories. Variations in accessories are normal.)

General Specifications:

• Display size: 9" TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display resolution: 1280x720 IPS
• Brightness: 500 nits
• Voltage: 14.4V (range: 10.5V-16V)
• USB charging/reading: 5V/1A
• Video formats: H264, MP4, AVI, MKV, FLV
• Audio formats: MP3, APE, AAC, FLAC
