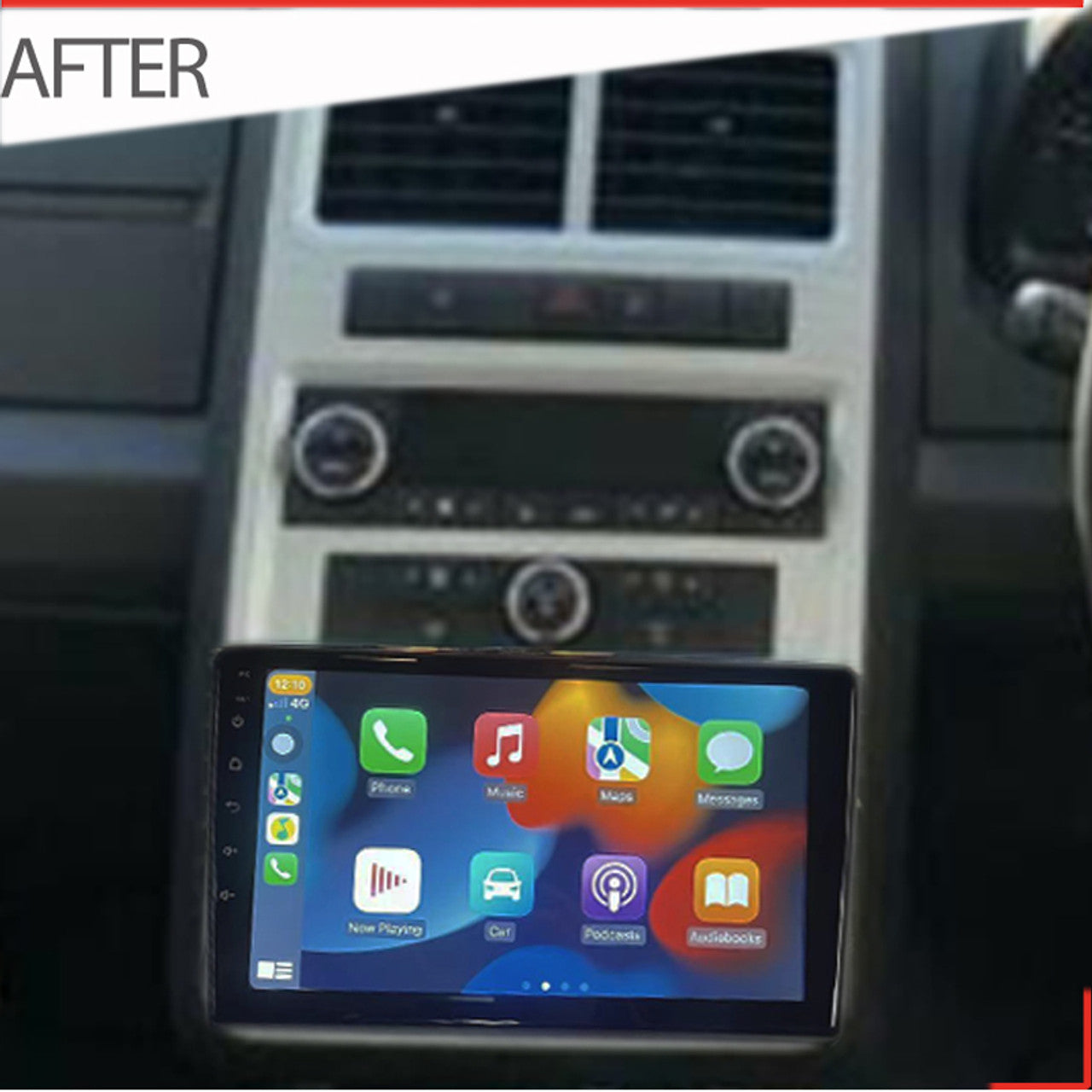

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Dodge Journey 2008-2011

Compatibility:

• for Dodge Journey (2008-2011)

Important Notes:

• Compatible with Steering Wheel Controls

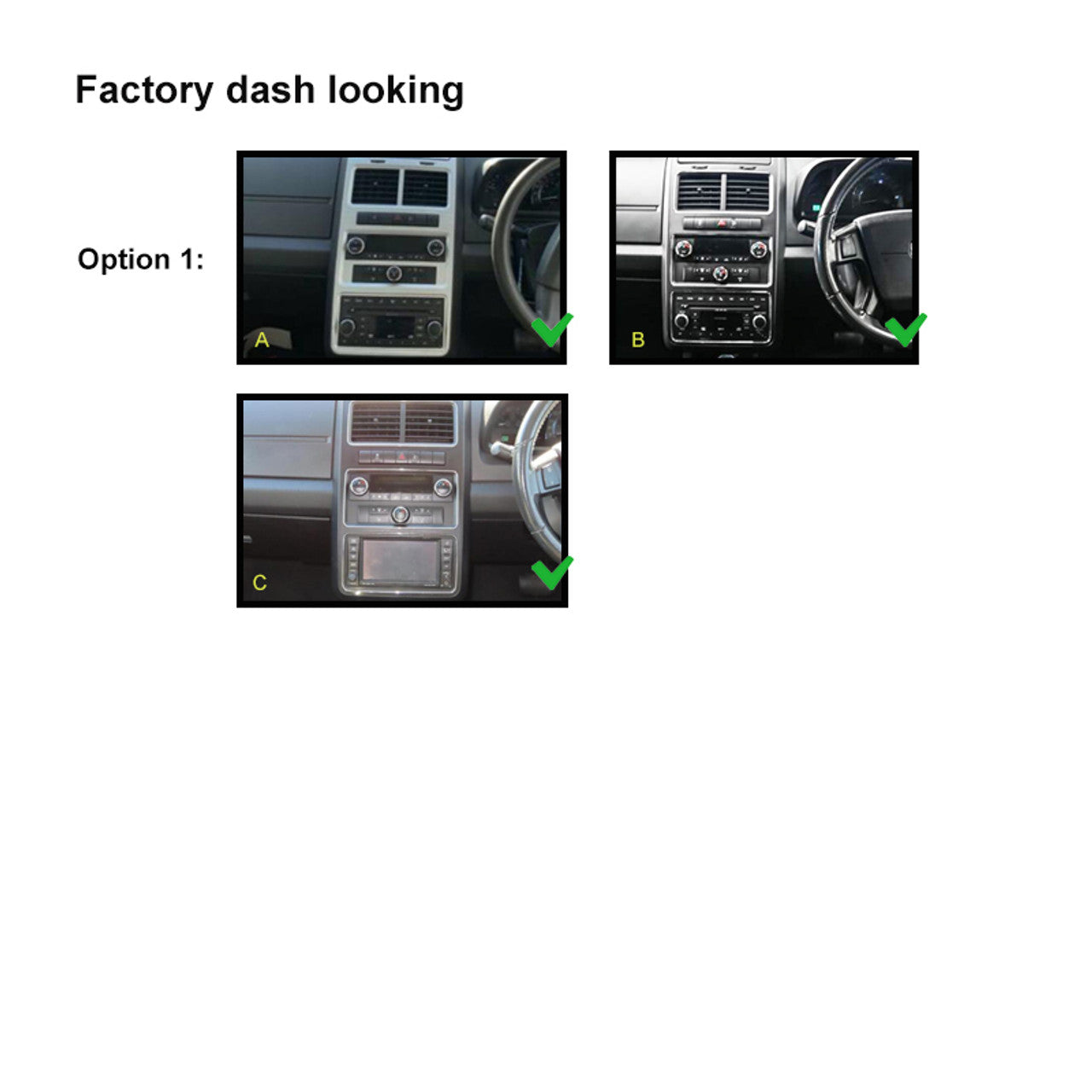

• Compatible with Option 1 dash design
• Factory camera requires hardwiring
• Please send a photo of your car’s dash, along with the year and model, when purchasing, so we can provide the compatible harness.

Main Features:

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay without cables. CarPlay provides a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for Some Specific Phone Brands)
Pair your phone wirelessly and hit the road. Your Android apps will appear on-screen just like that. Tap to get driving directions, send a text, or make hands-free calls. Android Auto helps you stay focused on the road while having fun along the way. Just plug in and go!

Bluetooth 5.0

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 KHz
• Presets: 18 FM, 12 AM

Audio:

• Max power: 4 x 50W
• Pre-output: 4V / 10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX left and right input (AUX-L, AUX-R)

Video Inputs & Outputs:

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video output 1 (V-OUT1)
• Video output 2 (V-OUT2)

USB Connections:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: USB connection for music or video

Additional Inputs:

• Radio antenna input (ANT)
• Microphone input (MIC)

RCA Cable Outputs:

• Front left speaker output (FL_OUT)
• Front right speaker output (FR_OUT)
• Rear left speaker output (RL_OUT)
• Rear right speaker output (RR_OUT)
• Subwoofer output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package Contents:

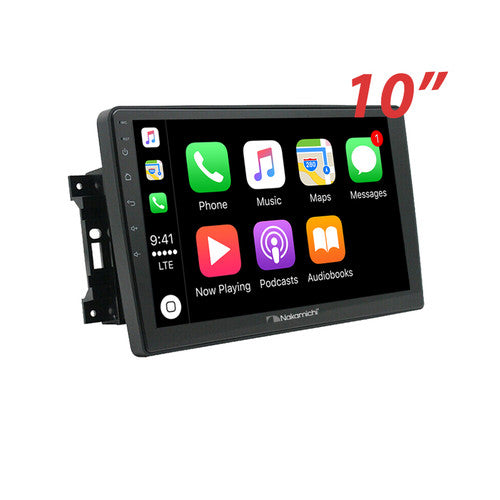

• Nakamichi head unit with fascia
• Main harness
• RCA cable
• User manual
• Microphone
• 2 USB cables
  (*Please note that some car models may require different accessories. Variations in accessories are normal.)

General Specifications:

• Screen size: 10" TFT
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500 nits
• Voltage: 14.4V (range: 10.5V-16V)
• USB charging/reading: 5V/1A
• Video formats: H264, MP4, AVI, MKV, FLV
• Audio formats: MP3, APE, AAC, FLAC
