Nakamichi Wireless Apple CarPlay & Android Auto Solution for BMW 5 Series 1996-2004 E39 & BMW X5 2000-2006 E53

Compatibility:

• BMW 5 Series (1996-2004) E39
• BMW X5 (2000-2006) E53

Important Notes:

• Compatible with Steering Wheel Controls

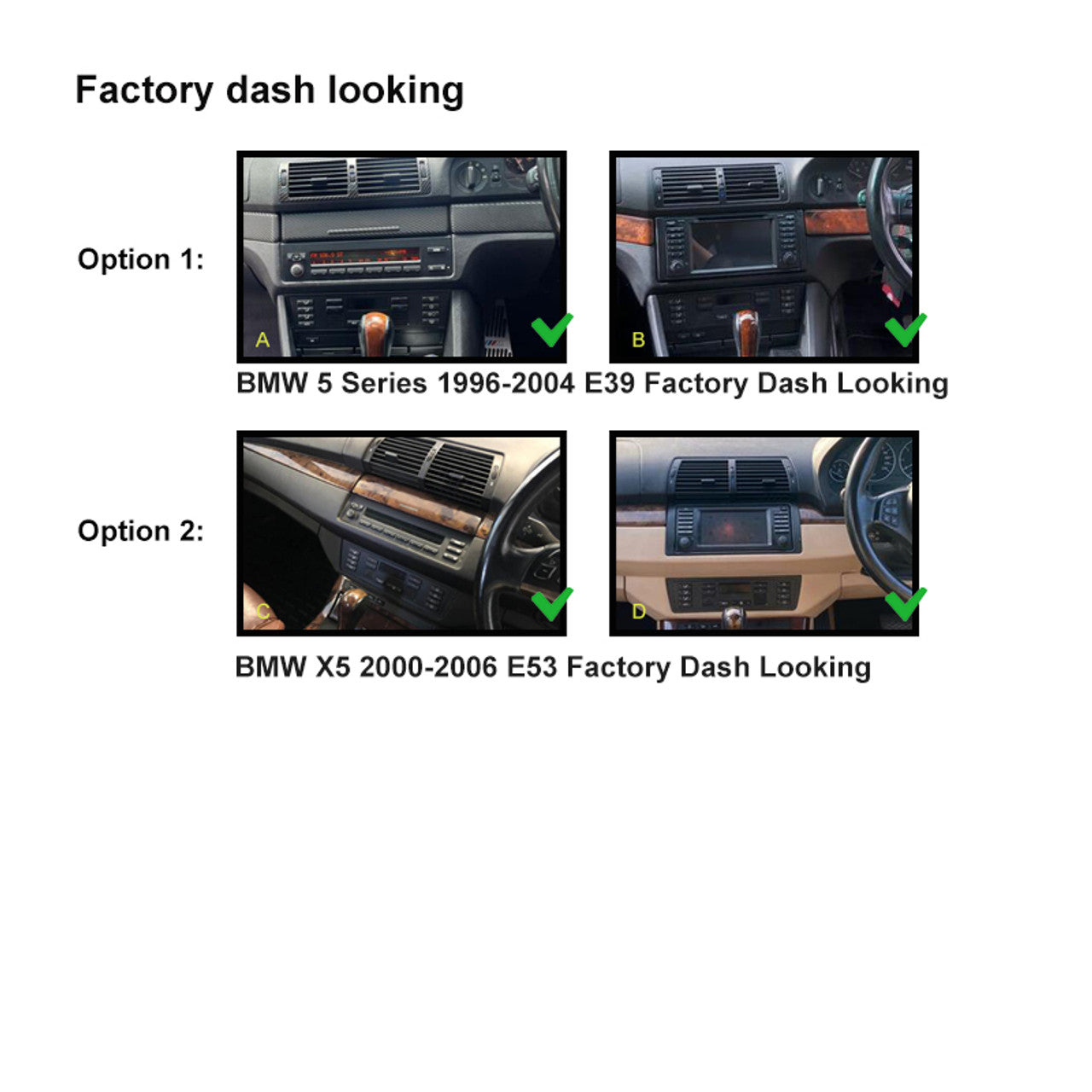

• Compatible with Option 1 & Option 2 dash designs
• For Option 2, factory camera requires hardwiring; additional cost for Radio 6M cable. Uses Nakamichi Android System
• Please send a photo of your car’s dash, along with the year and model, when purchasing so we can send the correct compatible harness.

Main Features:

Wireless Apple CarPlay
The ultimate co-pilot. Experience CarPlay without the need for cables. CarPlay lets you access smarter, safer features while driving, such as directions, phone calls, messages, and music—all displayed on your car’s screen. iOS brings new app categories and customizable wallpapers for a personalized CarPlay dashboard.

Wireless Android Auto (Wired for Some Specific Phone Brands)
Wirelessly pair your phone and start your journey! Your Android apps will appear on the car display, providing driving directions, sending texts, and even making hands-free calls. Android Auto helps you focus on the road, with a seamless and fun driving experience. Just plug in and go!

Bluetooth 5.0

• Communication system: Bluetooth 5.0 + EDR
• Frequency band: 2.4 GHz
• Maximum range: 5 meters

Radio Features:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 KHz
• Presets: 18 FM, 12 AM

Audio:

• Maximum power: 4 x 50W
• Pre-output: 4V / 10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX input (Left & Right)

Video Inputs & Outputs:

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video output 1 (V-OUT1)
• Video output 2 (V-OUT2)

USB Connections:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: USB connection for music or video

Additional Inputs:

• Radio antenna input (ANT)
• Microphone input (MIC)

RCA Cable Outputs:

• Front left speaker output (FL_OUT)
• Front right speaker output (FR_OUT)
• Rear left speaker output (RL_OUT)
• Rear right speaker output (RR_OUT)
• Subwoofer output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package Includes:

• Nakamichi head unit with fascia
• Main harness
• RCA cable
• User manual
• Microphone
• 2 USB cables
  (*Note: For different car models, the accessory package may vary. It’s normal if it doesn't match exactly with the listing.)

General Specifications:

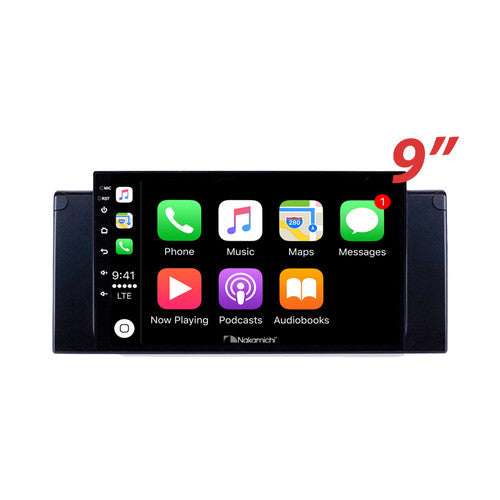

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5V-16V)
• USB charging/reading: 5V/1A
• Video formats: H264, MP4, AVI, MKV, FLV
• Audio formats: MP3, APE, AAC, FLAC
