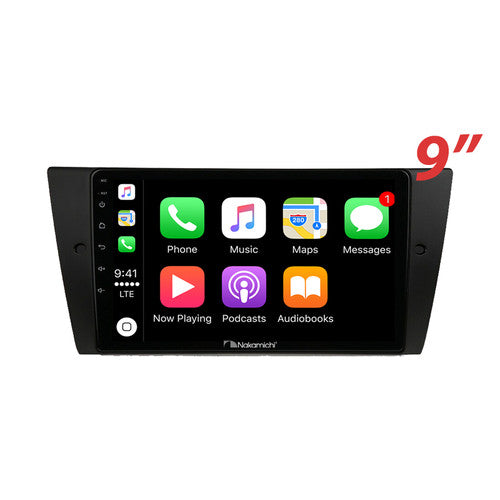

Nakamichi Wireless Apple CarPlay & Android Auto Solution for BMW 3 Series 2005-2012 E90

Compatibility:

• for BMW 3 Series (2005-2012) E90

Important Notes:

• Compatible with Steering Wheel Controls

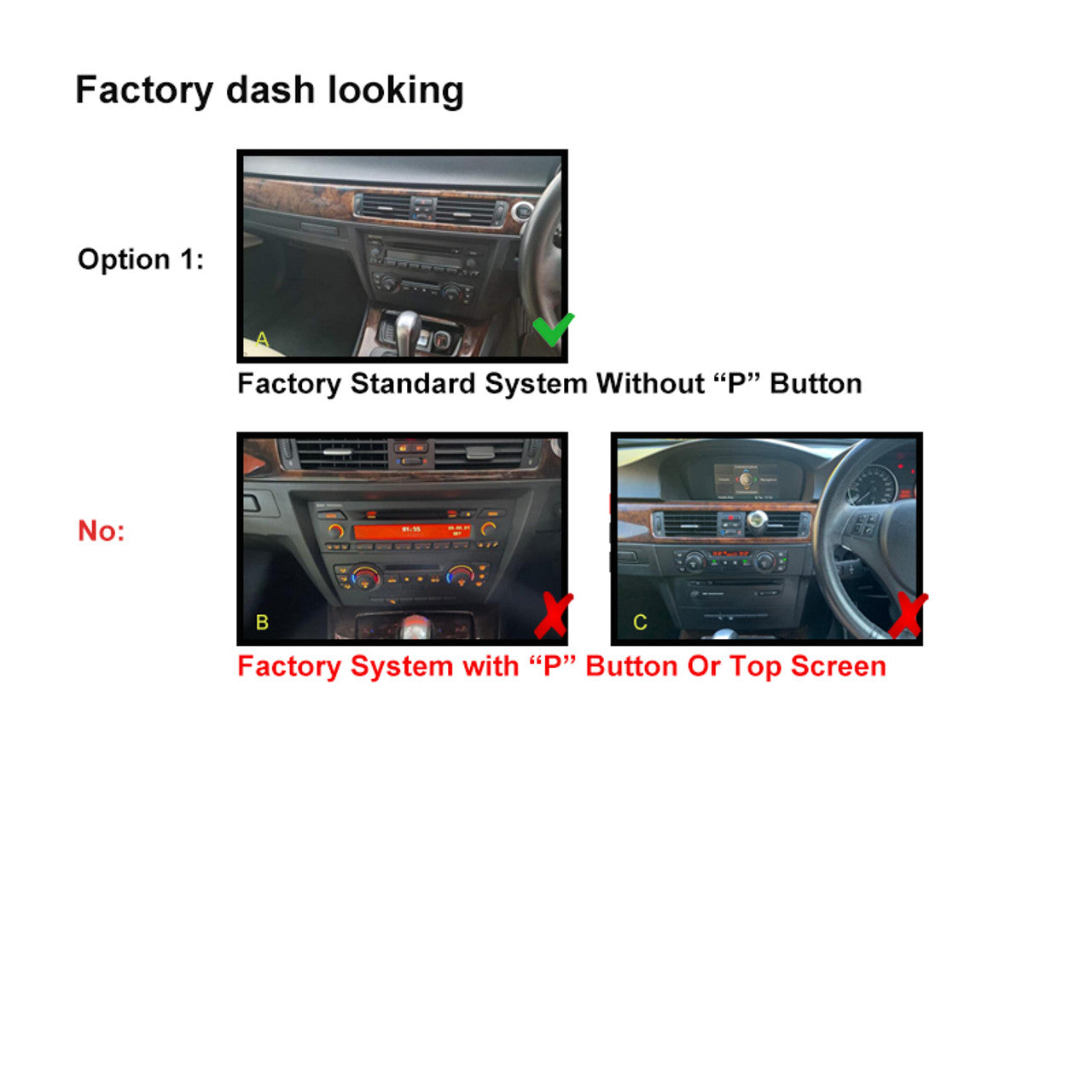

• Compatible with Option 1 dash design
• Not compatible with factory systems featuring a "P" button
• Please send a photo of your car’s dash, along with the year and model, when purchasing so we can send the correct compatible harness.

Main Features:

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay without needing cables. CarPlay offers a smarter, safer way to use your iPhone while driving. Access directions, make calls, send and receive messages, and enjoy your favorite music—all displayed on your car's built-in screen. With iOS, CarPlay introduces new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto (Wired for Some Specific Phone Brands)
Pair your phone wirelessly, and you’re ready to go! Your Android apps will appear on the car display, providing driving directions, sending texts, and making hands-free calls. Android Auto helps you focus on the road while making your drive more fun. Just plug in and hit the road!

Bluetooth 5.0

• Communication system: Bluetooth 5.0 + EDR
• Frequency band: 2.4 GHz
• Maximum range: 5 meters

Radio Features:

• FM Frequency: 87.5 - 108.0 MHz
• AM Frequency: 522 - 1620 KHz
• Presets: 18 FM, 12 AM

Audio:

• Maximum power: 4 x 50W
• Pre-output: 4V / 10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX input (Left & Right)

Video Inputs & Outputs:

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video output 1 (V-OUT1)
• Video output 2 (V-OUT2)

USB Connections:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: USB connection for music or video

Additional Inputs:

• Radio antenna input (ANT)
• Microphone input (MIC)

RCA Cable Outputs:

• Front left speaker output (FL_OUT)
• Front right speaker output (FR_OUT)
• Rear left speaker output (RL_OUT)
• Rear right speaker output (RR_OUT)
• Subwoofer output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package Includes:

• Nakamichi head unit with fascia
• Main harness
• RCA cable
• User manual
• Microphone
• 2 USB cables
  (*Note: For different car models, the accessory package may vary. It’s normal if it doesn't match exactly with the listing.)

General Specifications:

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5V-16V)
• USB charging/reading: 5V/1A
• Video formats: H264, MP4, AVI, MKV, FLV
• Audio formats: MP3, APE, AAC, FLAC
