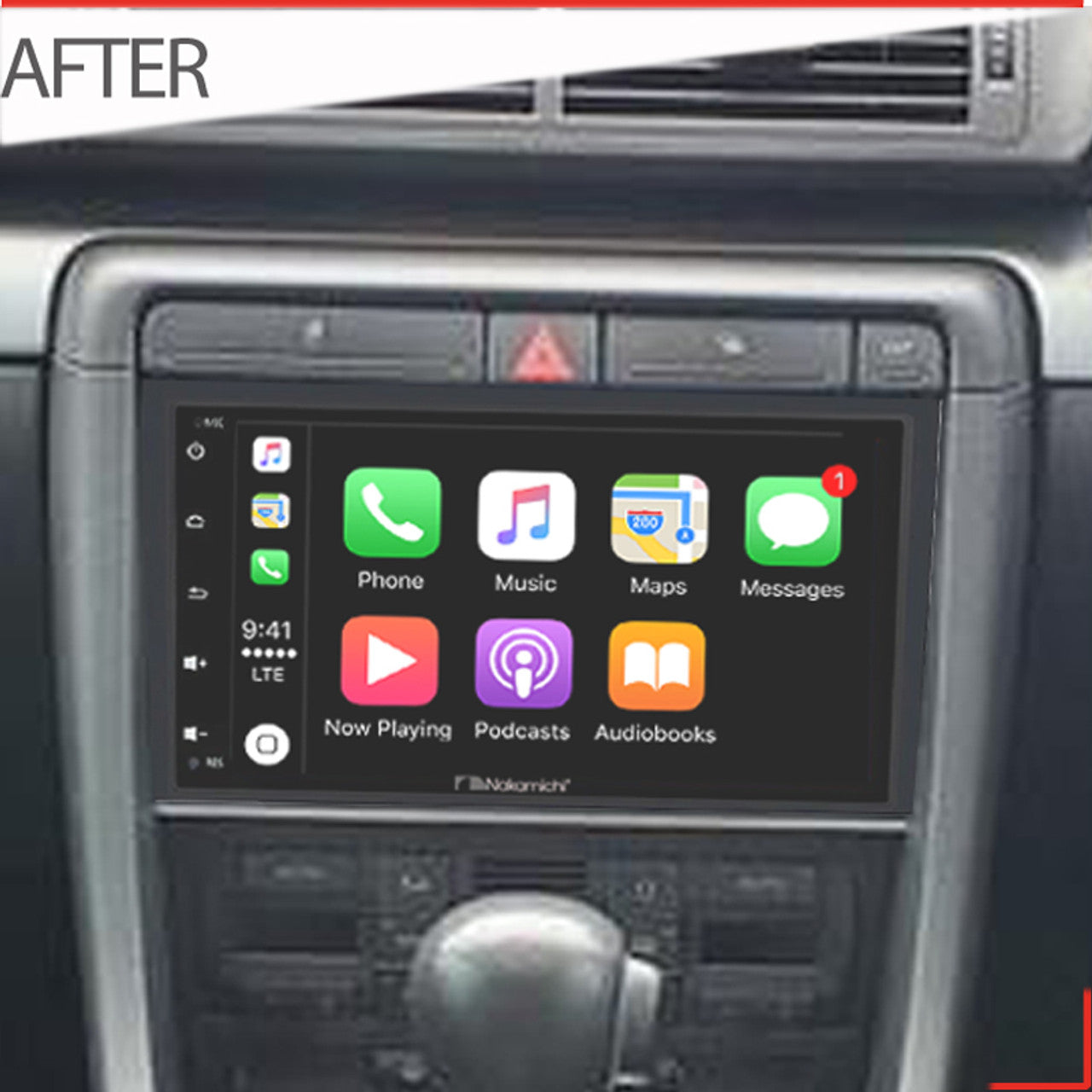

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Audi A4 2000-2008

Compatibility:

• For Audi A4 2000-2008

Notice

• Compatible with steering wheel controls

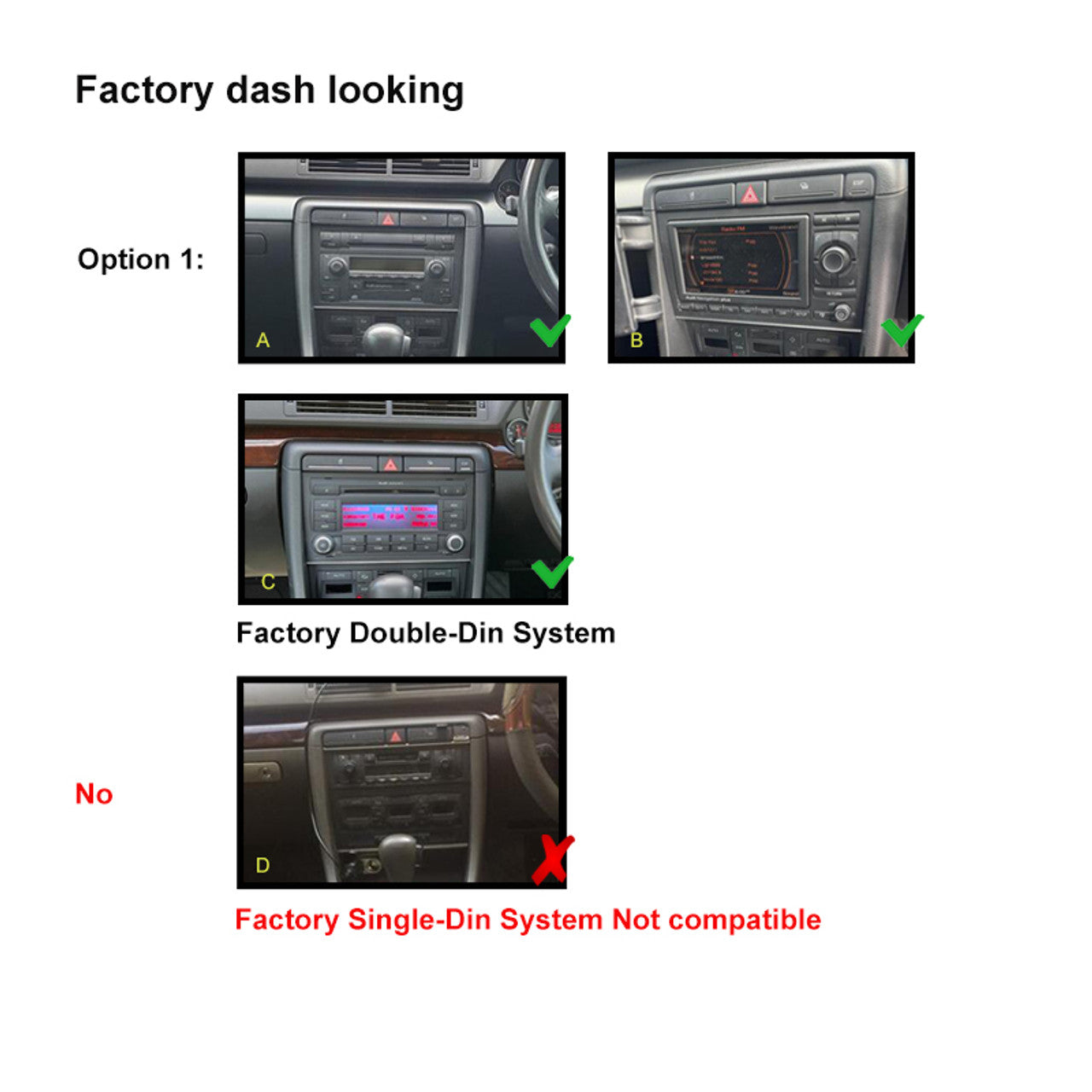

• Compatible with Option 1 dash look
• Not compatible with factory single din dash look
• Please send a photo of your car’s dash along with the year and model when purchasing, so we can send the correct compatible harness.

Main Features

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay wirelessly, making your drive smarter and safer. Get directions, make calls, send and receive messages, and enjoy your favourite music—all on your car's display. With iOS, CarPlay introduces new app categories and customized wallpapers for your dashboard.

Wireless Android Auto (wired for some specific phones)
Pair your Android phone wirelessly with your car display. Your Android apps show up on the screen, so you can get driving directions, send texts hands-free, and call without taking your hands off the wheel. Just plug in and go!

Bluetooth

• Communication system BT: 5.0 +EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio

• FM frequency: 87.5-108.0MHz
• AM frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio

• Max power: 4×50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L (at back of the unit)
• AUX-R (at back of the unit)

Video

• Reverse camera video input (R-CAM)
• Extra video input (V-IN)
• Video output 1 (V-OUT1)
• Video output 2 (V-OUT2)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto
• USB: USB connection for music or video

Other Input at Back of the Unit

• Antenna input (ANT)
• Microphone input (MIC)

RCA Cable

• Front left speaker output (FL_OUT)
• Front right speaker output (FR_OUT)
• Rear left speaker output (RL_OUT)
• Rear right speaker output (RR_OUT)
• Subwoofer output (SUB_OUT)
• Canbus connector (UART_RX/UART_TX)
• Parking brake (PARK)
• Amplifier control (AMP)

Package Included

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  (*For different car models, the accessory package may vary. It's normal if the package does not exactly match the listing.)

General Specifications

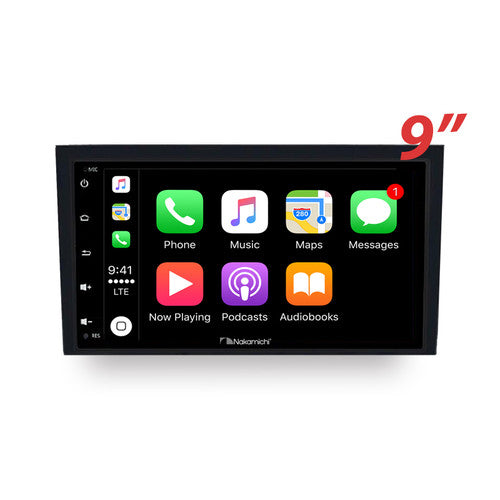

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5V-16V)
• USB charging/readable: (5±0.25V/1A)
• Video formats: H264, MP4, AVI, MKV, FLV
• Audio formats: MP3, APE, AAC, FLAC
