Wire Guy Global

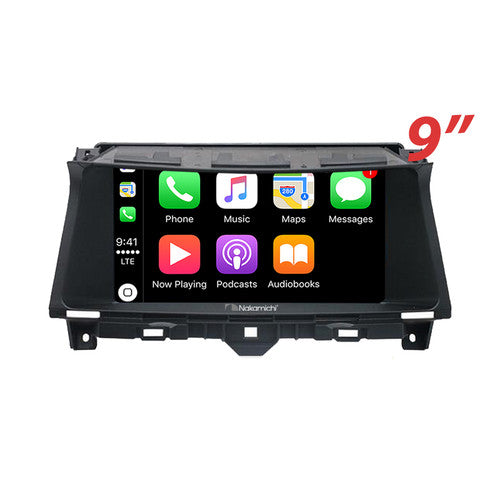

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Honda Accord 2008-2012

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Honda Accord 2008-2012

Regular price $1,199.00 AUD
Regular price Sale price $1,199.00 AUD
Sale Sold out
Shipping calculated at checkout.

Compatibility:

  • For Honda Accord 2008-2012

Important Notice:

  • Compatible with Steering Wheel Controls

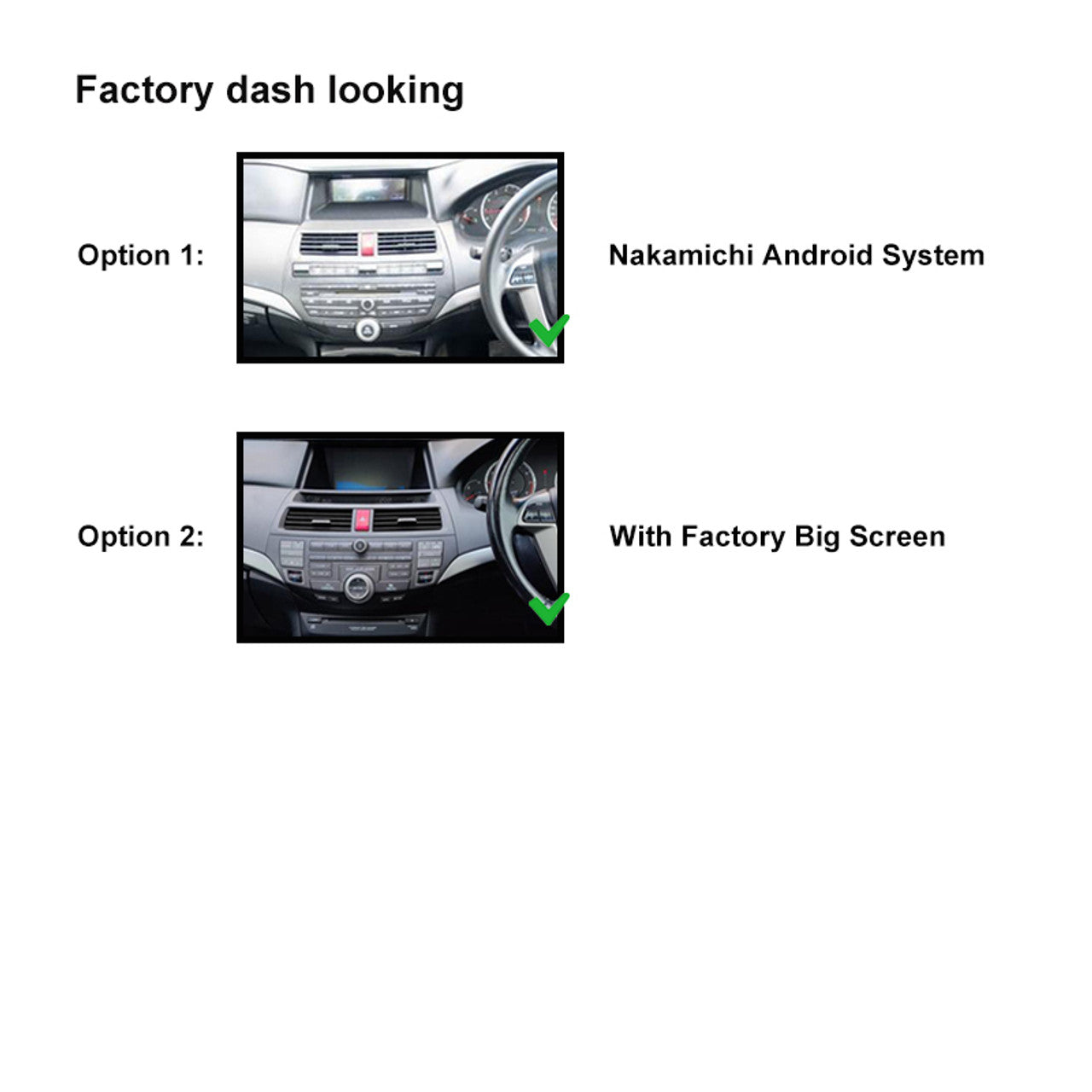

  • Option 2: Factory big screen (additional cost for specific accessories). Factory under-dash part needs cutting/modification during installation.
  • Please specify which dash version you require to receive the compatible package.
  • Send a photo of your dash along with the car year and model when purchasing, so we can provide the correct harness.

Main Features:

PhoneLink Operation:

  • iPhone Connection (Wireless CarPlay):

    • The Ultimate Co-Pilot! Enjoy iPhone apps without cables.
    • PhoneLink offers a smarter and safer way to use your iPhone while driving.
    • Access directions, make calls, send/receive messages, and enjoy music on your car's built-in display.
  • Android Phone Connection (Wired for some specific phone brands):

    • Pair your Android phone wirelessly or with a cable.
    • Your phone apps appear on the car display in an instant.
    • Tap for driving directions, send texts hands-free, and make calls.
    • Android Auto helps you stay focused on the road while enhancing your driving experience. Just plug in and go!
  • Built-in GPS:

    • Preload GPS data or update/purchase preferred data from Google Play Store for smooth navigation.
  • Built-in WiFi & 4G Support:

    • Connect to WiFi networks or insert a SIM card for 4G connectivity.
  • Bluetooth:

    • Communication system: BT 5.0 + EDR
    • Frequency Band: 2.4GHz
    • Max Range: 5 meters
  • Radio:

    • FM Frequency: 87.5-108.0 MHz
    • AM Frequency: 522-1620 kHz
    • Presets: 18 FM, 12 AM
  • Audio Inputs/Outputs:

    • Max Power: 4×50W
    • Pre-output (V): 4V/10KΩ
    • Pre-output Impedance: ≤600Ω
    • Speaker Impedance: 4-8Ω
    • AUX IN_L: Audio Left Input
    • AUX IN_R: Audio Right Input
    • FL_OUT: Front Left Speaker Output
    • FR_OUT: Front Right Speaker Output
    • SUB_OUT: Subwoofer Output
    • AMP_POW: Amplifier Control
    • RL-OUT: Rear Left Speaker Output
    • RR-OUT: Rear Right Speaker Output
  • Video Inputs/Outputs:

    • B.CAMERA: Reverse Camera Video Input
    • F_CAMERA: Front Camera Input
    • CVBS: Extra Video Input
  • USB Interface:

    • 4PIN USB: USB Connection for PhoneLink (iPhone or Android)
    • 6PIN USB: USB Connection for Music or Video
  • Other Inputs:

    • Radio Antenna Input: RADIO
    • GPS Antenna Input: GPS
    • 5G WIFI
    • 4G+/4G-
    • External Microphone Port: MIC
    • Brake Detection: BRAKE
    • Canbus Box Interface: Can RX/TX

Package Includes:

  • 1 x Nakamichi Head Unit with Fascia
  • 1 x Main Harness
  • 1 x RCA Cable
  • 1 x WiFi/BT/Camera Cable
  • 1 x RL/RR Cable
  • 1 x Microphone
  • 1 x 4G Antenna
  • 1 x GPS Antenna
  • 1 x User Manual
  • 2 x USB Cable
  • Note: For different car models, the accessory package may vary. It is normal if it does not exactly match the listing.

General Specifications:

  • TFT Screen Size: 9"
  • System: NK 12.0
  • CPU: 8-Core Cortex-A55
  • RAM: 4GB
  • ROM: 32GB
  • Display Resolution: 1280x720 IPS
  • Brightness: 500 nits
  • Operating Voltage: 14.4V (10.5-16V)
  • USB Readable/Chargeable: (5±0.25V/1A)
  • Video Formats Supported: H264, MP4, AVI, MKV, FLV
  • Audio Formats Supported: MP3, APE, AAC, FLAC
