Nakamichi Wireless Apple CarPlay & Android Auto Solution for Holden Commodore VF 2013-2018

Compatibility:

• For Holden Commodore VF 2013-2018

NOTICE:

• Compatible with Steering Wheel Controls
• Works with factory reverse camera

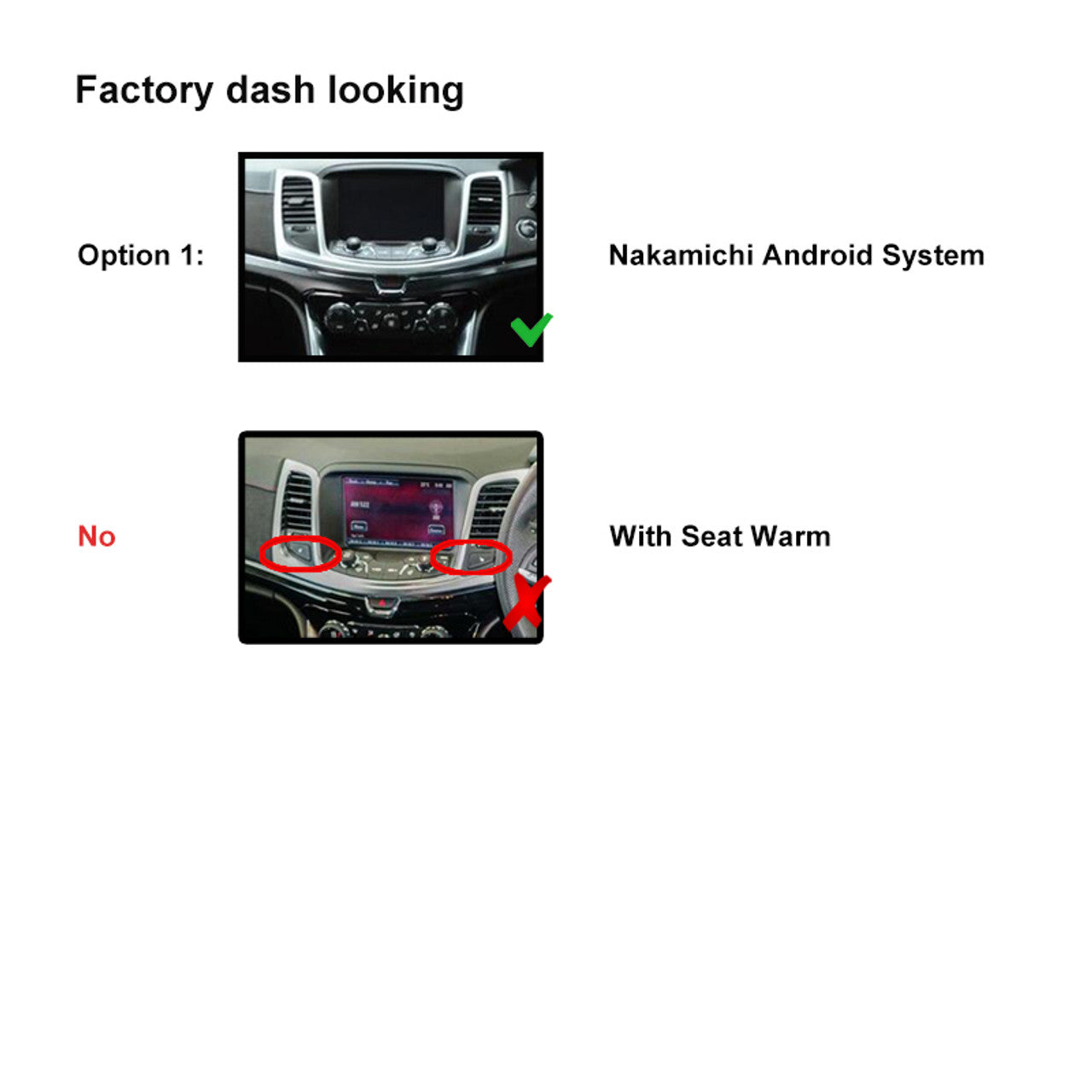

• Compatible with Option 1 dash layout
• Not compatible with cars that have seat heaters
• Please send us a photo of your dash along with your car year and model when purchasing, so we can send you the correct compatible harness.

MAIN FEATURES:

PhoneLink Operation:

• iPhone Connection (Wireless CarPlay):

  • The ultimate co-pilot! Enjoy iPhone apps wirelessly.
  • PhoneLink is a smarter, safer way to use your iPhone while driving.
  • Get directions, make calls, send and receive messages, and enjoy music all on your car's built-in display.

• Android Phone Connection (Wired for some specific phone brands):

  • Pair your phone without cables or with a cable for certain models.
  • Your apps show up on the car display instantly.
  • Tap for driving directions, make hands-free calls, and enjoy other features.
  • Android Auto makes it easy to stay focused on the road and have fun.

• Built-in GPS:

  • Preloaded GPS data or update/purchase your preferred data from Google Play Store for seamless navigation.

• Built-in WiFi & 4G Support:

  • Connect the stereo to a WiFi network or insert a SIM card for 4G connectivity.

• Bluetooth:

  • Communication System: BT 5.0 + EDR
  • Frequency Band: 2.4GHz
  • Max Range: 5 meters

• Radio:

  • FM Frequency: 87.5-108.0 MHz
  • AM Frequency: 522-1620 kHz
  • Presets: 18 FM, 12 AM

• Audio Inputs/Outputs:

  • Max Power: 4×50W
  • Pre-output (V): 4V/10KΩ
  • Pre-output Impedance: ≤600Ω
  • Speaker Impedance: 4-8Ω
  • AUX IN_L: Audio Left Input
  • AUX IN_R: Audio Right Input
  • FL_OUT: Front Left Speaker Output
  • FR_OUT: Front Right Speaker Output
  • SUB_OUT: Subwoofer Output
  • AMP_POW: Amplifier Control
  • RL-OUT: Rear Left Speaker Output
  • RR-OUT: Rear Right Speaker Output

• Video Inputs/Outputs:

  • B.CAMERA: Reverse Camera Video Input
  • F_CAMERA: Front Camera Input
  • CVBS: Extra Video Input

• USB Interface:

  • 4PIN USB: USB connection for PhoneLink (iPhone or Android)
  • 6PIN USB: USB connection for music or video

• Other Inputs:

  • Radio Antenna Input
  • GPS Antenna Input
  • 5G WiFi
  • 4G+/4G-
  • External Microphone Port
  • Brake Detection
  • Canbus Box Interface

Package Includes:

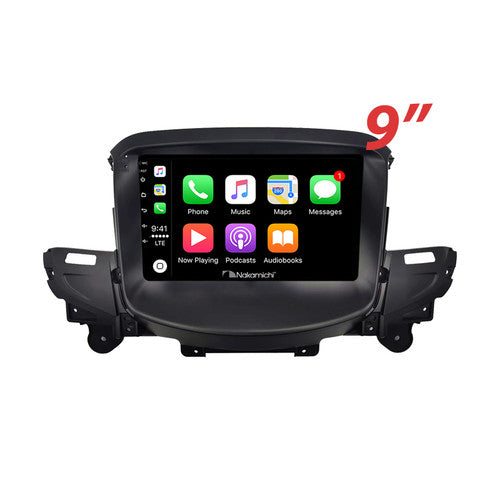

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cable
• Note: For different car models, the accessory package may vary. It is normal if it does not exactly match the listing.

General Specifications:

• TFT Screen Size: 9"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
