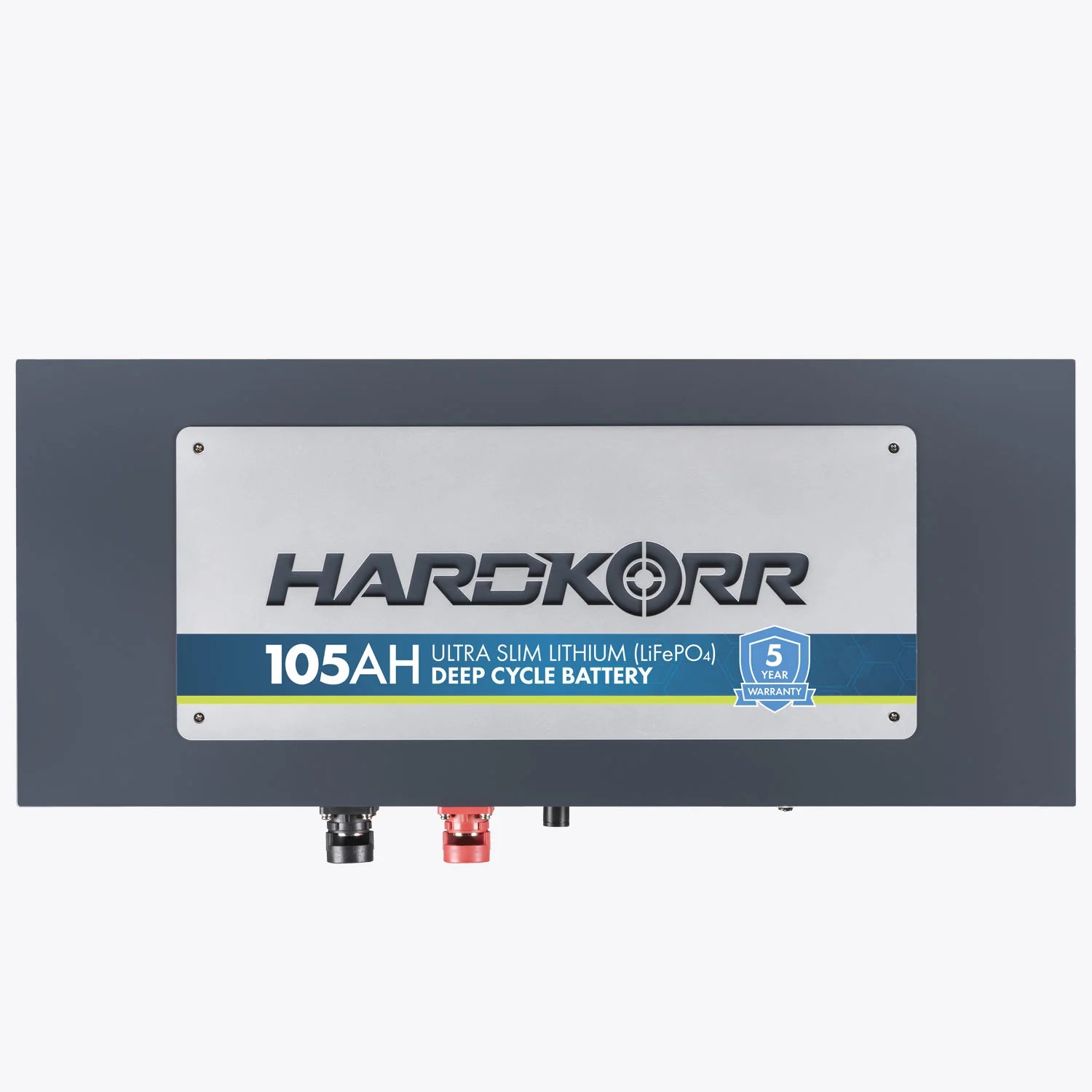

Hardkorr 105Ah Lithium (LiFePO4) Slimline Deep Cycle Battery W/ Bluetooth

Hardkorr 105Ah Lithium (LiFePO4) Slimline Deep Cycle Battery w/ Bluetooth

Bluetooth® Monitoring App
This Hardkorr 105Ah Lithium (LiFePO4) battery allows you to easily monitor key data wirelessly via Bluetooth® connection. Download the Hardkorr Battery app (available for iOS® and Android® devices) to access essential information about your battery’s status:

KEY INFORMATION

• State of charge
• Current voltage
• Available capacity
• Status
• Health

DETAILED INFORMATION

• Current voltage
• Net current in/out
• Cycle life
• Temperature

CELL STATUS

• Current voltage of each cell to ensure they are balanced

CONTACT DETAILS
For any questions or concerns, our website, address, and email are available for you.
The app also records logs of instances where the Battery Management System (BMS) protection circuit is activated (over-charge, over-discharge, under-voltage, over-current, over-temperature). These logs are accessible by pressing the shield icon in the app’s top-right corner.

Handy Remote Reset Switch
The Battery Management System (BMS) inside all lithium batteries has a protection circuit that trips if the battery voltage drops below a setpoint (10.0V for Hardkorr batteries). This prevents damage by putting the battery into ‘sleep’ mode until it is reset. With our batteries, resetting the protection circuit is easy — just connect the included remote reset switch, hold the button for 5 seconds, and the over-discharge circuit resets itself. The button can be flush-mounted into your 12V setup if desired.

Oversized Terminals

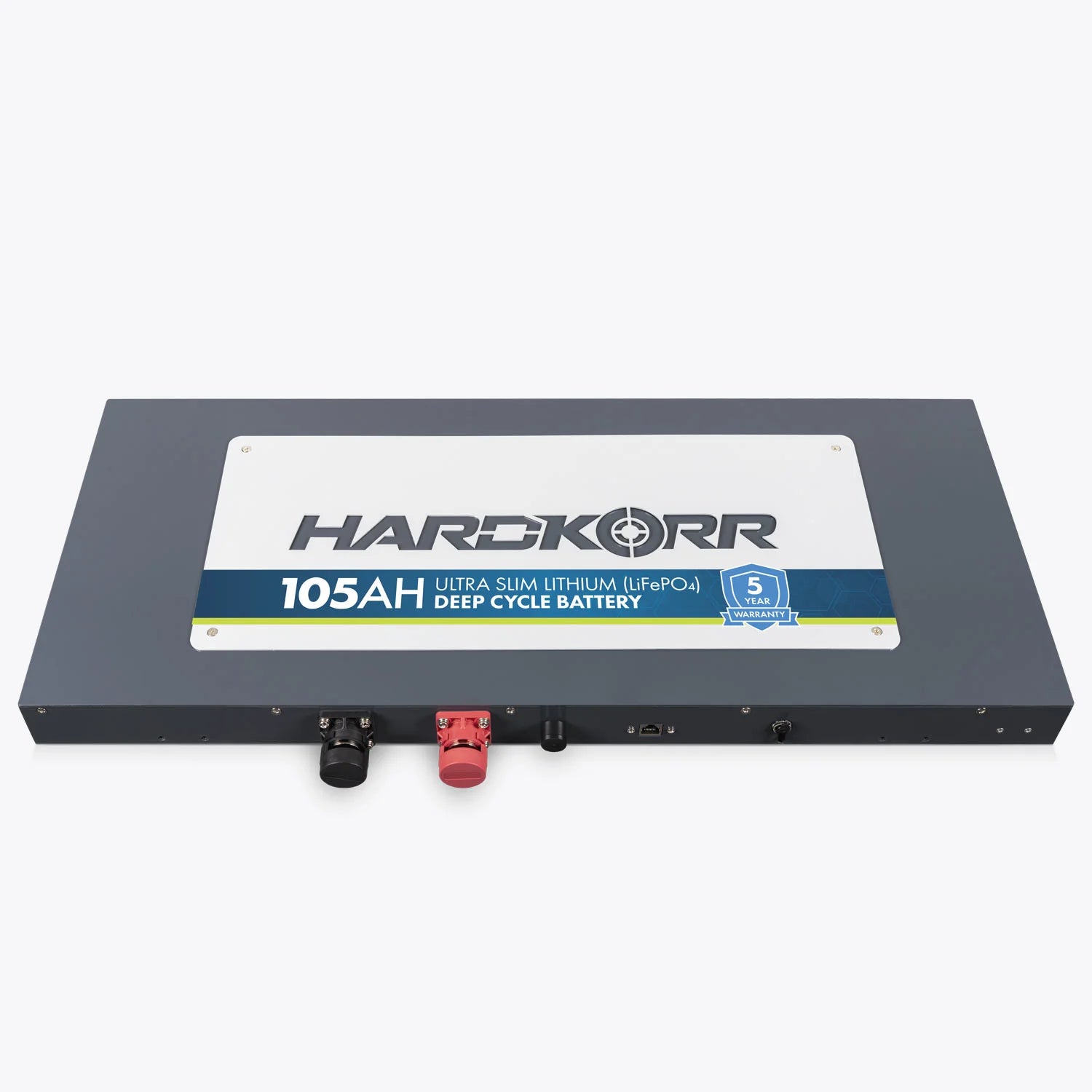

The Hardkorr 105Ah Slimline battery features oversized terminals, making installation easier and providing enhanced reliability. Direct +/- connections to the battery ensure a more secure and stable power source, ideal for off-grid adventures.

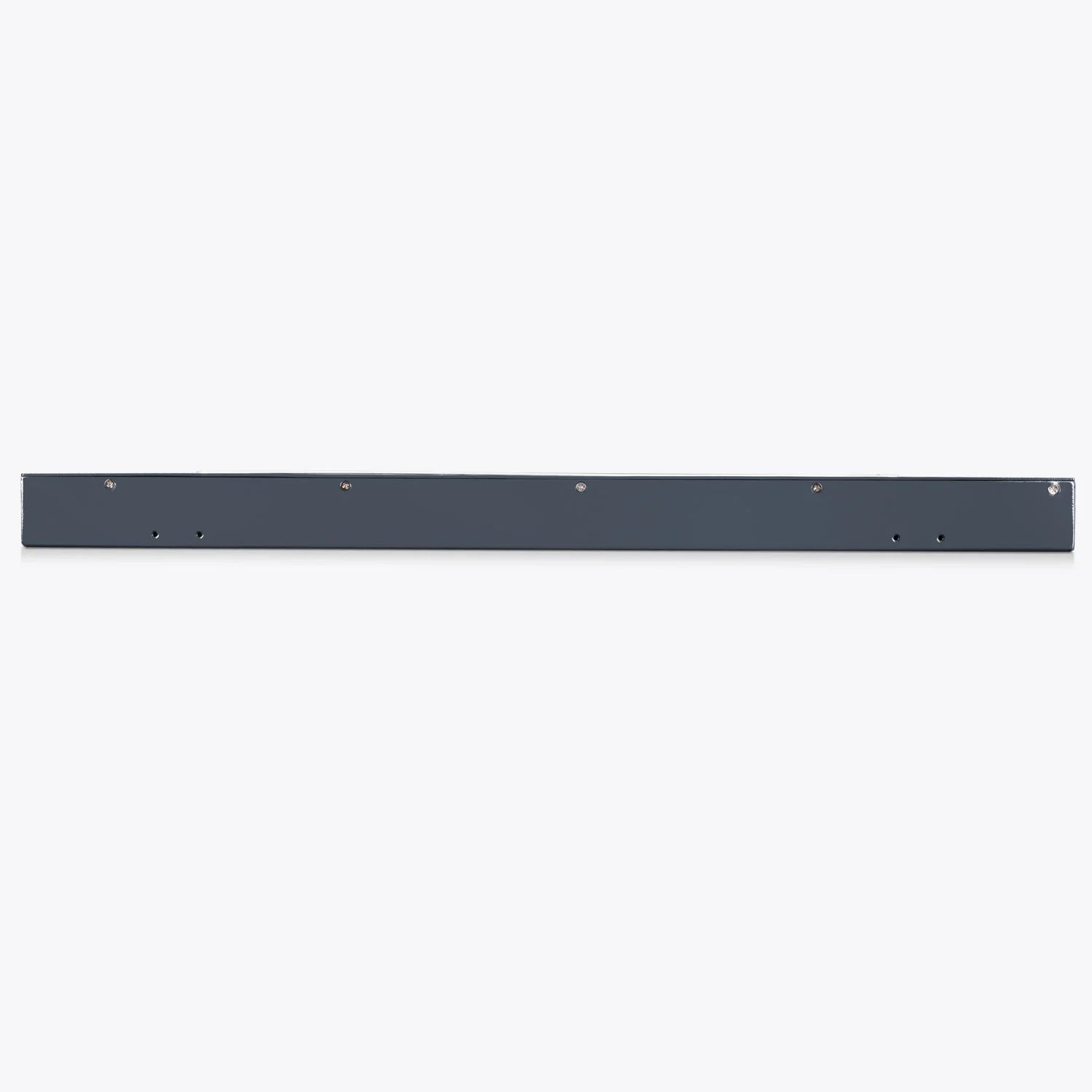

Slimline Design for Space Efficiency

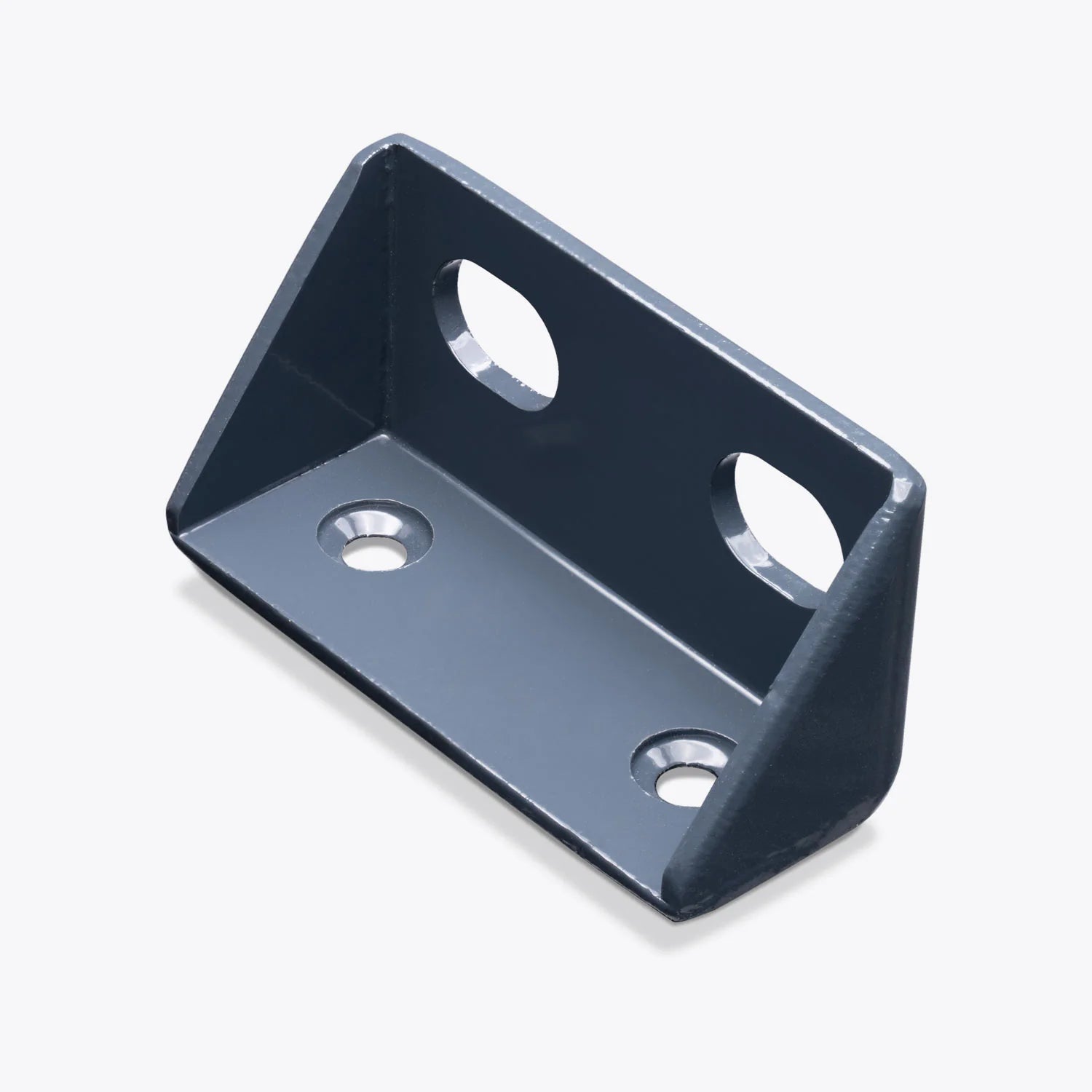

Measuring just 50mm in profile, this battery is perfect for limited-space installations. The slim design allows it to be easily mounted behind the rear seats in a 4×4, or on the wall of a canopy, saving valuable space for other gear. It can be mounted in any orientation and comes with eight brackets for flexible mounting options.

Advanced Battery Technology
The 105Ah Slimline Lithium battery is engineered using high-quality aluminium-encased prismatic cells, making it lightweight (only 14kg) and vibration-resistant, which is ideal for rugged off-road use. Despite its compact size, it delivers full 105Ah of usable power, perfect for running 12V fridges, lighting, pumps, and even larger appliances.

Powerful Performance
With a continuous discharge rate of 200A, this battery is capable of running a 2000W inverter, meaning you can power your 240V appliances, like coffee machines, toasters, and induction cooktops, on the go. It can also be linked in parallel or series with up to four other batteries to create a larger battery bank (up to 420Ah) or systems with up to 48V.

Specifications:

• Nominal voltage: 12.8V
• Capacity (C5): 105Ah
• Max series/parallel configuration: 4S/4P
• Normal charge voltage: 14.4V ± 0.2V
• Standard/Fast charge current: <21A / 52A
• Max discharge current (constant): 200A (2C)
• Max discharge current (100ms pulse): 420A
• Discharge cut-off voltage: 10V
• Charge temperature: 0°C to 55°C
• Discharge temperature: -20°C to 60°C
• Storage temperature: -5°C to 45°C
• Ingress protection: IP52
• Self-discharge rate: <3% per month
• Weight: 14.0kg
• Dimensions: 710mm x 324mm x 50mm (including terminals)
• Bracket dimensions: 50mm
• Certifications: UN38.3, UL 1642, IEC62133 – 2:2017, IEC 62619:2022

The Hardkorr 105Ah Slimline Lithium Battery combines high performance with a compact design, offering an ideal solution for off-grid power and space-conscious users. With Bluetooth® monitoring, powerful discharge capabilities, and versatile mounting options, it’s perfect for 4WD, RV, and marine applications.
