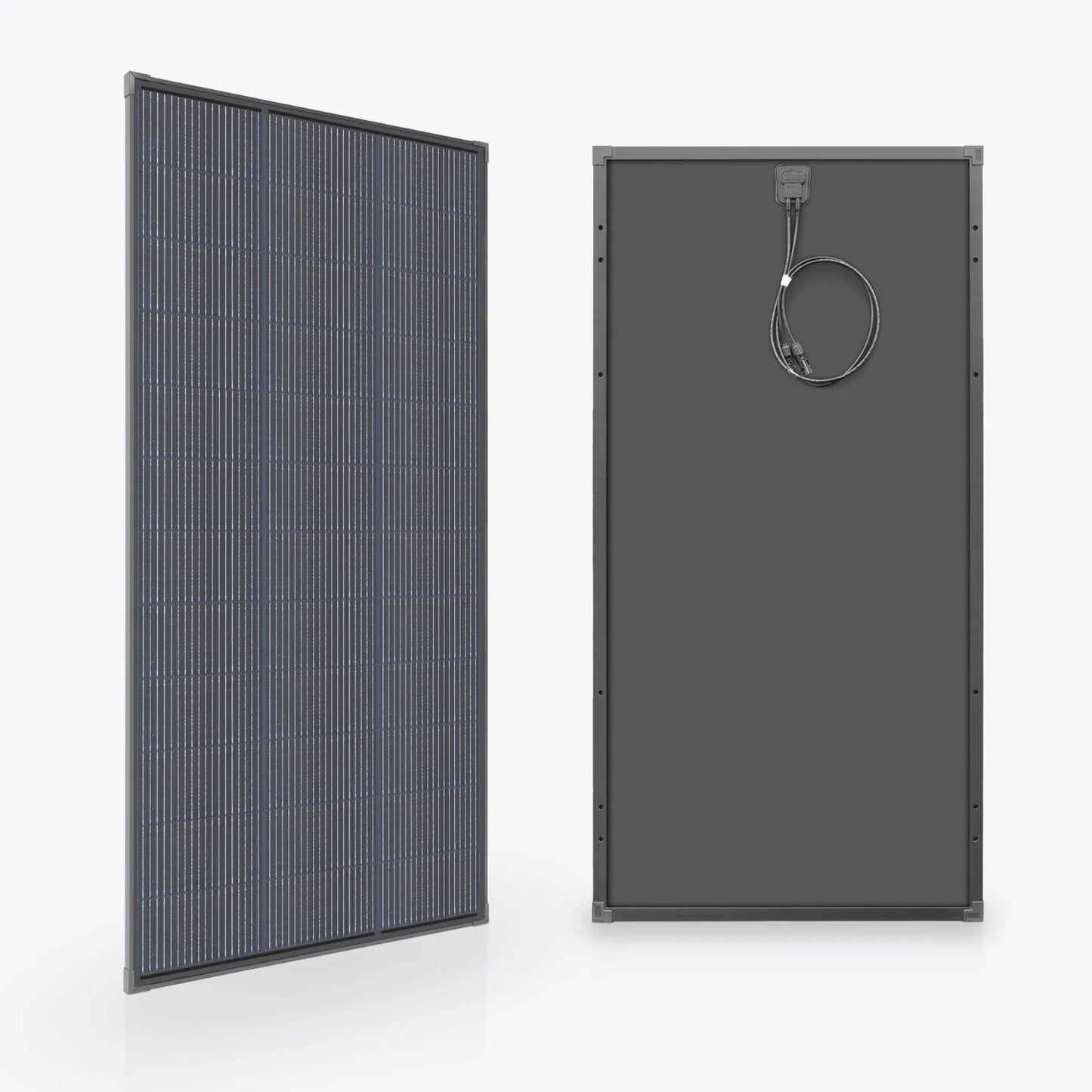

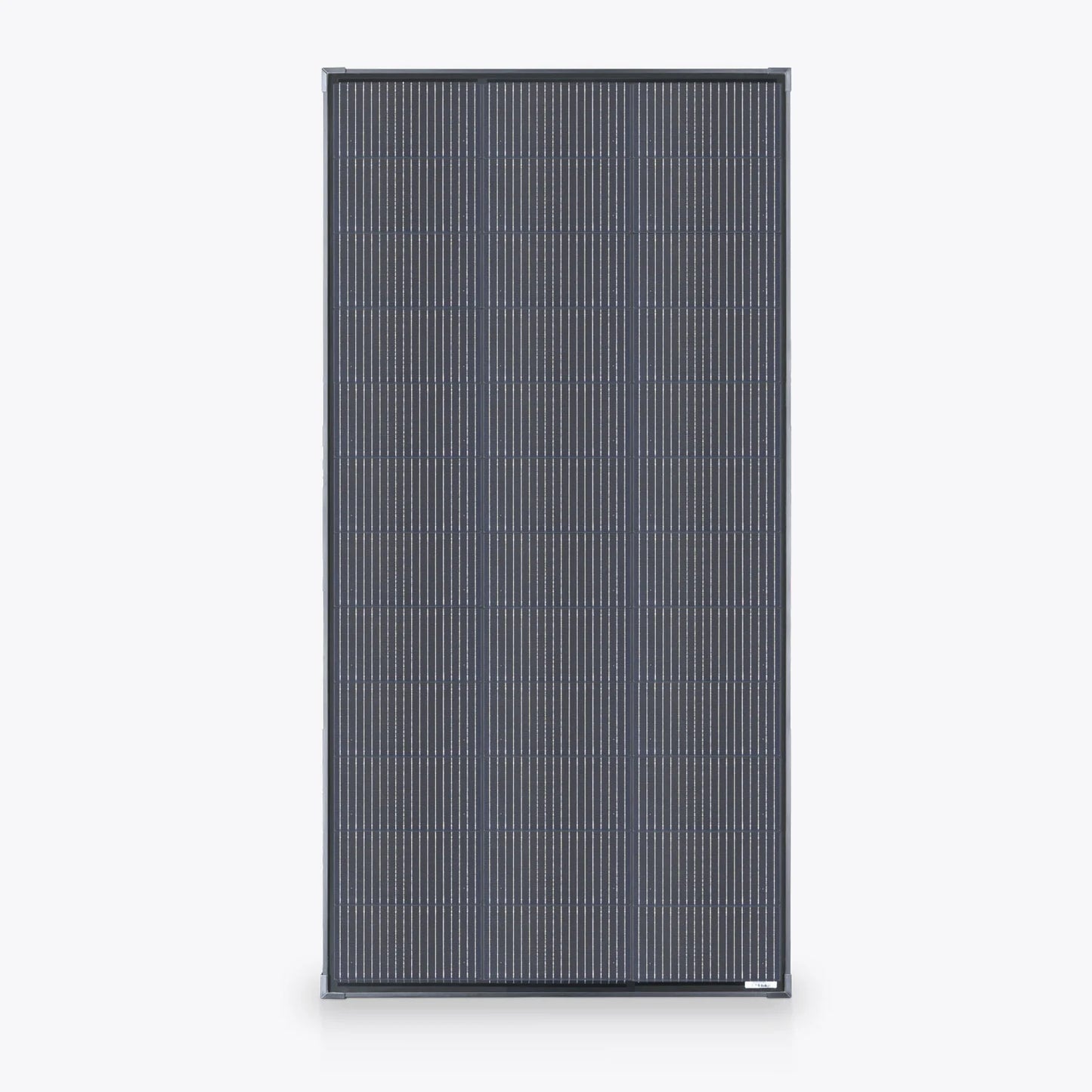

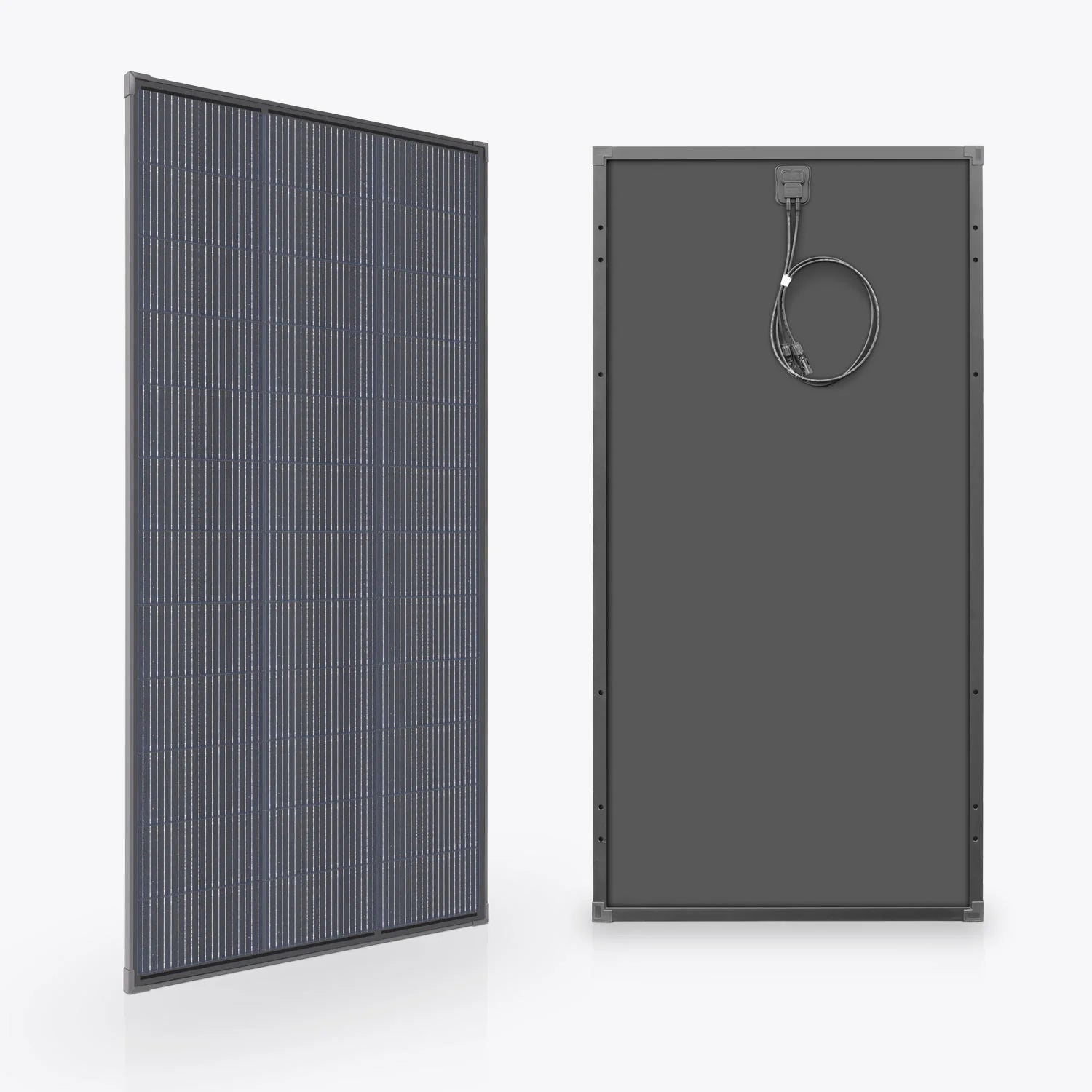

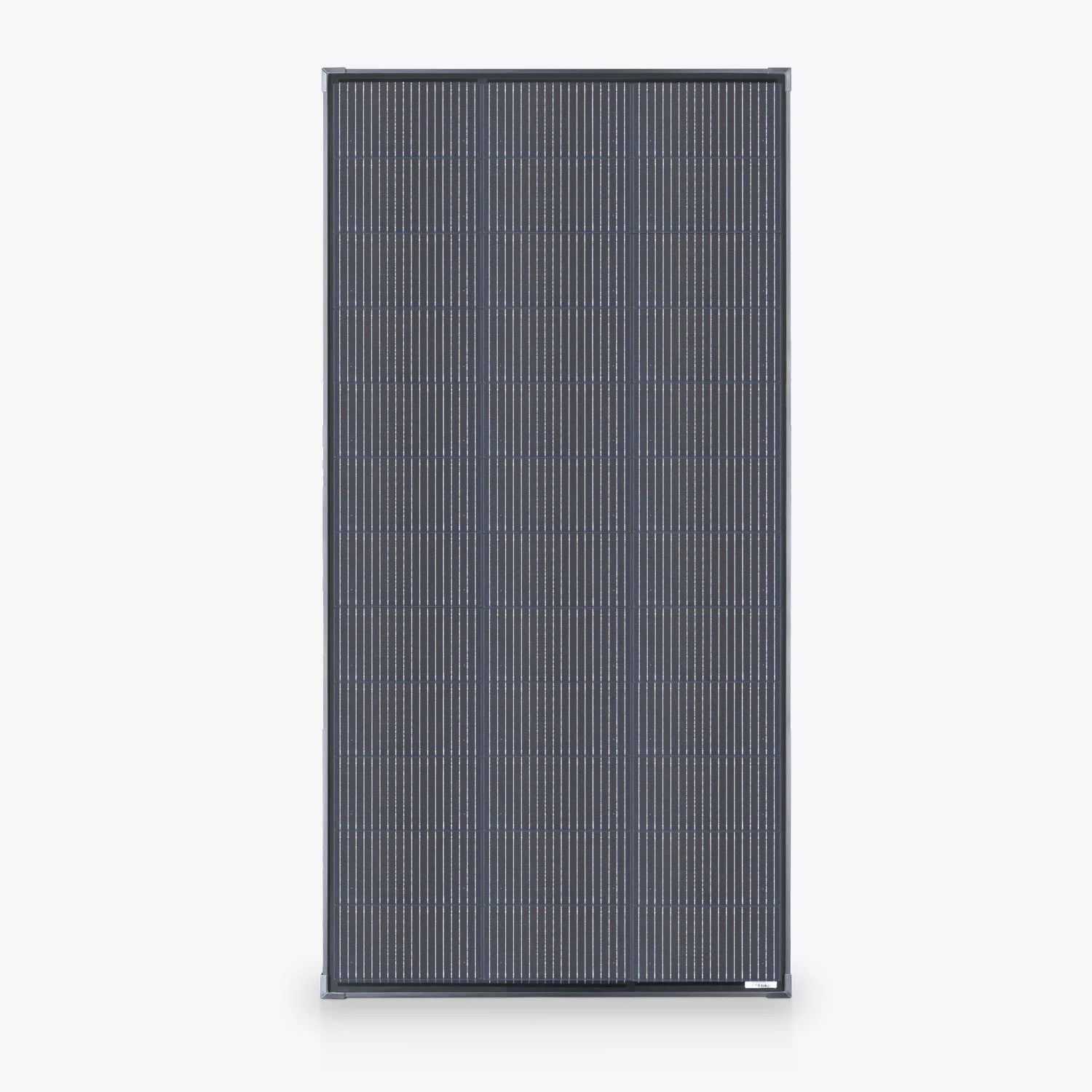

Hardkorr 170W Fixed Solar Panel

Harness the power of the sun with the Hardkorr 170W Fixed Solar Panel. Perfectly suited for mounting on the roof of your 4WD, caravan, camper trailer, or boat, this sleek and high-performance solar panel ensures you have reliable energy wherever you go. Its low-profile design and advanced technology make it an ideal choice for off-grid adventures.

Key Features:

• 3.2mm Tempered Low-Iron Glass: The Hardkorr 170W Fixed Solar Panel is equipped with 3.2mm tempered low-iron glass that is optically clear and provides exceptional impact resistance. This tough glass can withstand harsh weather conditions, including hail and stones, ensuring long-lasting durability.

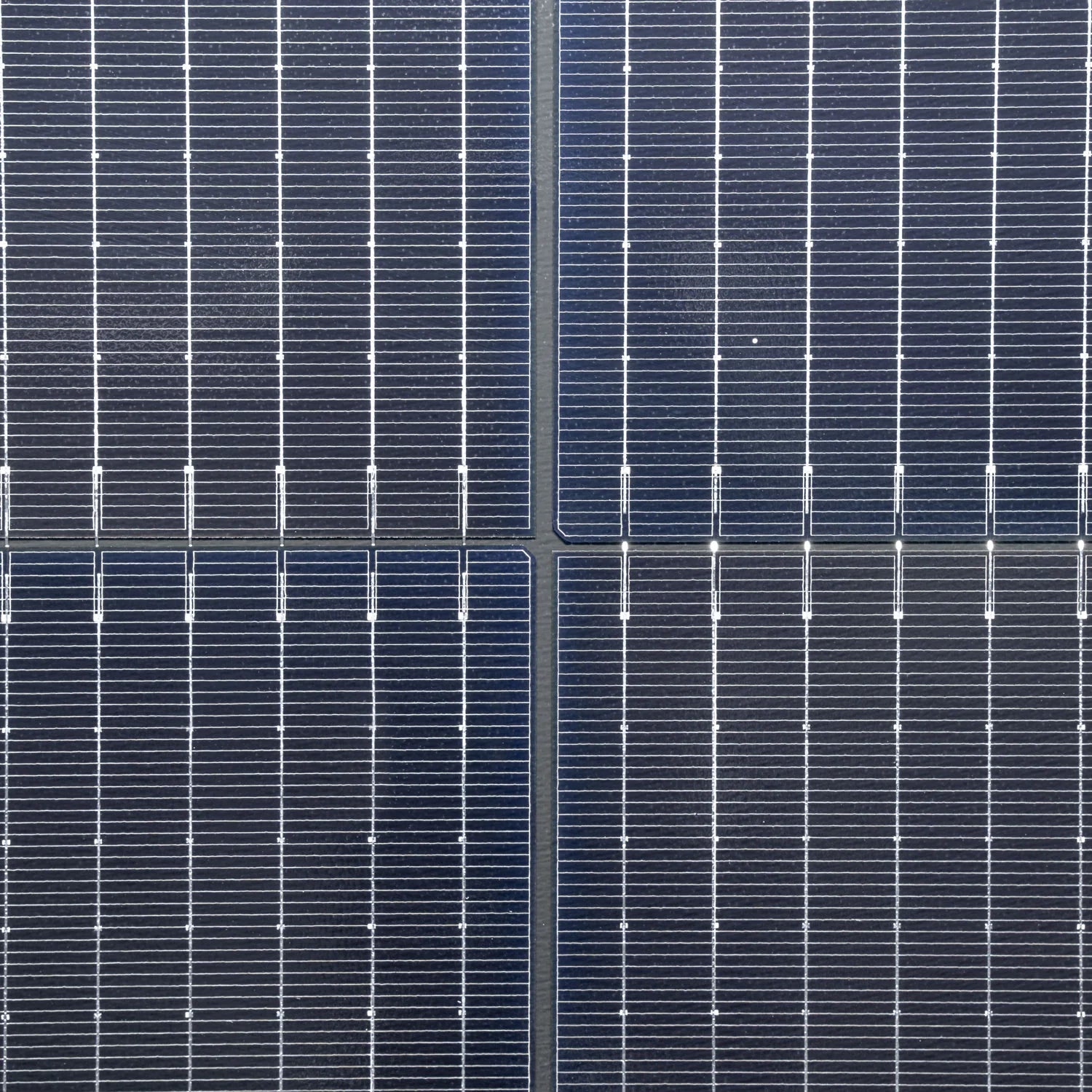

• High-Efficiency A-Grade Monocrystalline Cells: Featuring high-performance A-grade monocrystalline solar cells, this panel offers a remarkable 22.5% efficiency rate, ensuring maximum energy conversion from the available sunlight. These cells are designed to provide outstanding performance and a longer lifespan, even in challenging conditions.

• Sleek All-Black Design: The 170W Fixed Solar Panel has an elegant all-black frame, cells, and substrate, making it visually appealing and a great match for any vehicle. Whether mounted on a 4WD, caravan, or boat, it enhances the overall aesthetics while delivering reliable energy.

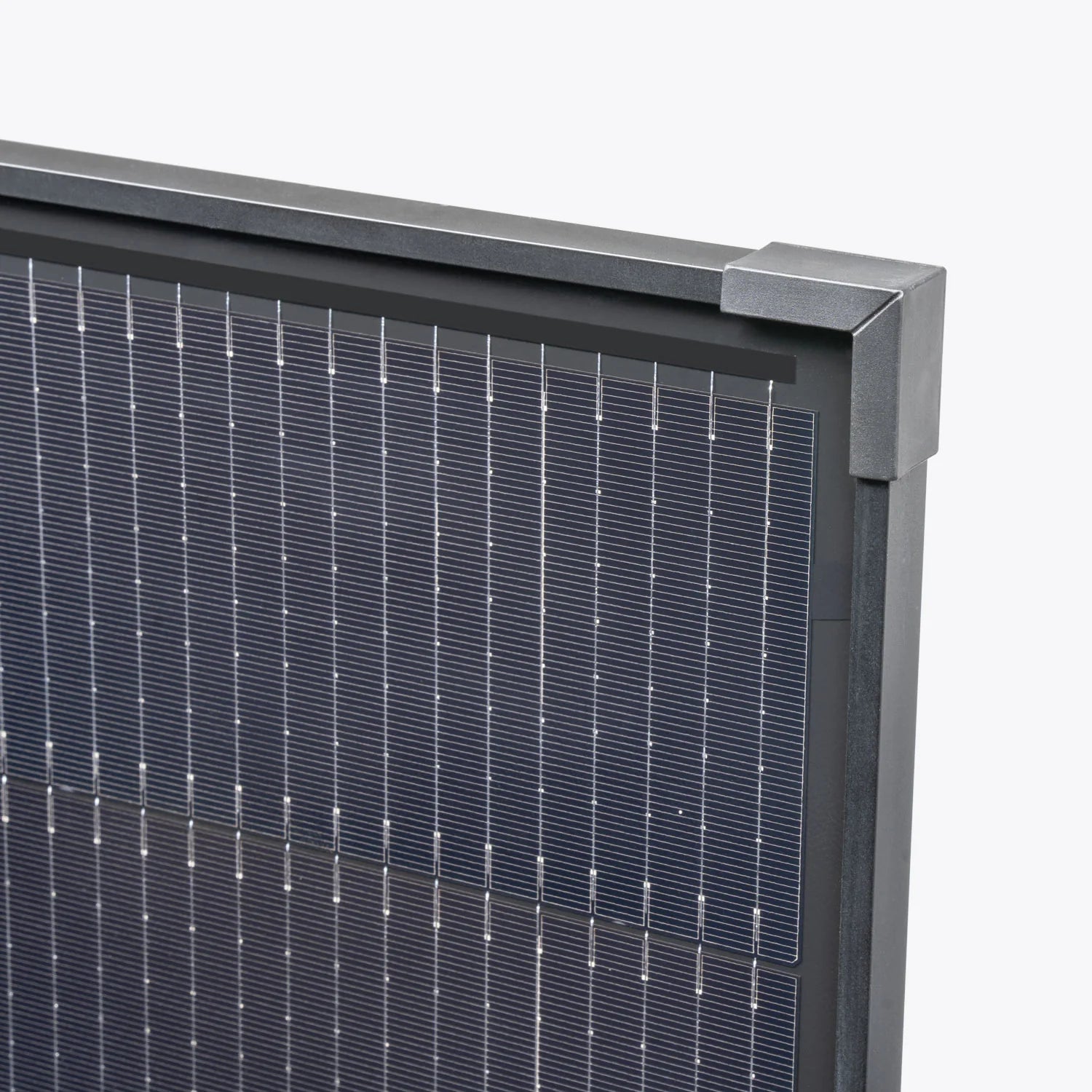

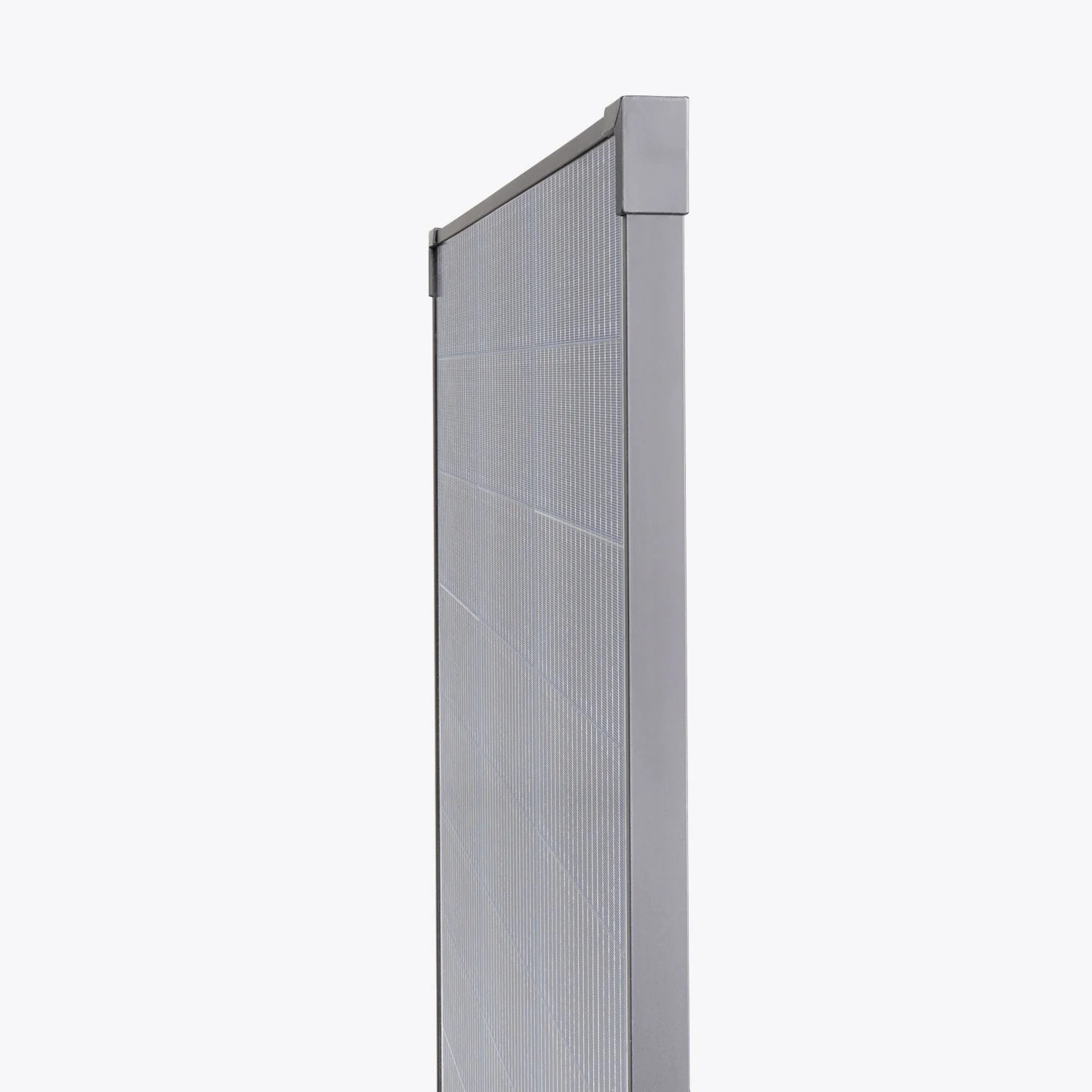

• 17mm Anodized Aluminium Frame: With a slim 17mm anodized aluminium frame, this panel is 30% lighter and more aerodynamic than regular 30mm high solar panels. This design reduces wind resistance, making it perfect for vehicle roof mounting and minimizing impact on fuel efficiency.

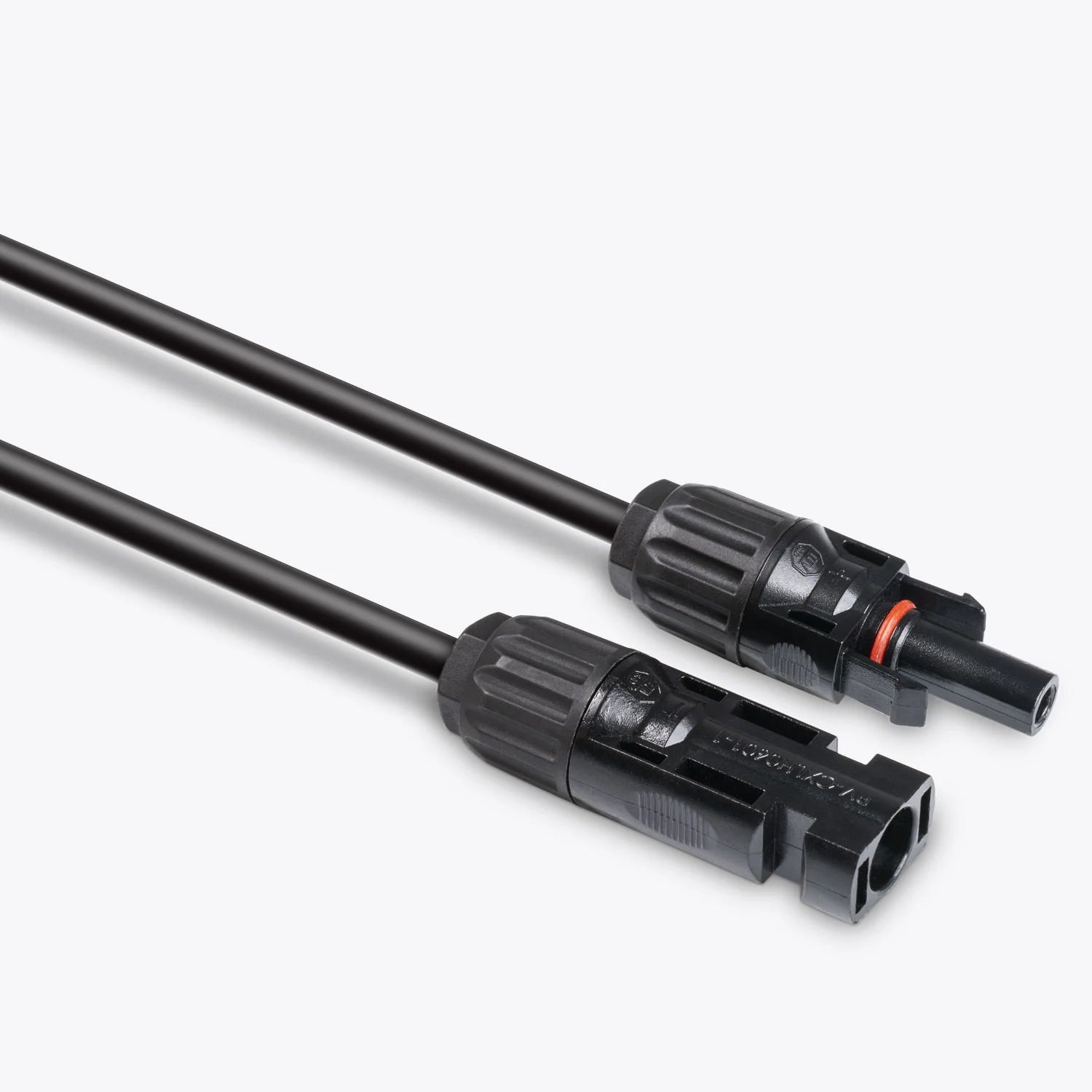

• High-Quality MC4 Connectors with 0.8m Cable: The panel includes a 0.8m cable terminated with high-quality MC4 connectors, ensuring a secure and waterproof connection that won’t come apart once connected. The MC4 connectors are industry-standard for reliable outdoor use.

• Easy Installation with Mounting Brackets: Designed for hassle-free installation, the 170W Fixed Solar Panel comes with matching mounting brackets, making it easy to secure the panel in place on your vehicle, ensuring stability and reliability while on the road.

Specification:

• Materials: Anodized aluminium frame, A-grade monocrystalline solar cells, 3.2mm tempered low-iron glass covering
• Wattage: 170W
• Working Max. Voltage: 21V
• Working Max. Current: 8.1A
• Open Circuit Voltage: 23.4V
• Short Circuit Current: 9.55A
• Solar Cell Efficiency: 22.5%
• Dimensions: 1320mm (L) x 664mm (W) x 17mm (H)
• Weight: 8.6kg
• Connector Type: MC4
• Max. System Voltage: 1000V
• Operating Temperature: -40°C to 85°C
• Certifications: CE, RoHS, C-Tick
