Hardkorr 210Ah Lithium (LiFePO4) Slimline Deep Cycle Battery W/ Bluetooth

Hardkorr 210Ah Lithium (LiFePO4) Slimline Deep Cycle Battery w/ Bluetooth

Bluetooth® Monitoring App
Monitor your Hardkorr 210Ah Lithium battery’s key data wirelessly through Bluetooth® connection. Simply download the Hardkorr Battery app, available for iOS® and Android® devices, to access detailed battery information:

KEY INFORMATION

• State of charge
• Current voltage
• Available capacity
• Status
• Health

DETAILED INFORMATION

• Current voltage
• Net current in/out
• Cycle life
• Temperature

CELL STATUS

• Current voltage of each cell to ensure balance

Handy Remote Reset Switch
The Battery Management System (BMS) in all Hardkorr lithium batteries includes a protection circuit that activates if the voltage drops below 10.0V, preventing damage by putting the battery into ‘sleep’ mode. Previously, resetting the battery was difficult, but with Hardkorr batteries, you can easily reset the over-discharge protection by connecting the included remote reset switch to the battery and holding the button for 5 seconds. The button can also be flush-mounted into your 12V setup for convenience.

Oversized Terminals
The Hardkorr 210Ah Slimline battery features oversized terminals for easy and reliable direct +/- connections. These oversized terminals improve installation and ensure enhanced reliability for off-grid power needs.

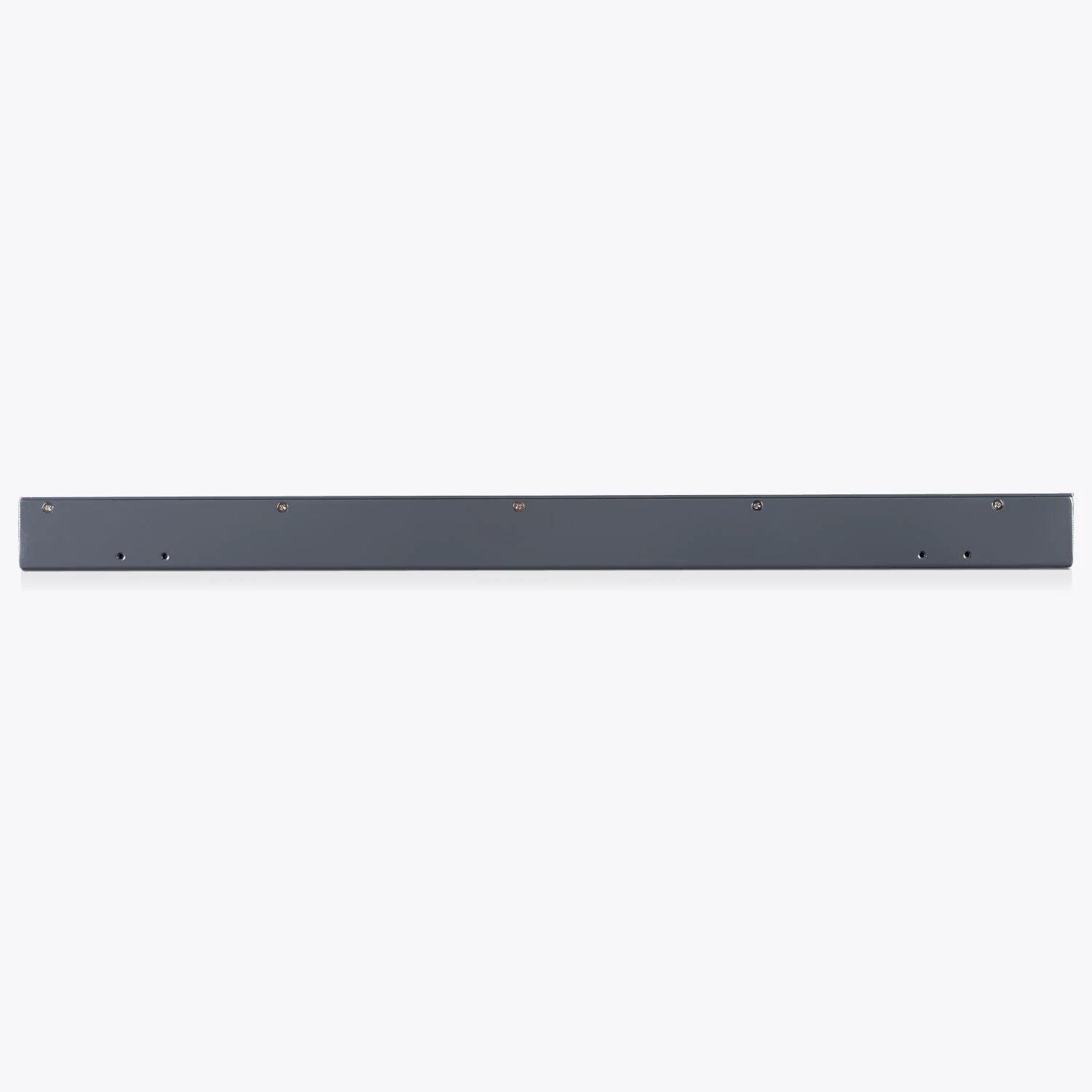

Slimline Design for Space Efficiency

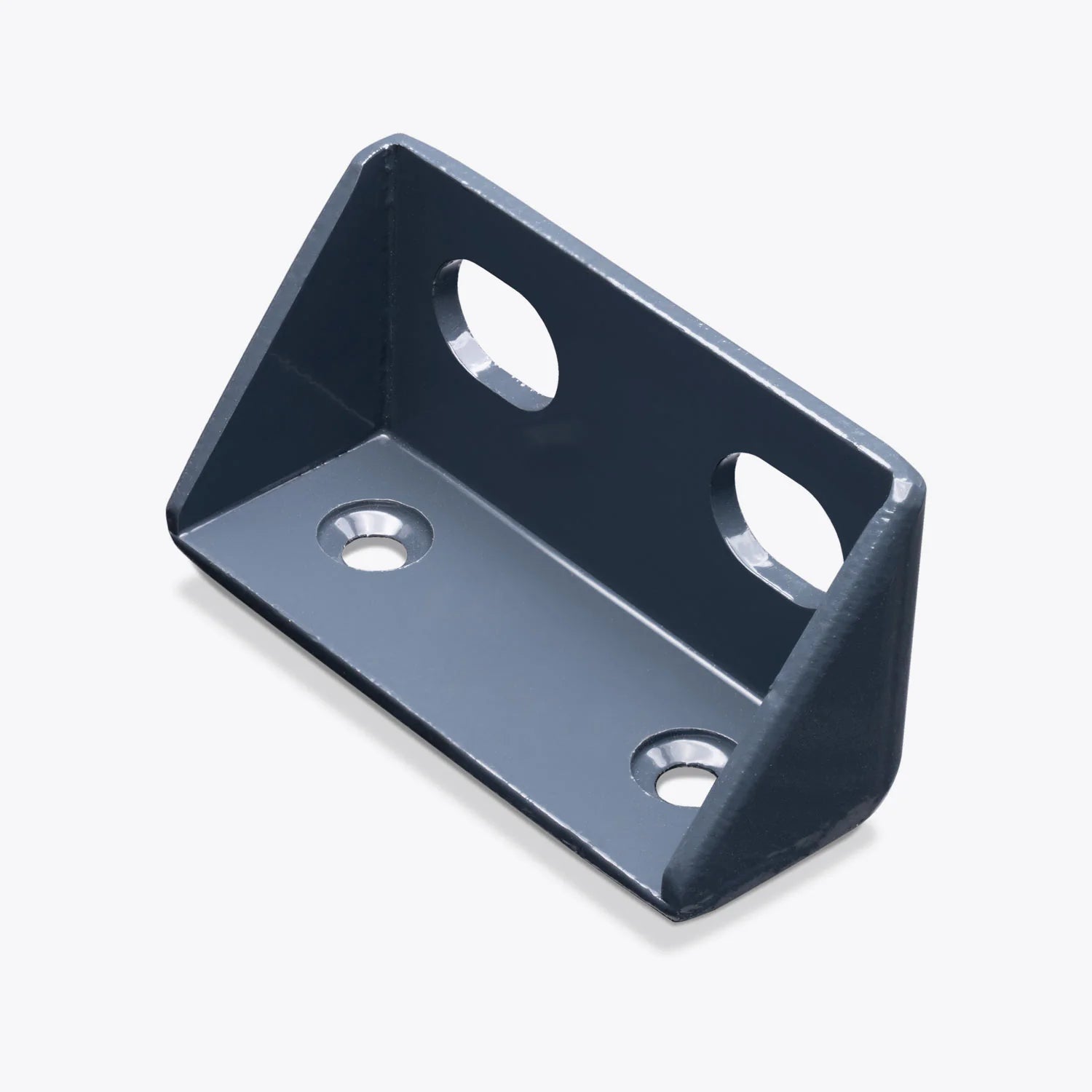

With a narrow 50mm profile, the 210Ah Slimline battery is perfect for space-conscious installations in 4x4 vehicles, trailers, or boats. Its slim form factor allows it to be mounted behind rear seats or up on a canopy wall, leaving you more room for other gear. The battery can be mounted in any orientation, and with eight brackets included, you have flexible mounting options to suit your setup.

High-Quality Construction
The 210Ah Slimline battery is engineered using high-quality aluminium-encased prismatic cells, ensuring durability and vibration resistance. At just 25kg, it’s lightweight enough for rugged travel but powerful enough to meet all your off-grid energy needs. This battery delivers 210Ah of usable power, perfect for running 12V fridges, lights, pumps, and even larger devices.

Powerful Performance
With a continuous discharge rate of 250A, the 210Ah battery can power up to 2500W from an inverter, enabling you to run your favourite 240V appliances, such as coffee machines, toasters, and induction cooktops. This capability makes it a standout choice for off-grid adventures. Plus, the Battery Management System (BMS) allows you to link up to four of these batteries in parallel or series, creating larger battery banks of up to 840Ah or systems operating at 48V.

Specifications:

• Nominal voltage: 12.8V
• Capacity (C5): 210Ah
• Max series/parallel config: 4S/4P
• Normal charge voltage: 14.4V ± 0.2V
• Max charge current: 105A
• Max discharge current (constant): 250A (1C)
• Max discharge current (100ms pulse): 840A
• Discharge cut-off voltage: 10V
• Charge temperature range: 0°C to 55°C
• Discharge temperature range: -20°C to 60°C
• Storage temperature range: -5°C to 45°C
• Ingress protection: IP52
• Self-discharge rate: <3% per month
• Weight: 25.0kg
• Dimensions: 710mm (L) x 580mm (W) x 50mm (H)
• Bracket dimensions: 50mm
• Certifications: UN38.3, UL 1642, IEC62133 – 2:2017, IEC 62619:2022

The Hardkorr 210Ah Lithium Slimline Deep Cycle Battery offers exceptional performance and reliability for off-grid living, camping, and touring. Its slim design, Bluetooth® monitoring, and powerful discharge capacity make it an excellent choice for powering your adventures.
