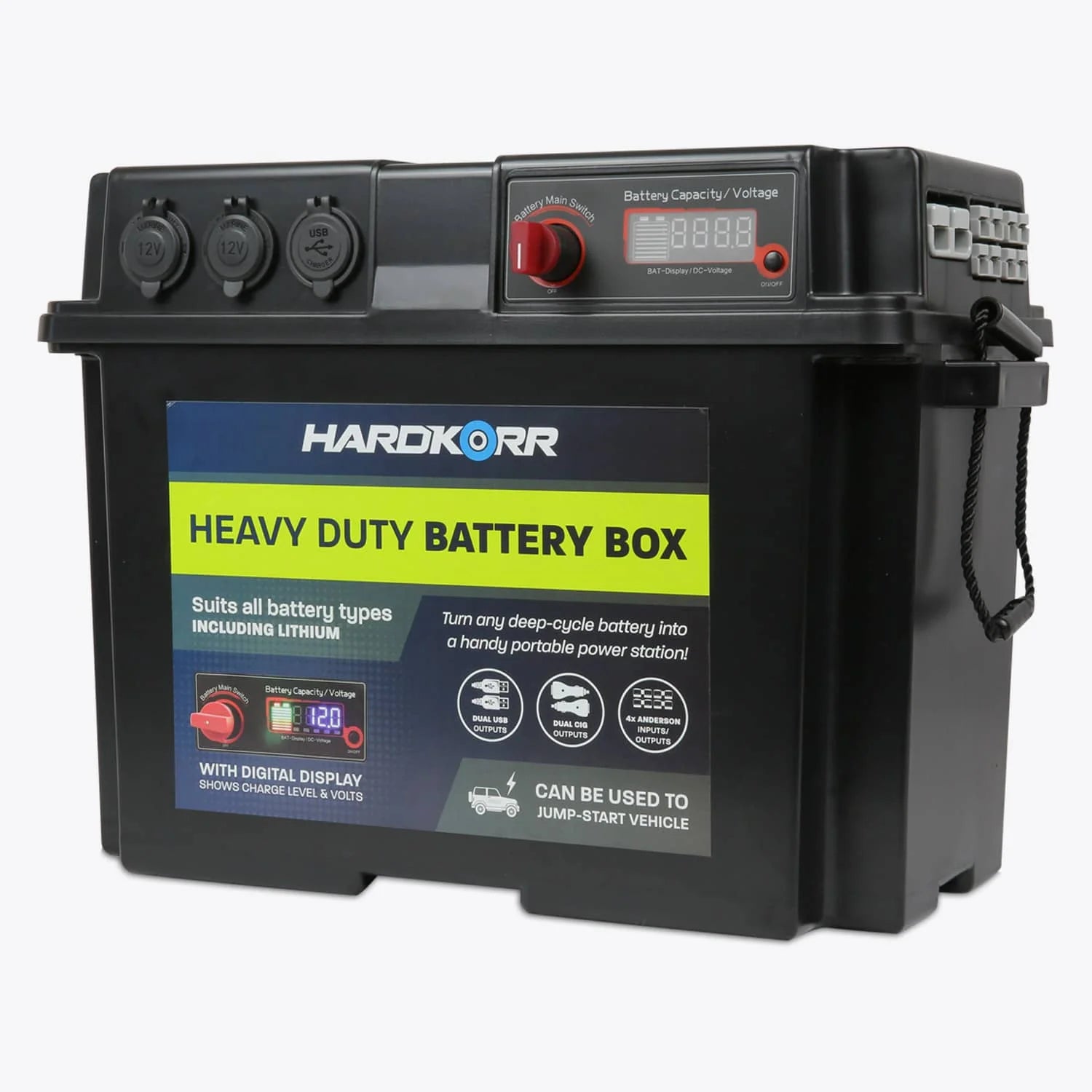

Hardkorr Heavy Duty Battery Box

Multiple Port Types for Versatile Connectivity

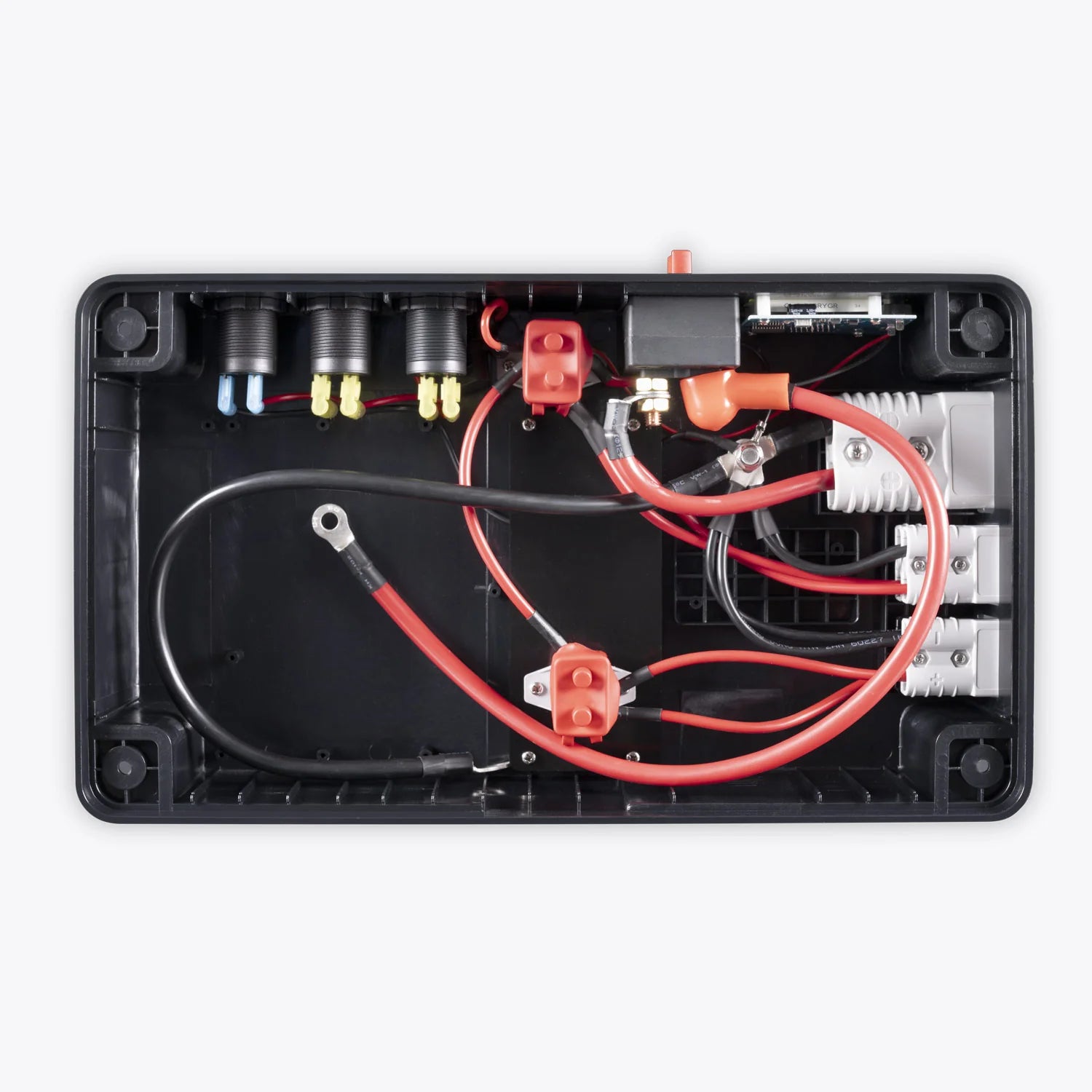

Constructed from durable ABS plastic and meeting the UL 94V-0 standard for flammability of plastic products, the Hardkorr Heavy Duty Battery Box is a high-quality, long-lasting solution for all your power needs. It includes multiple ports for various devices, such as two 12V outlets with 10A fuses, a dual USB (1x USB-C + 1x USB-A) outlet, four 50A Anderson-style outlets for outputs or inputs, and a 175A Anderson-style outlet that can even be used to jump-start vehicles. All Anderson-style ports are recessed into the body to reduce damage risk, and the internal wiring uses heavy-gauge wire and high-quality connectors.

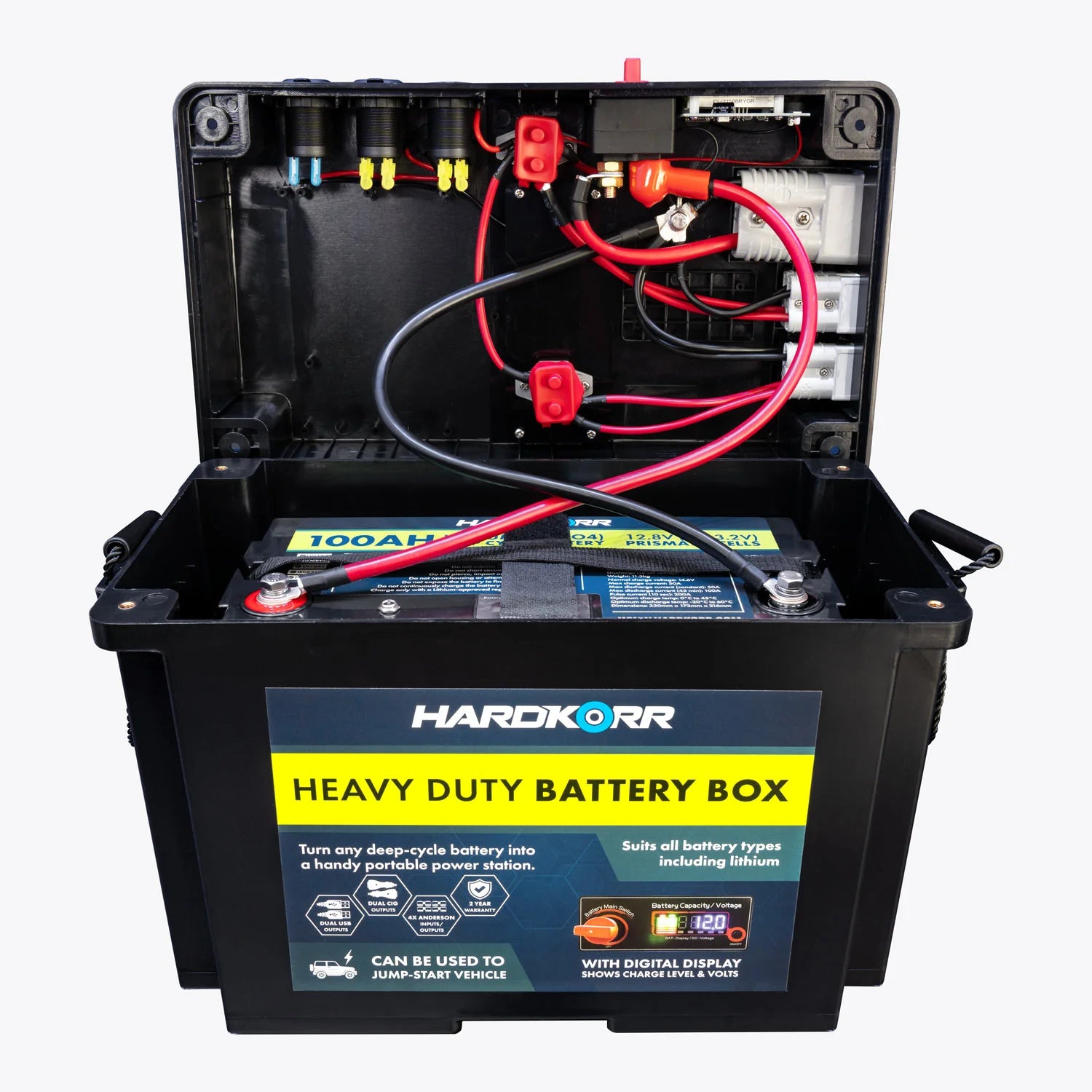

Create Your Own Portable Power Station

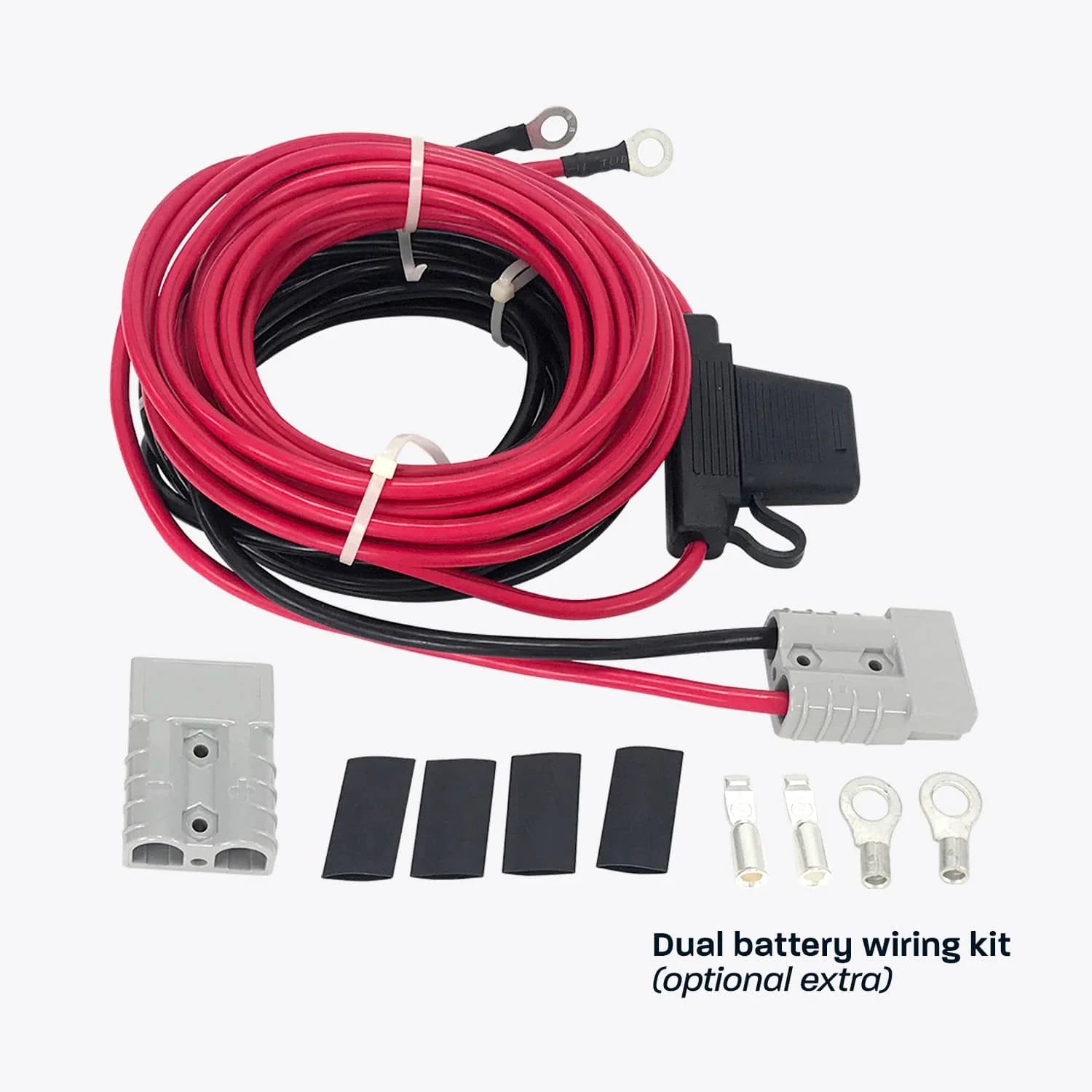

This battery box allows you to turn a regular deep-cycle battery into a convenient portable power station. You can also create a simple dual battery setup using a DC-DC charger or the optional 50A Voltage-Sensitive Relay (VSR) and Dual Battery Wiring Kit. Suitable for a range of battery types (AGM, Lithium, Wet, Gel, and Calcium), the box accommodates batteries up to 330mm (l) x 180mm (w) x 240mm (h) in size.

Easy Charging and Monitoring

The battery can be charged from various sources, including solar panels, simply by plugging into one of the 50A Anderson-style ports. The large digital display allows you to easily check the battery's charge status and voltage.

Key Features:

• Fire-Resistant Construction: Built from UL 94V-0 compliant fire-resistant ABS plastic.
• Multiple Port Types: Includes 2x 12V outlets, 1x dual USB outlet, 4x 50A Anderson plugs, and 1x 175A Anderson plug.
• Easy Charging: Charge via Anderson plug input or optional VSR.

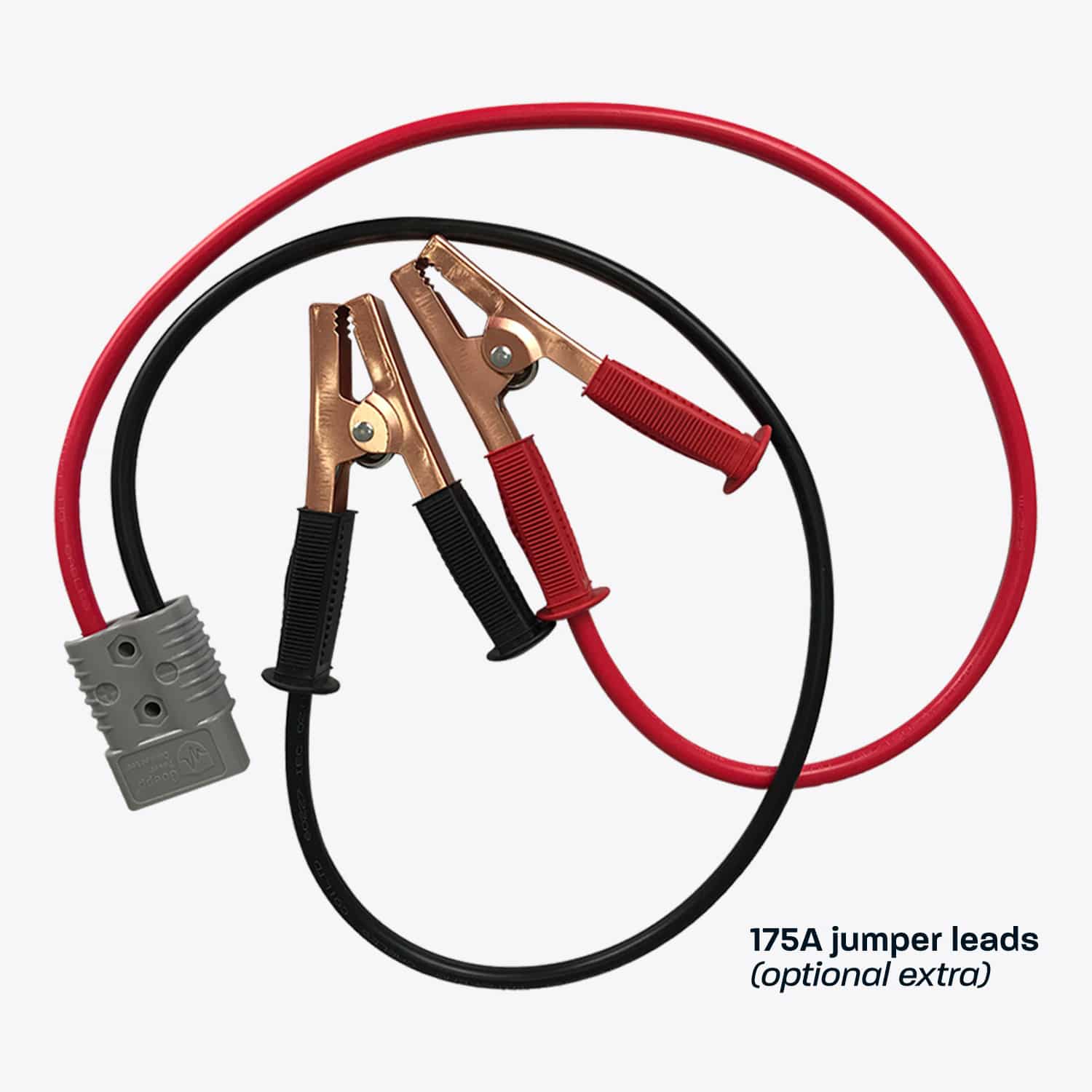

• Vehicle Jump Start: Can be used to jump-start vehicles with an optional 175A Anderson jumper cable set.
• Recessed Ports: All ports are recessed to reduce damage risk.
• Battery Monitoring: Large digital display for easy monitoring of battery status.
• Dual Battery Setup: Simple dual battery setup when combined with a VSR.

Specification:

• Materials: ABS plastic (UL 94V-0 compliant)
• Box Dimensions: 455mm (l) x 240mm (w) x 330mm (h)
• Max. Battery Dimensions: 330mm (L) x 180mm (W) x 240mm (H) Note: Batteries longer than 324mm will sit at a slight angle inside the box. This will not affect performance.
• Max. Battery Weight: 35.0kg
• Suitable Battery Types: Any deep-cycle battery (Lithium, AGM, Calcium, Wet, Gel)
• Charge Method: Via Anderson plug input or optional VSR
• Ports:

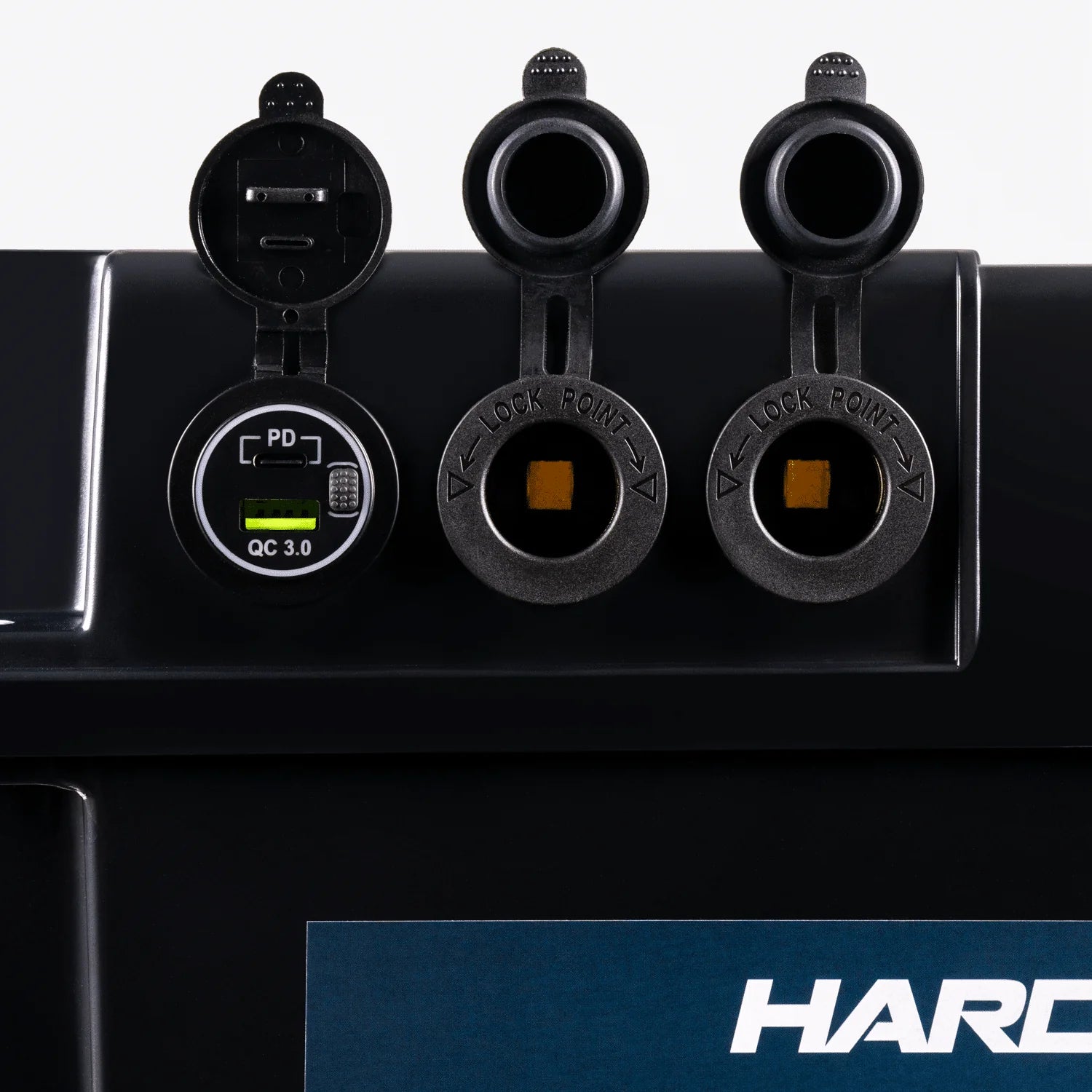

  • 1 x Dual USB output (1x USB-C + 1x USB-A)
  • 2 x Cigarette plug outputs
  • 4 x 50A Anderson plug inputs/outputs
  • 1 x 175A Anderson plug output
• Cable Gauge:
  • 3AWG (25mm²) to battery and 175A Anderson port
  • 10AWG (6mm²) to 50A Anderson ports
  • 14AWG (2.5mm²) to cig & USB ports
• Operating Temperature: -10°C to 50°C
• Weight: 3.2kg

The Hardkorr Heavy Duty Battery Box is the ideal solution for anyone looking to create a robust and reliable portable power station or dual battery setup for their vehicle. Its versatile ports, easy charging options, and durable construction make it a must-have for off-roaders, campers, and adventurers alike.
