Hertz DP 2.200 2-Channel Amplifier

Elevate your car audio experience with the Hertz DP 2.200 2-Channel Amplifier—an innovative, high-performance amplifier engineered to provide clean, powerful sound in a compact design. Ideal for those looking to enhance their sound system without sacrificing space, this Class-D amplifier delivers up to 280 watts RMS per channel at 4 ohms and 500 watts RMS per channel at 2 ohms, offering optimal performance for your full-range speakers or subwoofers.

Key Features:

Class-D Amplifier Technology:
Enjoy high-efficiency performance with Hertz's Advanced Class-D (ADC) technology. The DP 2.200 is built to maximize power output while minimizing energy consumption and heat, making it an excellent choice for car audio systems where space is limited but performance is not.

Powerful Output:

280W RMS x 2 at 4 ohms

500W RMS x 2 at 2 ohms
Whether driving full-range speakers or powering a subwoofer, this amplifier delivers clear, impactful sound.

Wide Frequency Response (10Hz - 500Hz):
The DP 2.200 is designed to provide full-range audio with a wide bandwidth, ensuring deep bass, smooth mids, and crisp highs, with minimal distortion.

Adjustable Filters and Bass Boost:
Fine-tune your audio experience with a variable low-pass filter (50–250Hz), subsonic filter (25Hz), and bass boost (0–9 dB at 50Hz). These features allow for precise adjustments to suit your personal audio preferences and system requirements.

Phase Control (0/180°):
Optimize bass response and system integration with the phase switch, ensuring smooth transition between your subwoofer and full-range speakers.

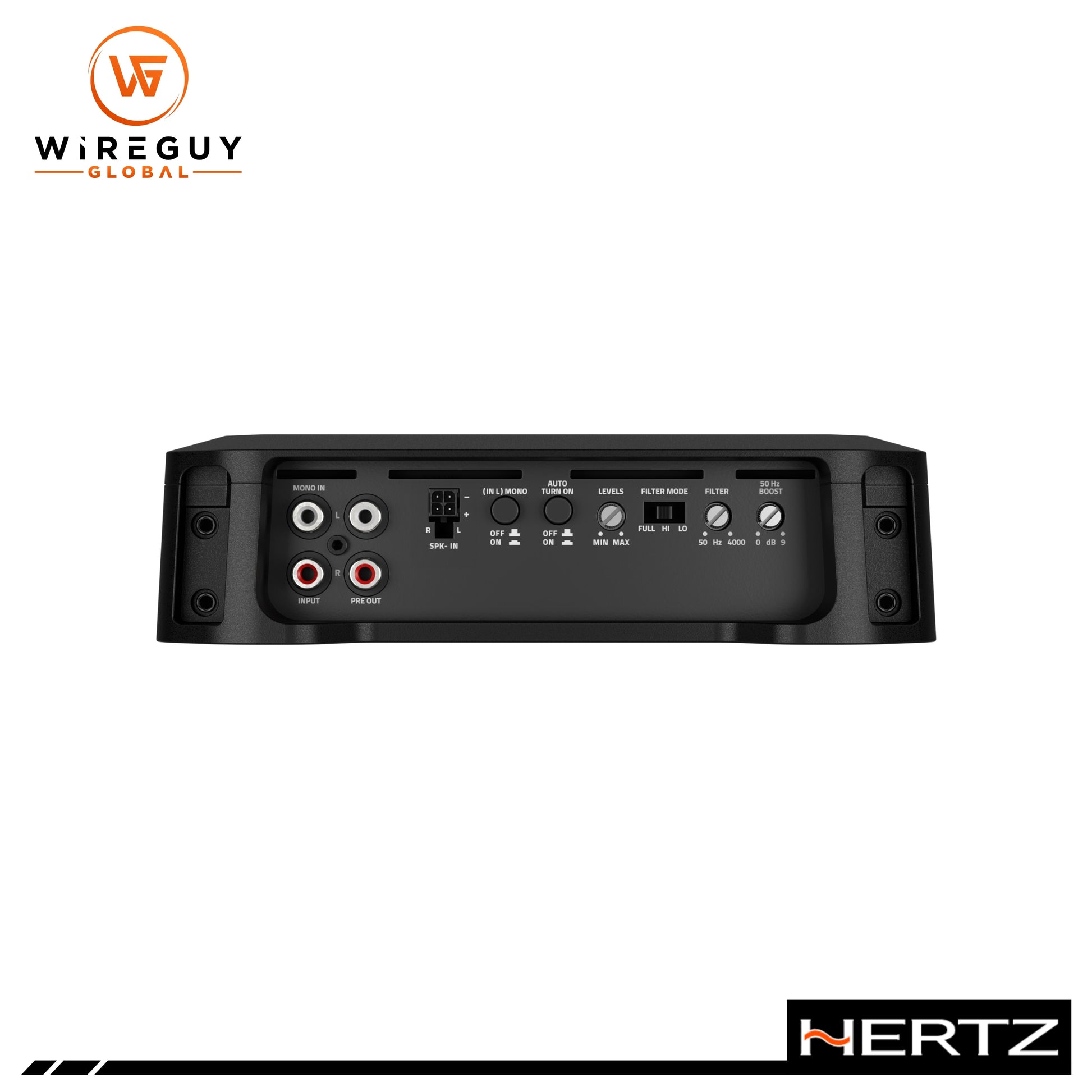

Speaker-Level and Pre-In Inputs:
The DP 2.200 is highly versatile, featuring both speaker-level (1.6–40V) and pre-in (0.32–8V) inputs, making it easy to integrate with both aftermarket and factory systems. High-level inputs also support up to 400W, providing flexibility in system configuration.

Automatic Remote Turn-On/Off:
For added convenience, the amplifier features an automatic turn-on function triggered by speaker-level inputs, streamlining the setup process.

Remote Subwoofer Level Control (HRC-02):
An optional wired remote (sold separately) allows you to adjust the subwoofer’s volume directly from your front seat for on-the-fly control of your bass.

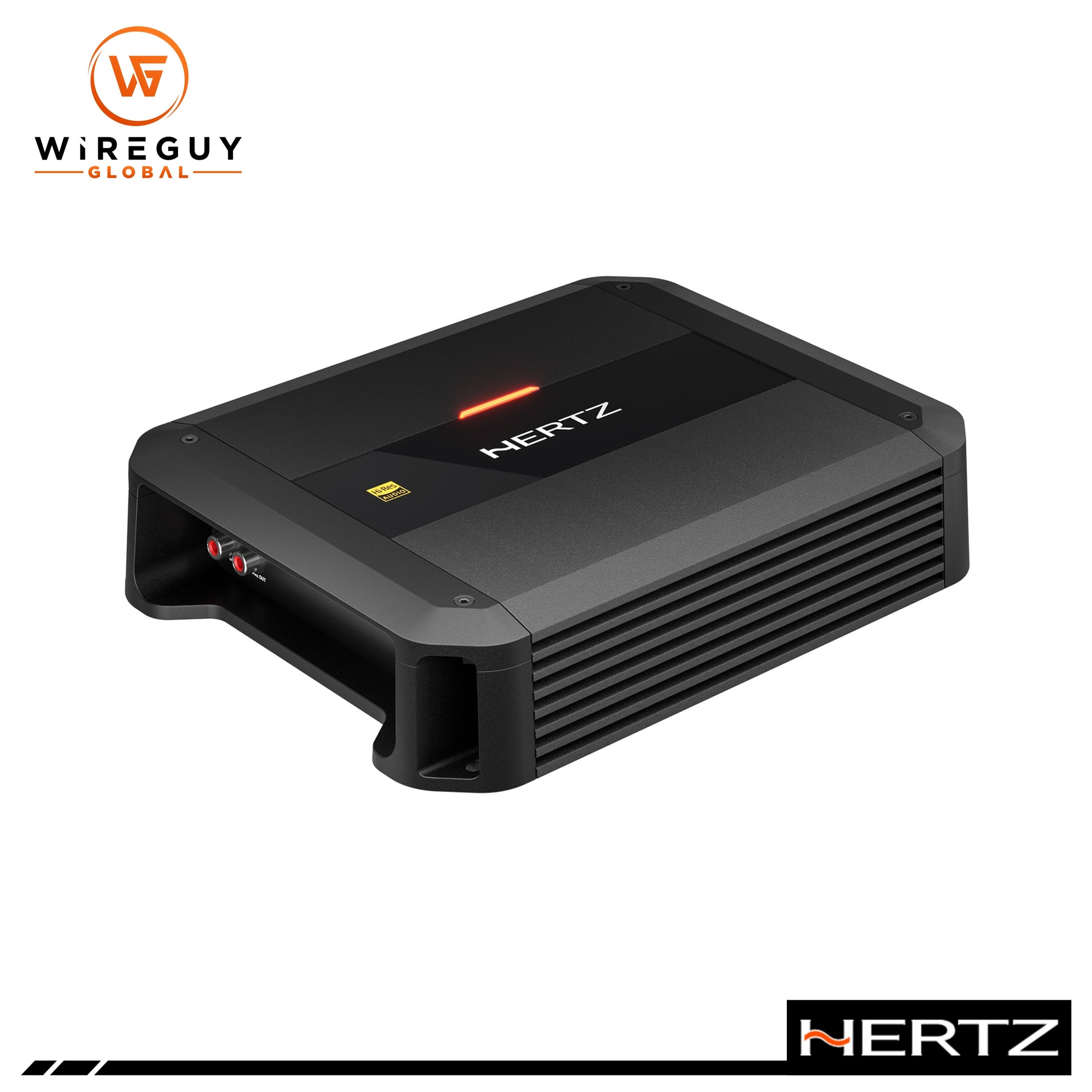

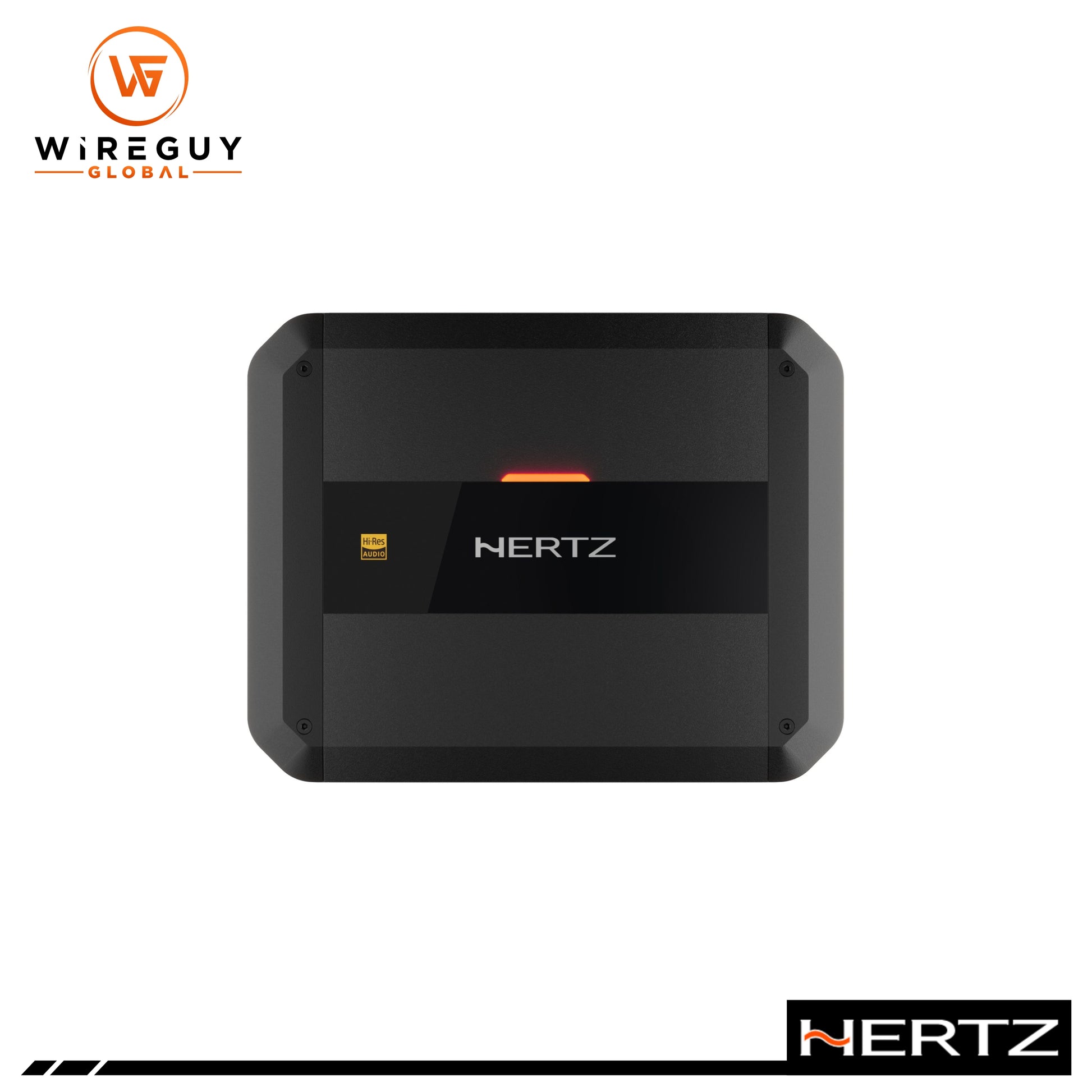

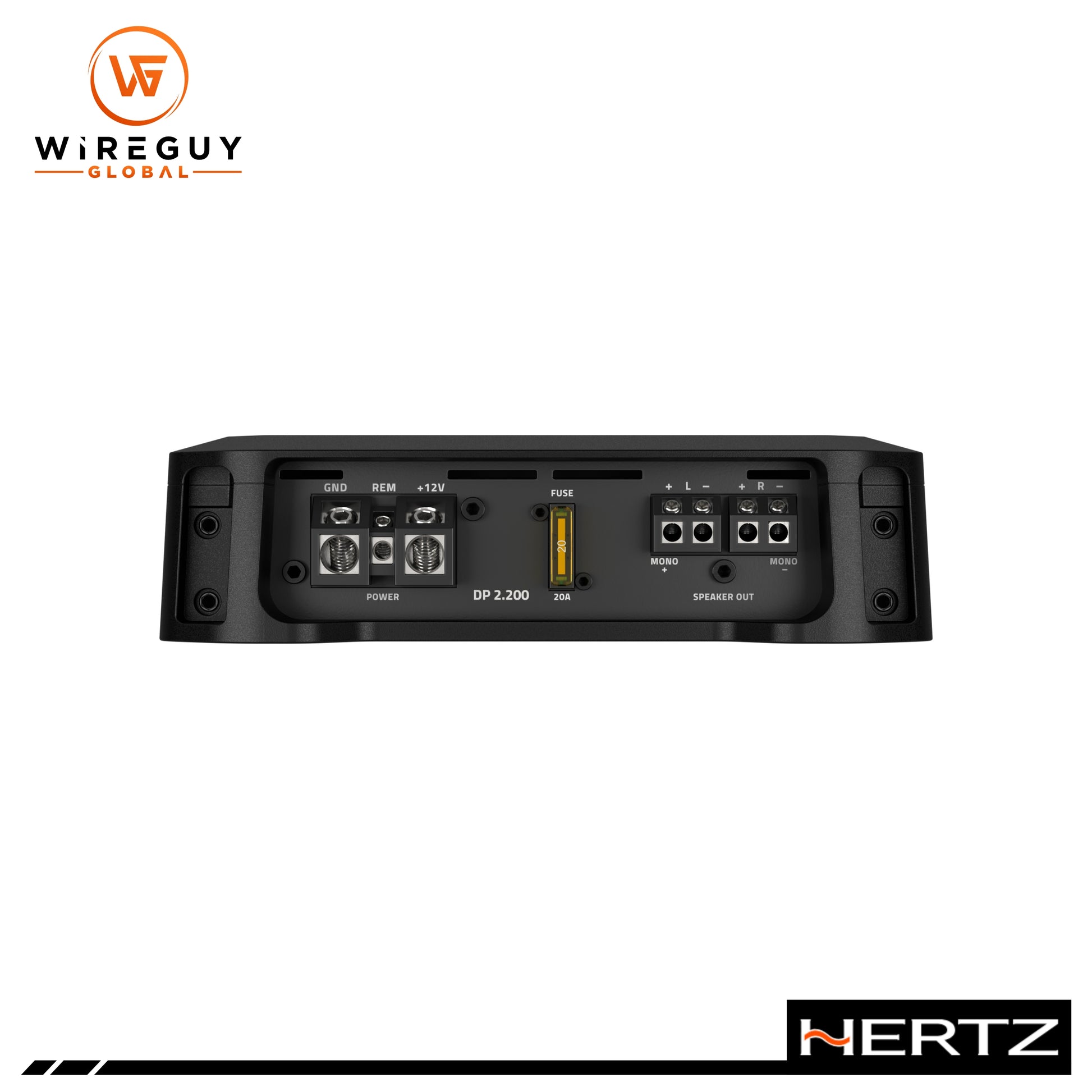

Solid Build with Machined Terminals:
The DP 2.200 amplifier features an elegant, rugged design with machined terminals and a sleek status LED, providing both durability and aesthetic appeal.

Specifications:

• Power Output:
  • 280W RMS x 2 at 4 ohms
  • 500W RMS x 2 at 2 ohms
• Total Power Output:
  590W RMS
• Frequency Response:
  10Hz - 500Hz (-3 dB)
• THD (Total Harmonic Distortion):
  0.2% at 100Hz, 70% rated power
• S/N Ratio:
  99 dBA (A-weighted at 1V input)
• Damping Factor:
  180 @ 1kHz, 1W
• Inputs:
  • Pre-In (0.32 to 8 VRMS)
  • Speaker-In (1.6 to 40 VRMS)
• Outputs:
  Full-range pre-out for system expansion
• Crossovers & Filters:
  • Low-Pass: Off / 50–250Hz, 24 dB/Oct
  • Subsonic: Off / 25Hz, 24 dB/Oct
  • Bass Boost: 0–9 dB at 50Hz
  • Phase Switch: 0°/180°
• Power Supply & Consumption:
  • Nominal Supply Voltage: 11–15 VDC (30A fuse)
  • Operating Supply Voltage: 6.5–17.5 VDC
  • Current Consumption: 21A at max load

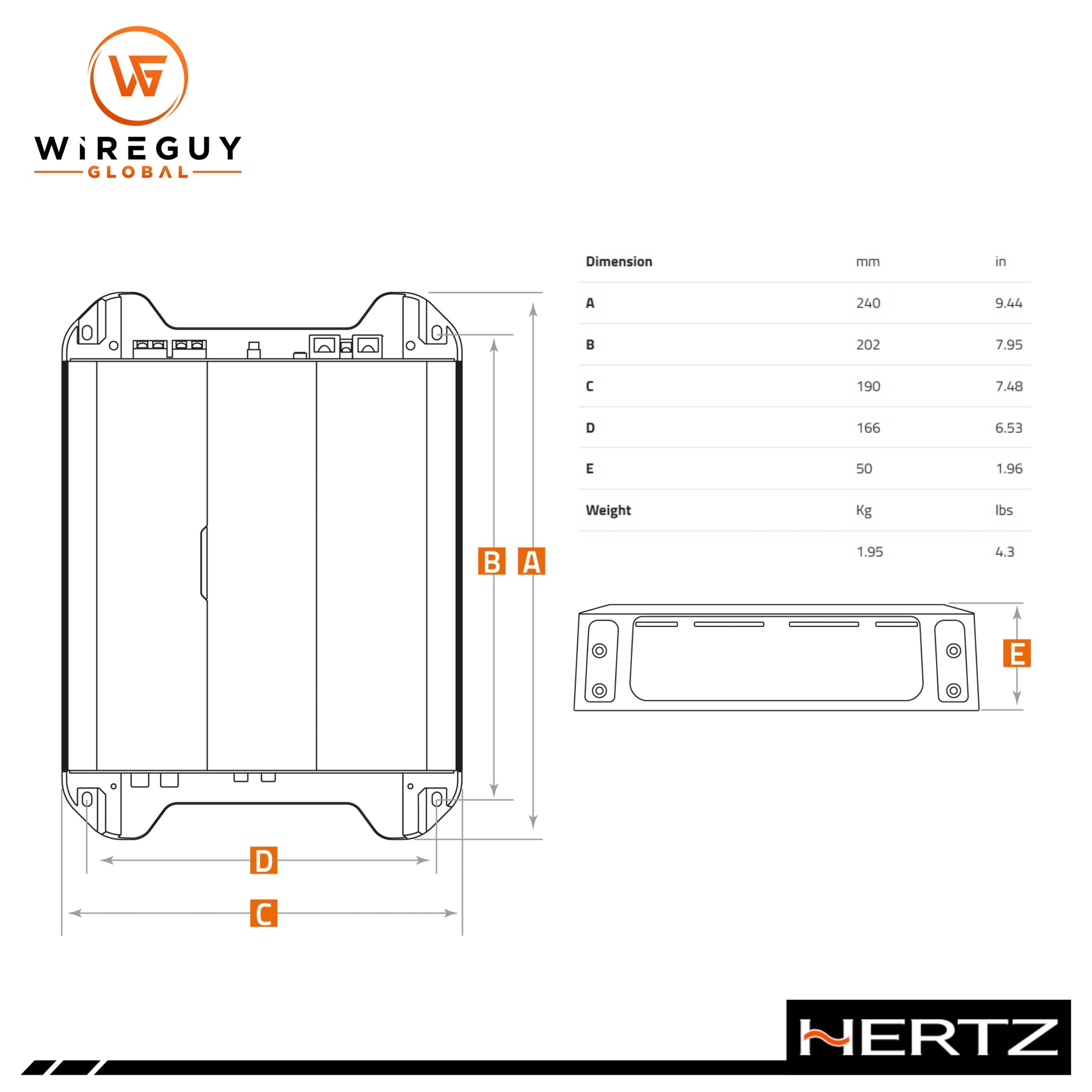

• Dimensions:
  7.524" (W) x 2" (H) x 7.494" (D)

Upgrade your car audio system with the Hertz DP 2.200 2-Channel Amplifier and experience the perfect balance of power, precision, and flexibility. Whether you're looking for deep bass or crisp highs, this amplifier delivers exceptional sound quality in a compact, easy-to-install package, ensuring your audio setup performs at its best on every drive.
