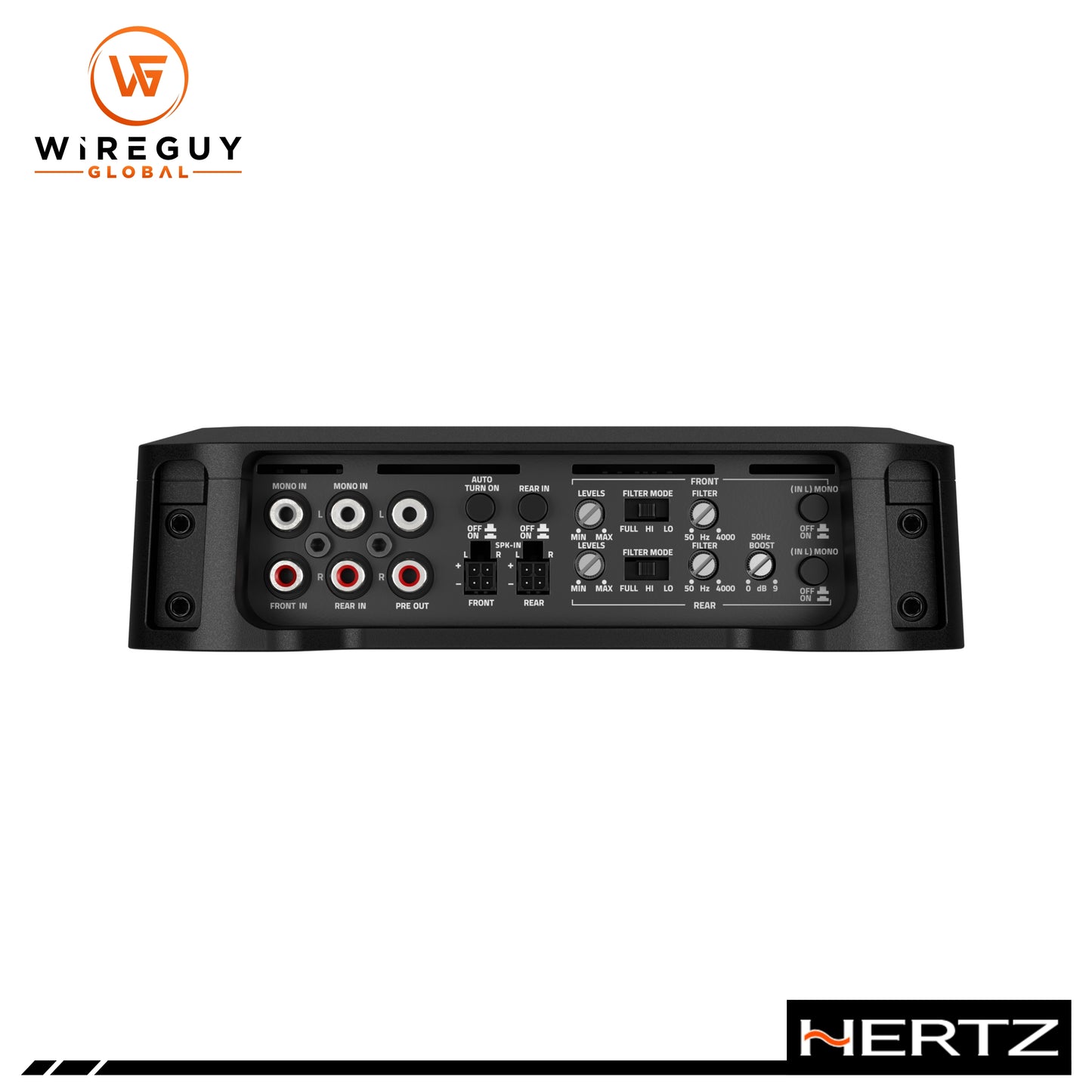

Hertz DP 4.300 Dieci Power 4-Channel Car Amplifier 60W RMS x 4

The Hertz DP 4.300 Dieci Power 4-Channel Car Amplifier is designed to take your car audio experience to the next level. Certified for High-Resolution Audio, this amplifier delivers exceptional audio performance with a wide frequency response of 10 Hz to 45 kHz, ensuring that every detail of your music is reproduced with clarity and precision. Whether you're powering full-range speakers or driving a subwoofer, this compact yet powerful amplifier provides a dynamic and clear sound, making it the perfect choice for audiophiles and casual listeners alike.

Key Features:

• Class-AB Amplification Technology:
  The DP 4.300 features fully bridgeable Class-AB amplification, delivering excellent audio quality and high power output while maintaining efficiency. The 2Ω stability allows for versatile configurations, ensuring you get the best possible performance out of your system.
• Powerful Output:
  • 60W RMS x 4 at 4Ω
  • 85W RMS x 4 at 2Ω
  • 170W RMS x 2 + 170W RMS x 1 at 4Ω in 3-channel mode
  • 210W RMS x 2 at 4Ω in 2-channel mode
    With flexible output options, this amplifier provides ample power to drive your speakers and subwoofers with ease, ensuring clear and powerful sound reproduction across all frequencies.
• High-Resolution Audio Certified:
  Enjoy crystal-clear sound with High-Resolution Audio certification. The DP 4.300 is capable of handling the finest details in your music, ensuring a lifelike listening experience that captures every nuance of your favorite tracks.
• Wide Frequency Response (10Hz - 45kHz):
  With a broad bandwidth, this amplifier ensures full-range audio performance, producing everything from deep bass to sparkling treble without distortion, allowing you to experience music in its full glory.
• Adjustable Crossovers and Bass Boost:
  Tailor the audio to your preference with adjustable high-pass and low-pass filters (50Hz - 4000Hz at 12dB/Oct.) and bass boost (0-9dB at 50Hz). The filters help fine-tune the sound to match your specific setup and acoustic preferences.
• Low Total Harmonic Distortion (THD):
  Enjoy clean, distortion-free audio with a remarkable 0.015% THD at 100Hz, ensuring that the sound quality remains pristine even at higher volumes.
• Convenient Installation Features:
  The DP 4.300 is designed for easy integration into any system. The amplifier features Pre-In and Speaker-In inputs, allowing seamless connection to both aftermarket and factory audio sources. It also includes an automatic remote turn-on system, simplifying installation and operation.
• Sleek, Compact Design:
  The DP 4.300 amplifier features a clean, elegant aesthetic with a status LED, machined terminal block, and removable top panel that protects the internal controls and connections. Its compact size ensures it fits easily into tight spaces while maintaining a professional, polished look.

Specifications:

• Power Output:
  • 4-Channel Output (RMS):
    • 60W x 4 at 4Ω
    • 85W x 4 at 2Ω
  • 3-Channel Output (RMS):
    • 60W x 2 + 170W x 1 at 4Ω
    • 85W x 2 + 170W x 1 at 2Ω / 4Ω
  • 2-Channel Output (RMS):
    • 170W x 2 at 4Ω
  • Maximum Power Output (RMS):
    • 420W (Total)
• Frequency Response:
  10Hz - 45kHz (-3 dB)
• Distortion:
  THD at 100Hz, 70% Rated Power: 0.015%
• Damping Factor:
  105 @ 1kHz, 1W
• Signal-to-Noise Ratio (S/N):
  100 dBA (A-weighted at 1V input)
• Adjustable Filters:
  • Low-Pass Filter: 50Hz - 4000Hz, 12dB/Oct
  • High-Pass Filter: 50Hz - 4000Hz, 12dB/Oct
  • Bass Boost: 0-9 dB at 50Hz
  • Phase Control: 0/180° switch
• Inputs:
  • Pre-In Sensitivity: 0.32V - 8V RMS
  • Speaker-In Sensitivity: 1.6V - 40V RMS
• Remote Control:
  Optional HRC-02 (Remote Subwoofer Level Control)
• Power Supply & Efficiency:
  • Nominal Power Supply Voltage: 11V - 15V DC (2 x 20A fuse)
  • Operating Power Supply Voltage: 6.5V - 16.5V DC
  • Efficiency: 59%
• Dimensions:
  10.0" (W) x 2.1" (H) x 7.7" (D)

Transform your car audio system with the Hertz DP 4.300 Dieci Power 4-Channel Amplifier—delivering clean, powerful, and detailed sound in a compact, easy-to-install package. Whether you’re powering a full-range speaker setup or adding extra power to your subwoofers, this amplifier ensures an exceptional listening experience every time you hit the road.
