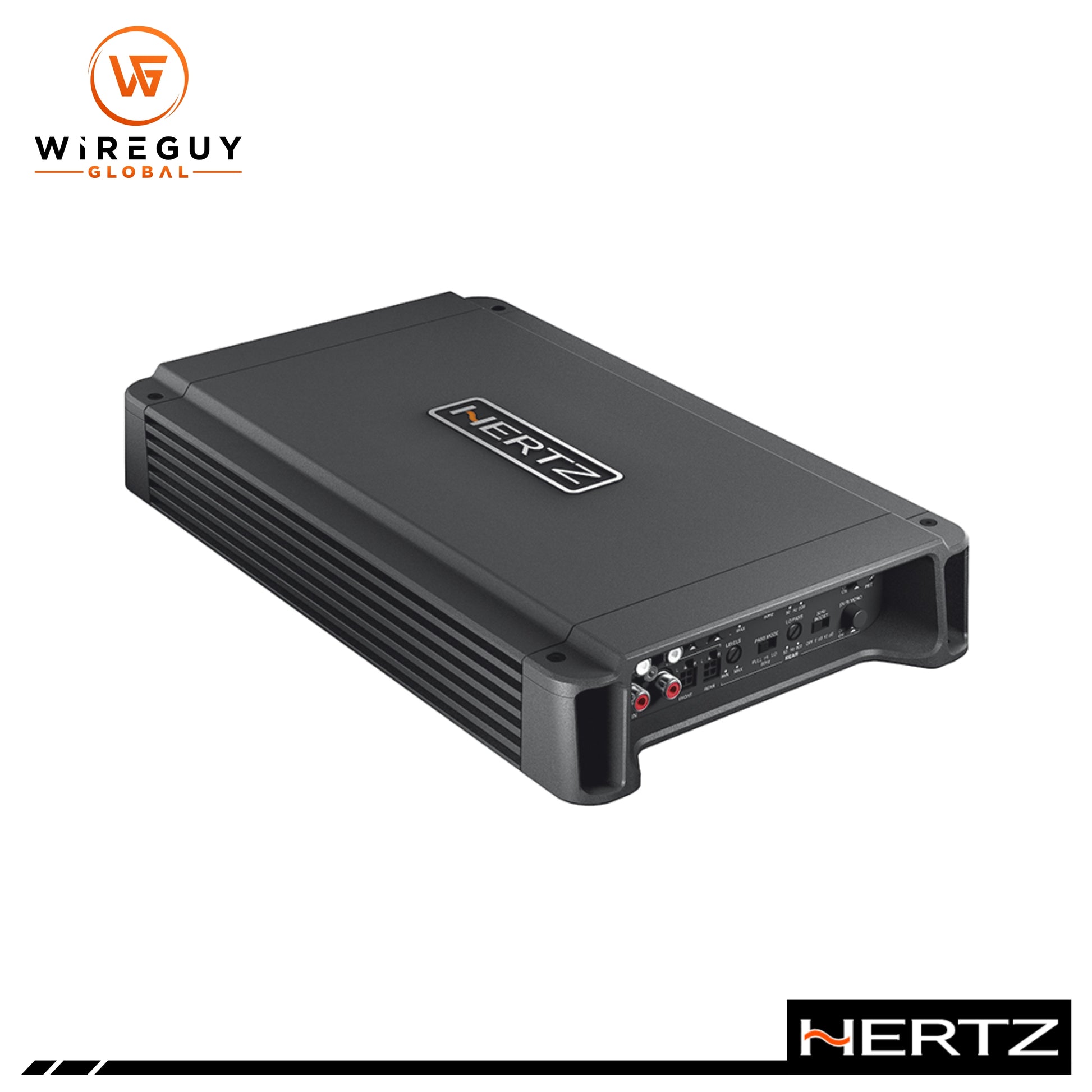

Hertz HCP 4DK 4-Channel 1000W RMS Amplifier

The Hertz HCP 4DK is an advanced 4-channel amplifier designed to deliver outstanding power and exceptional sound quality. With a maximum output power of 2000W, this amplifier reaches an impressive 1000W RMS while maintaining a high signal-to-noise ratio of 105 dB. Equipped with the latest generation D-Class technology, the HCP 4DK ensures minimal distortion and high efficiency, making it ideal for demanding audio systems. This amplifier is perfect for users seeking flexibility, as it operates in 4, 3, or 2-channel modes, offering a wide range of configuration possibilities.

Channel modes and power output
The HCP 4DK can deliver exceptional power to your system in multiple configurations:

• 4-Channel Mode: 150W RMS per channel at 4 ohms or 250W RMS per channel at 2 ohms
• 3-Channel Mode: 150W RMS per channel at 4 ohms for the front channels + 520W RMS at 4 ohms for the subwoofer, or 250W RMS at 2 ohms for the front channels + 520W RMS at 4 ohms for the subwoofer
• 2-Channel Mode: 520W RMS per channel at 4 ohms for a powerful two-channel system

Whether you're setting up a front-and-subwoofer system or need a full four-channel configuration, the HCP 4DK offers the flexibility to meet various needs.

Advanced filtering system
The amplifier features a complete and by-passable crossover system, with:

• Hi-Pass Filter: 80 Hz @ 12 dB/Oct for the front channels
• Lo-Pass Filter: 50-500 Hz @ 12 dB/Oct for the subwoofer channels

These filters ensure optimal frequency response and smoother transitions, allowing for accurate sound reproduction. The adjustable nature of the filters gives you the flexibility to fine-tune your system to your exact preferences.

Durable and efficient design
The HCP 4DK is built using high-quality components and an optimized dissipation system. The heat generated by the power components is effectively transferred to the heatsink and dissipated through the sides of the amplifier, ensuring optimal performance even under heavy use.

Key Features:

Power Output: 150W RMS x 4 at 4 ohms, 250W RMS x 4 at 2 ohms, 520W RMS x 2 at 4 ohms (in 2-Channel mode)

Class D Technology: Efficient, low distortion with excellent performance.

Selectable Channel Modes: 4, 3, and 2-channel operation, giving you multiple setup options.

Advanced Crossover Filters: Hi-pass and low-pass filters for fine-tuned sound control.

High Signal-to-Noise Ratio: 103 dB, ensuring clean and clear audio output.

Thermal Management: Optimized heat dissipation for stable performance.

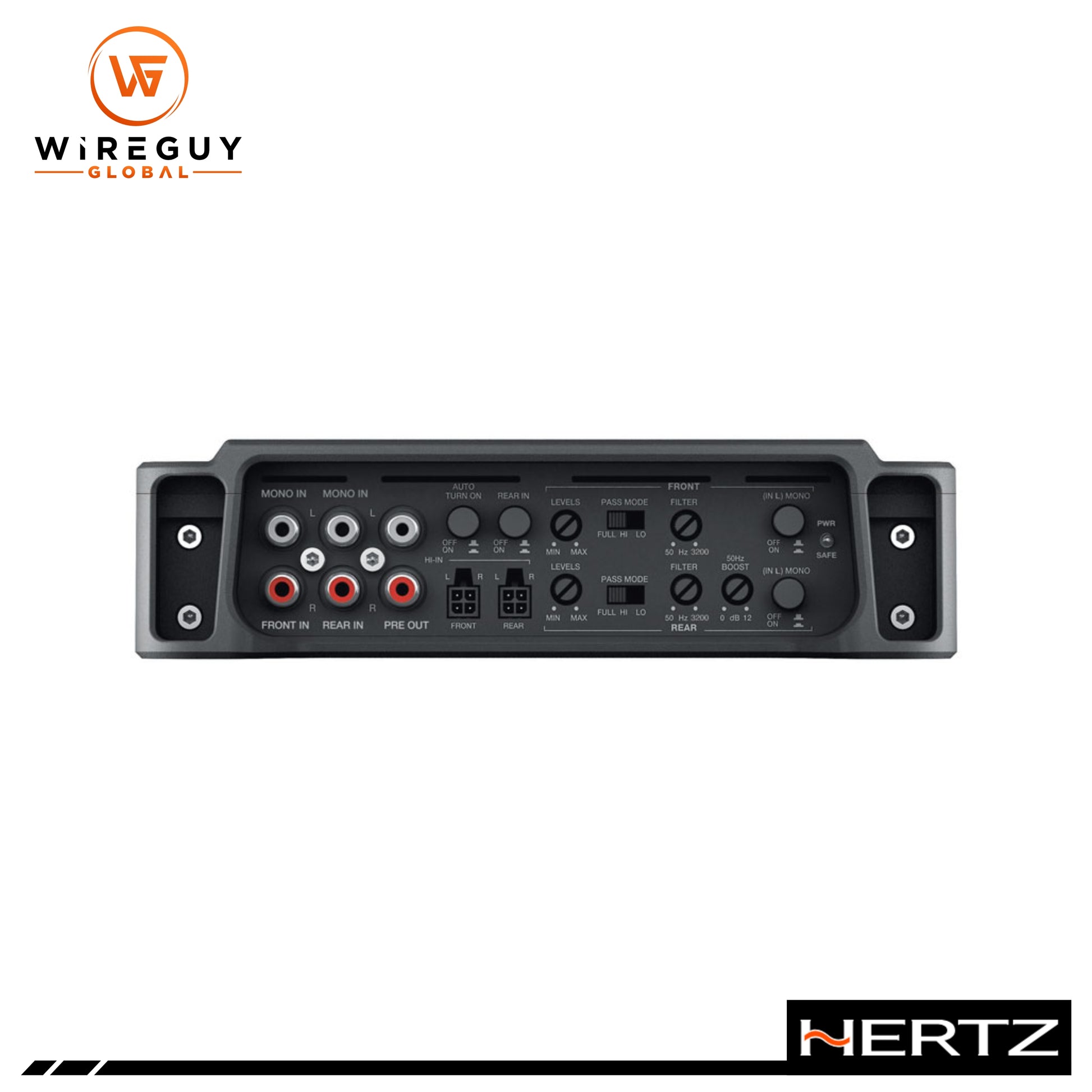

Versatility: Works with both speaker-level and RCA-level inputs, making it compatible with almost any head unit.

Specifications:

• RMS Power Output (14.4VDC):
  • 150W x 4 (4 Ω)
  • 250W x 4 (2 Ω)
  • 150W x 2 (4 Ω) + 520W x 1 (4 Ω)
  • 250W x 2 (2 Ω) + 520W x 1 (4 Ω)
  • 520W x 2 (4 Ω) in 2-Channel mode
• Distortion (THD @ 100Hz @ 4Ω): 0.01%
• Signal-to-Noise Ratio (A weighted @ 1V): 103 dB
• Damping Factor (100Hz @ 4Ω): 120

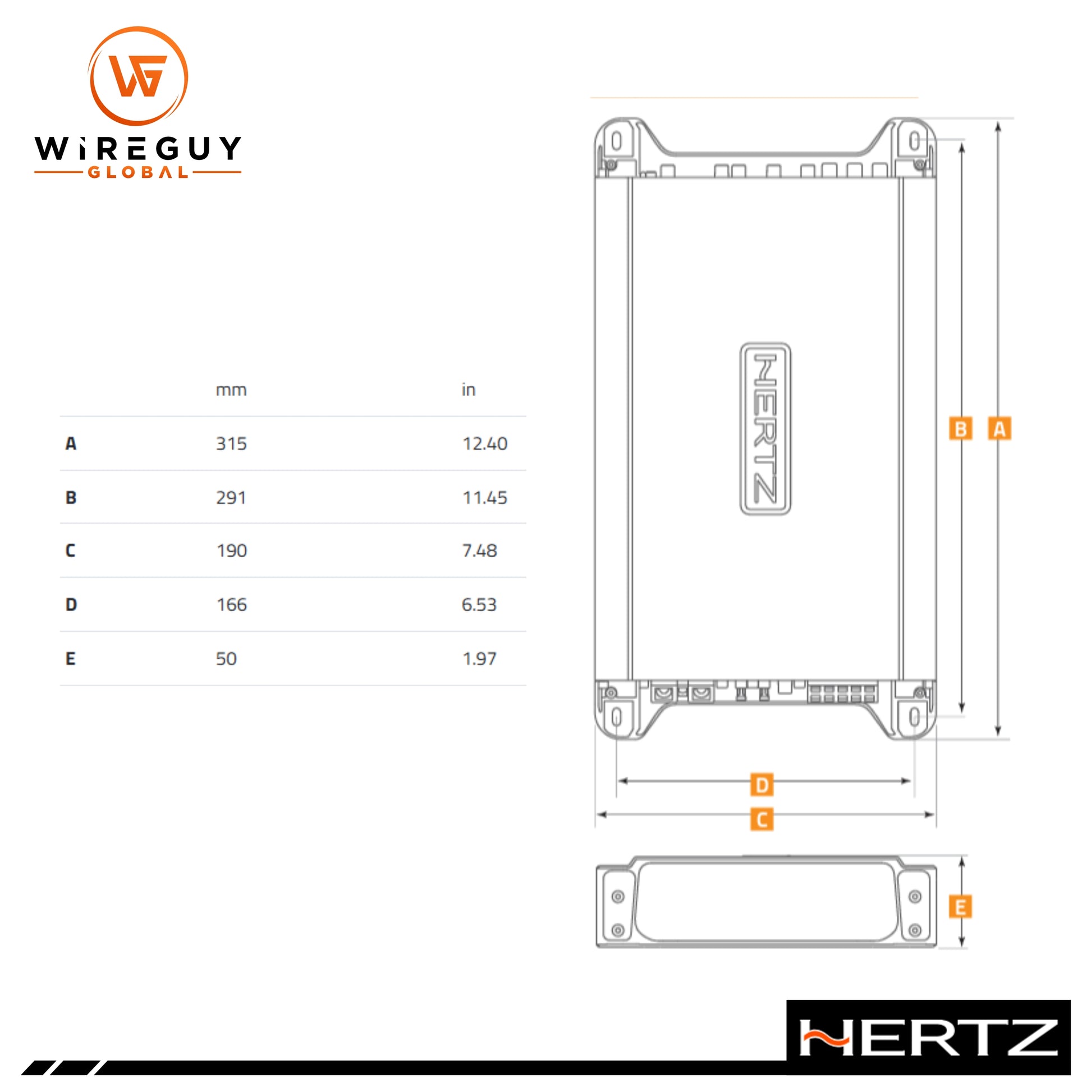

• Size (W x D x H): 12.40" x 7.48" x 1.97"

The Hertz HCP 4DK is a powerful and versatile amplifier that delivers high performance and unmatched flexibility, perfect for users looking to design a custom, high-quality car audio system. Whether powering a multi-channel speaker setup or driving a subwoofer with ease, the HCP 4DK has the features and reliability to take your sound experience to the next level.
