Hertz HCP 5D 5-Channel Car Amplifier 50W RMS x 4 at 4 OHMS + 280W RMS x 1 AT 2 OHMS

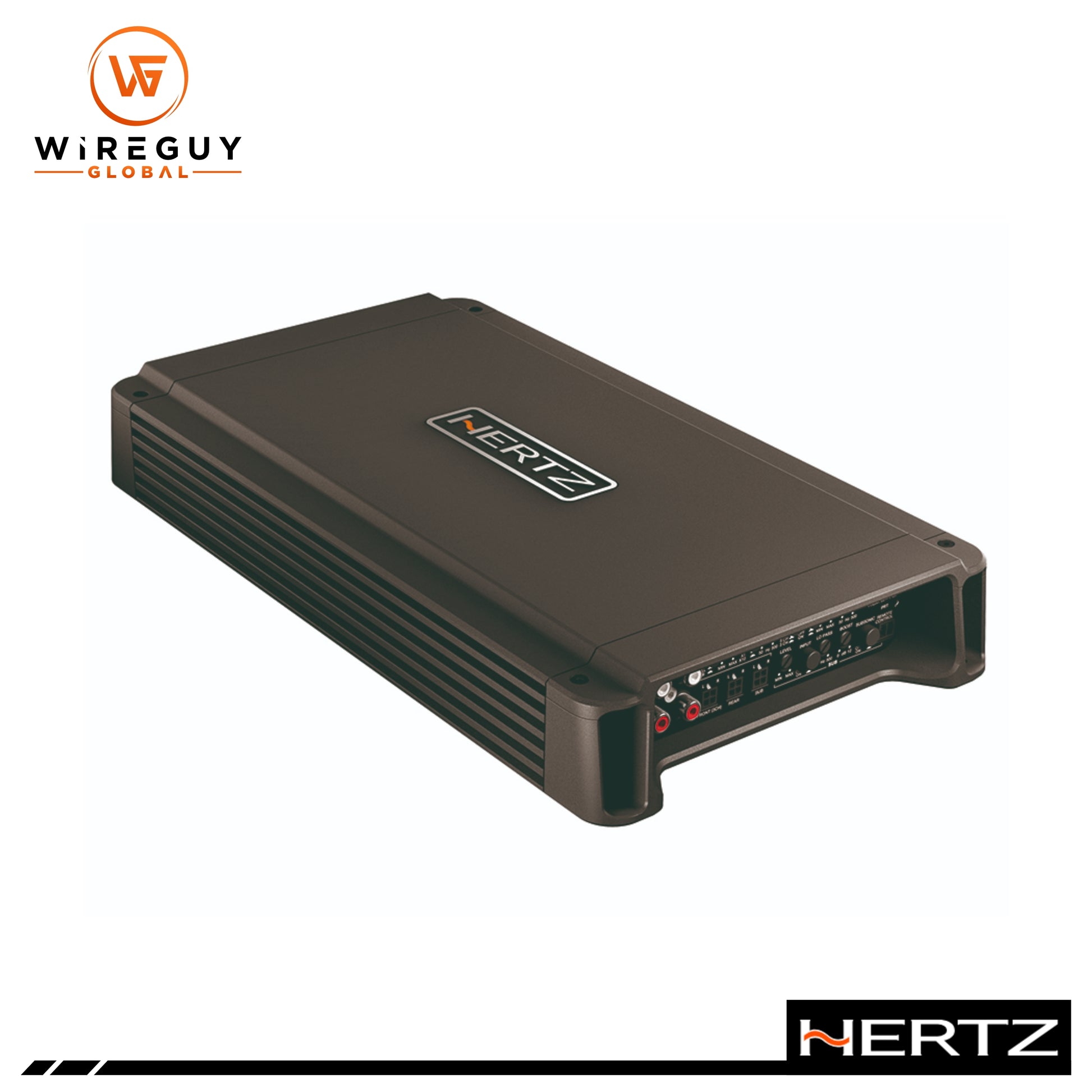

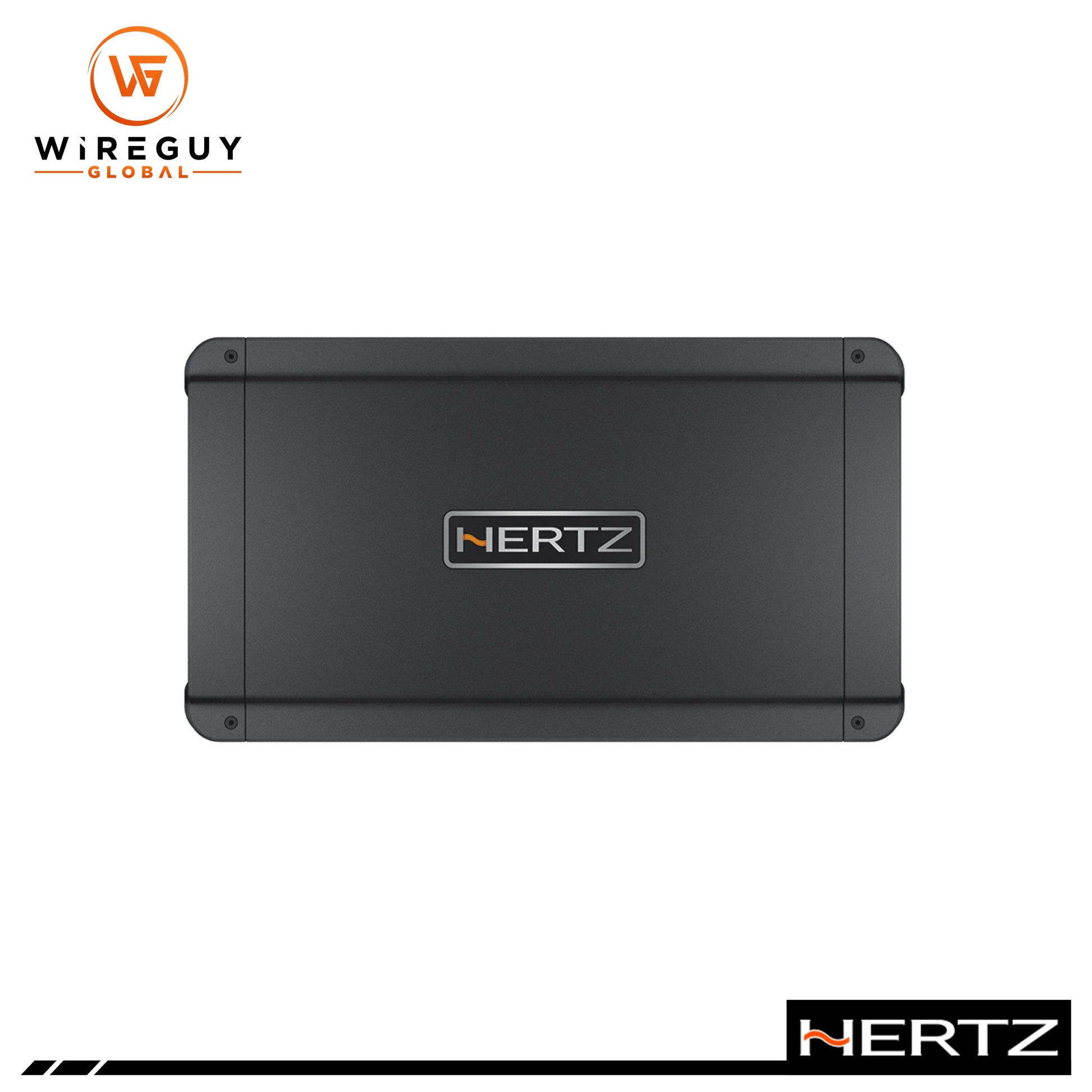

The Hertz HCP 5D is a high-performance 5-channel amplifier designed to simplify your car audio system while delivering exceptional sound quality. Offering 50 watts RMS to each of your vehicle's front and rear speakers, and up to 280 watts RMS to a subwoofer, this compact amp can enhance every part of your sound system. Whether you're looking to power a full-range system or just add a subwoofer to an existing setup, the HCP 5D provides the power and flexibility you need without the bulk of multiple amplifiers.

Versatility for Advanced Audio Systems
This amplifier can also be used in 3-channel mode for powering a pair of high-performance speakers or components with 180 watts RMS each while sending 280 watts RMS to the subwoofer. With adjustable filters, the HCP 5D lets you tri-amp a 3-way active system, using the front and rear channels to drive tweeters, midrange drivers, and a dedicated subwoofer channel for enhanced tonal control and precision.

Comprehensive Filtering System

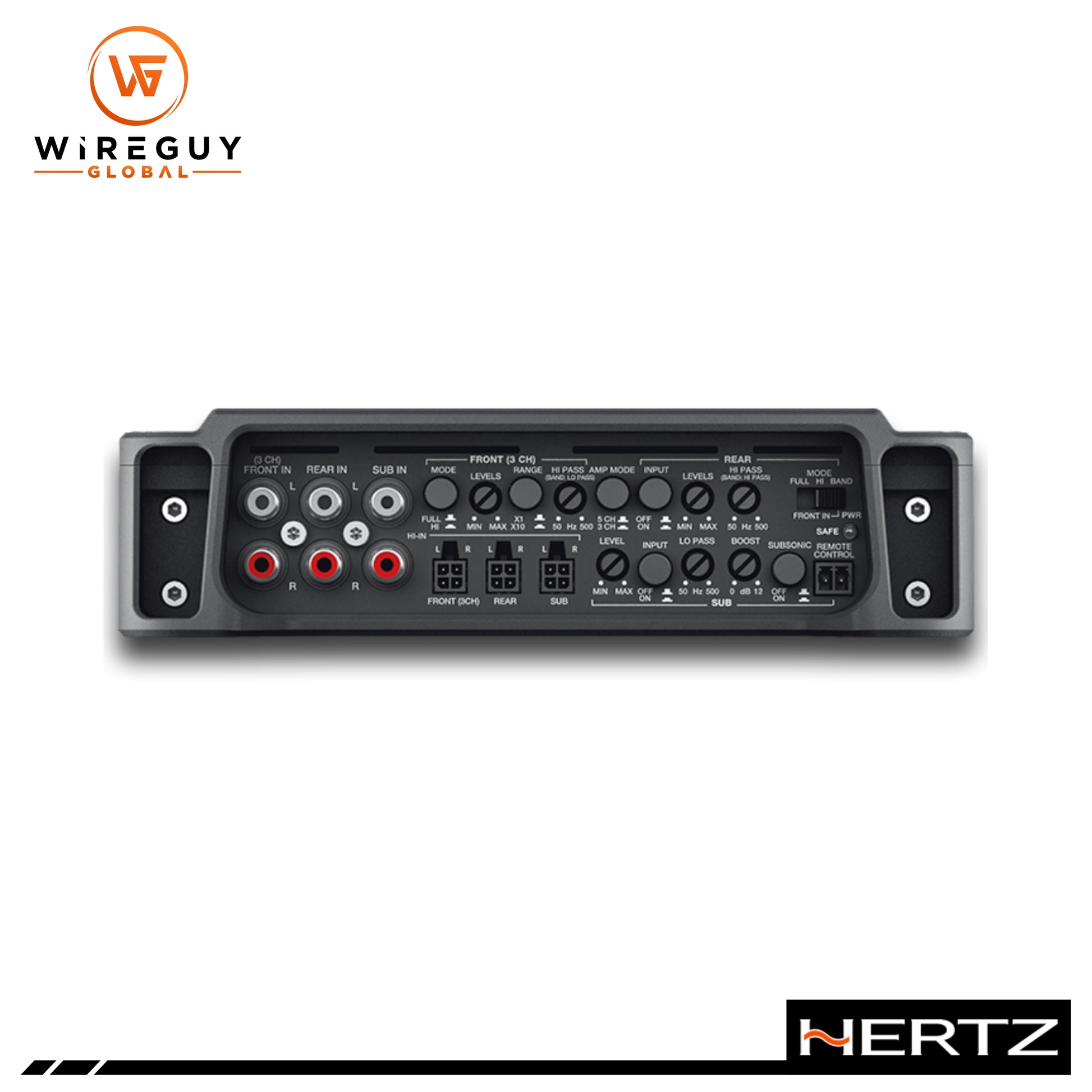

The HCP 5D provides precise control over your audio system with its variable high-pass filters on the front and rear channels, allowing you to adjust the frequency from 50 Hz to 5000 Hz (front) and 50 Hz to 500 Hz (rear). The subwoofer channel features a variable low-pass filter (50 Hz to 500 Hz) with a 24 dB/octave slope for optimal subwoofer performance. Additionally, a subsonic filter (25 Hz) helps to eliminate unwanted frequencies and distortion, ensuring your bass hits hard and stays clean.

Bass Boost and Optional Control
The amplifier also features variable bass boost (0-12 dB at 50 Hz) to enhance low-end performance. For even more control, the optional Hertz HRC remote control can be used to adjust the subwoofer level directly from your dash for on-the-fly tuning.

Key Features

5-channel amplifier:

• 50W RMS x 4 at 4 ohms (front and rear channels)
• 280W RMS x 1 at 2 ohms (subwoofer channel)
• Bridged power: 180W RMS x 2 at 4 ohms

Class-D Technology: Provides efficient power delivery with minimal heat generation and distortion.

Comprehensive filters: High-pass filters (50-5000 Hz for front, 50-500 Hz for rear), low-pass filter (50-500 Hz for sub), and subsonic filter (25 Hz).

Bass Boost: 0-12 dB at 50 Hz for subwoofer enhancement.

Optional Remote Control: Hertz HRC wired remote for subwoofer level adjustment.

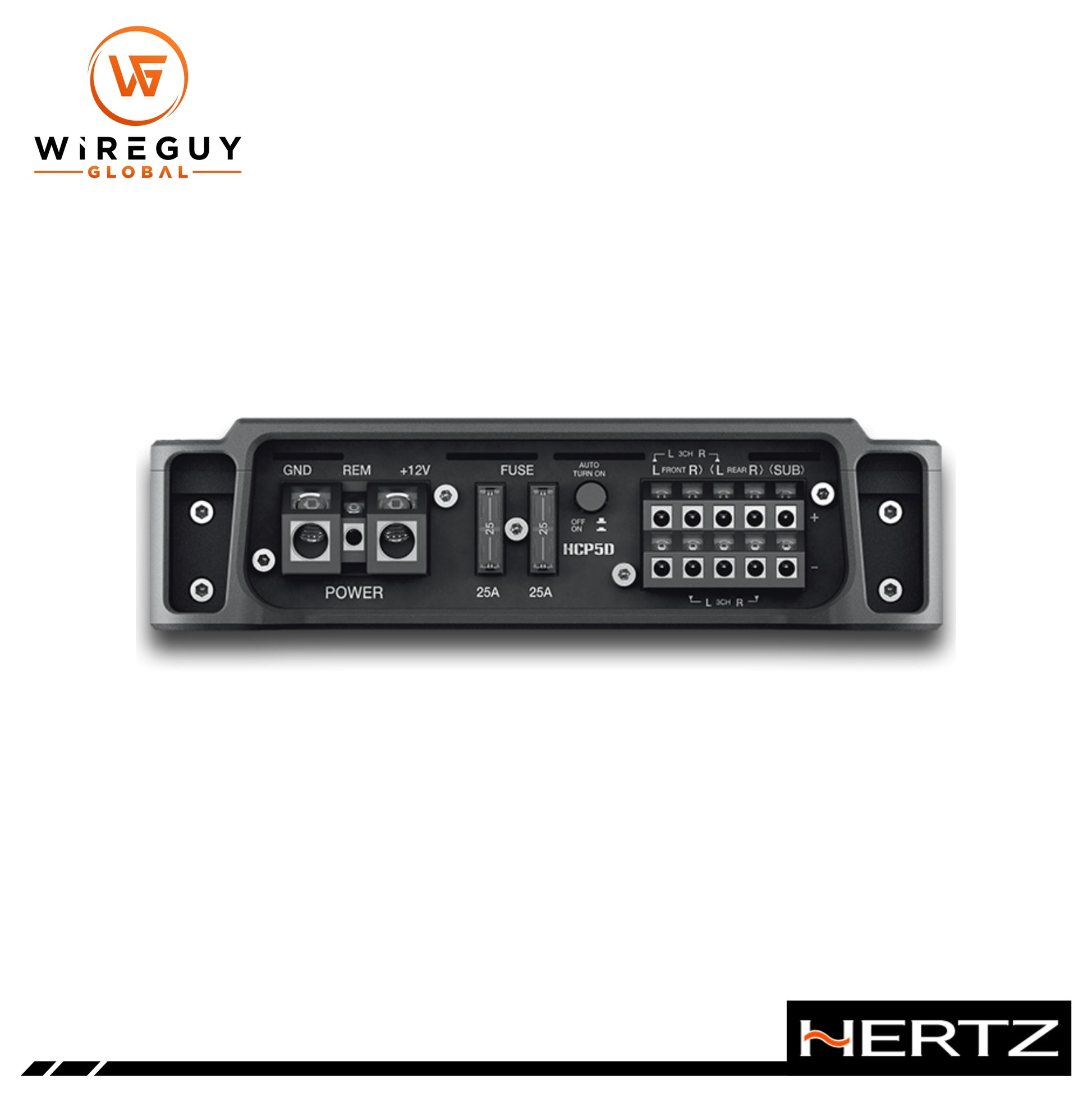

Inputs: Preamp and speaker-level inputs, with Automatic Remote Turn-On via speaker-level inputs.

Fuse Rating: 25A x 2

No Preamp Outputs

8-gauge power and ground wire recommended

Specifications:

• Power Output (RMS):
  • 50W x 4 (front/rear channels at 4 ohms)
  • 90W x 4 (front/rear channels at 2 ohms)
  • 280W x 1 (subwoofer channel at 2 ohms)
  • 180W x 2 (bridged at 4 ohms)
• Frequency Response:
  • Front & Rear: 10-50,000 Hz
  • Subwoofer: 10-500 Hz
• Distortion (THD @ Rated RMS Power): 1%
• Signal-to-Noise Ratio: 83 dB
• Dimensions (W x H x D): 13-1/2" x 2" x 7-9/16"

The Hertz HCP 5D 5-Channel Amplifier is the ideal solution for those looking for a powerful, compact amplifier that delivers both flexibility and high-quality sound. Whether you're building a multi-speaker system or want the convenience of a single amplifier for all your channels, this amp provides the performance you need to take your car audio experience to the next level.
