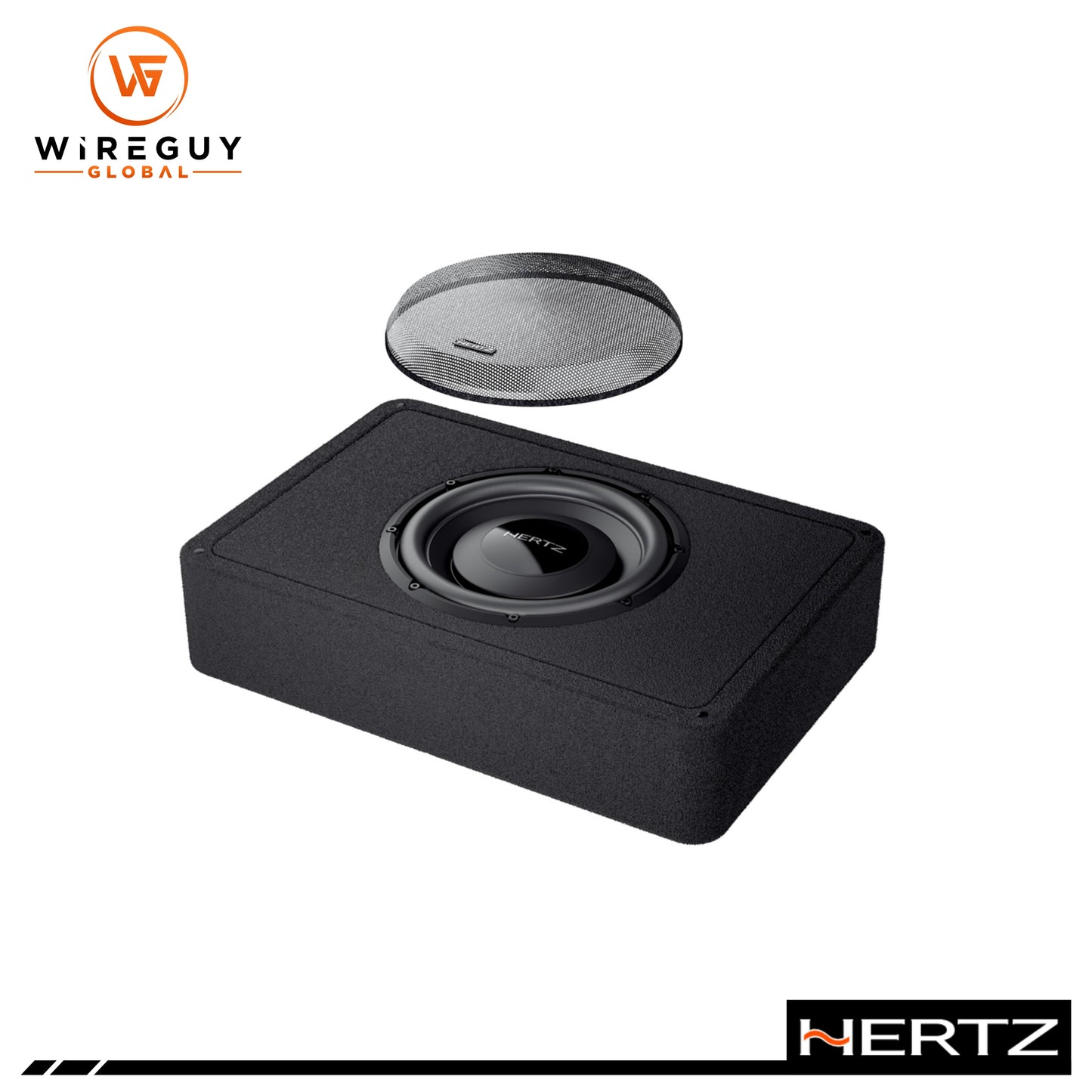

Hertz MPBX 250 S2 Mille Pro Series 10" Shallow-Mount 2-OHM Component Subwoofer

The Hertz MPBX 250 S2 Mille Pro Series 10" Shallow-Mount 2-Ohm Component Subwoofer is designed for audiophiles who demand high-powered bass but are limited by space. The goal of the Mille Pro Series is to deliver maximum output in the smallest possible footprint, and the MPBX 250 S2 excels at this by offering a subwoofer with greater cone excursion and a shallow mounting depth, all while maintaining impressive performance. Perfect for tight spaces, this subwoofer delivers deep, punchy bass in enclosures as small as 0.5 cubic feet.

Key Features:

Shallow-Mount Design for Smaller Spaces:
The MPBX 250 S2 subwoofer is engineered to fit in tight spaces with a top-mount depth of only 3.25". Despite its compact size, it offers over 20% greater cone excursion than standard subwoofers, delivering rich and powerful bass.

Polypropylene Cone & Rubber Surround:
Featuring a tough polypropylene cone and a durable rubber surround, this subwoofer ensures accurate and distortion-free bass even under high output conditions. These materials are designed to maximize performance while maintaining reliability.

Die-Cast Aluminum Frame:
The robust die-cast aluminum frame provides a solid foundation for the subwoofer's powerful output, minimizing resonance and vibration to ensure that you hear only clean, deep bass.

500W RMS Power Handling (1000W Peak):
With a continuous power handling capacity of 500W RMS and a peak power handling of 1000W, the MPBX 250 S2 can handle significant amounts of power while providing deep, punchy bass that satisfies even the most demanding listeners.

Frequency Response of 25-400 Hz:
The subwoofer is capable of reproducing a wide range of frequencies, from deep lows to punchy mid-bass, allowing for a full, dynamic bass experience.

Compact Enclosure Compatibility:
The MPBX 250 S2 is designed for use in sealed enclosures as small as 0.5 cubic feet or ported enclosures up to 0.6 cubic feet, making it ideal for vehicles with limited space. The shallow-mount design also makes it easier to fit into custom installations.

Grille Included:
The subwoofer comes with a black steel mesh grille to protect the cone and frame from damage during installation and use.

Technical Specifications:

• Size: 10 inches
• Impedance: 2Ω
• Cone Material: Polypropylene
• Surround Material: Rubber
• Basket Material: Die-cast aluminum
• Power Handling (Continuous): 500W RMS
• Peak Power Handling: 1000W
• Sensitivity: 82.5 dB at 1 watt
• Frequency Response: 25 - 400 Hz
• Top Mount Depth: 3-1/4 inches
• Sealed Box Volume: 0.5 - 0.65 cubic feet
• Ported Box Volume: 0.6 cubic feet
• Grille Included: Yes (black steel mesh)
• Warranty: 2 years
• Cutout Diameter: 9-3/16 inches
• Frame Dimensions (Width & Length): 10.812 inches

Electro-Acoustic Specifications:

• Fs (Resonant Frequency): 28 Hz
• Qts (Total Q Factor): 0.41
• Xmax (Maximum Excursion): 16.8 mm
• Vas (Equivalent Air Volume): 24.5 liters

The Hertz MPBX 250 S2 Mille Pro Series 10" Shallow-Mount 2-Ohm Component Subwoofer is an excellent choice for those who want massive bass but are constrained by space. With a shallow mounting depth of just 3.25", it fits in tight spaces while still offering over 20% greater cone excursion than typical subs. Its 500W RMS and 1000W peak power handling, combined with a polypropylene cone, rubber surround, and die-cast aluminum frame, ensure deep, clean bass. Whether you're upgrading a car audio system or creating a custom bass solution, the MPBX 250 S2 provides impressive performance in a compact design.
