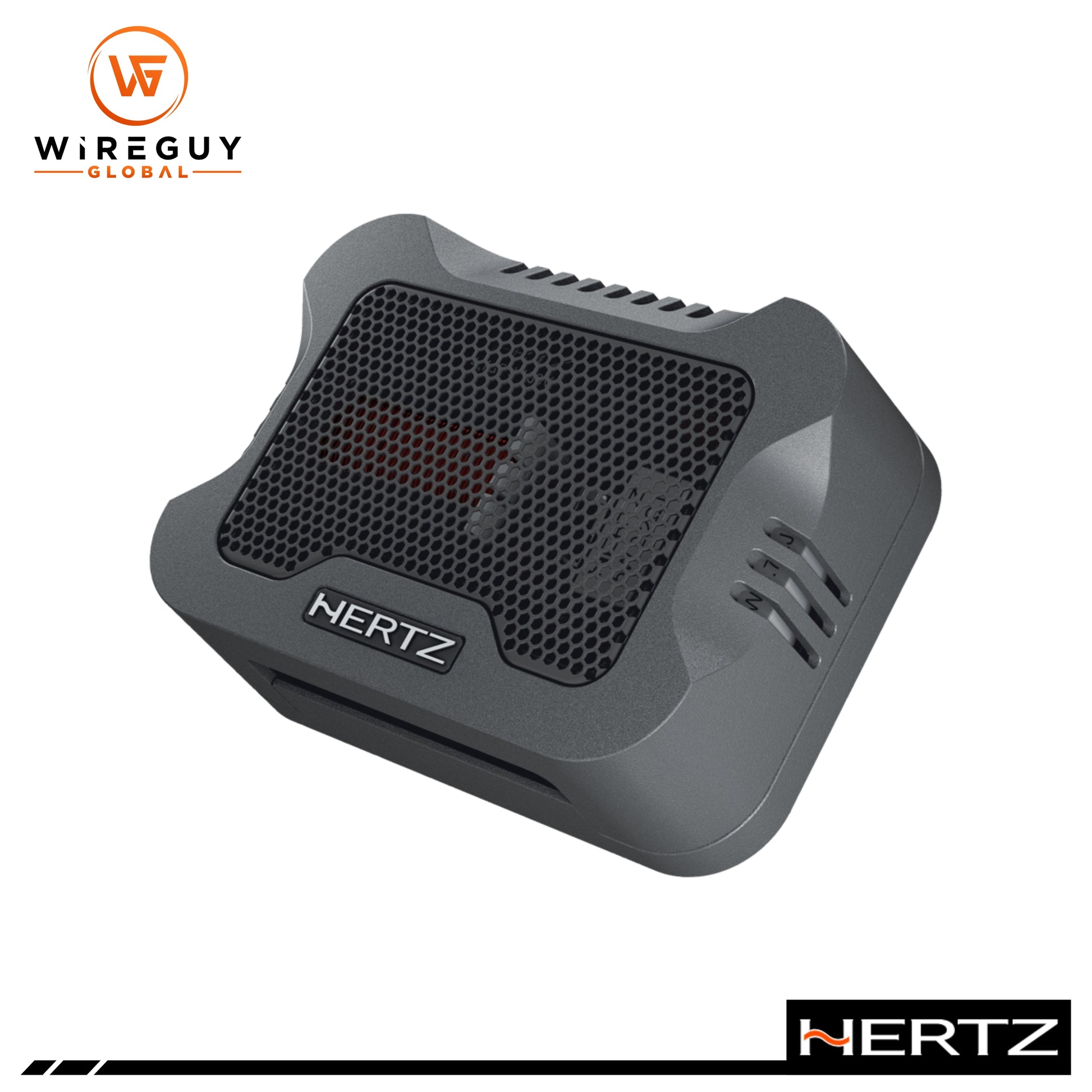

Hertz MPCX 2 TM.3 PRO Crossover

The Hertz MPCX 2 TM.3 PRO Crossover is a high-performance audio component designed to perfectly complement your MP 70.3 and MP 25.3 speakers in a 3-way multi-amplification system. When combined with MP 165.3 or MP 165P.3 woofers, this crossover ensures optimal sound performance, providing precise frequency distribution and enhanced clarity across the entire frequency range.

Key Features:

Tweeter Level Adjustment: The two-position (0 / +2 dB) switch allows you to fine-tune the tweeter level, ensuring the perfect balance and optimal sound emission for your system.

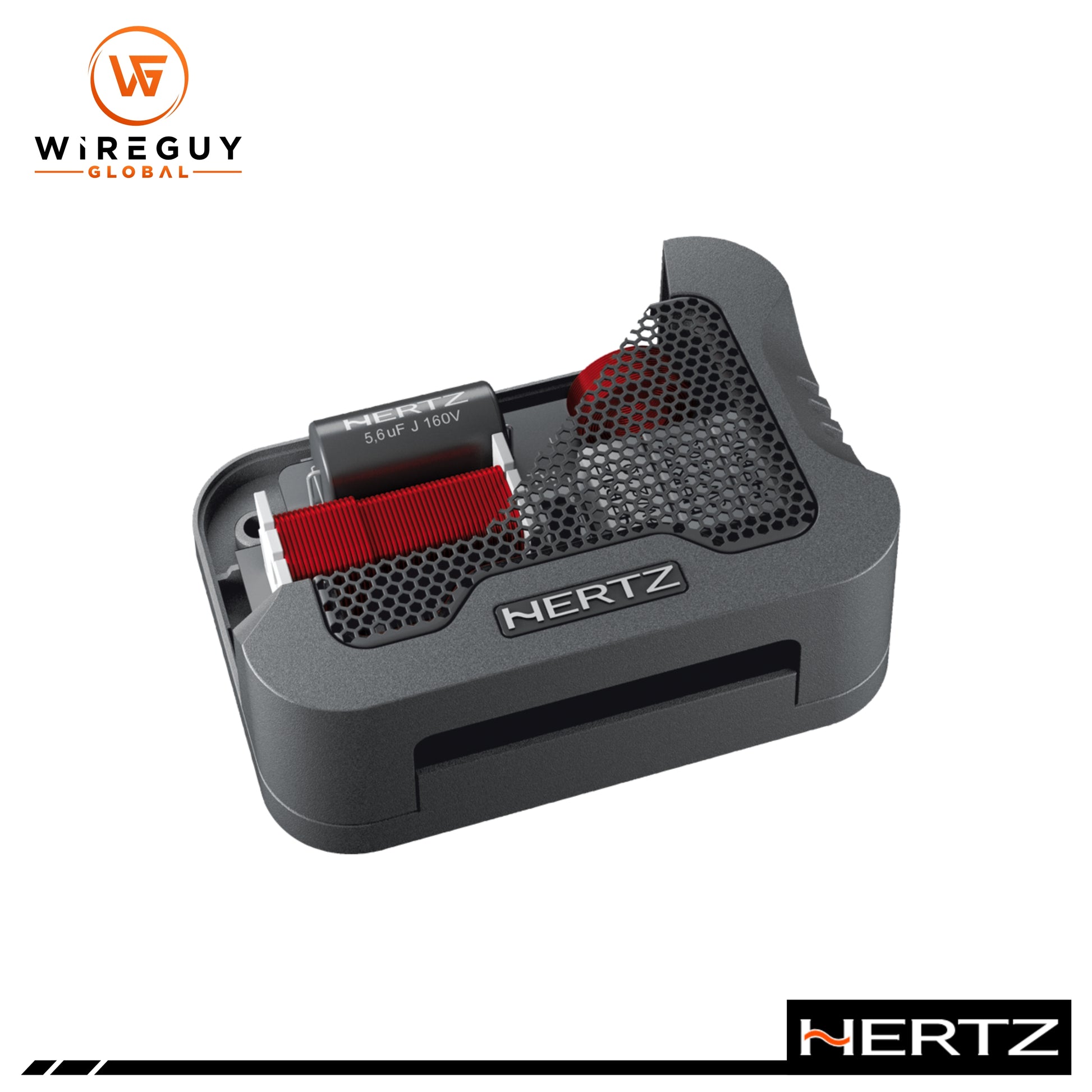

High-Quality Capacitors: The 160V bi-metallized polyester film capacitors offer ultra-low distortion and high sound transparency, ensuring clear and precise mid-to-high frequencies.

Pure Copper Wire Inductors: 1mm pure copper wire inductors are used in the mid-range section, providing low dissipation losses and excellent transient current response, contributing to improved clarity and overall sound quality.

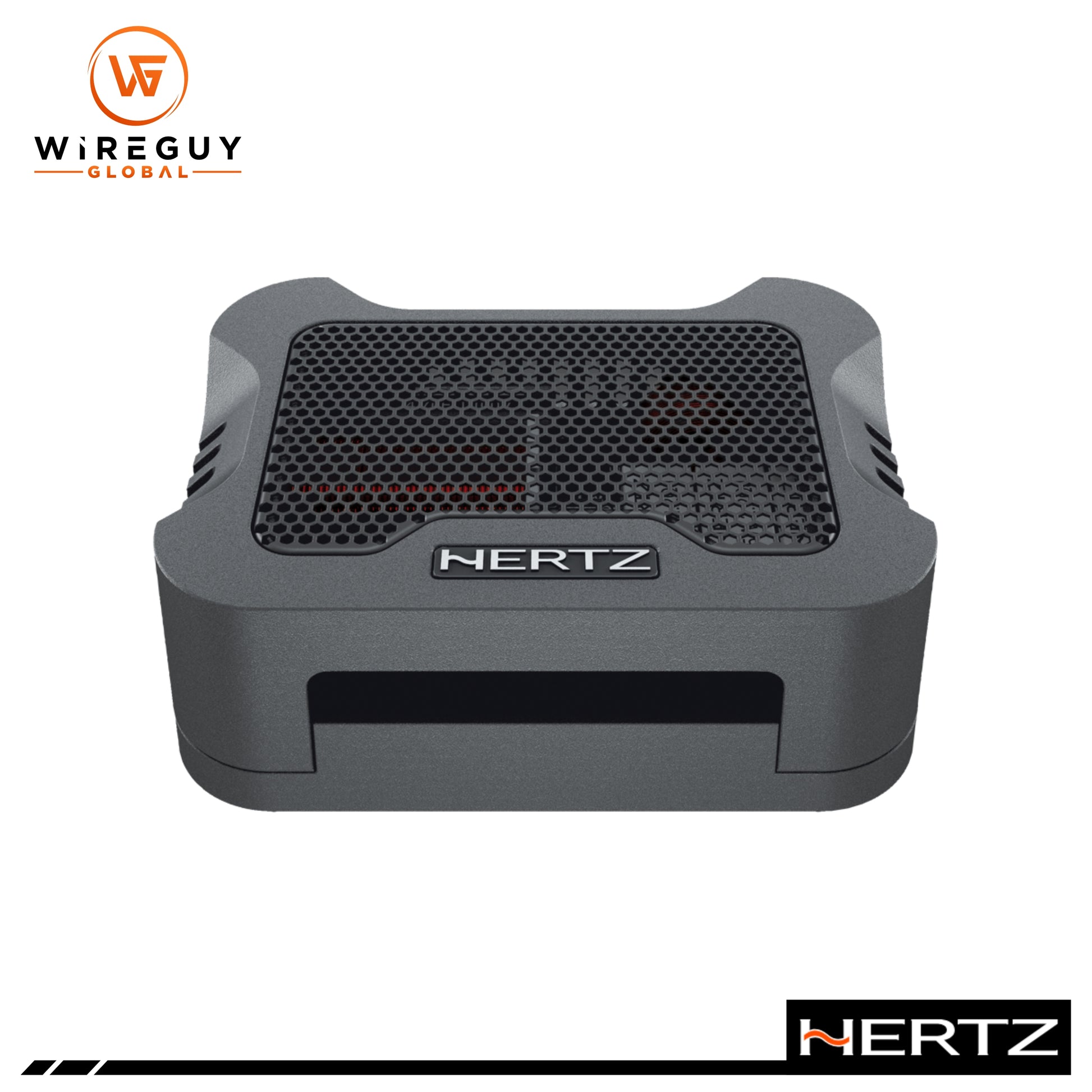

Efficient Heat Dissipation: The crossover features a top vent grille that allows for efficient heat dissipation, ensuring the components operate cool and maintain peak performance.

Compact Design: With a small footprint, the MPCX 2 TM.3 is easy to install in tight spaces, making it an ideal choice for custom audio systems.

Specifications:

• Crossover Design: 2-Way Passive
• Midrange Low Pass: 5.5 kHz @ – 6 dB/oct
• Tweeter High Pass: 5.5 kHz @ – 12 dB/oct
• Tweeter Adjustment: 0 / +2 dB
• Capacitors: 160V bi-metallized polyester film, ultra-low DF
• Inductors: 1mm pure copper wire, low series resistance
• Weight: 0.16 kg (0.35 lb)
• Installation: Designed for use with MP 70.3 and MP 25.3 when paired with an MP 165.3 or MP 165P.3 woofer in a 3-way multi-amplification system

If you’re looking to achieve the ultimate in-car audio experience with a 3-way multi-amplification system, the Hertz MPCX 2 TM.3 PRO Crossover is essential. By incorporating high-quality components like bi-metallized capacitors and pure copper inductors, this crossover ensures exceptional sound transparency, precise frequency handling, and improved heat management. With its compact design and ability to fine-tune your system, the MPCX 2 TM.3 delivers a seamless integration that allows your Hertz speakers to perform at their best.
