Kenwood Excelon CMOS-740HD High Definition Rear Backup Camera
Kenwood Excelon CMOS-740HD High Definition Rear Backup Camera
Couldn't load pickup availability

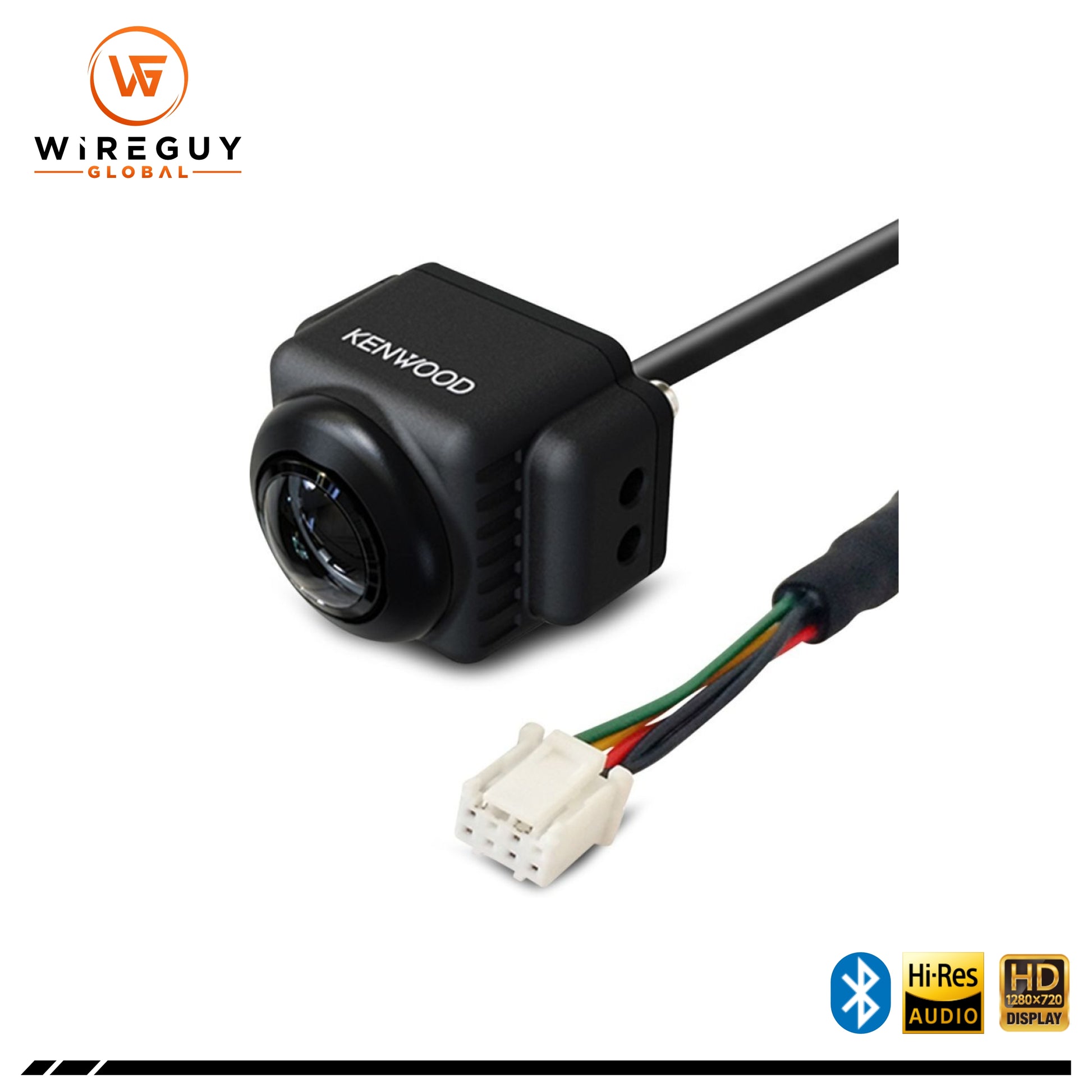

The KENWOOD EXCELON CMOS-740HD rear backup camera provides an exceptional high-definition viewing experience, designed to work with a range of select KENWOOD receivers. With HD resolution (1280 x 720) and HDR (High Dynamic Range) technology, it ensures clear and detailed images even in challenging lighting conditions. Whether you're parking or reversing, this camera offers a broad viewing angle, ensuring a safe and easy experience. It's suitable for both 12V and 24V systems, and it features robust construction with an IP67 waterproof rating, ensuring reliability in various environments.
Key Features:
-
High Definition Imaging:
The CMOS-740HD camera displays crisp 1280 x 720 (720p) HD resolution, delivering clear and detailed footage directly to compatible KENWOOD receivers, such as the DNR1007XR, DNR1008RVS, DMX1057XR, DMX1037S, DNX997XR, DDX9907XR, and DMX958XR. -
HDR (High Dynamic Range):
HDR reduces "blown out highlights" and "crushed blacks," ensuring clear and balanced images in difficult lighting conditions, such as bright sunlight or low-light night scenes, providing optimal clarity in all environments. -
Wide-Angle Lens:
The camera features a focal length of 1.86mm with a wide-angle 180° horizontal and 103° vertical field of view, allowing for a comprehensive rearview. This expansive coverage ensures a safer parking experience, reducing blind spots. -
Waterproof & Durable:
IP67-rated for waterproofing and dustproofing, the camera is designed for outdoor use, providing reliability in adverse weather conditions like rain, dust, and mud. -
Wide Voltage Compatibility:
The camera works with both 12V and 24V systems, making it versatile and suitable for various vehicle types. -
Output Signal:
The camera uses HD-TVI (High Definition Transport Video Interface) to deliver high-definition video output, ensuring excellent video quality on compatible receivers. -
Operating Temperature Range:
Built to withstand extreme conditions, the camera operates in temperatures ranging from -22℉ to +185℉ (-30℃ to +85℃).
Technical Specifications:
-
Lens:
- Wide-angle, focal length: 1.86mm
- F-Value: 2.0
-
Frame Rate:
- 30fps for smooth video display.
-
Field of View:
- Horizontal: 180°
- Vertical: 103°
-
Operating Voltage:
- 12V/24V compatible.
-
Temperature Range:
- -22℉ to +185℉ / -30℃ to +85℃.
-
Waterproof Rating:
- IP67, ensuring resistance to dust and water.
-
Output Signal:
- HD-TVI for HD video transmission.
-
Weight:
- 0.073 lbs / 33.2g (without cable).
-
Dimensions:
- Camera Unit: 1-1/4" x 15/16" x 1" (31.1mm x 23.0mm x 25.2mm).
-
Cable Length:
- Camera to DC Box Unit: 9.84ft / 3m
- DC Box Unit to Power Supply: 19.69ft / 6m
- Other Cable: 1.64ft / 0.5m.
The Kenwood Excelon CMOS-740HD camera is the perfect solution for those seeking high-quality, durable, and reliable rearview or frontview assistance, especially when paired with select KENWOOD receivers for superior integration.
