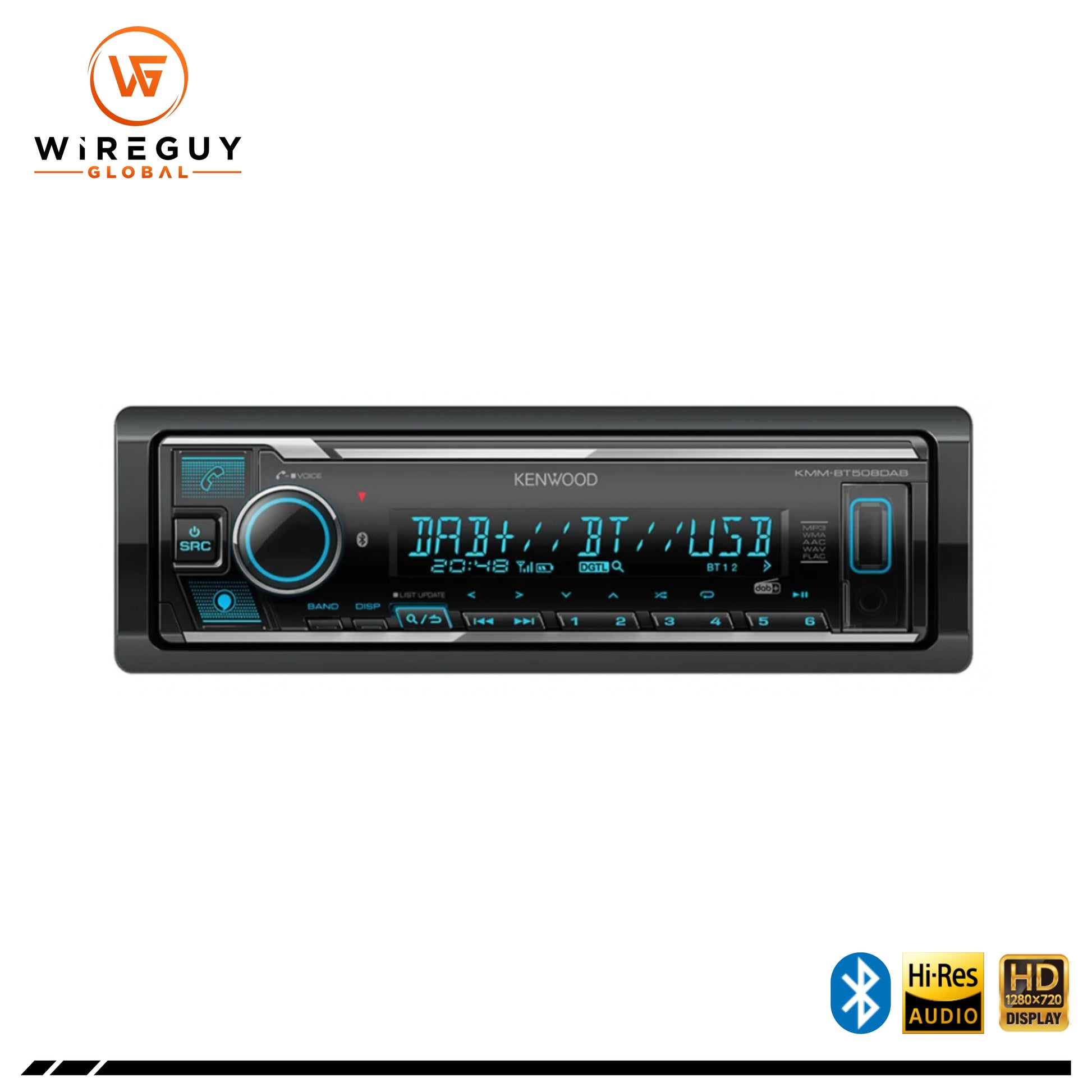

Kenwood KMM-BT508DAB Digital Media Receiver with DAB+

Enhance your car's audio experience with the Kenwood KMM-BT508DAB Digital Media Receiver. Featuring DAB+ Digital Radio, Bluetooth technology, and integration with Amazon Alexa, this receiver offers unparalleled connectivity and sound quality. Stream music, make hands-free calls, and enjoy crystal-clear radio broadcasts, all while having full control over your media via the KENWOOD Remote App. The receiver also includes a Digital Sound Processor (DSP), Time Alignment, and a 13-Band EQ for optimal sound tuning.

Key Features:

DAB+ Digital Radio: Enjoy crystal-clear digital radio broadcasts with DAB+ technology, as well as FM and AM radio reception.

Bluetooth Technology: Hands-free calls and music streaming via Bluetooth, with support for Dual Phone Connection that automatically switches between two paired phones for incoming calls.

Smartphone Integration: Use your smartphone as a wireless remote control with the KENWOOD Remote App.

High-Quality Music Playback: Play MP3, WMA, AAC, WAV, and FLAC files from USB.

Sound Customization: Equipped with a Digital Sound Processor (DSP), 13-Band EQ, and Time Alignment for optimal audio tuning.

Preout Options: Dual high-power (2.5V) RCA preouts to connect multiple power amplifiers for enhanced audio output.

Wide LCD Display: 1.5-line display with high contrast, wide viewing angle, and variable-color backlighting for a sleek, customizable display.

Short Body Design: Measures just 100mm deep for easier installation in a wide range of vehicles.

Specifications:

General Features:

• DIN Size: 1 DIN
• Detachable Faceplate: Yes
• Key Illumination: Variable LED
• Rotary Encoder & Control Knob: Yes
• Dual Accent Key for Handsfree & Audio Streaming: Yes
• Backup Memory: Tuner presets & menu settings saved
• Attenuator: Smooth Volume Return
• Digital Clock (24H): Yes
• Built-in Connector: Mitsumi, 16 pin
• Bluetooth Unit Built-in: Yes
• USB Interface: Front USB with dust cover
• Firmware Upgradeable: Yes
• Mechless Receiver: Yes
• Short Body: Yes (100mm)

Display Features:

• Display Type: LCD (Liquid Crystal Display)
• Display Layout: 2-line text + custom icons
• Display Illumination: Variable by RGB LED
• Dimmer Control: Manual / Set by Timer
• Brightness Control: 0 - 31 steps

Tuner Features:

• FM Reception: Yes (87.5MHz - 108MHz)
• AM (MW/LW) Reception: Yes (531kHz - 1611kHz)
• Tuner Presets: 24 Presets (FM x 18, AM x 6)
• RDS: Yes (Radio Data System)
• DAB+ Tuner: Built-in for digital radio reception (174.928 MHz - 239.2 MHz)
• DAB Antenna Included: Yes

Audio Features:

• Maximum Output Power: 50W x 4
• MOSFET Power IC: Yes
• Auxiliary Input: Front panel mini-jack
• Pre-out Output Level: 2.5V
• Pre-out RCA: 2 x RCA (Front + Rear/Sub, selectable)
• Subwoofer Reference Level Adjustment: Yes
• 3-Way X'over: Yes (bi-amp connection)
• 13-Band Graphic Equalizer: Yes, with 8 presets
• DSP (Digital Sound Processor): Built-in
• Time Alignment (DTA): Yes
• Low/High-pass Filter: Yes
• Bass Boost: Yes (Off/+1/+2/+3/+4/+5)

Bluetooth Features:

• Max Registered Phones (HFP & A2DP): 5 phones
• 2-Phone Full-Time Connection: Yes
• Audio Streaming (A2DP): Yes (SBC/AAC)
• Amazon Alexa Ready: Yes
• KENWOOD Remote App Support: Yes
• Noise Canceller & Echo Canceller: Yes
• Phonebook Access Profile (PBAP): Yes
• Automatic Pairing for iPhone & Android via USB: Yes

USB Features:

• USB Terminal: Front USB
• USB Type: 2.0 High speed
• Music Playback: MP3, WMA, AAC, WAV, FLAC
• Quick Smartphone Charging: 1.5A
• Repeat/Scan/Random Search: Yes
• Resume Play: Yes

iPod Features:

• Made for iPod/iPhone: Yes
• USB Direct Control: Audio, 1-wire (optional cable)
• Spotify App Link: Yes
• iTunes Radio App: Yes

Connectivity:

• Front USB & AUX Input: Yes
• OEM Wired Remote Control Ready: Yes
• DAB Antenna Input: SMB connector
• External Microphone Input: 3.5mm mini-jack

The Kenwood KMM-BT508DAB Digital Media Receiver is your all-in-one solution for premium car audio with advanced radio features, Bluetooth connectivity, and powerful sound customization options. Upgrade your ride with clear digital radio, seamless music streaming, and hands-free calling—all backed by Kenwood's trusted audio engineering.
