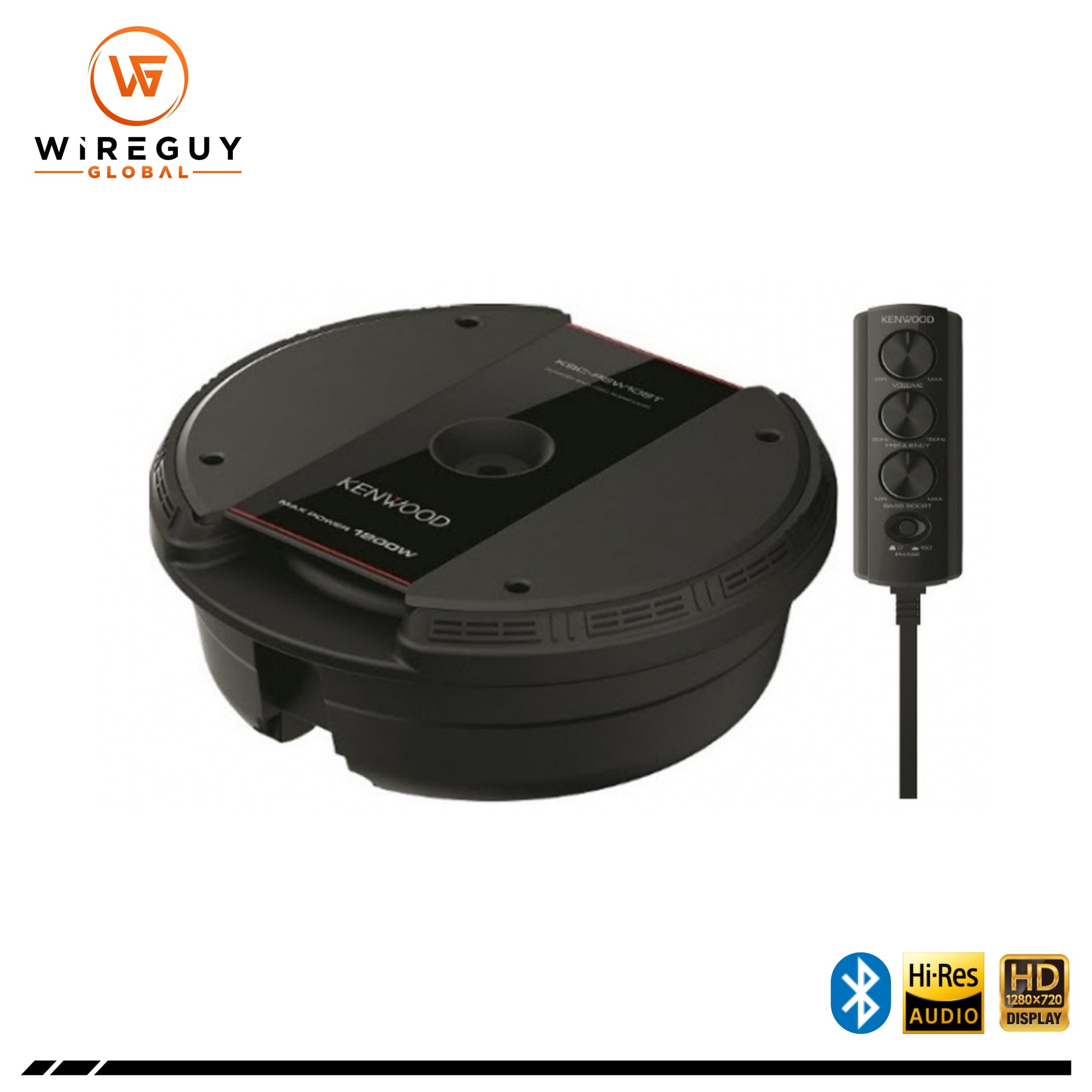

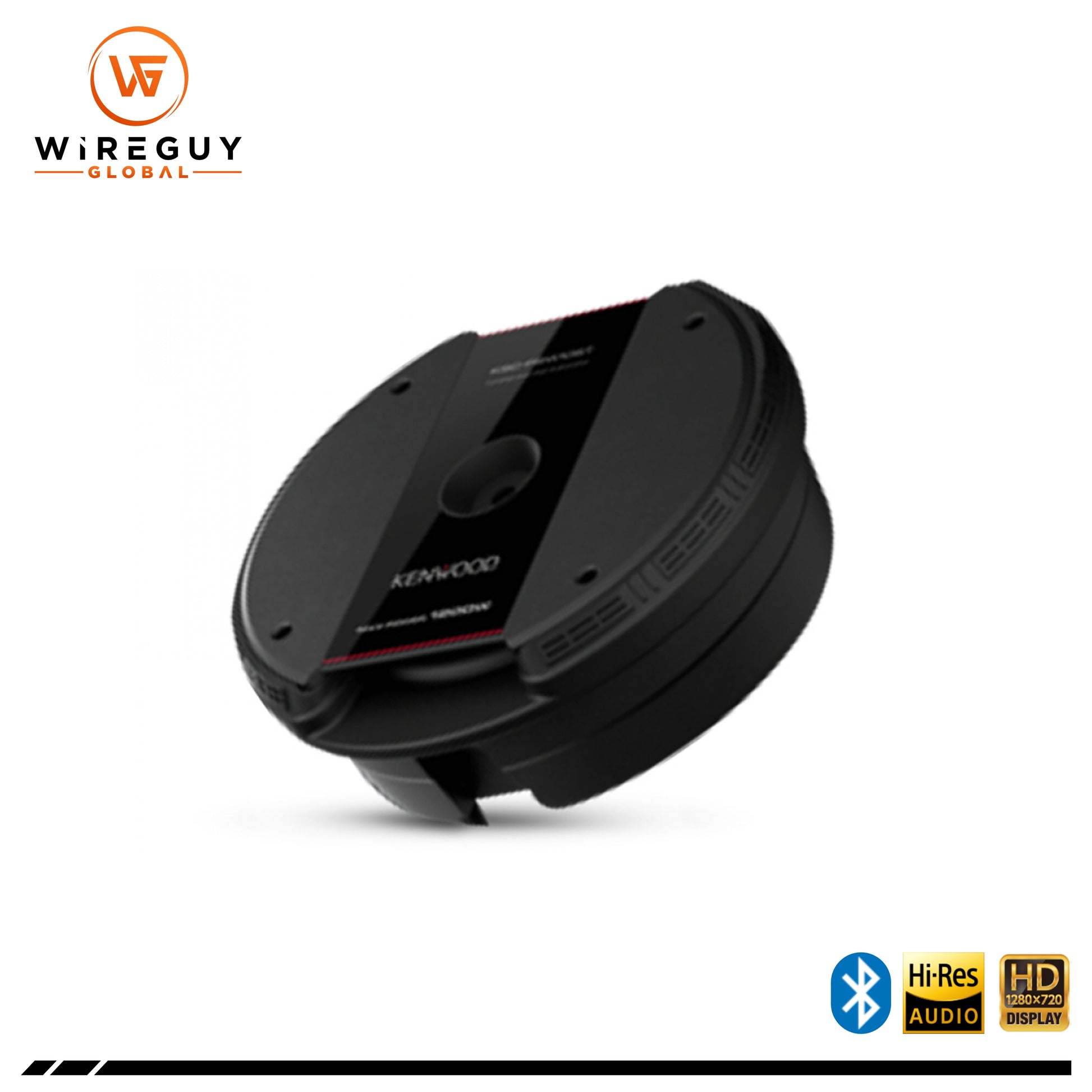

Kenwood KSC-PSW10ST 10" Powered Encl Subwoofer Max 1200w Power

The Kenwood KSC-PSW10ST is a powerful 10" powered subwoofer designed to deliver deep, rich bass for your car audio system. With a maximum output power of 1200W, it provides exceptional sound quality, filling your vehicle with booming lows and enhanced audio clarity. This subwoofer fits perfectly into most 15-16" spare tires, offering a compact yet powerful solution for space-conscious vehicle owners. Its Class-D amplifier and advanced audio controls give you full control over your bass output, while the rugged aluminum die-cast enclosure ensures durability.

Key Features:

• Maximum Output Power: 1200W for deep, powerful bass.
• Frequency Response: 40Hz - 250Hz, delivering a wide range of bass frequencies.
• Nominal Impedance: 2Ω for a high-quality sound output.
• 10" Subwoofer: 10-inch single voice coil woofer with rubber surround for added durability.
• Compact Fit: Designed to fit into 15-16" spare tires, ideal for tight spaces.
• High-Power Class-D Amplifier: Provides efficient power handling and superior bass performance.
• Audio Control: Gain, low pass filter, bass boost, and phase control are adjustable via the included wired remote controller.
• Rugged Design: Aluminum die-cast enclosure and a big magnet circuit ensure lasting performance.

Specifications:

Maximum Output Power:

• 1200W - A powerful output for deep and clean bass performance.

Subwoofer Specifications:

• Woofer Unit: 10-inch (25 cm) single voice coil with a rubber surround for durability.
• Big Magnet Circuit: φ140 x φ60 x t25mm.
• Frequency Response: 40Hz - 250Hz, providing rich bass at low frequencies.
• Nominal Impedance: 2Ω for optimal sound delivery.

Other Specifications:

• Best Fit: Designed to fit in 15-16" spare tires, easily secured with the included mounting screw.
• Operating Voltage: 14.4V (11-16V allowable), compatible with most car systems.
• Fuse: Dual 20A fuses for added safety.
• Dimensions: 360 x 360 x 147 mm (W x D x H) for easy installation.
• Enclosure: Aluminum die-cast construction for durability and minimal distortion.
• Remote Control: Includes a wired remote unit with a 5m connection cable for easy control of the subwoofer’s settings.

Amplifier Unit:

• High Power Class-D Amplifier: Efficient power handling with minimal heat generation.
• Gain Control: Adjustable from -20 to 0dB to fine-tune the bass output.
• Low Pass Filter: Adjustable between 50Hz - 150Hz, -12dB/oct for precise sound tailoring.
• Bass Boost: Adjustable between 0 - +8dB at 50Hz for added depth and punch.
• Phase Control: Choose between 0° or 180° for optimal bass alignment.

The Kenwood KSC-PSW10ST Powered Subwoofer is the perfect addition to any car audio system, delivering high power, clear bass, and space-saving design. Whether you're upgrading your existing setup or building a new one, this subwoofer provides an easy solution for amazing bass performance.
