Morel 10" Power Slim Dual 4 OHM Subwoofer

Unmatched Bass Performance in a Compact Design

The Morel Ultimo PowerSlim 10" Subwoofer pushes the boundaries of bass reproduction with its innovative engineering and compact design. Winner of the prestigious EISA "Best In-Car Subwoofer" award for 2023-2024, the PowerSlim series offers unparalleled performance in shallow subwoofer technology, redefining what is possible in bass output for space-conscious installations.

With advanced features like the EVC™ (External Voice Coil) motor system and HexaCore carbon fiber/aluminum honeycomb piston cone, the Ultimo PowerSlim delivers rich, dynamic, and accurate bass while handling exceptional power. Whether you're looking for a subwoofer that fits into a limited space or want deep, impactful bass without sacrificing sound quality, the PowerSlim subwoofer is engineered to exceed expectations.

Key Features:

Compact Yet Powerful: Designed for shallow installations with an exceptional mounting depth of just 79.6mm, providing powerful bass without compromising space.

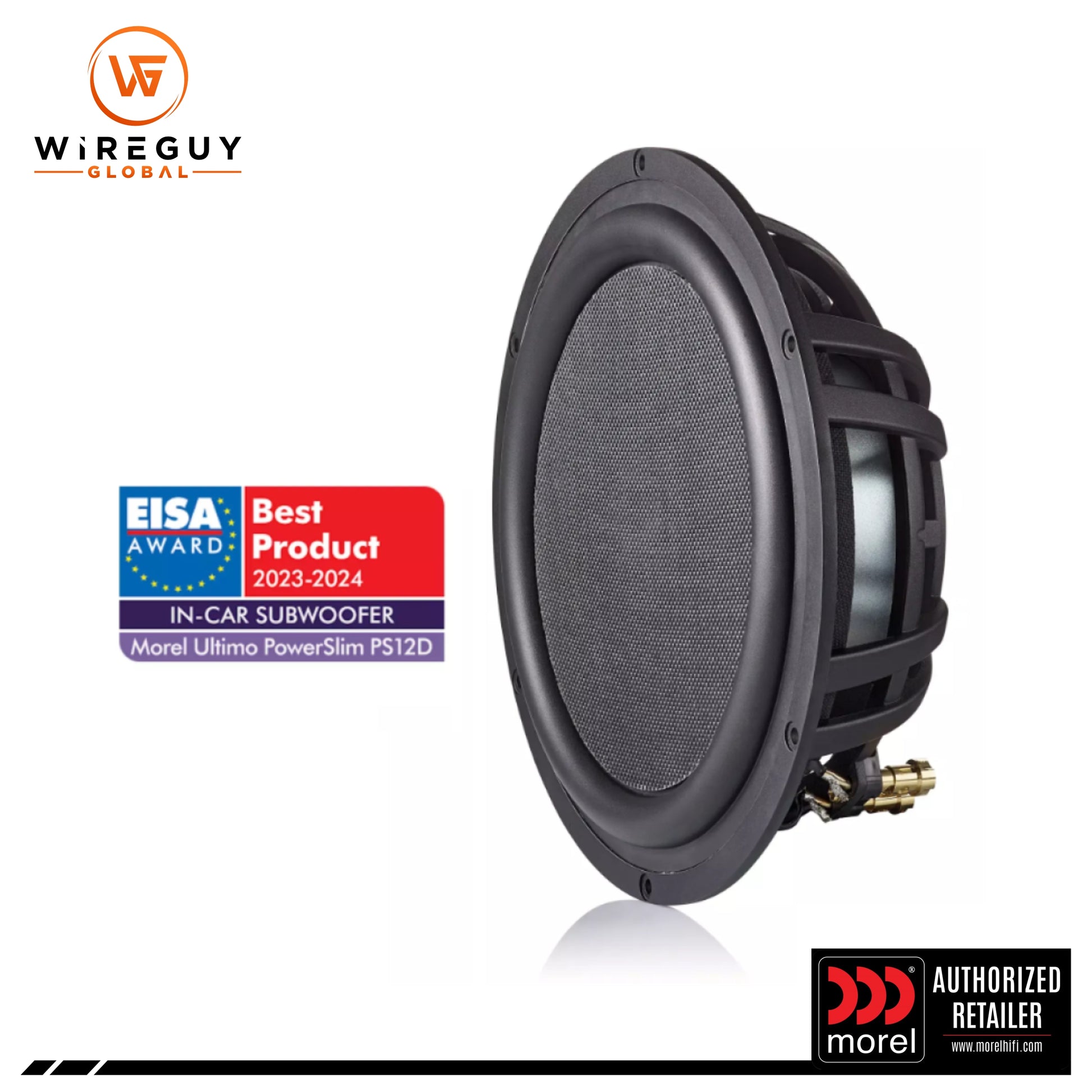

Award-Winning Design: Recipient of the EISA "Best In-Car Subwoofer" award for 2023-2024, showcasing Morel’s dedication to innovation and quality.

Advanced Technology: Features the EVC™ motor with a 5.1-inch voice coil, lightweight Hexatech™ aluminum wire, and a die-cast aluminum chassis for superior power handling, linearity, and control.

High Excursion: Delivers remarkable excursion (±11mm), offering high output and dynamic bass in compact enclosures.

Optimized Enclosure Sizes: Works efficiently in smaller enclosures (12.7 liters sealed, 22.7 liters ported), making it ideal for tight-fit applications without sacrificing performance.

Klippel and FEA Optimized: Ensures superior sound quality and consistency by minimizing distortion and maximizing efficiency.

Specification:

• Configuration: 10"
• Impedance: 4+4 Ohms (Dual Voice Coil)
• Power Handling (RMS): 700W
• Max Power: 1,800W
• Sensitivity: 82 dB
• Frequency Response: 20Hz - 400Hz
• Resonance Frequency (Fs): 29.1Hz
• Voice Coil Diameter: 129.5mm
• Voice Coil Height: 30mm
• Voice Coil Former: Aluminum
• Voice Coil Wire: Hexatech Aluminum
• DC Resistance (VC in parallel): 1.6 Ohms
• Voice Coil Inductance @1kHz: 0.5mH
• Magnet System: Double Magnet EVC
• Magnetic Gap Height: 8mm
• BL Product/BXL: 8.1
• Max Linear Excursion (Xmax): ±11mm
• Cone Type: Flat Honeycomb
• Cone Material: 4 Layers of Carbon
• Unit Diameter: 262.6mm
• Mounting Depth: 79.6mm
• Mounting Cutout: 231.5mm
• Net Weight: 4720g
• Grille Included: Yes
• Recommended Sealed Enclosure: 12.7 Liters (0.5 cuft)
• Recommended Ported Enclosure: 22.7 Liters (0.8 cuft)

What's Includes:

• 1x Morel 10" Power Slim Dual 4 OHM Subwoofer
• Grille
• User Manual

Installation:

The Morel 10" Power Slim Subwoofer is designed for easy integration into your car's audio system. With a shallow mounting depth of just 79.6mm, it can be installed in tight spaces, while the advanced motor system ensures maximum performance in both sealed and ported enclosures. Ensure that the recommended enclosure sizes are followed for optimal bass response and sound clarity.
