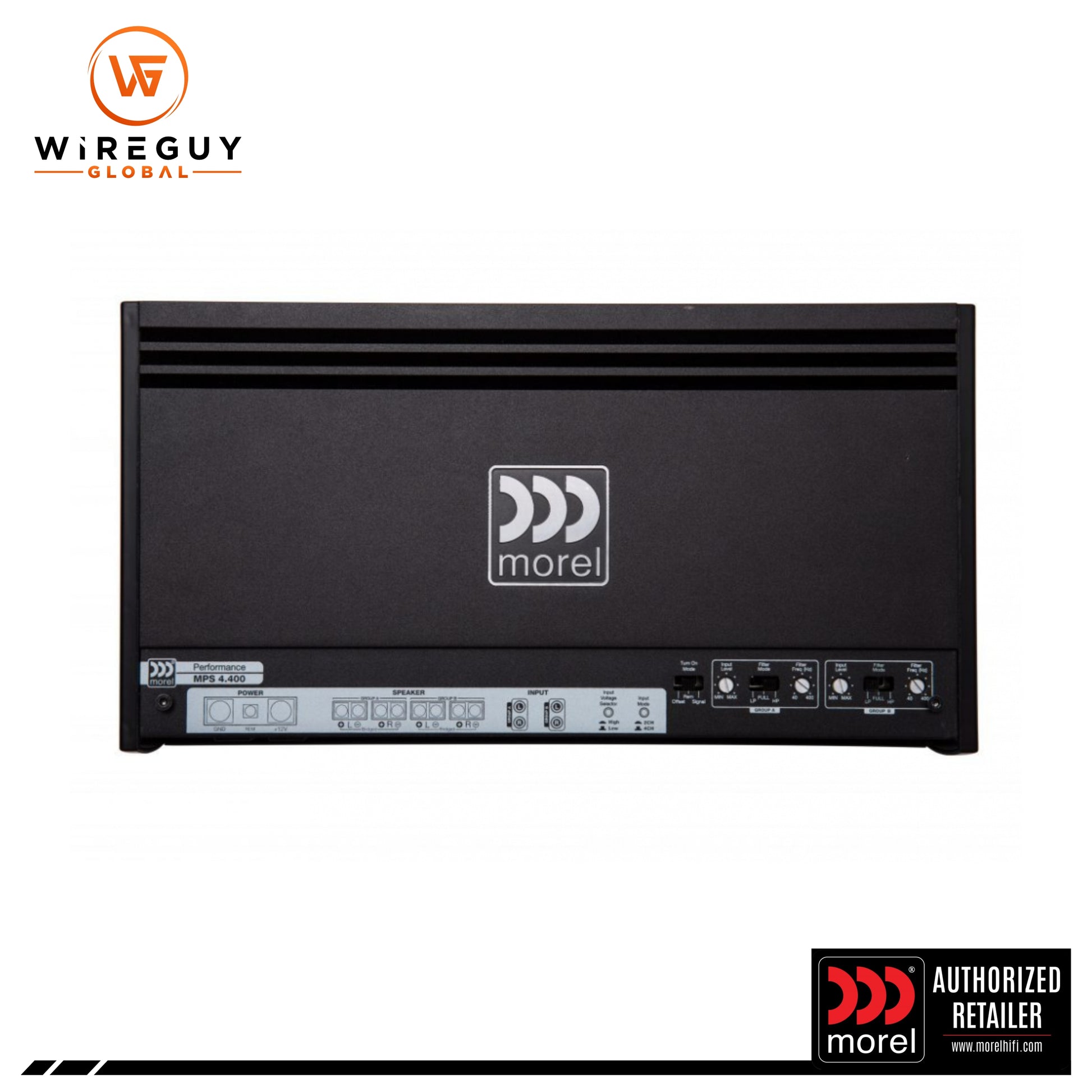

Morel 4-Channel Class-A/B Amplifier - 4x 70W @ 4 OHM

FREE SHIPPING available for this item with any payment method!

Morel 4-Channel Class-A/B Amplifier – 4x 70W @ 4 Ohms – Musical Power, Dynamic Performance

The Morel 4-Channel Class-A/B Amplifier is engineered to deliver clean, uncolored power with exceptional musicality and dynamics, allowing your speakers to reach their full sonic potential. With a focus on fidelity and performance, this amplifier is perfect for audiophiles who demand clarity and precision from their audio systems.

Key Features:

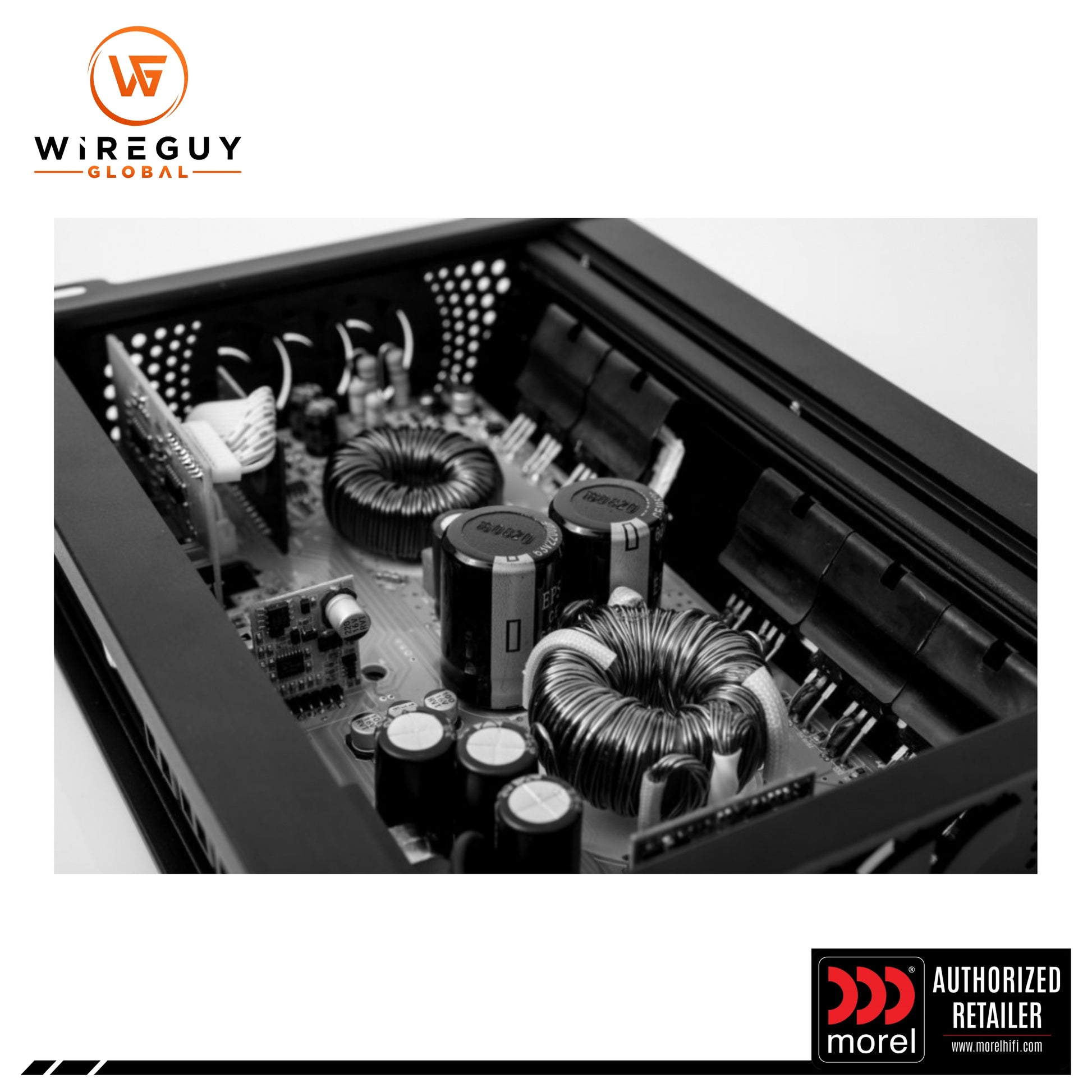

Exceptional Sound Quality: Designed to deliver clean and dynamic power, the Morel 4-Channel Class-A/B Amplifier uses Texas Instruments OP amps and ultra-low tolerance surface mount components to maintain the purity of your audio signal.

Balanced Differential Inputs: The fully balanced differential inputs provide superior noise rejection and can handle up to 20 volts of signal input, making this amplifier compatible with both aftermarket and factory audio systems.

Advanced Thermal Management: Onboard microprocessor-controlled thermal management ensures optimal performance without the need for internal fuses, preventing power delivery loss and ensuring stable operation.

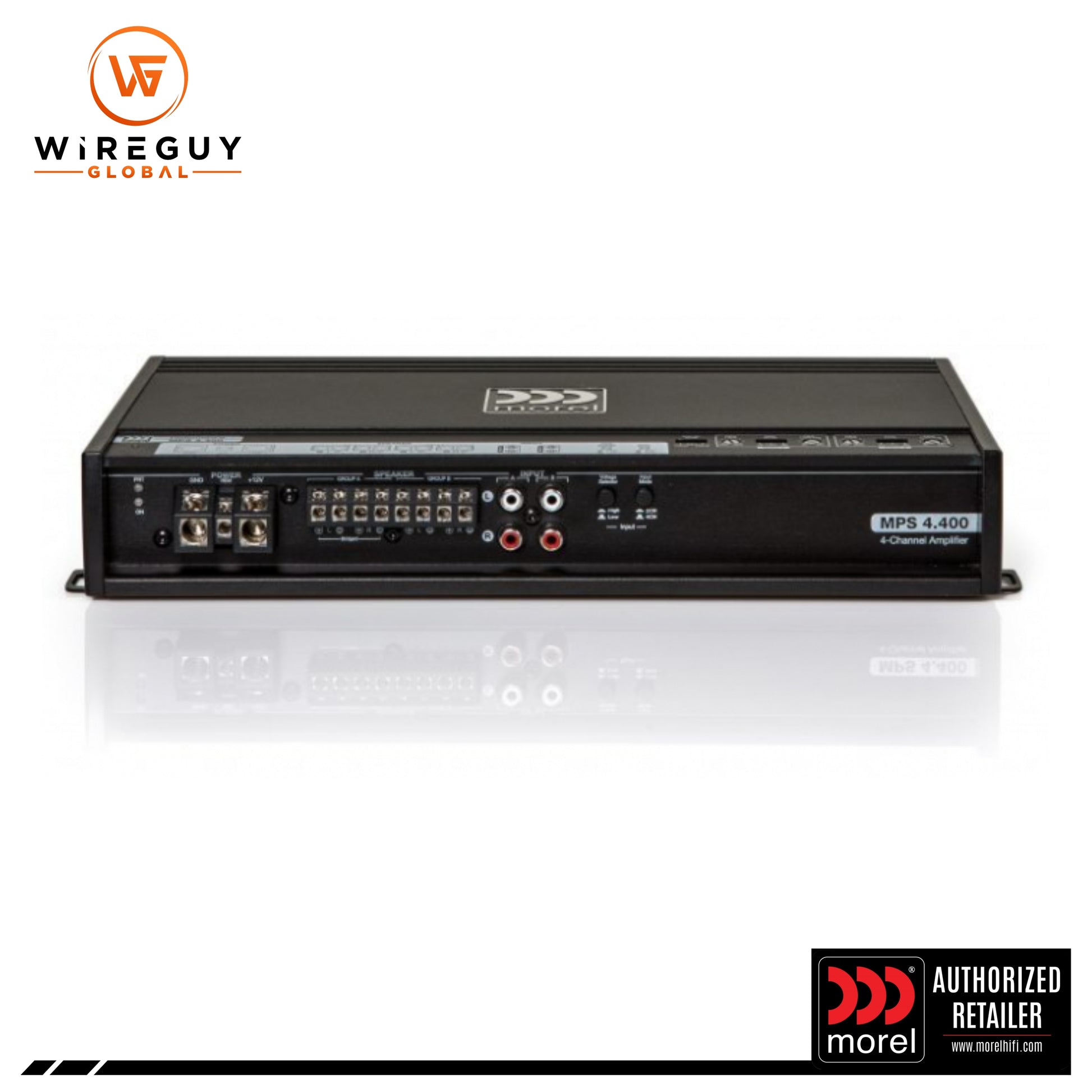

Installation-Friendly Design: Featuring a single-sided circuit layout, all connections are located on one side of the amplifier, simplifying installation. Preamp tuning and setting options are conveniently located under a removable panel at the top of the amplifier.

OEM Integration: Easily integrates with OEM audio systems via adaptive connectors, signal sensing auto turn-on, and DC turn-off sensing, offering seamless integration with factory systems.

Specifications:

• Model: MPS4.400
• Power Output (4 ohms RMS): 4 x 70W
• Power Output (2 ohms RMS): 4 x 100W
• Class: AB
• Damping Factor: >100
• Frequency Response (Main): 10 - 30 kHz
• Frequency Response (Sub): N/A
• Channel Separation: 64 dB
• Signal-to-Noise Ratio (S/N): 100 dB
• Input Sensitivity: Select Input Range (x1 / x2)
• Filters (Main): HP/LP 40-400 Hz
• Filters (Sub): N/A
• Crossover Slope: 12 dB/Octave
• Sub Sonic Filter: No
• Channel Input Mode: 2 or 4 channels
• DC Offset: Yes
• Signal Sensing: Yes

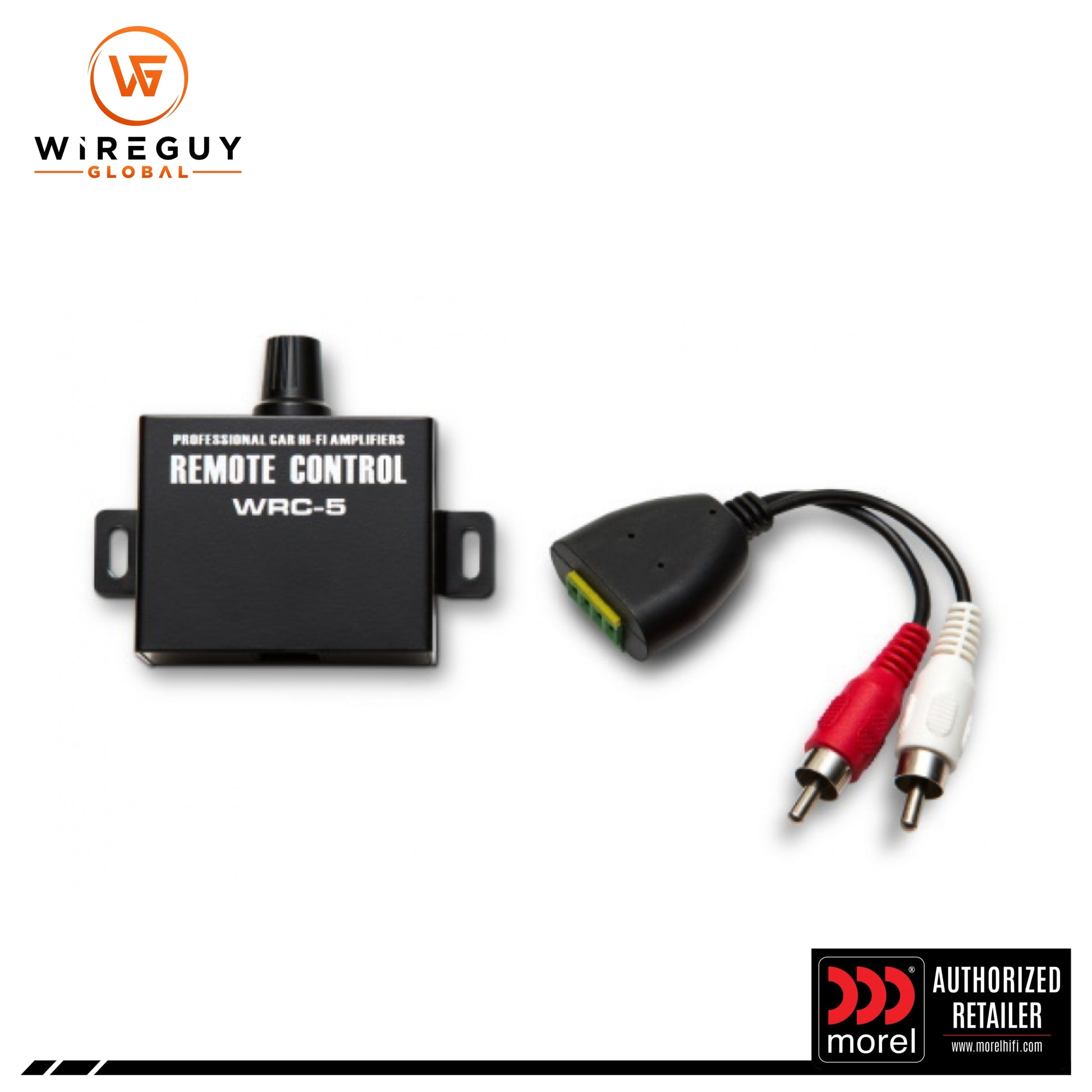

• Remote: Yes
• Dimensions: 51 mm (H) x 170 mm (W) x 314.5 mm (L)

What's Included:

• 1x Morel 4-Channel Class-A/B Amplifier
• Necessary installation and tuning accessories

Installation:

The Morel 4-Channel Class-A/B Amplifier is designed for easy installation, with all connections located on one side for a clean setup. The amplifier integrates seamlessly with both aftermarket and OEM audio systems through its adaptive connectors and signal sensing features. Additionally, the preamp tuning options are discreetly located under a removable panel for easy access during setup.
