Morel 4-Channel Class-D Compact Amplifier - 4x115w @ 4 Ohms/ 4x165w @ 2 Ohms

FREE SHIPPING available for this item with any payment method!

Morel 4-Channel Class-D Compact Amplifier - 4x115W @ 4 Ohms / 4x165W @ 2 Ohms: Compact Power for Unmatched Audio Performance

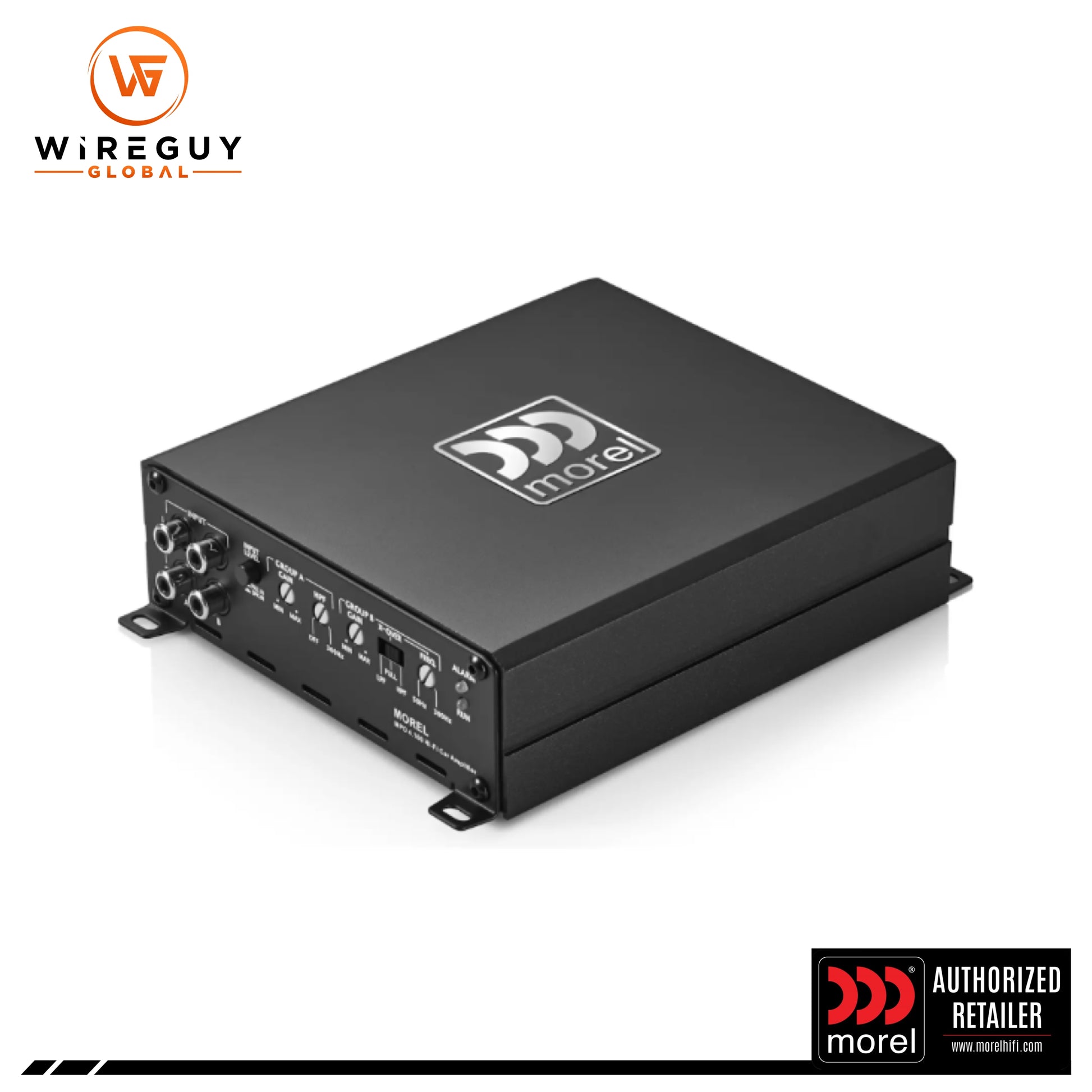

The Morel MPD 4.100 amplifier is designed to deliver exceptional audio quality in a compact, space-saving package. With 4 channels of high-end performance, this amplifier enhances your car’s audio system, offering rich, powerful sound that immerses you in the music—without compromising on space.

This class-D amplifier delivers 115W per channel at 4 ohms and 165W per channel at 2 ohms, making it the ideal choice for audiophiles who need both efficiency and power. Its compact size allows for flexible installation, fitting easily in a variety of locations in your vehicle, while the advanced protection circuit ensures durability and reliability.

Elevate your driving experience with the MPD 4.100, where premium audio meets convenience and performance.

Key Features:

Compact Design: With dimensions of just 48 x 148 x 203.5mm, the MPD 4.100 is built to fit into tight spaces without sacrificing power or performance.

Powerful Output: Delivers 4x 115W at 4 ohms, 4x 165W at 2 ohms, and 2x 330W when bridged at 4 ohms, giving you flexibility and high output for a variety of speaker configurations.

Wide Frequency Response: Enjoy a wide frequency range from 20Hz to 30kHz, ensuring clear, full-range audio for all types of music.

Pure Sound: Achieve clean and distortion-free audio with a Total Harmonic Distortion (THD) of less than 0.2% and a Signal-to-Noise ratio of over 93dB.

Advanced Protection Circuit: Ensures long-lasting durability and safe operation, protecting your amplifier and audio system from overheating, overloading, and short circuits.

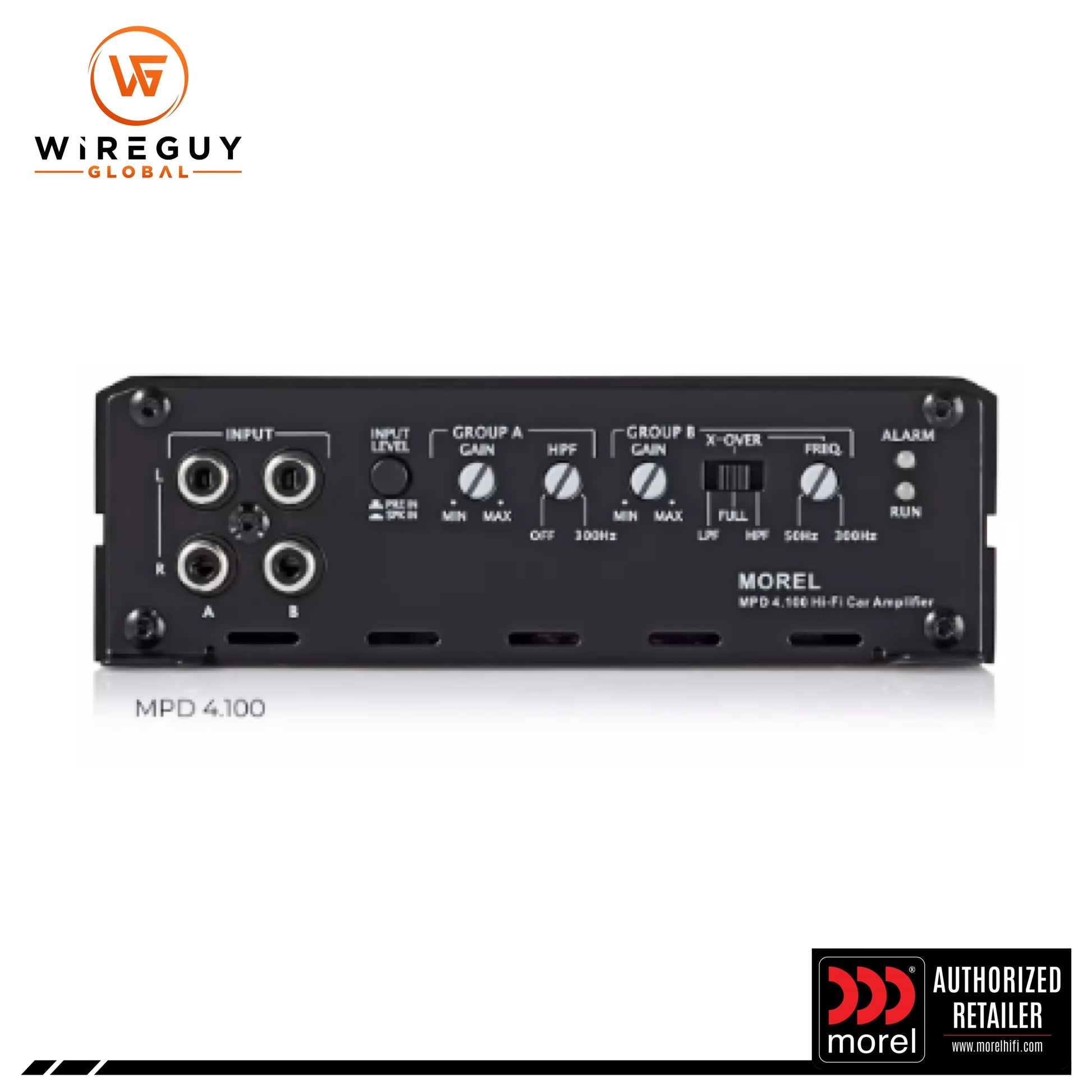

Adjustable Crossovers: Fine-tune your system with variable high-pass and low-pass crossovers (50-300Hz, 12dB slope), allowing you to customize the sound to your preference.

Specifications:

• Power at 4 Ohms: 4x 115W
• Power at 2 Ohms: 4x 165W
• Power Bridged 4 Ohms: 2x 330W
• Minimum Impedance: 2 Ohms
• THD+N: <0.2%
• Frequency Response (+/-1dB): 20Hz ~ 30kHz
• Signal-to-Noise Ratio (SNR): >93dB (Rated Power, A-weighted)
• Channel Separation: >50dB
• Input Voltage Range: 0.35-3.5V (PRE INPUT), 0.7-7V (SPK INPUT)
• Preamp Filters: HPF OFF-300Hz for Group A / LPF/HPF 50Hz-300Hz for Group B
• Preamp Crossover Slope: 12dB/Octave
• Fuse Recommendation: 60A (Inline fuse must be used within 400mm of battery)
• Dimensions: 48 x 148 x 203.5mm

What’s Included:

• 1x MPD 4.100 Amplifier
• Installation Guide

Installation:

To install the Morel MPD 4.100 amplifier, begin by selecting a suitable location for the unit, ensuring it has proper ventilation. Connect the speaker wires to the appropriate channels and the input cables (PRE INPUT or SPK INPUT) to your source unit. Adjust the crossovers as needed to suit your speaker setup, then connect the power cables, ensuring to use a 60A fuse within 400mm of the battery for protection. Follow the included installation guide for a smooth setup process.
