Morel 5-Channel Class-A/B+D Amplifier - 4x 70w + 1X 350w @ 4 OHM

FREE SHIPPING available for this item with any payment method!

Morel 5-Channel Class-A/B+D Amplifier - 4x 70W + 1x 350W @ 4 Ohms: Unleashing Dynamic Power with Precision Engineering

The Morel 5-Channel Class-A/B+D Amplifier (MPS 5.950) redefines amplifier performance, delivering exceptionally clean and dynamic power to drive your speakers to their full potential. Designed with the audiophile in mind, this amplifier combines innovative features, high-quality components, and superior engineering to achieve top-tier sound reproduction in an affordable, easy-to-integrate package.

Key Features:

Fully Balanced Differential Inputs: The MPS amplifier features fully balanced inputs for superior noise rejection, capable of handling signal input up to 20 volts, including factory speaker-level signals, ensuring optimal sound clarity and stability.

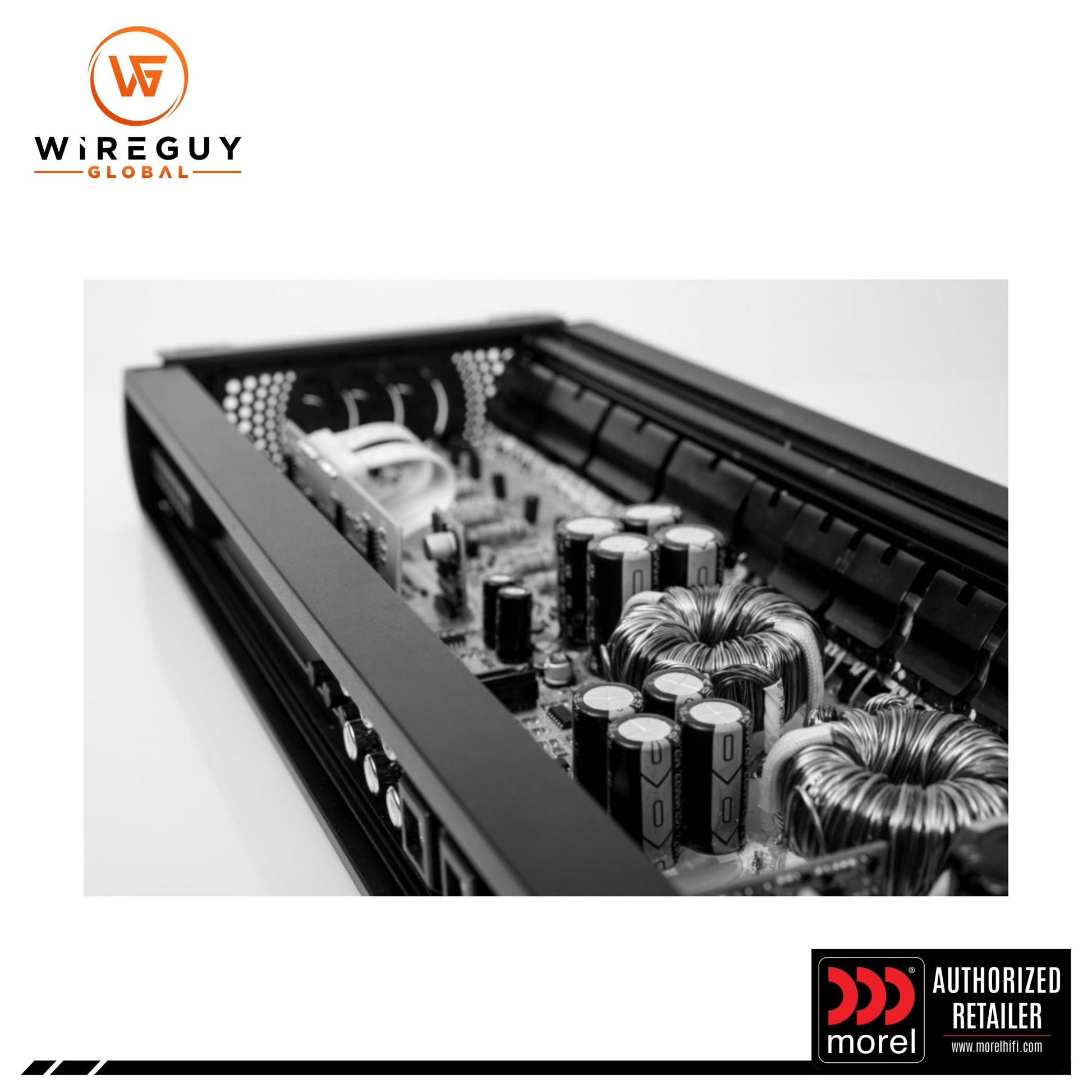

High-Fidelity Texas Instruments OP Amps: Utilizing high-quality Texas Instruments operational amplifiers and ultra-low tolerance surface mount components, the MPS 5.950 preserves the integrity of your audio signal, ensuring pure, uncolored sound reproduction.

Advanced Thermal Management & Protection: Managed by an onboard microprocessor, the amplifier’s thermal and protection systems eliminate the need for internal fuses, which can restrict power delivery. This design ensures efficient cooling and uninterrupted performance.

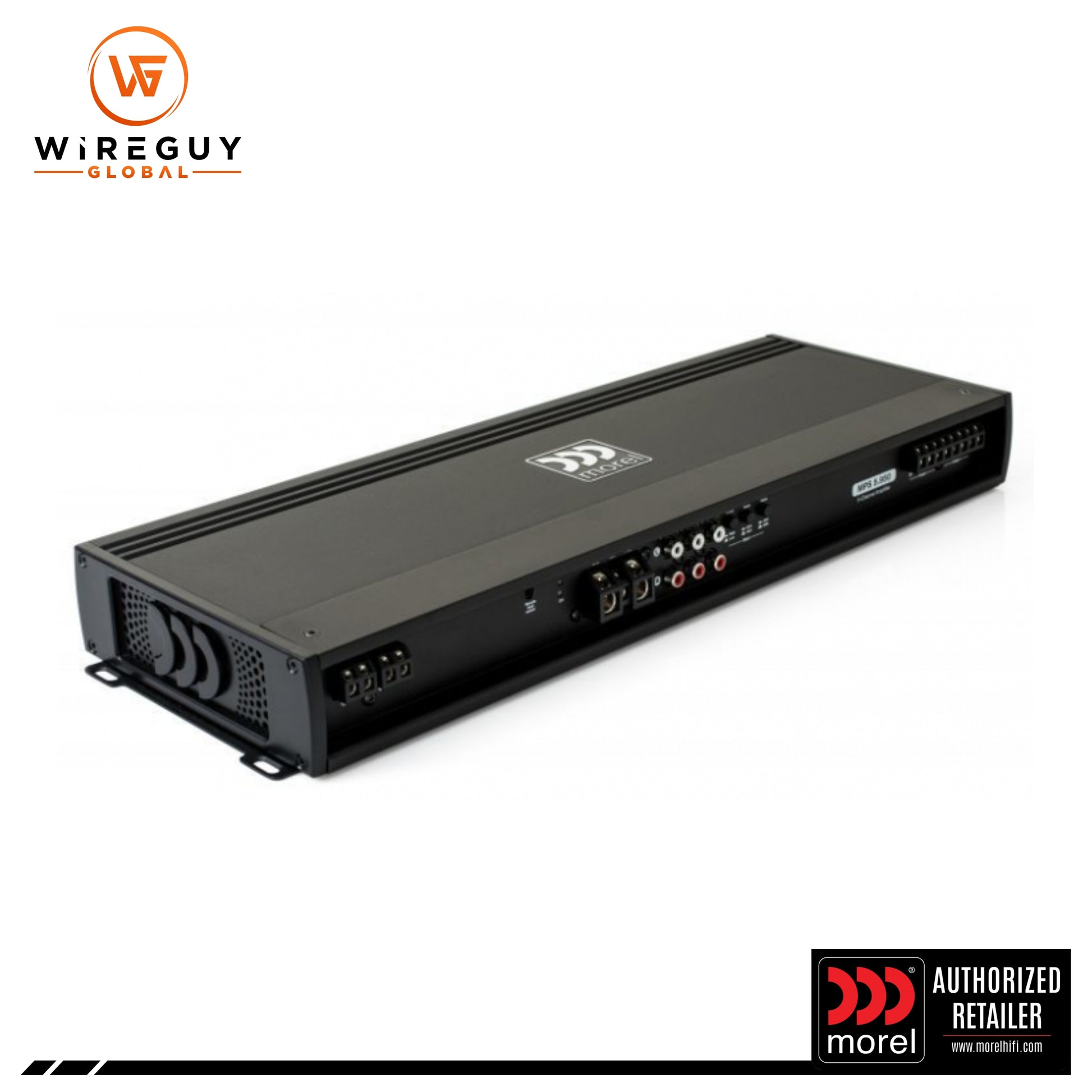

Installation-Friendly Design: Tailored for ease of installation, the MPS amplifier features a single-sided circuit layout with all connections positioned on one side, simplifying the setup. Preamp tuning and adjustment options are conveniently located under a removable panel.

OEM System Integration: The MPS amplifier integrates seamlessly with factory audio systems through RCA inputs, featuring adaptive connectors, signal sensing auto turn-on, and DC turn-off sensing—features typically found in more expensive models.

Specifications:

• Model: MPS 5.950
• Power Output at 4 Ohms RMS: 4 x 70W + 1 x 350W
• Power Output at 2 Ohms RMS: 4 x 100W + 1 x 550W
• Class: AB + D
• Damping Factor (Main): >100
• Damping Factor (Sub): >150
• Frequency Response (Main): 10 - 30 kHz
• Frequency Response (Sub): 10 - 220 Hz
• Channel Separation: 64 dB
• Signal-to-Noise Ratio: 100 dB
• Select Input Range: x1 / x2 / x4
• Main Filters: HP/LP 40 - 400 Hz
• Sub Filters: LP 40 - 220 Hz
• Crossover Slope: 12 dB/Octave
• Sub Level Control: Yes (0-20dB)
• Channel Input Mode: 2/4 or 6
• Sub Sonic Filter: Off/25/35 Hz
• DC Offset: Yes
• Signal Sensing: Yes
• Remote: Yes
• Dimensions: 51mm (H) x 170mm (W) x 464.5mm (L)

What's Included:

• 1x Morel 5-Channel Class-A/B+D Amplifier (MPS 5.950)

Installation:

The MPS 5.950 is designed for easy installation, featuring a single-sided layout with all connections accessible on one side for a neat, organized setup. Preamp tuning options are hidden under a removable panel for discreet adjustments. The amplifier also integrates smoothly with OEM audio systems through its adaptable RCA inputs, signal sensing, and DC turn-off features, offering high-end performance with seamless compatibility. With its advanced thermal management and protection system, the MPS amplifier ensures clean, reliable power delivery for an audiophile-quality listening experience.
