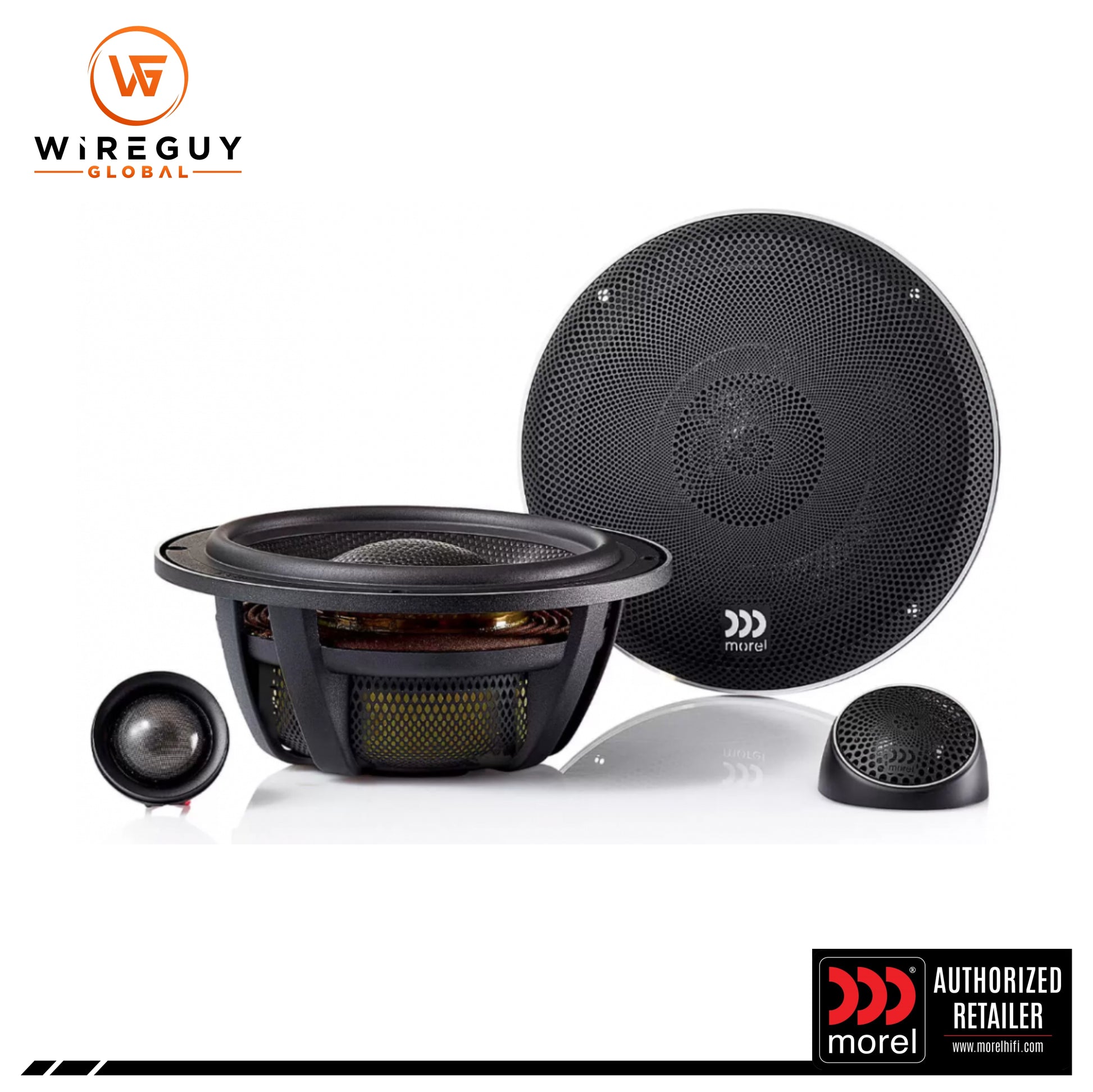

Morel Elate Carbon 62A 2-Way 6.5" Active Split System

FREE SHIPPING available for this item with any payment method!

Morel Elate Carbon 62A 2-Way 6.5" Active Split System: Ultimate Performance with Discreet Design

The Morel Elate Carbon 62A 2-Way 6.5" Active Split System sets a new standard in car audio, delivering unparalleled sound quality for those who demand the best performance in a compact, discreet package. Designed for audiophiles, this system combines advanced engineering and cutting-edge technologies, ensuring exceptional power handling, ultra-low distortion, and high efficiency. Whether you're upgrading your audio system or building a high-performance setup, the Elate Carbon is engineered to exceed your expectations.

Key Features:

Compact MT450 Tweeter: The small yet powerful MT450 tweeter features an Acuflex-coated silk dome, open cavity design, and dual neodymium magnet motor, delivering amazing detail with a silky-smooth, flat frequency response. The compact design allows for versatile installation in factory or space-limited areas using the supplied mounts.

Klipple-Optimized EVC Motor: Each woofer in the Elate Carbon system uses Morel’s Klipple-optimized EVC motor, which features large 3-inch voice coils and carbon fiber/Rohacell sandwich cones. This combination minimizes distortion while enhancing power handling for superior bass dynamics.

C.A.R. Filter™ Technology: The Controlled Acoustic Resistance filter improves acoustic loading by managing airflow within the driver. It mimics the effects of a cabinet and boosts power handling by 30%, providing greater control over cone movement and enhancing bass performance.

DMM Motor: The double drive motor system generates more magnetic energy than a single magnet of similar size, increasing efficiency and dynamic range. The secondary magnet's position controls stray magnetic flux, improving magnetic focus and shielding, resulting in clearer sound.

EVC™ Motor Technology: Morel's EVC™ design features a voice coil up to three times larger than conventional designs. This technology improves heat dissipation, power handling, and linearity, while efficiently directing all magnetic energy to the voice coil for greater performance. The EVC motor system is magnetically shielded and compact, ensuring 90% greater efficiency than conventional designs.

Handcrafted Acuflex™ Soft Dome Tweeter: The Acuflex™ diaphragm, a specially engineered damping compound, increases rigidity and reduces distortion. This allows for smooth frequency response and enhanced clarity across the full bandwidth.

Titanium Voice Coil Former: The titanium bobbin provides high rigidity, lightweight properties, and excellent heat dissipation. This innovation reduces distortion, improves transient response, and enhances power handling, delivering a tonally balanced and fast-transient performance.

Lotus Grille: The included Lotus grille is inspired by the lotus flower and designed to be acoustically transparent. Its unique pattern minimizes the “horn” effect common with traditional grilles, offering both protection and a visually appealing design.

Specification:

• Configuration: 2-Way Active Split System
• Driver Size: 165mm (W), 69mm (T)
• Voice Coil Size: 75mm (W), 28mm (T)
• Frequency Response: 30Hz - 25,000Hz
• Crossover: MTX 380C (sold separately)
• Power Handling: 180W RMS, 1000W Max
• Sensitivity: 87dB
• Impedance: 4 Ohms
• Speaker Grilles: Lotus Grille Included

What's Included:

• 1x Morel Elate Carbon 62A 2-Way 6.5" Active Split System
• Lotus Grille (Included)

Installation:

To install the Morel Elate Carbon 62A 2-Way 6.5" Active Split System, first choose suitable mounting locations for the woofers and tweeters. The MT450 tweeter’s compact design allows flexibility for installation in factory or space-limited areas. The system requires an external crossover, sold separately (MTX 380C), to optimize sound performance. With the included Lotus grilles for protection, enjoy high-efficiency, ultra-low distortion sound in your vehicle for an audiophile-grade listening experience.
