Morel Elate Carbon 63A 3-Way 6.5" Active Speaker Split System

FREE SHIPPING available for this item with any payment method!

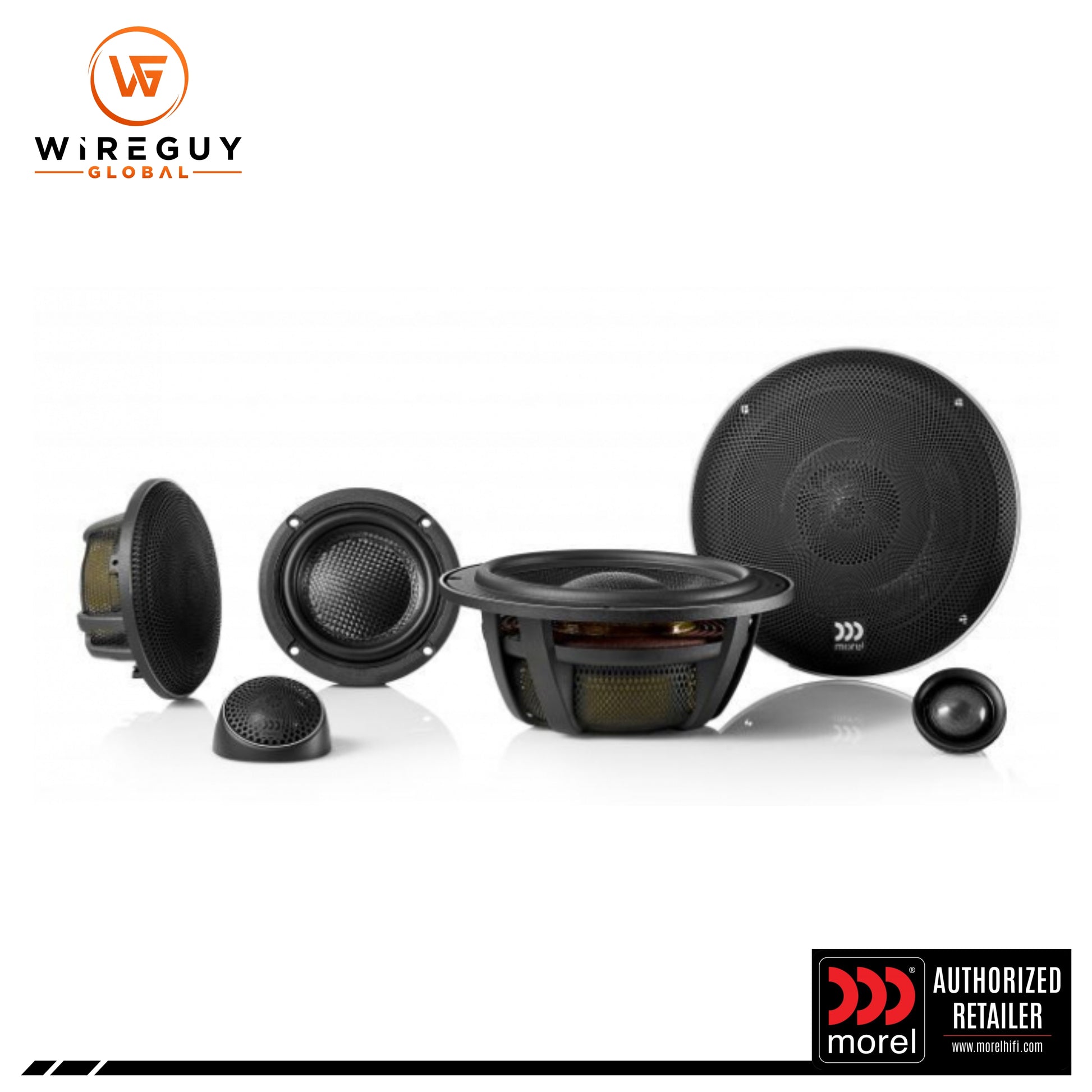

Morel Elate Carbon 63A 3-Way 6.5" Active Speaker Split System: Unmatched Performance and Detail

The Morel Elate Carbon 63A 3-Way Active Speaker Split System is engineered for those who demand the highest level of audio performance without compromising on design. With an innovative feature set and cutting-edge technology, the Elate Carbon Series elevates your audio experience, delivering superior power, clarity, and precision in a discreet package. Whether you're upgrading your car audio system or seeking ultimate sound quality, the Elate Carbon ensures an audiophile-grade listening experience that exceeds expectations.

Key Features:

Compact MT450 Tweeter: The MT450 tweeter features a compact design, allowing installation in space-limited or factory locations. Despite its small size, it delivers remarkable detail, a silky-smooth frequency response, and exceptional clarity, thanks to the Acuflex™ coated silk dome, open cavity design, and dual neodymium magnet motor.

Klipple Optimized EVC Motors: The woofers feature Klipple-optimized EVC™ motors with large 3-inch diameter voice coils. The carbon fiber/Rohacell sandwich cones provide ultra-low distortion and high power handling capabilities, ensuring a powerful and precise sound reproduction across all frequencies.

C.A.R. Filter™ Technology: The Controlled Acoustic Resistance (C.A.R.) Filter™ enhances bass dynamics by controlling airflow within the driver. This technology mimics the effects of a cabinet and improves power handling by 30%, offering greater control over cone movement for richer, more defined bass.

DMM Motor System: Morel’s Double Drive Motor (DMM) system generates more magnetic energy than a single magnet of similar size, increasing efficiency and dynamic range. This system eliminates stray magnetic flux and enhances the focused magnetic field, ensuring superior performance and "shielded" characteristics.

EVC™ Motor Technology: The Elate Carbon system incorporates EVC™ technology, with voice coils up to three times larger than conventional designs. This results in improved heat dissipation, higher power handling, and superior linearity, while directing all magnetic energy to the voice coil for a more efficient and compact system.

Handcrafted Acuflex™ Soft Dome Tweeter: The Acuflex™ diaphragm is a specially engineered damping compound that improves clarity and bandwidth. The controlled breakup modes allow for a smoother, more accurate frequency response, resulting in highly detailed sound reproduction.

Titanium Voice Coil Former: The titanium bobbin used for the voice coil ensures high rigidity, lightweight properties, and improved heat dissipation. This material reduces distortion and enhances power handling, contributing to a tonally balanced and highly accurate transient response.

Lotus Grille Design: The Lotus grille, inspired by the lotus flower, offers an acoustically transparent solution to protect the speakers while enhancing the aesthetic design. Its unique pattern minimizes the "horn" effect found in traditional grilles, protecting your investment and enhancing sound quality.

Grilles Included: Protect your components and ensure long-lasting performance with the included Lotus grilles.

Specification:

• Configuration: 3-Way Active Split System
• Driver Size: 165mm (Woofer), 100mm (Midrange), 43mm (Tweeter)
• Voice Coil Size: 75mm (Woofer), 54mm (Midrange), 28mm (Tweeter)
• Frequency Response: 30Hz - 25,000Hz
• Crossover: MTX 380C (Sold Separately)
• Power Handling: 180W RMS, 1000W Max
• Sensitivity: 87dB
• Impedance: 4 Ohms
• Speaker Grilles: Included

What's Included:

• 1x Morel Elate Carbon 63A 3-Way 6.5" Active Speaker Split System
• Lotus Speaker Grilles (Included)
• MTX 380C Crossover (Sold Separately)

Installation:

To install the Morel Elate Carbon 63A 3-Way Active Speaker Split System, begin by selecting suitable mounting locations for the woofer, midrange, and tweeter. Connect the drivers to an external MTX 380C crossover for optimized performance. The included Lotus grilles offer added protection for your components, ensuring they remain in top condition for years of listening enjoyment. Enjoy crisp, dynamic, and detailed sound from this audiophile-grade system that brings your music to life.
