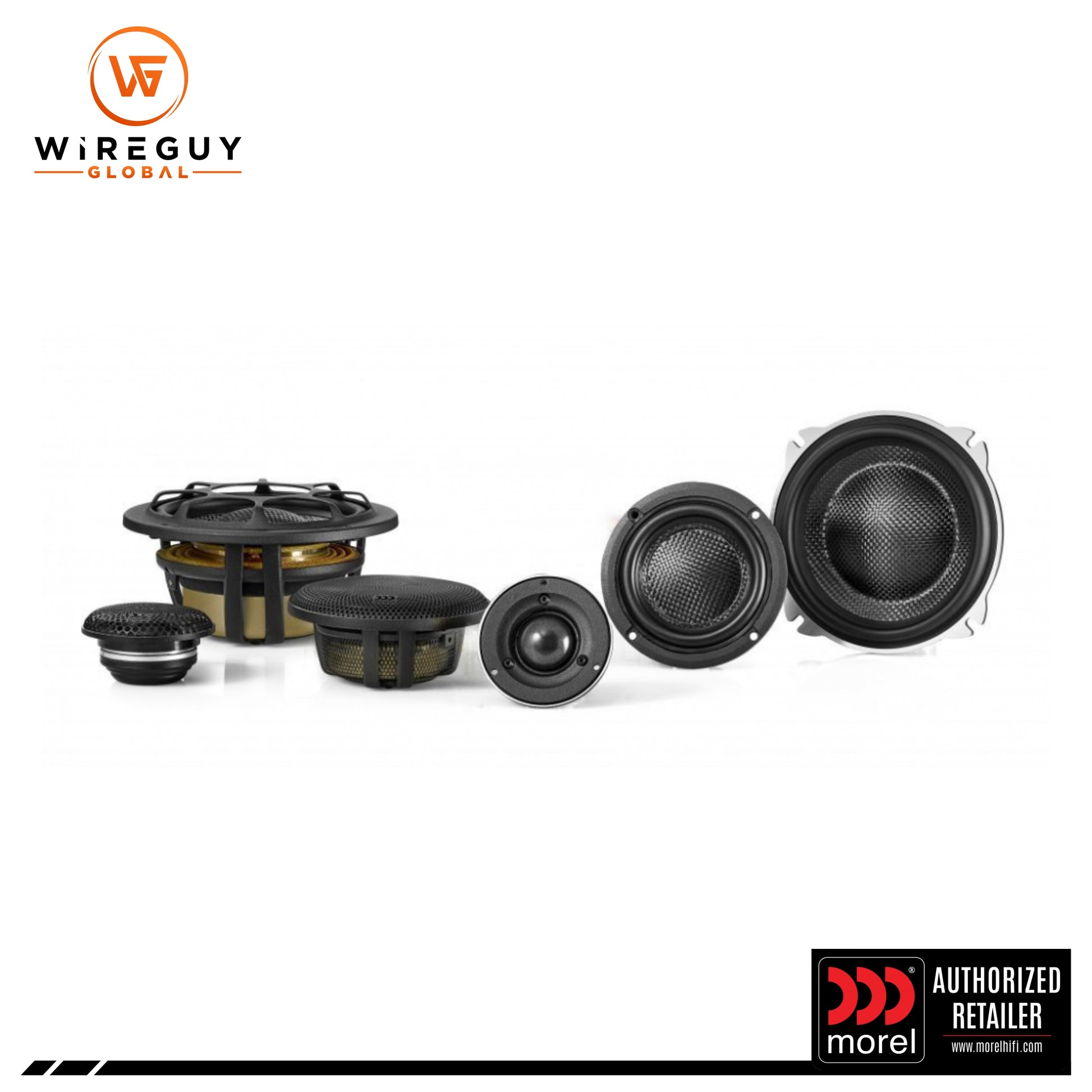

Morel Elate Carbon Pro 53A 3-Way 5.25" Active Split System

FREE SHIPPING available for this item with any payment method!

Morel Elate Carbon Pro 53A 3-Way 5.25" Active Split System: Unmatched Precision, Unrivaled Performance

The Morel Elate Carbon Pro 53A 3-Way 5.25" Active Split System represents the next evolution of the iconic Elate series. Designed for audiophiles who seek the pinnacle of sound performance, the Carbon Pro takes you on an immersive musical journey that will leave you in awe. With groundbreaking technologies and premium materials, this system sets a new standard in high-fidelity sound reproduction.

Ideal for those who demand the highest level of detail and power, the Elate Carbon Pro 53A delivers breathtaking performance, even at extreme volume levels. Featuring cutting-edge carbon fiber and Rohacell cone technology, it ensures every note is delivered with precision and clarity.

Key Features:

Elate Alto Cavity-Back Tweeter: The new Pro series features the Elate Alto cavity-back tweeter, a high-resolution design inspired by the Supremo Piccolo. This innovative tweeter design allows for superior detail and clarity in the high frequencies, ensuring an exceptional listening experience.

Carbon Fiber & Rohacell Cone Midrange & Woofers: The combination of carbon fiber and Rohacell cone technology in the midrange and woofers delivers extraordinary detail and power handling, making the system capable of extreme volume levels without distortion.

C.A.R. Filter™ (Controlled Acoustic Resistance): The C.A.R. Filter improves acoustic loading and controls airflow within the driver, mimicking the effects of a cabinet. This results in enhanced bass dynamics and up to 30% improved power handling, providing greater control over cone movement.

DMM Motor Technology: Morel’s DMM motor system generates more magnetic energy than a single magnet of similar size, improving efficiency and dynamic range. The system’s secondary magnet helps control stray magnetic flux, contributing to a more focused magnetic field and improved speaker shielding.

EVC™ Motor Technology: The EVC (External Voice Coil) design integrates a larger voice coil that is up to three times bigger than conventional designs, resulting in superior heat dissipation, power handling, and linearity. The EVC motor is more efficient and compact, offering improved performance and reduced distortion.

Handcrafted Acuflex Soft Dome: The Acuflex diaphragm is engineered with a specially applied damping compound to improve rigidity and clarity. This enhances the tweeter’s frequency response by counteracting unwanted break-up modes for smoother, more accurate sound reproduction.

Titanium Voice Coil Former: The titanium voice coil former offers a combination of high rigidity, light weight, and excellent heat transfer, improving heat dissipation and lowering distortion. This results in more accurate and highly responsive sound.

Lotus Grille: Inspired by the Lotus flower, the custom-designed Lotus grille provides an acoustically transparent solution that protects the speakers while minimizing distortion. The patented design reduces the "horn" effect often seen in traditional grilles.

Specification:

• Configuration: 3-Way Active Split System
• Driver Size: 133mm Woofer (W), 100mm Midrange (M), 69mm High-Frequency (H)
• Voice Coil Size: 75mm Woofer (W), 54mm Midrange (M), 28mm Tweeter (T)
• Frequency Response: 40 Hz - 25,000 Hz
• Crossover: MTX 380C (sold separately)
• Power Handling: 160W RMS, 1000W Max
• Sensitivity: 85dB
• Impedance: 4 Ohms
• Speaker Grilles: Included (Lotus grille design)

What's Included:

• 2x 5.25" Woofers
• 2x Midrange Drivers
• 2x High-Frequency Tweeters
• 1x Lotus Grille for each speaker
• Mounting Solutions for Tweeters & Midranges
• Installation Guide

Installation:

To install the Morel Elate Carbon Pro 53A Active Split System, start by selecting appropriate locations for the woofers, midrange drivers, and tweeters in your vehicle. The system’s active design requires an external crossover, the MTX 380C, which is sold separately and provides bi-amping and bi-wiring capabilities. Ensure the mounting locations are secure, and use the included solutions for optimal tweeter and midrange placement. The included Lotus grilles provide an acoustically transparent protective solution, maintaining sound integrity while protecting the drivers.
