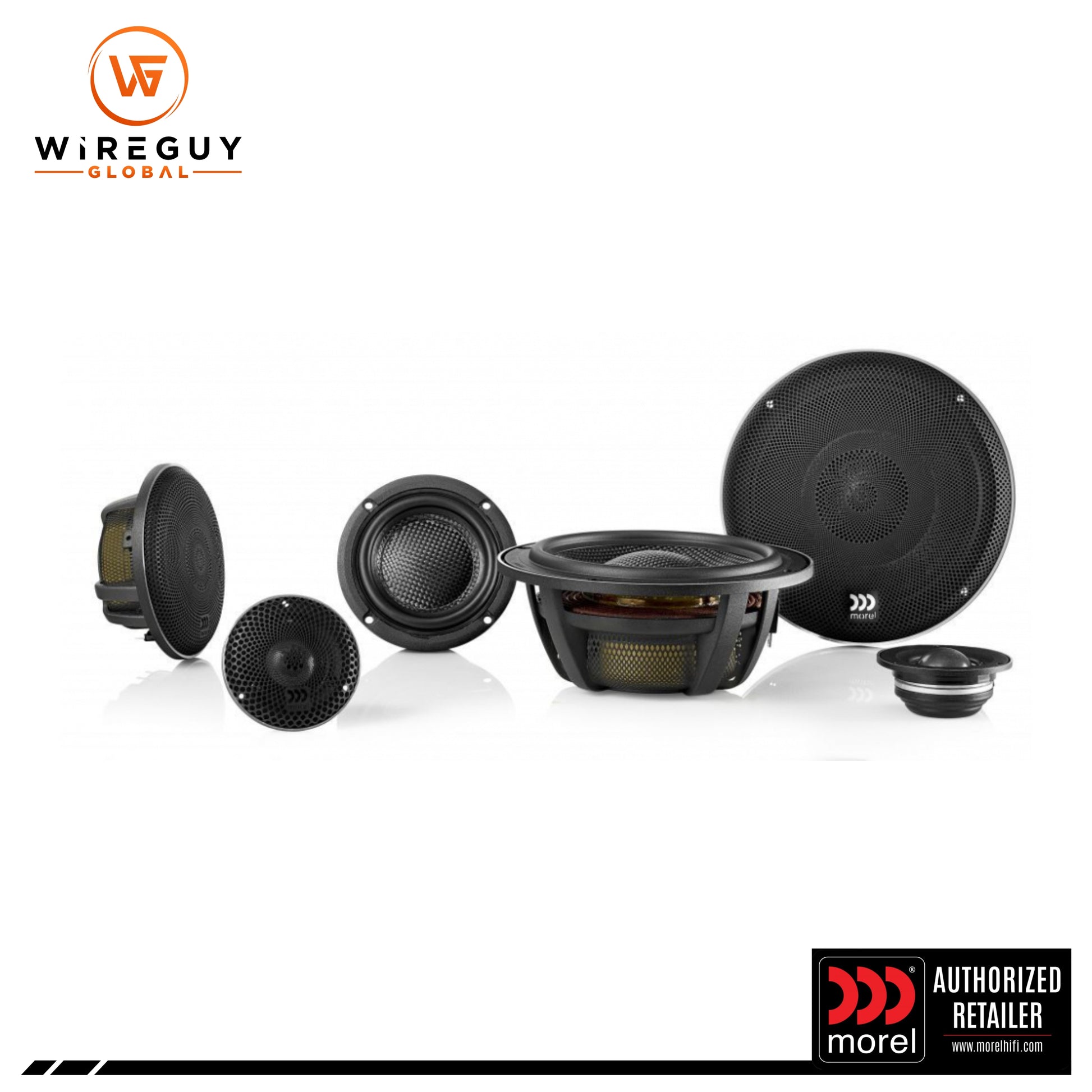

Morel Elate Carbon Pro 63A 3-Way 6.5" Active Split System

FREE SHIPPING available for this item with any payment method!

Morel Elate Carbon Pro 63A 3-Way 6.5" Active Split System: Elevating the Audiophile Experience

The Morel Elate Carbon Pro 63A 3-Way 6.5" Active Split System takes the legacy of the iconic Elate line to new heights. Designed for the true audiophile, this system offers breathtaking detail and a dynamic sound experience that will leave you immersed in every note. Whether you're looking for a passive or active setup, the Elate Carbon Pro delivers exceptional performance, even at extreme volumes.

Key Features:

Elate Alto Cavity-Back Tweeter: The Elate Alto tweeter, inspired by the Supremo Piccolo, is designed for high-resolution sound reproduction. With remarkable clarity and extended high frequencies, it delivers a precise and seamless soundstage, elevating the entire listening experience.

Carbon Fiber & Rohacell Cone Midrange and Woofers: The innovative combination of carbon fiber and Rohacell materials in the midrange and woofers ensures exceptional rigidity, low distortion, and unparalleled sound quality. The result is powerful, detailed performance that remains clear and accurate even at extreme volume levels.

MTX 380C Passive Crossover (sold separately): For those preferring a passive setup, the MTX 380C crossover is designed specifically for the Elate Carbon Pro series. It features bi-wiring and bi-amping capabilities with adjustable controls for midrange and tweeter levels, allowing for a fully customizable listening experience.

C.A.R. Filter™ (Controlled Acoustic Resistance): The C.A.R. Filter™ improves airflow within the driver, mimicking the effects of a cabinet while enhancing power handling by 30%. This results in greater control over the cone movement and improved bass dynamics.

DMM™ Motor System: Morel’s Double Magnet Motor (DMM™) system generates more magnetic energy than conventional designs, increasing efficiency and dynamic range. By controlling stray magnetic flux, the DMM system creates a more focused magnetic field for improved performance.

EVC™ (Extended Voice Coil) Motor System: The EVC™ motor system uses larger voice coils to improve heat dissipation, power handling, and linearity. The design increases efficiency by 90%, reduces distortion, and improves overall sound accuracy, creating a more compact and magnetically shielded system.

Handcrafted Acuflex™ Soft Dome: The Acuflex™ damping compound applied to the soft dome tweeters improves rigidity and damping, enhancing clarity and bandwidth. The controlled breakup modes of the diaphragm ensure smooth and accurate frequency response.

Titanium Voice Coil Former: The titanium voice coil former improves rigidity, heat dissipation, and power handling while reducing distortion. The result is a tonally balanced, accurate, and fast transient response, ensuring high-fidelity performance.

Lotus Grille: Inspired by the Lotus flower, the Lotus grille offers acoustic transparency while protecting the driver. Its unique design minimizes unwanted “horn” effects and provides a visually appealing aesthetic. The Lotus grille is a registered design protecting Morel’s intellectual property.

Specifications:

• Configuration: 3-Way Active Split System
• Driver Sizes: 165mm Woofer (W), 100mm Midrange (M), 69mm Tweeter (T)
• Voice Coil Sizes: 75mm Woofer (W), 54mm Midrange (M), 28mm Tweeter (T)
• Frequency Response: 30 Hz - 25,000 Hz
• Crossover: MTX 380C (sold separately)
• Power Handling: 180W RMS, 1000W Max
• Sensitivity: 87 dB
• Impedance: 4 Ohms
• Speaker Grilles: Lotus Grille Included

What’s Included:

• 1x Woofer
• 1x Midrange Driver
• 1x Tweeter
• 1x Lotus Grille (included for each driver)

Installation:

The Morel Elate Carbon Pro 63A system is designed for professional installation in an active setup to ensure optimal performance. For a passive setup, the MTX 380C crossover is required (sold separately) for proper tuning. The system provides a highly customizable listening experience when integrated with a compatible amplifier and speaker placement.
