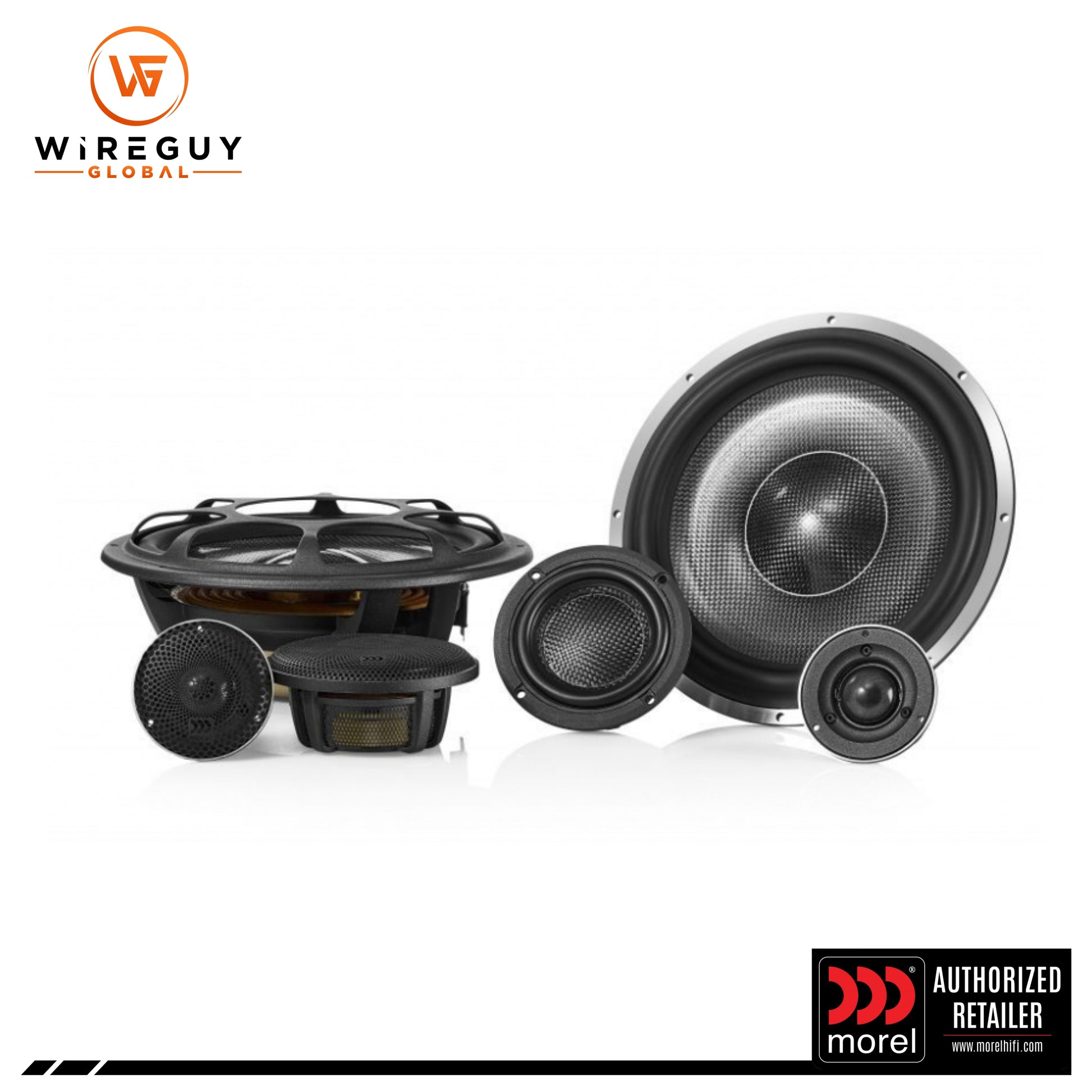

Morel Elate Carbon Pro 93A 3-Way 9" Active Split System

FREE SHIPPING available for this item with any payment method!

Morel Elate Carbon Pro 93A 3-Way 9" Active Split System: Unrivaled Sound, Unmatched Performance

The Morel Elate Carbon Pro 93A 3-Way 9" Active Split System marks the evolution of Morel’s legendary Elate series, pushing the boundaries of high-fidelity sound. Developed to deliver an immersive musical experience, the Elate Carbon Pro combines cutting-edge technology and craftsmanship to bring breathtaking detail, even at extreme volume levels. Whether you’re an audiophile or a car audio enthusiast, the Carbon Pro will elevate your system to new heights.

Key Features:

Elate Alto Cavity-Back Tweeter: The new Pro series features the Elate Alto tweeter, a high-resolution design inspired by the Supremo Piccolo. This tweeter offers remarkable clarity, precise imaging, and extended high frequencies, creating a seamless soundstage for an unparalleled listening experience.

Carbon Fiber & Rohacell Cone Midrange and Woofers: Combining carbon fiber and Rohacell materials, the midrange and woofers offer exceptional rigidity and low distortion. This results in breathtaking performance with unparalleled detail and accuracy, even at high volumes.

MTX 380C Passive Crossover (sold separately): For those preferring a passive setup, the MTX 380C crossover is designed specifically for the Carbon Pro series. It features bi-wiring and bi-amping capabilities, with adjustable controls for midrange and tweeter, allowing for a fully customizable listening experience.

C.A.R. Filter™ (Controlled Acoustic Resistance): The C.A.R. Filter™ technology controls airflow within the driver, enhancing bass dynamics and improving power handling by 30%. This ensures deep, powerful bass without distortion, even at high volumes.

DMM Motor System: Morel’s Double Magnet Motor (DMM) system generates more magnetic energy than conventional designs, increasing efficiency and dynamic range. The secondary magnet helps control stray magnetic flux, creating a more focused magnetic field for improved performance.

EVC™ (Extended Voice Coil) Motor System: The EVC™ motor system utilizes larger voice coils for better heat dissipation, power handling, and linearity. This design increases efficiency by 90%, reduces distortion, and improves sound accuracy, creating a more compact and magnetically shielded system.

Handcrafted Acuflex™ Soft Dome: The Acuflex™ coating on the soft dome tweeters improves rigidity and damping, resulting in clearer, more accurate sound. This technology reduces distortion and ensures a smooth frequency response across the full range of audio.

Titanium Voice Coil Former: The titanium voice coil former reduces eddy currents, improves heat dissipation, and lowers distortion. This advanced material ensures high rigidity, lightweight construction, and exceptional power handling.

Lotus Grille: The included Lotus grille offers acoustic transparency while protecting the speaker. Inspired by the Lotus flower, its unique design minimizes unwanted “horn” effects, providing an elegant aesthetic while preserving sound quality.

Specifications:

• Configuration: 3-Way Active Split System
• Driver Sizes: 222mm Woofer (W), 100mm Midrange (M), 69mm Tweeter (T)
• Voice Coil Sizes: 75mm Woofer (W), 54mm Midrange (M), 28mm Tweeter (T)
• Frequency Response: 25 Hz - 25,000 Hz
• Crossover: MTX 380C (sold separately)
• Power Handling: 200W RMS, 1000W Max
• Sensitivity: 89 dB
• Impedance: 4 Ohms
• Speaker Grilles: Included

What’s Included:

• 1x 9" Woofer
• 1x Midrange Driver
• 1x Tweeter
• 1x Lotus Grille (included for each driver)

Installation:

The Morel Elate Carbon Pro 93A system is designed for professional installation in an active setup, ensuring optimal performance. To install, integrate the system with a compatible amplifier and ensure proper placement of each driver (woofer, midrange, and tweeter). The MTX 380C crossover, sold separately, is required for tuning and optimal performance in a passive configuration.
