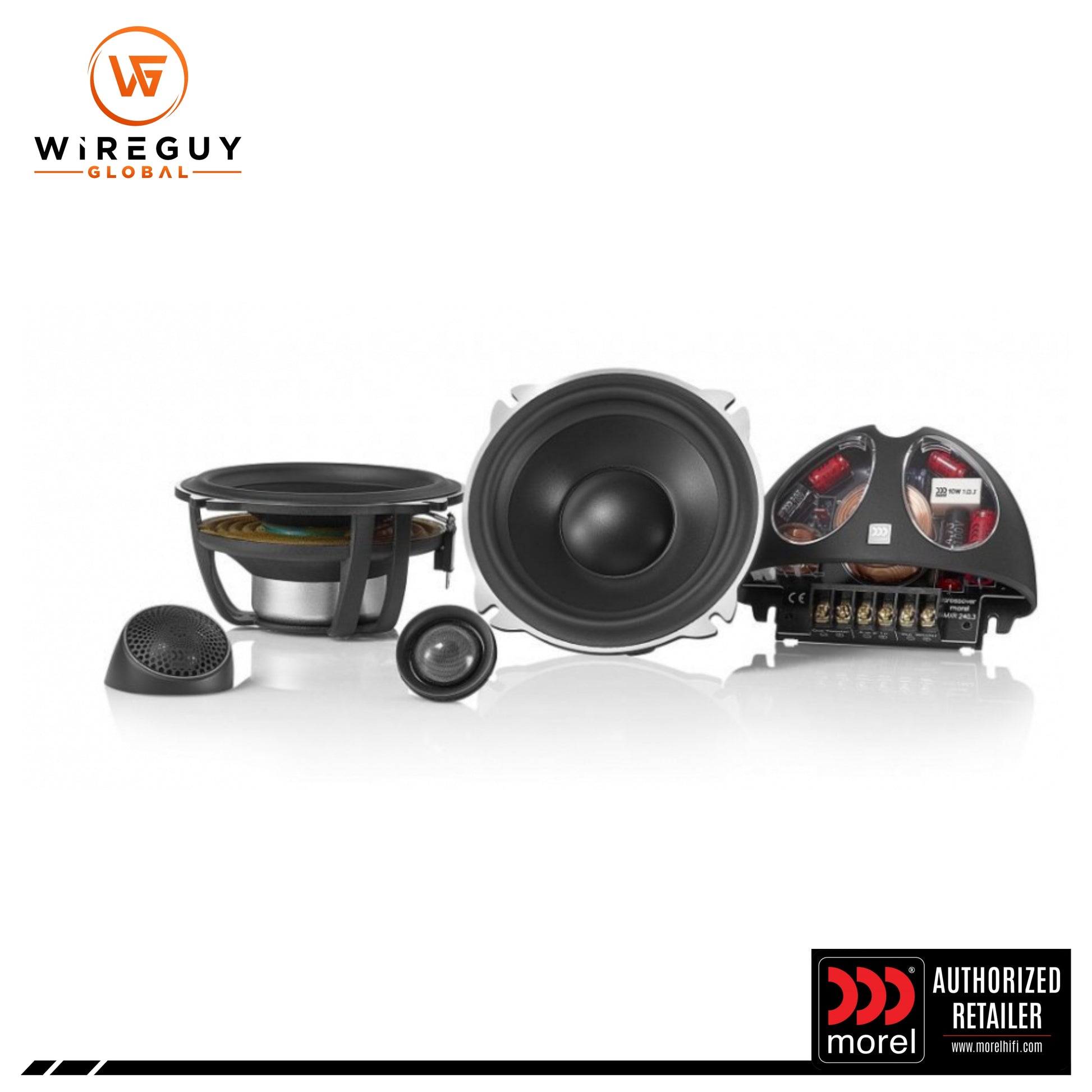

Morel Hybrid 4" 2-Way Component Split System

FREE SHIPPING available for this item with any payment method!

Morel Hybrid 4" 2-Way Component Split System: Premium Sound for Audiophile-Grade Systems

The Morel Hybrid 4" 2-Way Component Split System delivers an exceptional audio experience, reflecting Morel's dedication to craftsmanship and innovation. A part of the fifth-generation Hybrid series, this system is designed to captivate listeners with a refined blend of resolution, power, and efficiency, making it perfect for a wide range of music genres. Whether you're upgrading your car audio system or seeking to enhance an existing setup, the Hybrid system is engineered to bring the raw emotion of live music to your speakers.

Key Features:

Fifth-Generation Hybrid Technology: Building on Morel's legendary reputation, the Hybrid system offers even greater resolution and power handling, giving you a truly immersive listening experience.

C.A.R. Filter™ Technology: The Controlled Acoustic Resistance filter improves bass dynamics by managing airflow within the driver, simulating the effects of a cabinet and enhancing power handling by 30%.

EVC™ Motor System: The voice coil is up to three times larger than conventional designs, improving heat dissipation, power handling, and linearity. The EVC™ architecture eliminates stray magnetic flux, directing all magnetic energy to the voice coil for superior performance.

Acuflex™ Soft Dome Tweeter: The handcrafted damping compound applied to the soft dome adds rigidity and reduces distortion, delivering improved clarity and bandwidth for a smoother frequency response.

Hexatech™ Aluminium Voice Coil: Made from 100% aluminum wire shaped like a honeycomb, this lightweight voice coil reduces air gaps, boosting efficiency and fast transient response.

Hybrid Magnet Motor: A powerful combination of ferrite and neodymium magnets creates a compact, lightweight motor system that’s up to four times more powerful than conventional designs of the same size, providing flawless performance.

Paper Composite Cone: Ultra-lightweight yet durable, the paper cone material ensures exceptional sound quality, even with smaller motors and voice coils.

Grilles Included: Protection for your components, ensuring durability and longevity.

Specifications:

• Configuration: 2-Way Split System
• Driver Size: 104mm (W), 50mm (H)
• Voice Coil Size: 54mm (W), 10.5mm (H)
• Frequency Response: 50Hz - 4200Hz
• Crossover: External MXR240.3 Crossover
• Tweeter: MT300
• Midrange: CDM700
• Power Handling: 100W RMS, 300W Max
• Sensitivity: 89dB
• Impedance: 4 Ohms
• Speaker Grilles: Included

What’s Included:

• 1x Morel Hybrid 4" 2-Way Component Split System
• 2x Grilles (Included)
• External MXR240.3 Crossover

Installation:

To install the Morel Hybrid 4" 2-Way Component Split System, begin by selecting suitable mounting locations for the midrange and tweeter. Connect the drivers to the external MXR240.3 crossover and adjust the setup to match your system’s requirements. The included grilles offer additional protection for your components. Enjoy improved sound clarity and powerful bass with this high-performance component system.
